John Boos

John Boos B-Series 1-Compartment Stainless Steel Sink with Left and Right Drainboards

SKU: 1B18244-2D24-X
$1,151.40
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

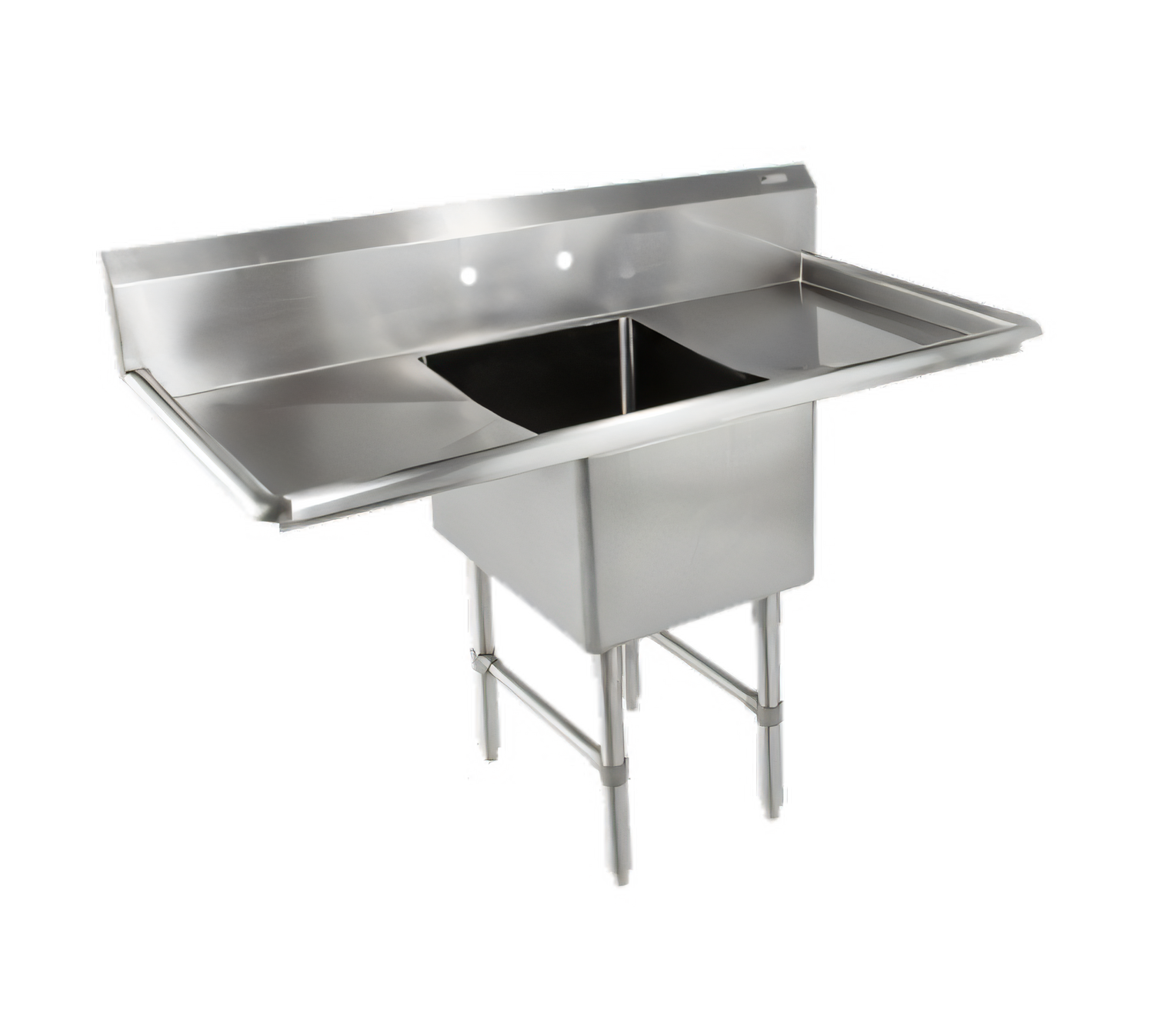

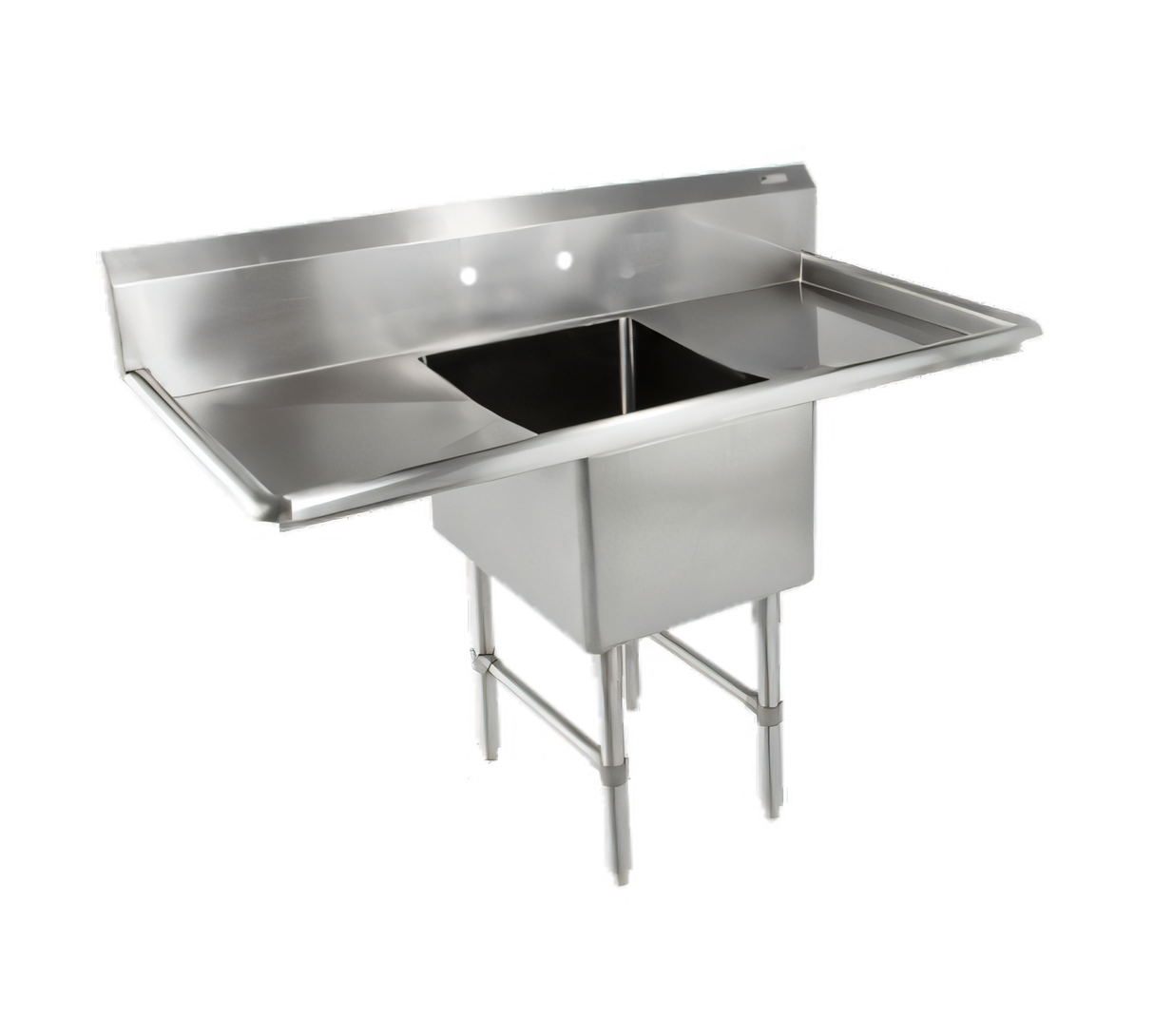

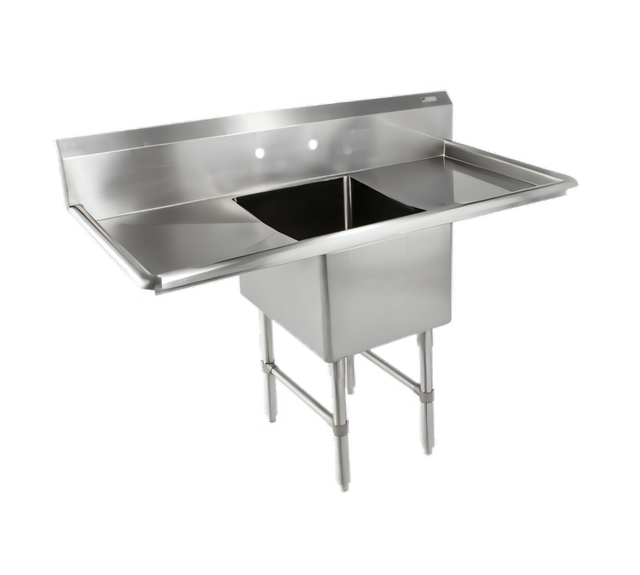

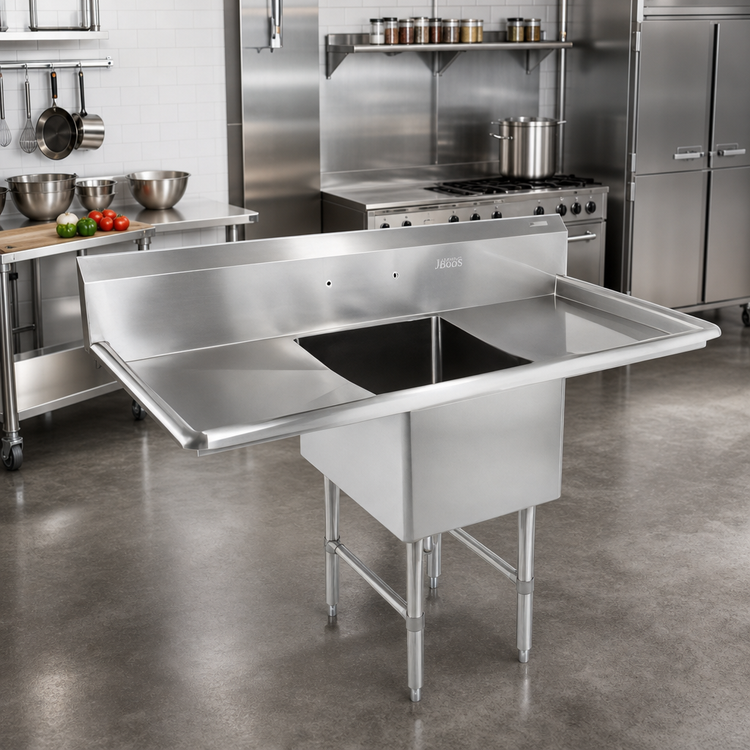

John Boos B-Series 1-Compartment Stainless Steel Sink with Left and Right Drainboards

69-1/4 Inch Wide, 18 x 24 x 14-Inch Bowl, 10-Inch Backsplash

Built for heavy-duty prep and cleanup, this floor-mounted sink combines a deep single bowl with dual drainboards and a protective 10-inch backsplash.

  • One-compartment sink with 24-inch left and right drainboards for staging and drip-drying.
  • 18 x 24 x 14-inch bowl provides a roomy wash area for prep and cleanup tasks.
  • 16-gauge Type 300 stainless steel construction delivers long-lasting durability.
  • 10-inch boxed backsplash with a 45° return helps protect adjacent walls from splashes.
  • Stainless steel legs, side bracing, and adjustable bullet feet provide a stable floor base.
  • Splash-mount faucet holes with 8-inch centers simplify faucet installation.

Overall Dimensions:

69.25"W x 29.5"D x 44.0"H

Product Weight:

85.0 lb

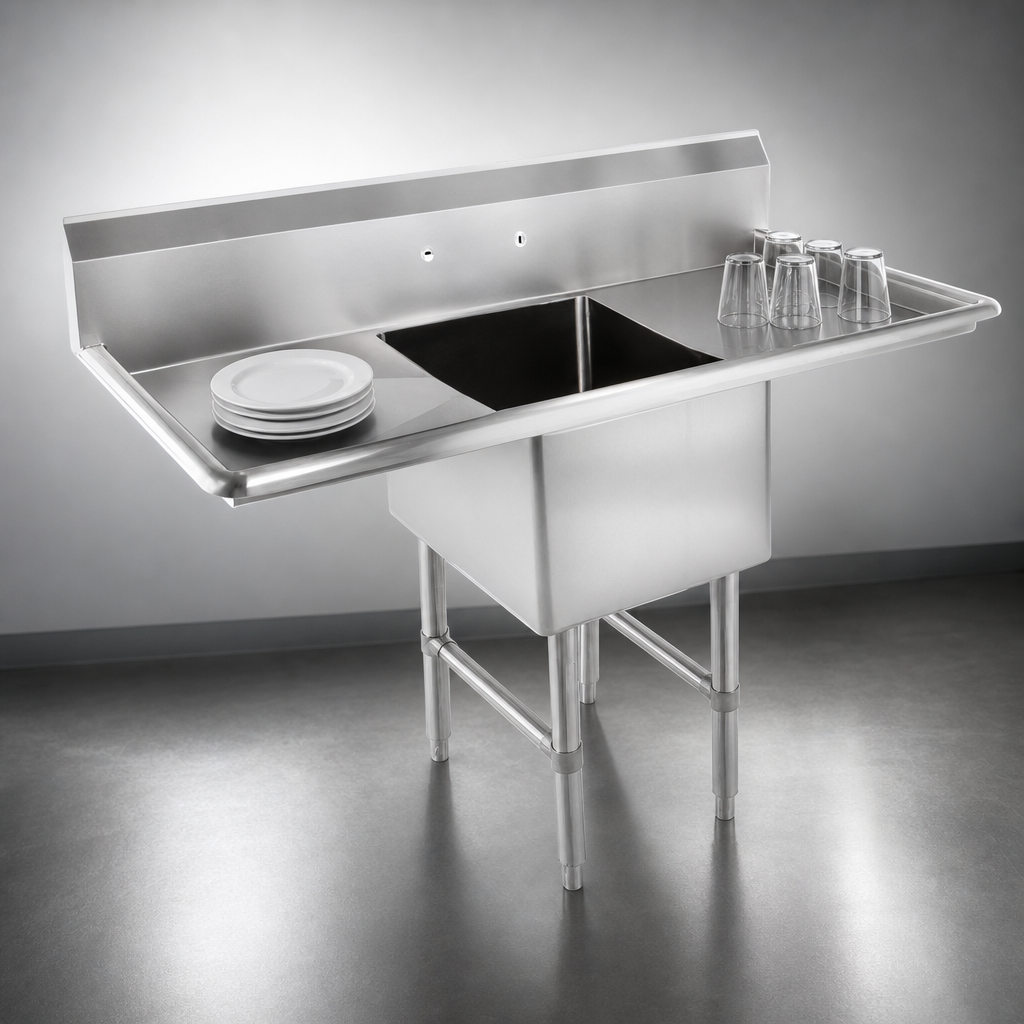

Dual Drainboards

24-inch drainboards on both the left and right side add valuable landing and drying space.

Deep Single Bowl

The 18 x 24 x 14-inch compartment offers plenty of room for washing and utility use.

16-Gauge Stainless Steel Top and Bowl

Type 300 stainless steel construction with a satin finish is built for commercial durability.

Boxed Backsplash

A full-length 10-inch backsplash with a 45-degree top return helps contain water and protect the wall.

Sanitary Bowl Design

Coved vertical and horizontal corners and a formed bottom support easier cleaning and drainage.

Die-Stamped Drain Opening

The 3-1/2-inch drain opening is formed to promote proper bowl drainage.

Stainless Steel Base

Stainless steel legs, adjustable side bracing, gussets, and bullet feet provide strength and stability.

Faucet Hole Provision

One set of splash-mount faucet holes with 8-inch centers is included for faucet mounting.

Type Compartment Sink
Style 1-Compartment With Left and Right Drainboards
Installation Type Floor Model
Compartments 1
Material Stainless Steel
Finish Satin Finish
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Compartment Width 18 Inches
Compartment Front To Back 24 Inches
Bowl Depth 14 Inches
Backsplash Height 10 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Base Type Legs with Side Bracing
Selling Unit Each
Units Per Case 1
Shipping Width 70 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 85 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has one compartment.
Yes. It includes left and right 24-inch drainboards.
The bowl measures 18 inches wide, 24 inches front to back, and 14 inches deep.
It has a full-length 10-inch boxed backsplash with a 45-degree top and a 2-inch return to the wall.
The sink includes one set of splash-mount faucet holes with 8-inch centers.
Accessories mentioned in the documentation include faucets, add-a-faucets, pre-rinse units, lever waste, overshelves, and pot racks.
