John Boos

John Boos B Series 1-Compartment Sink with Right Drainboard and 10-Inch Backsplash

SKU: 1B18244-1D18R-X
$973.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

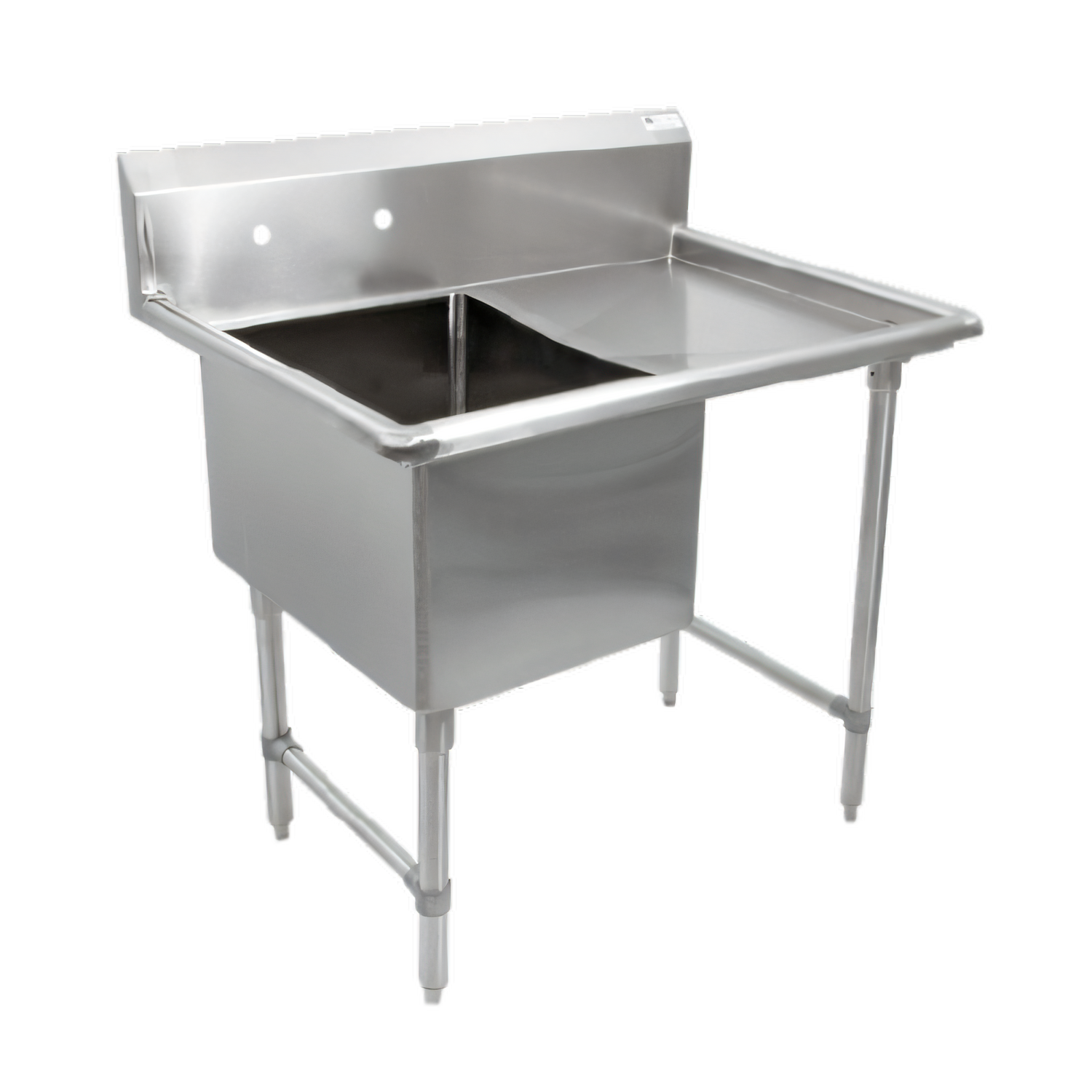

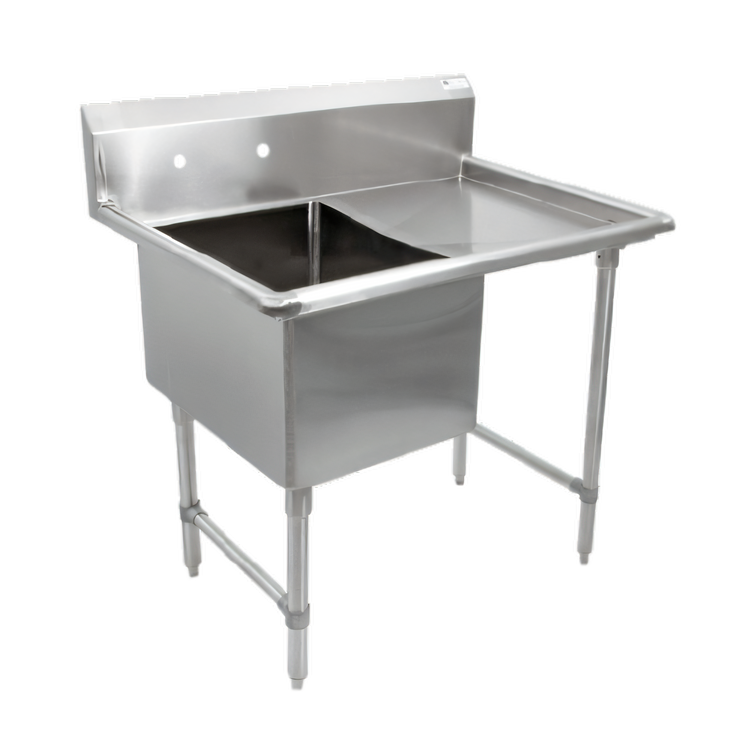

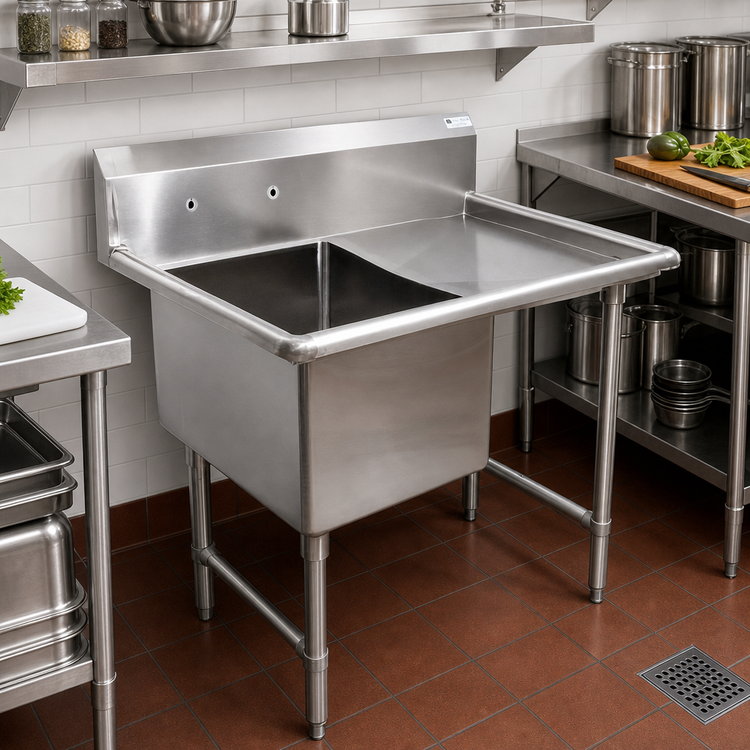

John Boos B Series 1-Compartment Sink with Right Drainboard and 10-Inch Backsplash

18" x 24" x 14" Bowl, 16-Gauge 300 Series Stainless Steel, Stainless Steel Legs

Built for efficient prep and cleanup, this B Series sink combines a single 18" x 24" x 14" basin with an 18" right drainboard and a tall stainless backsplash.

  • 1-compartment sink layout provides a dedicated wash station for small to medium prep tasks.
  • 18" right drainboard adds space for draining, staging, and wet item handling.
  • 10" boxed backsplash with 45° top and 2" return helps contain splashes.
  • 16-gauge 300 series stainless steel top is built for demanding commercial use.
  • Stainless steel legs with adjustable side bracing and bullet feet provide stable support.
  • Splash-mount faucet holes with 8" centers simplify faucet installation.

Overall Dimensions:

40.18"W x 29.5"D x 44.0"H

Product Weight:

70.0 lb

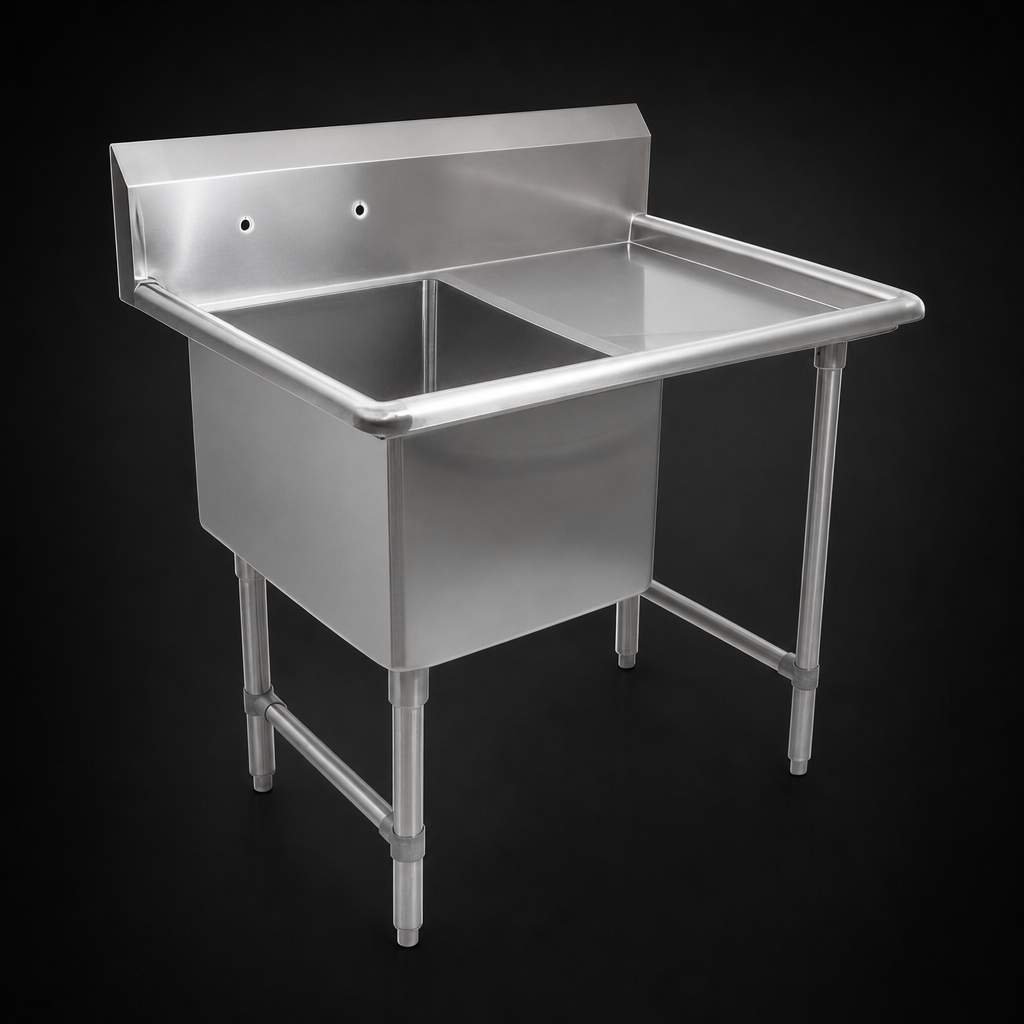

Single Compartment Sink

One 18" W x 24" front-to-back x 14" deep compartment provides a practical wash basin for prep areas.

Right Drainboard

An integrated 18" right-hand drainboard offers extra landing space for wet dishes, utensils, or produce.

Tall Backsplash

The 10" boxed backsplash with a 45° top and 2" return helps reduce splatter against the wall.

Splash-Mount Faucet Holes

Supplied with one set of splash-mount faucet holes on 8" centers for faucet installation.

Heavy-Duty Stainless Construction

Built with 16-gauge 300 series stainless steel for durability and corrosion resistance.

Stainless Steel Leg Base

Stainless steel legs with adjustable side bracing and bullet feet help provide a stable, adjustable base.

Die-Stamped Drain Opening

3-1/2" die-stamped drain opening supports drainage from the sink bowl.

Type Sink
Style B Series
Installation Type Floor Model
Compartments 1
Drainboard Position Right-Hand
Base Type Legs with Side Crossrails
Material 300 Series Stainless Steel
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Compartment Width 18 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Splash Height 10 Inches
Faucet Holes 1 Set, 8 Inches Centers
Drain Opening 3-1/2 Inches
Base Construction Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 41 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 70 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The sink includes one compartment measuring 18" wide x 24" front-to-back x 14" deep.
Yes, it includes an 18" right-hand drainboard.
Overall size is 40-3/16" W x 29-1/2" D x 44" H.
It comes with one set of splash-mount faucet holes on 8" centers.
The sink uses 16-gauge 300 series stainless steel construction with stainless steel legs.
