John Boos

John Boos B Series 1-Compartment Stainless Steel Sink with Left Drainboard and 10-Inch Backsplash

SKU: 1B18244-1D18L-X
$973.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

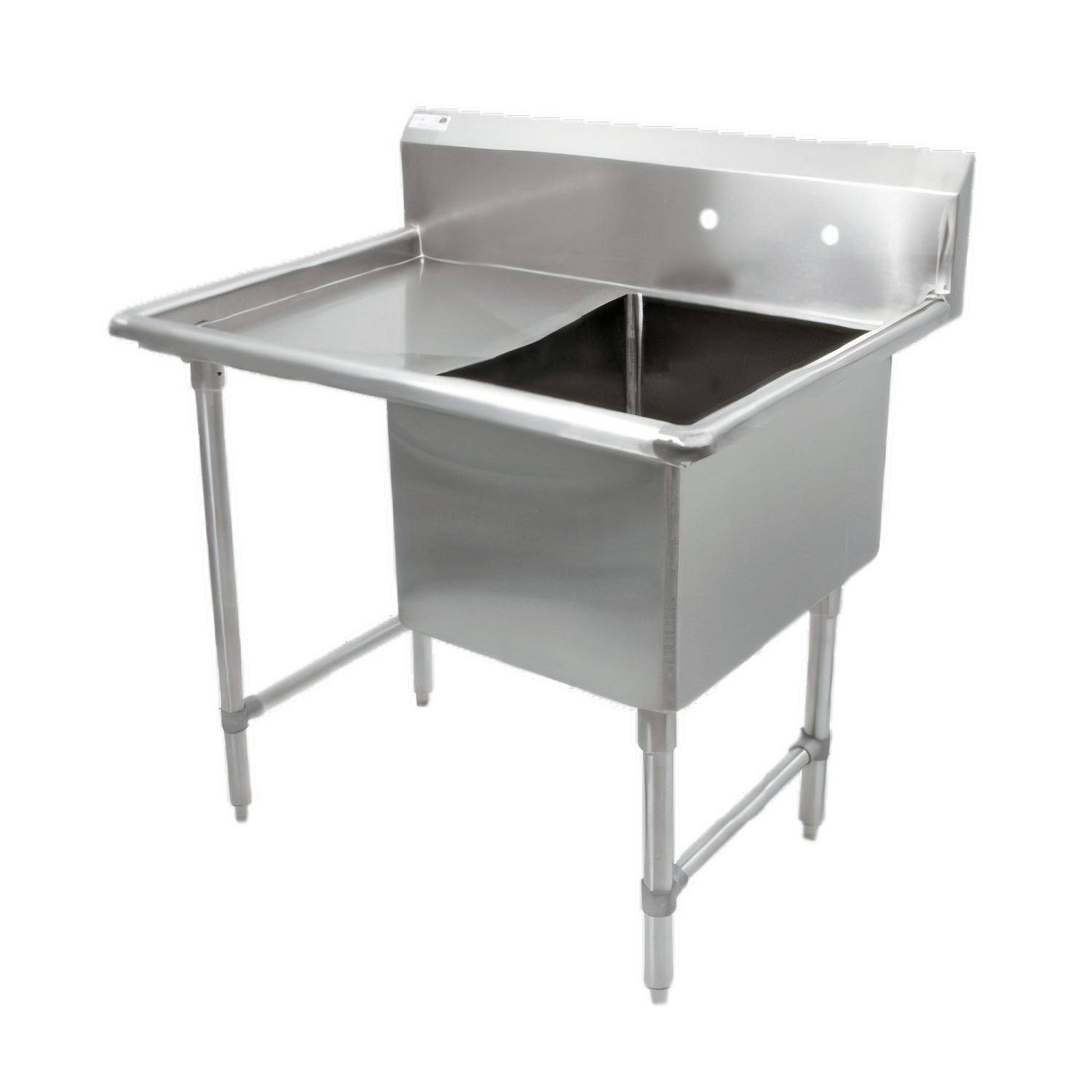

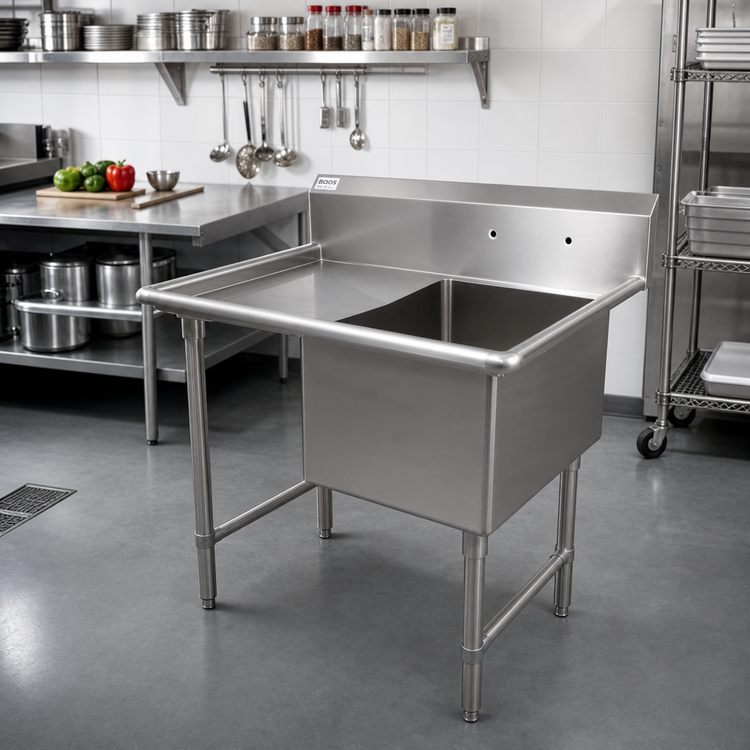

John Boos B Series 1-Compartment Stainless Steel Sink with Left Drainboard and 10-Inch Backsplash

Floor Model with Legs, 16-Gauge, 18" x 24" x 14" Bowl

A rugged floor-model sink built for commercial prep areas, combining a roomy 1-compartment bowl, left drainboard, and durable 16-gauge stainless steel construction.

  • Single-compartment design for general prep, wash, and utility tasks.
  • 18" x 24" x 14" bowl offers ample room for cookware and cleanup.
  • Left-hand 18" drainboard adds convenient landing space.
  • 10" boxed backsplash with 45° top and 2" return helps contain splashes.
  • 16-gauge stainless steel top with stainless steel legs, side bracing, and bullet feet delivers durability and stability.
  • Splash-mount faucet holes and a 3-1/2" die-stamped drain opening support straightforward installation.

Overall Dimensions:

40.18"W x 29.5"D x 44.0"H

Product Weight:

70.0 lb

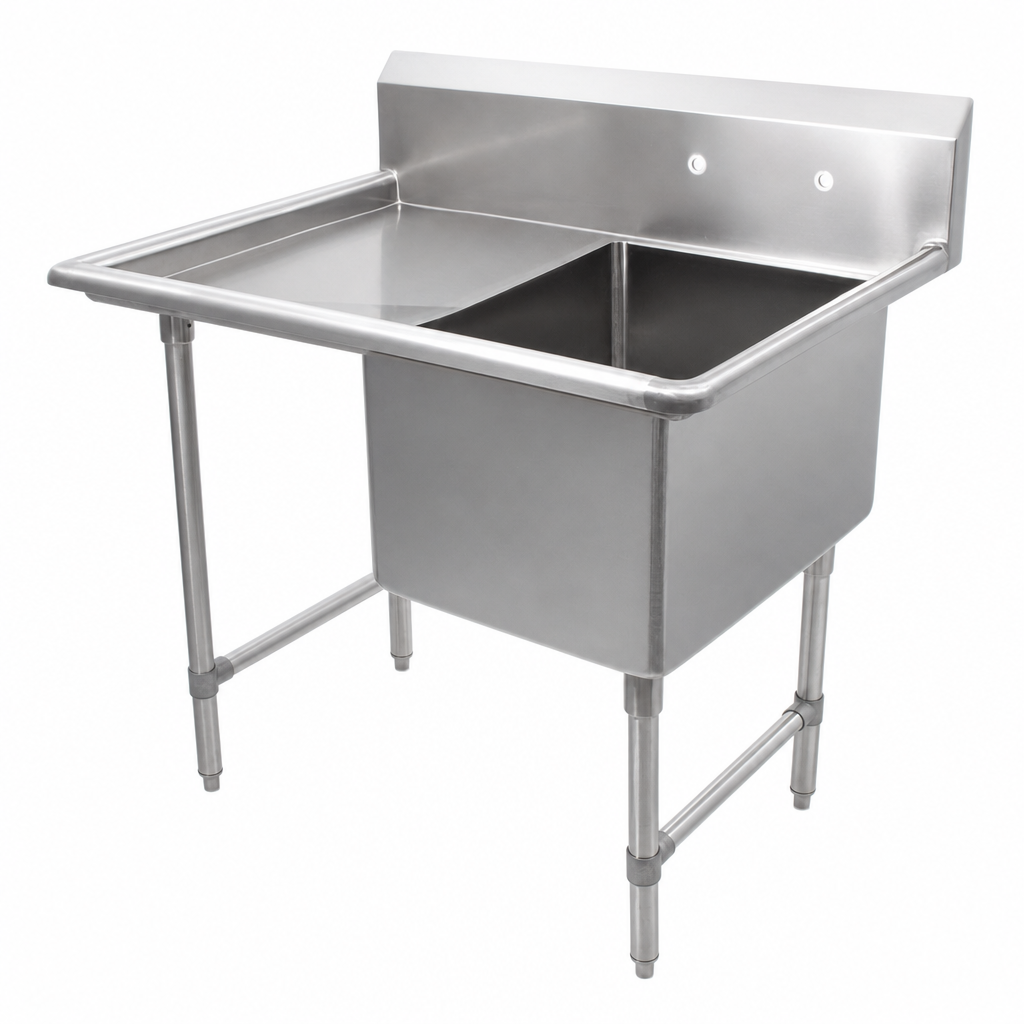

1-Compartment Bowl

Single bowl configuration measures 18" side-to-side x 24" front-to-back x 14" deep.

Left-Hand Drainboard

18-inch drainboard provides a convenient area for staging dishes, pans, or prep items.

10-Inch Boxed Backsplash

Backsplash includes a 45° top and 2-inch return to help reduce wall splashing.

16-Gauge Stainless Steel Construction

Built with 300-series stainless steel for commercial durability and corrosion resistance.

Stainless Steel Leg Base

Legs with adjustable side bracing provide a sturdy floor-mount support structure.

Adjustable Bullet Feet

Helps level the sink on uneven floors.

Splash-Mount Faucet Holes

One set of faucet holes is spaced on 8-inch centers for standard installation.

Die-Stamped Drain Opening

3-1/2-inch drain opening is formed for reliable drainage connection.

Type 1-Compartment Sink
Style B Series
Installation Type Floor Model (With Legs)
Material Stainless Steel
Top Gauge 16 Gauge
Compartments 1
Base Type Legs With Side Crossrails
Drainboard Configuration Left-Hand Drainboard
Splash Height 10 Inches
Compartment Width 18 Inches
Compartment Depth 24 Inches
Sink Depth 14 Inches
Drain Opening 3-1/2 Inches
Faucet Hole Centers 8 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 41 Inches
Shipping Depth 30 Inches
Shipping Height 44 Inches
Shipping Weight 70 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Video assembly instructions PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The sink has one compartment measuring 18" wide x 24" front-to-back x 14" deep.
Yes. It includes an 18-inch left-hand drainboard.
It has a 10-inch boxed backsplash with a 45° top and 2-inch return.
The sink includes one set of splash-mount faucet holes with 8-inch centers.
Use clean soft towels, clean sponges, or plastic scouring pads with non-chloride cleaners. Avoid wire brushes, metal scrapers, and steel scouring pads.
