John Boos 1B18244-1D18L Compartment Sinks
$1,211.90
Unit price
/
Unavailable
Description

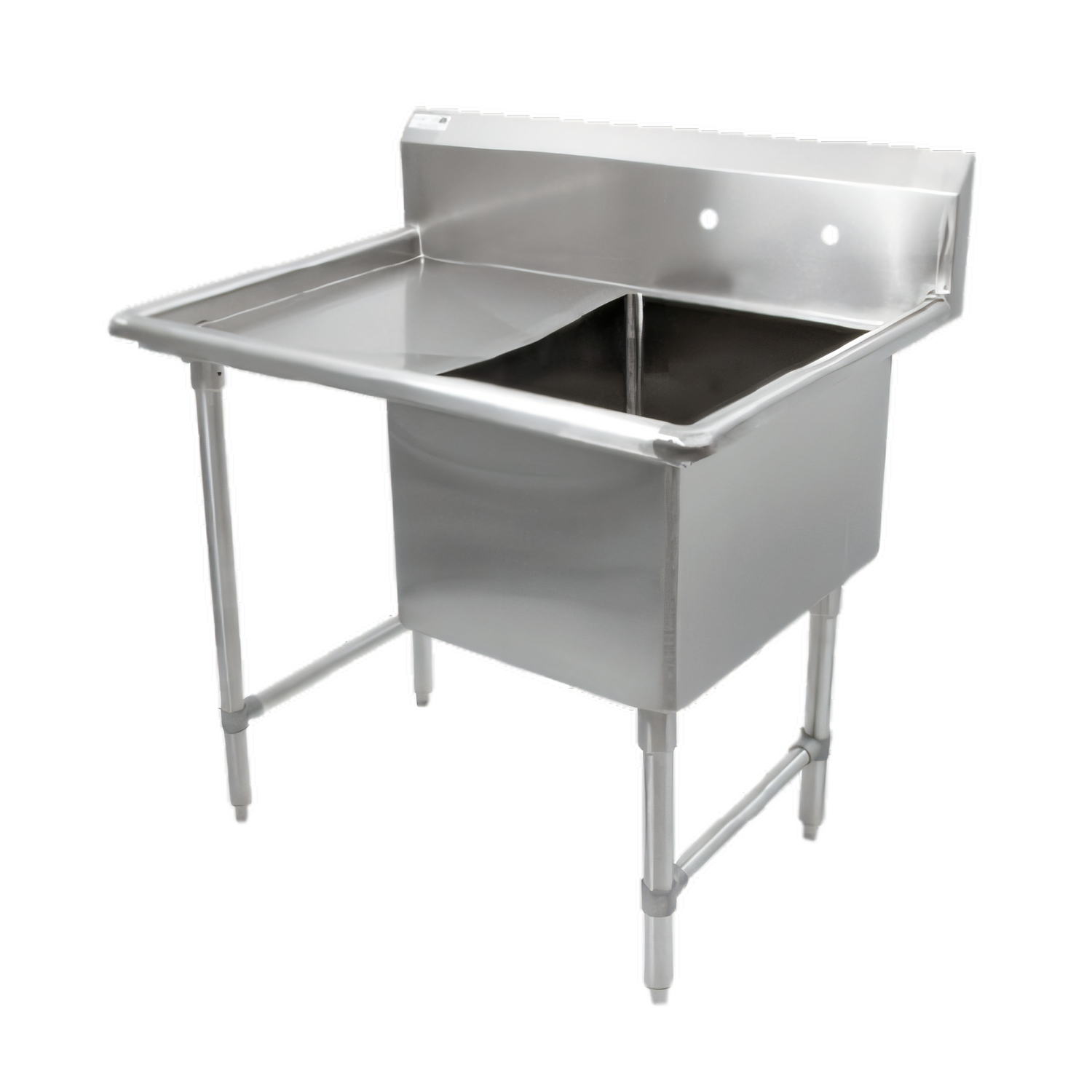

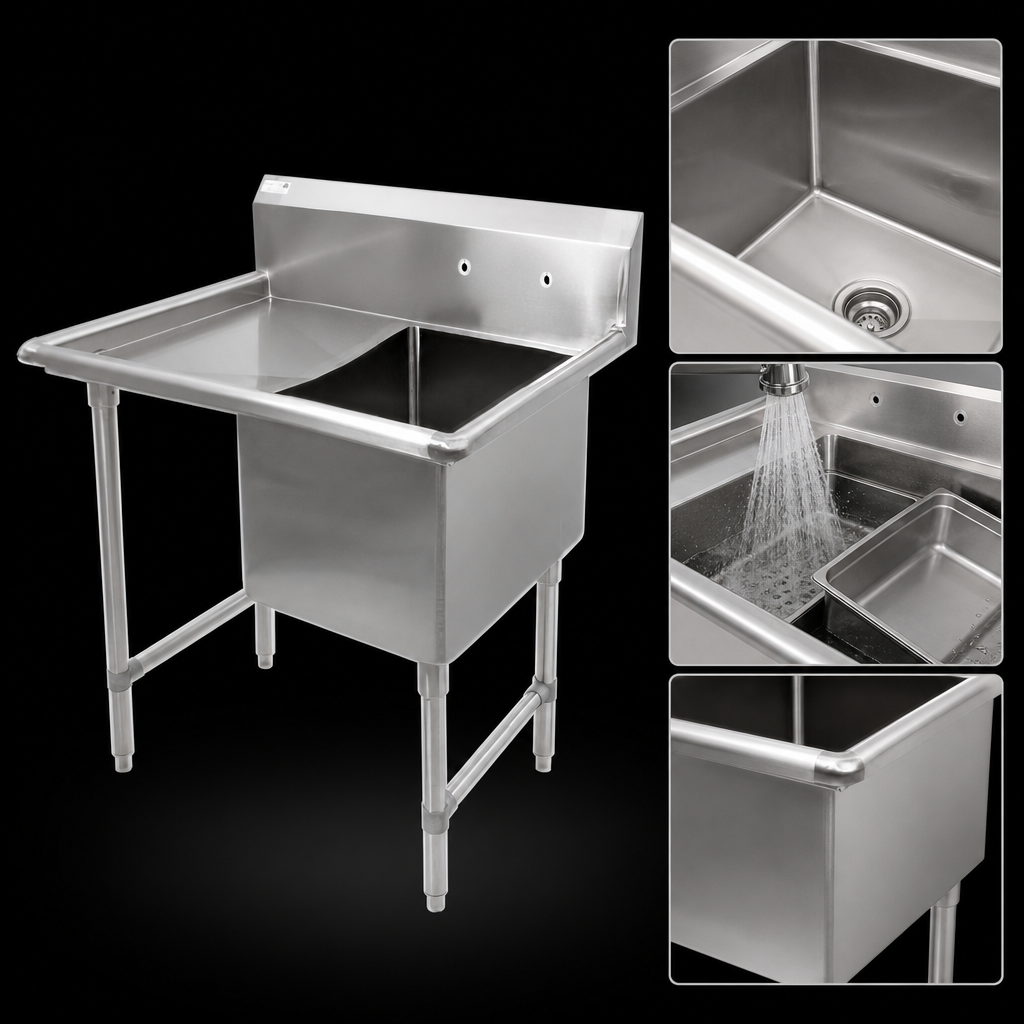

John Boos 1B18244-1D18L “B” Series 1-Compartment Sink with 18" Left Drainboard
40 3/16" W × 29 1/2" D × 44" H | 16-Gauge Type 300 Stainless SteelEngineered for high-volume food-service environments, this NSF- and CSA-Sanitation certified sink delivers professional-grade durability, a generous 14" deep bowl, and a convenient left-hand drainboard—all in rugged 16-gauge stainless steel that stands up to years of daily use.
Key features
- Spacious 18" × 24" × 14" compartment handles large stock pots and sheet pans with ease
- 18" integral left drainboard speeds drying and staging tasks
- 10" boxed backsplash with 2" 45° return keeps walls dry and sanitary
- (2) 1" splash-mount faucet holes on 8" centers—ready for most commercial faucets
- 3 ½" die-stamped drain opening accepts standard lever-waste drains
- 16-gauge Type 300 stainless steel with #4 satin polish resists corrosion and wipes clean
- 1 5/8" Ø stainless legs with adjustable bullet feet level the unit on uneven floors
- 1 1/4" Ø stainless side bracing adds rock-solid stability and adjusts as needed
- Coved 3/4" radius corners (vertical & horizontal) reduce food build-up and simplify cleaning
- TIG-welded top; exposed welds are ground and polished to match surrounding finish
Detailed specifications
| Model | 1B18244-1D18L |
|---|---|
| Compartments | 1 |
| Overall size | 40 3/16" W × 29 1/2" D × 44" H |
| Bowl size (L × F-B × Depth) | 18" × 24" × 14" |
| Drainboard | 18" (left-hand, integral) |
| Backsplash | 10" H boxed, 2" return, 45° top, 1" turned-down rear lip |
| Faucet drilling | (2) 1" holes on 8" centers |
| Drain opening | 3 ½" diameter, die-stamped |
| Material / finish | 16-ga Type 300 stainless, #4 satin polish |
| Legs | Stainless, 1 5/8" Ø with adjustable bullet feet |
| Side bracing | Stainless, 1 1/4" Ø, adjustable |
| Certifications | NSF, CSA-Sanitation |
Optional accessories (sold separately)
- 8" center splash-mount faucets & add-a-faucets
- Lever-waste drain assemblies
- Pre-rinse units for fast scrubbing
- Over-shelves or pot racks for added storage
Installation note: This configuration ships with an 18" left-hand drainboard.
Verify orientation before ordering to ensure proper workflow in your space.
Care & maintenance
- Clean daily with mild, non-chloride detergent and a soft cloth or sponge
- Avoid abrasive pads, wire brushes, or chlorine bleach
- For stubborn stains, use Bar Keepers Friend, rubbing with the grain of the steel
- Restore shine with John Boos Stainless Steel Cleaner
Looking for a different size or a right-hand drainboard? Explore the full John Boos B-Series sink collection.
Features & Specs
Features & Specs
Manufacturer
John Boos
Certifications
NSF, CSA-Sanitation
Height
44.0in
Width
40.18in
Depth
29.5in
Shipping Weight
70.0lbs
Base Type
legs with side crossrails
Drainboards
with left-hand drainboard
Top Gauge
16 gauge
Compartment (front - back)
24"
Top Stainless Series
300 series
Base Construction
stainless steel
Overall Length
40" - 53"
Splash Height
10"
Compartment Width (side - side)
18"
Sink Depth (rim - drain)
14"
Specifications
"B" Series Sink, 1-compartment, 40-3/16"W x 29-1/2"D x 44"H overall size, (1) 18"W x 24" front-to-back x 14" deep compartment, (1) 18" left drainboard, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation
