Key specifications

Dimensions
21.13"W × 25.5"D × 44.0"H
Type
Compartment Sink
Installation Type
Floor Model
Material
Stainless Steel
Finish
Satin Finish
Compartments
1
Spec sheet
John Boos SKU: 1B16204 UPC: 662969210915

John Boos 1B16204 1-Compartment Floor Sink, 16 x 20 x 14

$882.09
/each
Estimated to ship in 26–29 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Factory Add-Ons
Included: John Boos warranty 1-year warranty against defects in material and workmanship

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $82/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Installation Type Floor Model
Material Stainless Steel
Finish Satin Finish
Compartments 1
Compartment Width 16 in
Compartment Front-to-Back 20 in
Compartment Depth 14 in
Splash Height 10 in
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Drainboards Without Drainboards
Base Type Legs with Side Crossrails
Faucet Hole Type Splash Mount
Faucet Hole Set 1 Set
Faucet Hole Spacing 8 in Centers
Drain Opening 3-1/2 in
Backsplash Return 2 in
Backsplash Top Angle 45 Degrees
Feet Adjustable Bullet Feet
Bracing Adjustable Side Bracing

Description

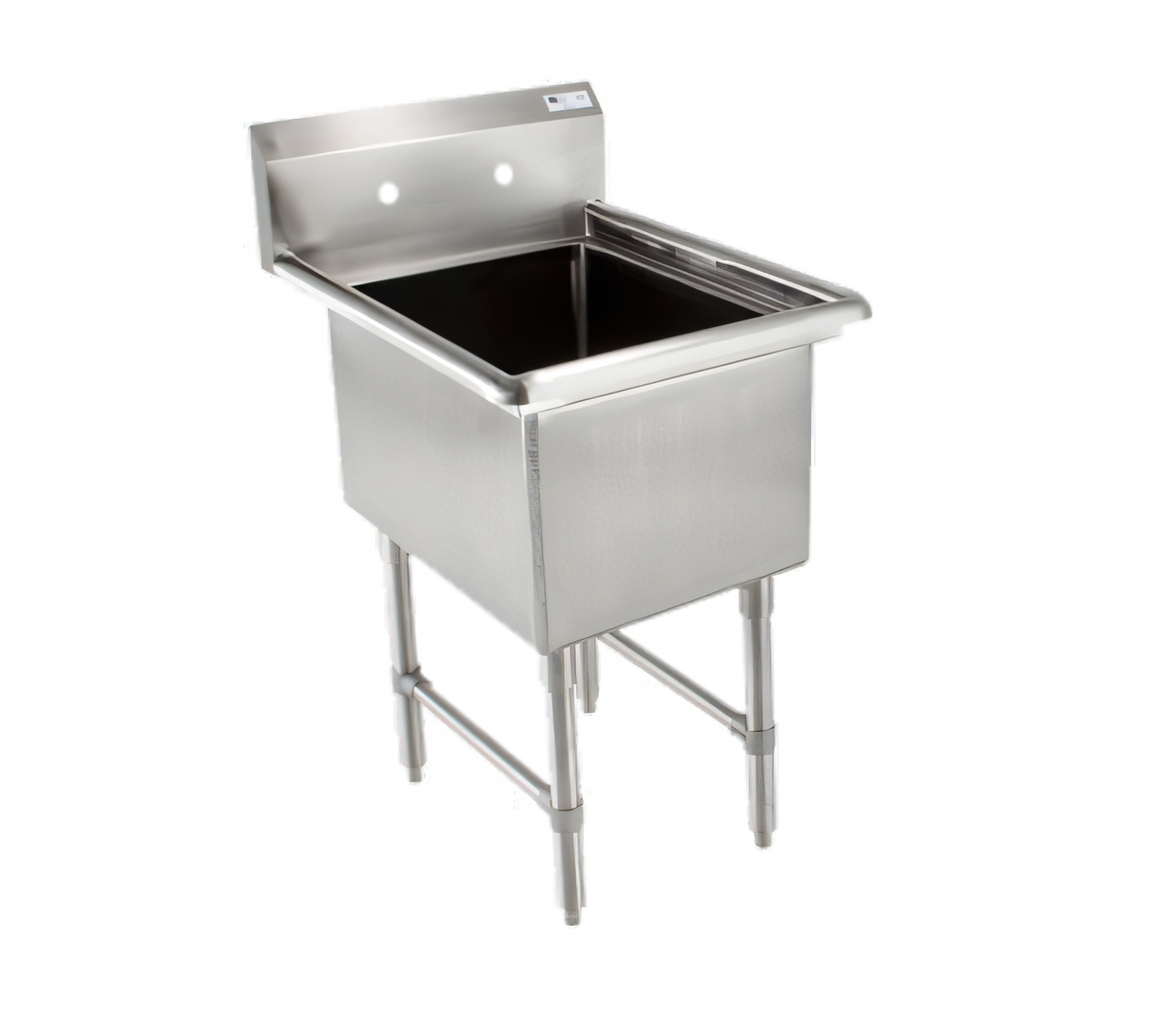

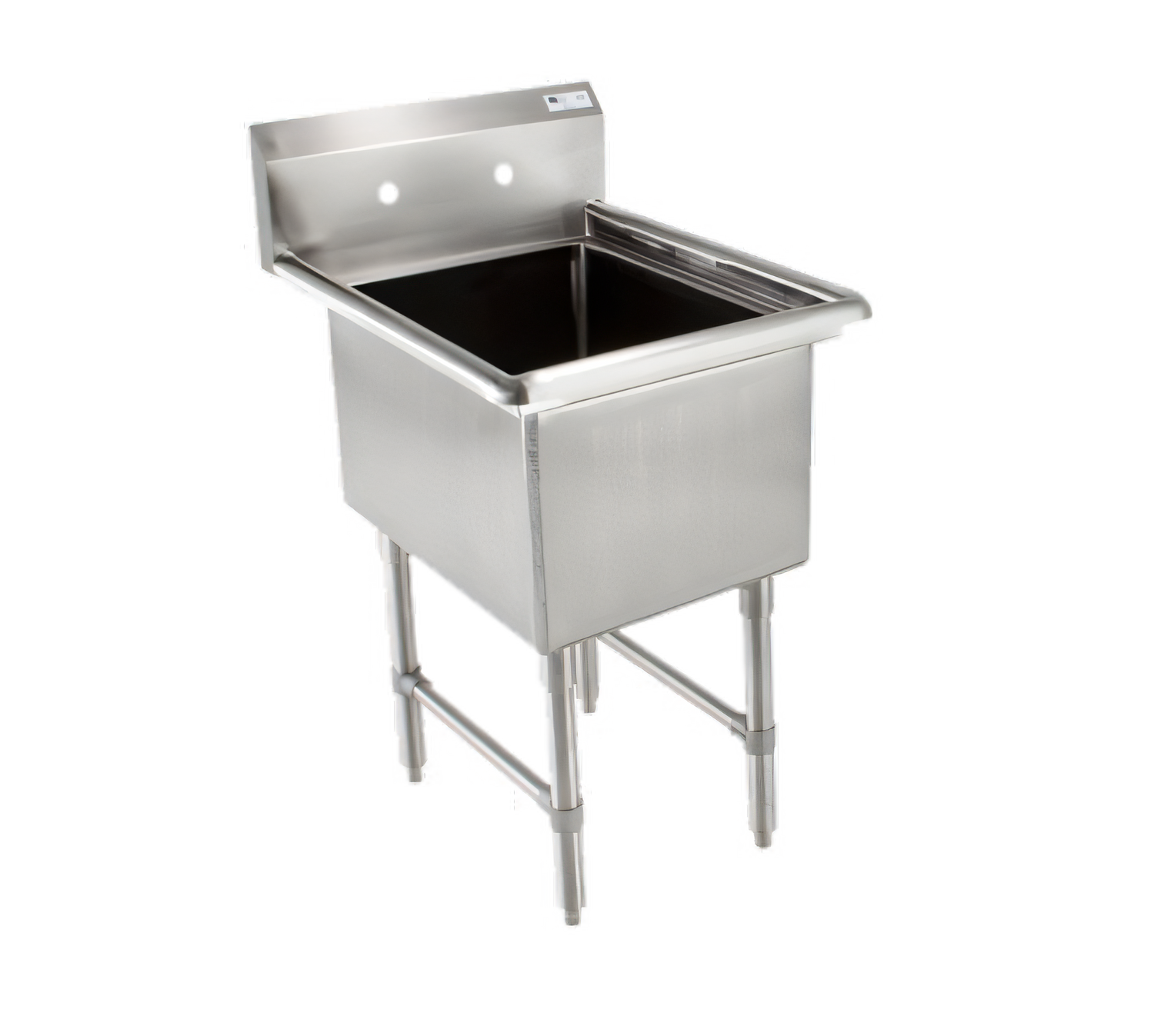

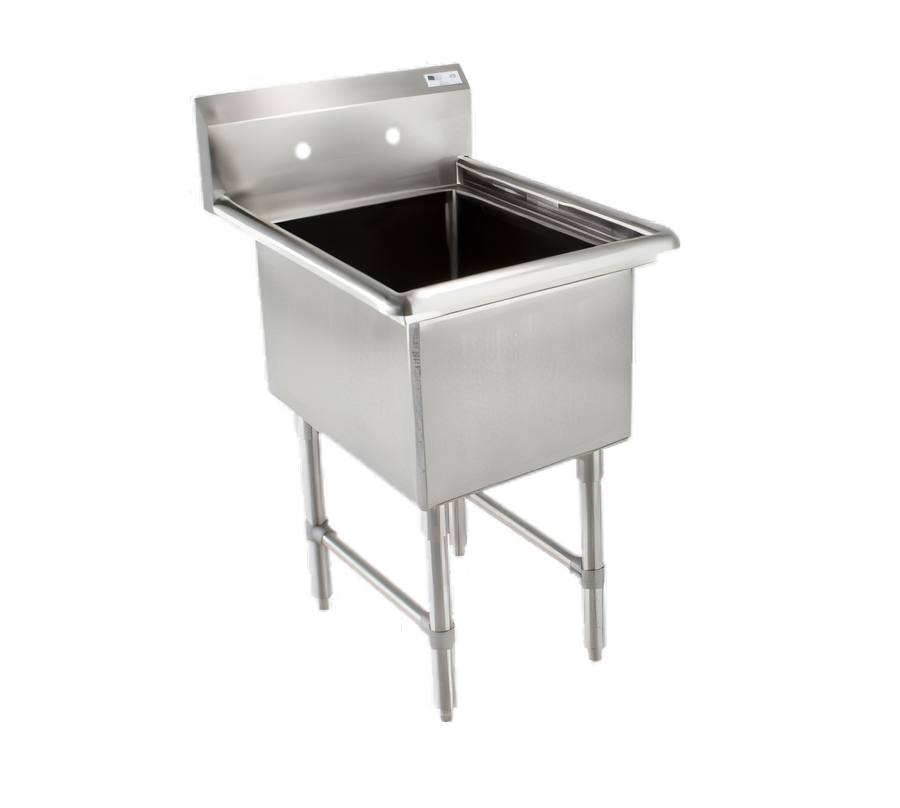

John Boos 1B16204 is a one-compartment floor sink with a 10 in boxed backsplash, stainless steel legs, adjustable side bracing, and adjustable bullet feet.

  • The 16 in x 20 in x 14 in compartment has a 3-1/2 in die-stamped drain opening.
  • The backsplash has a 45-degree top and 2 in return, with one set of splash-mount faucet holes on 8 in centers.
  • Construction is 16-gauge Type 300 stainless steel with a satin finish.

Overall Dimensions:

21.13"W x 25.5"D x 44.0"H

Product Weight:

44.0 lb

Single Compartment

One compartment measures 16 in wide x 20 in front-to-back x 14 in deep.

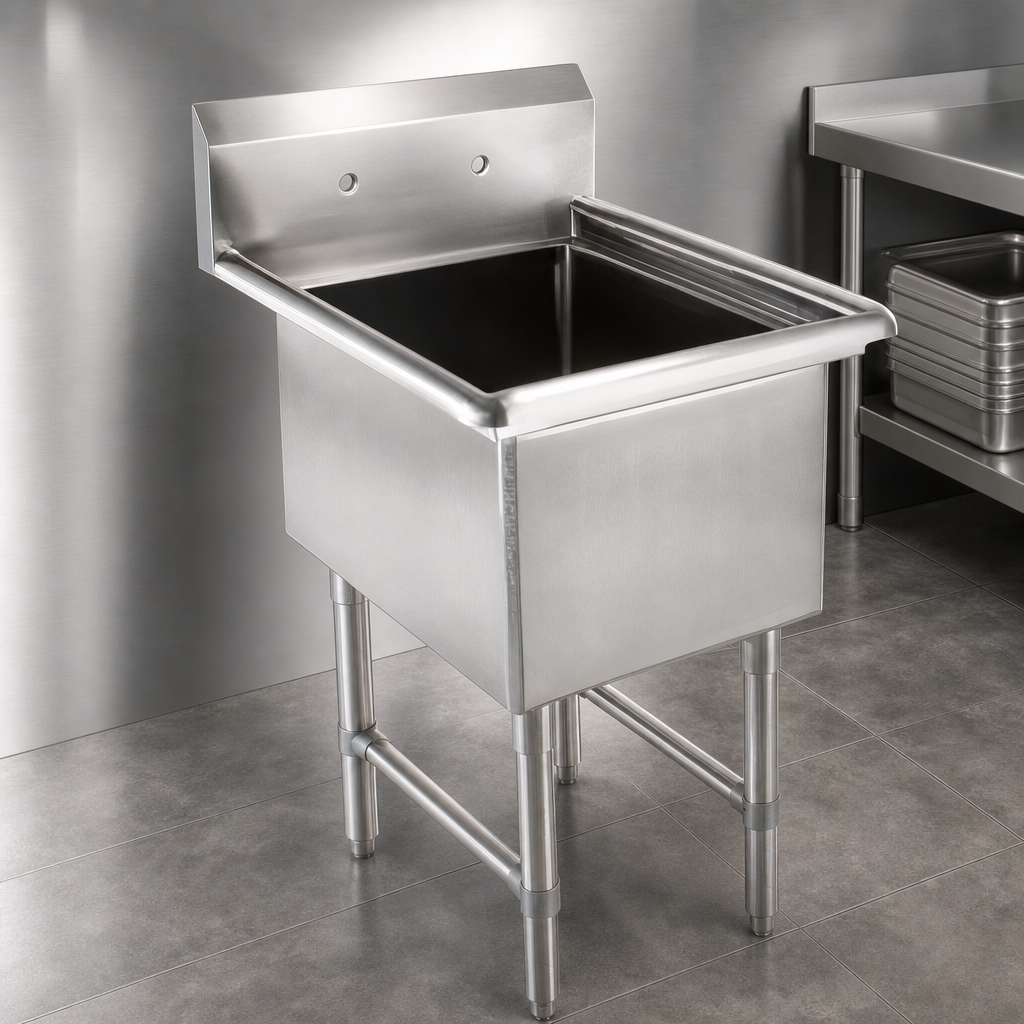

Stainless Steel Construction

The sink uses 16-gauge Type 300 stainless steel with a satin finish.

Boxed Backsplash

The 10 in high backsplash has a 45-degree top and 2 in return.

Splash-Mount Faucet Holes

One set of faucet holes is provided on 8 in centers.

Die-Stamped Drain Opening

The compartment has a 3-1/2 in drain opening.

Adjustable Base

The sink includes stainless steel legs, adjustable side bracing, and adjustable bullet feet.

Frequently Asked Questions

It has one compartment measuring 16 in wide x 20 in front-to-back x 14 in deep.
The overall dimensions are 21.13 in wide x 25.5 in deep x 44 in high.
It has a 10 in high boxed backsplash with a 45-degree top and 2 in return.
No. The catalog specification identifies it as without drainboards.
The product certifications are NSF and CSA-Sanitation.
