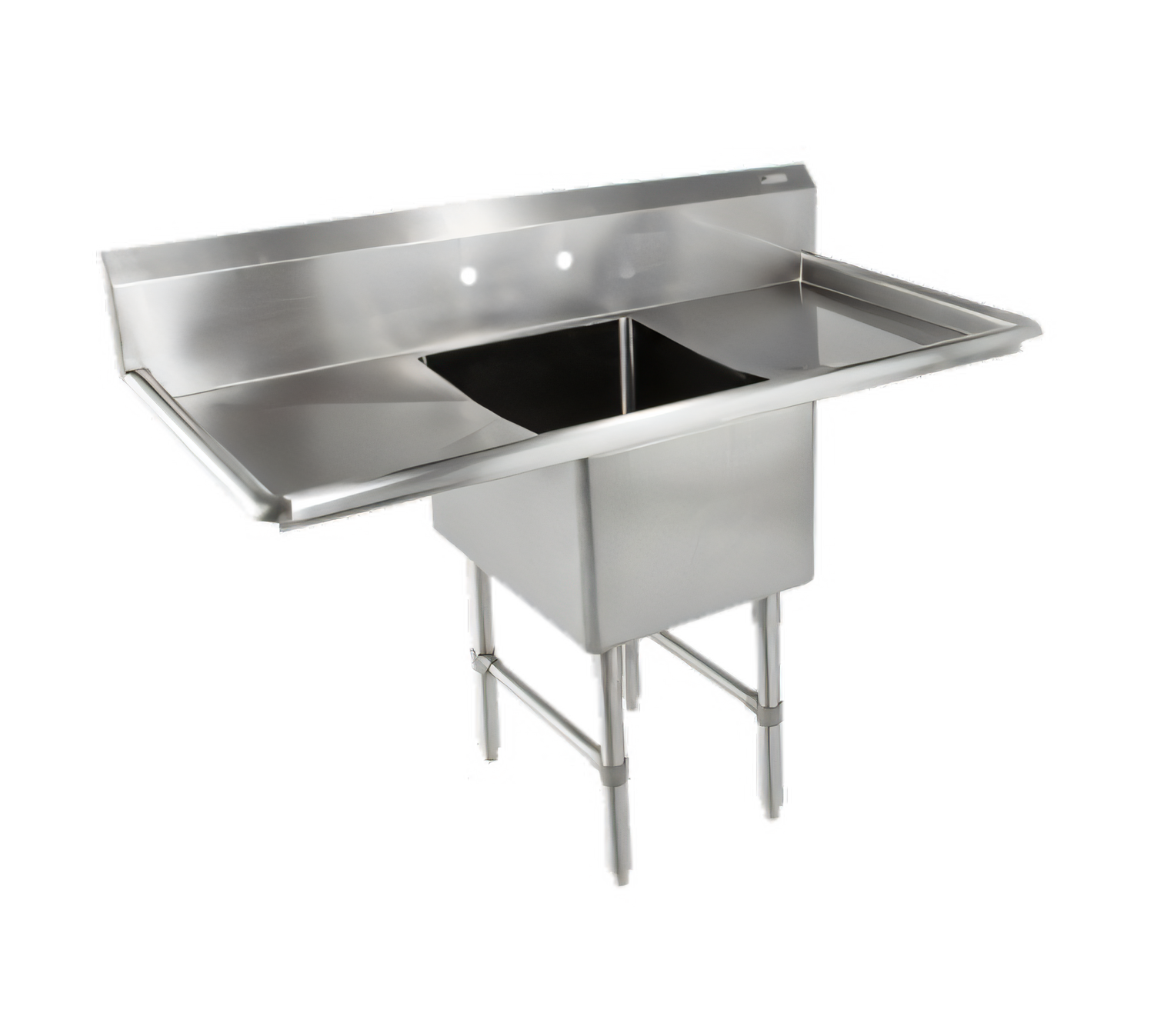

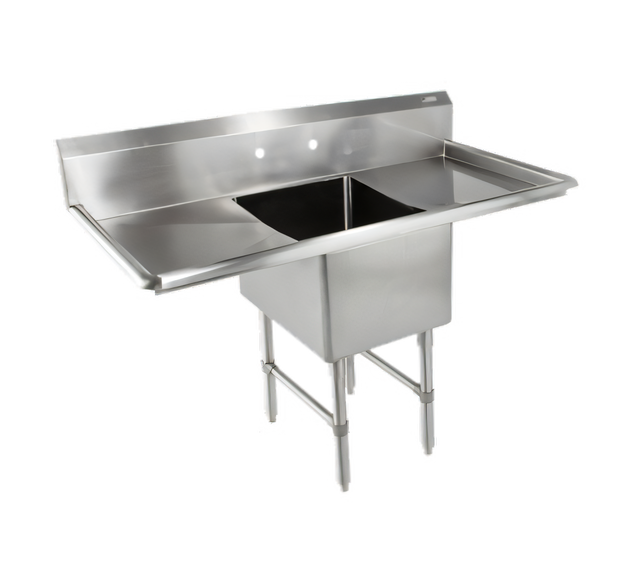

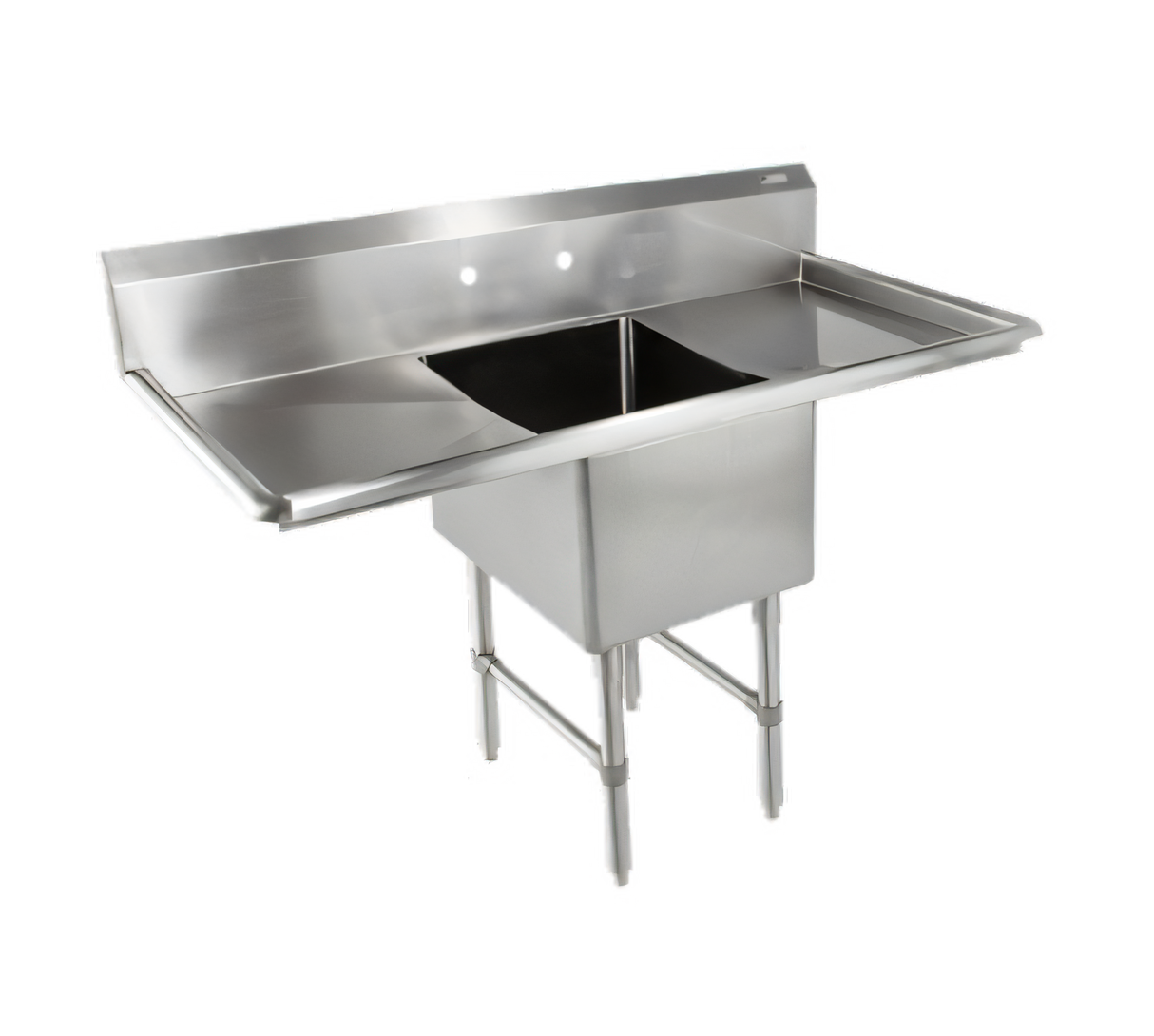

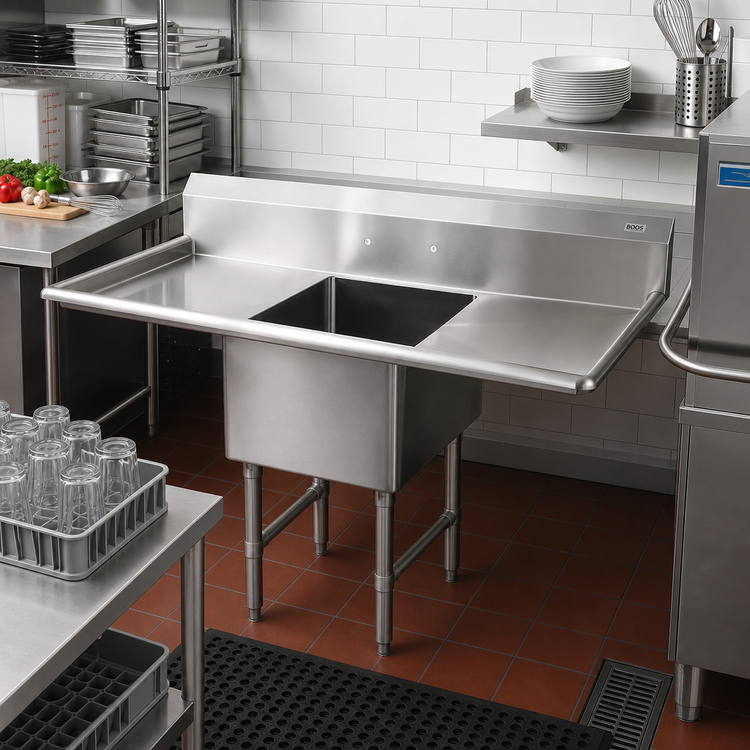

John Boos B-Series 1-Compartment Sink with Left and Right Drainboards, 55-1/4 Inch x 25-1/2 Inch, 16-Gauge Stainless Steel

16" x 20" x 14" bowl, 10" boxed backsplash, adjustable stainless steel legs

A durable single-bowl sink with dual drainboards and a stainless steel base built for busy prep and cleanup stations.

  • One 16" W x 20" D x 14" deep compartment provides a roomy wash area.
  • Left and right 18" drainboards add landing space on both sides of the sink.
  • 16-gauge Type 300 stainless steel construction with a satin finish.
  • 10" boxed backsplash with a 45° top and 2" return helps protect the wall.
  • Stainless steel legs, side bracing, and adjustable bullet feet support a stable floor installation.
  • 3-1/2" die-stamped drain opening and splash-mount faucet holes with 8" centers.

Overall Dimensions:

55.25"W x 25.5"D x 44.0"H

Product Weight:

68.0 lb

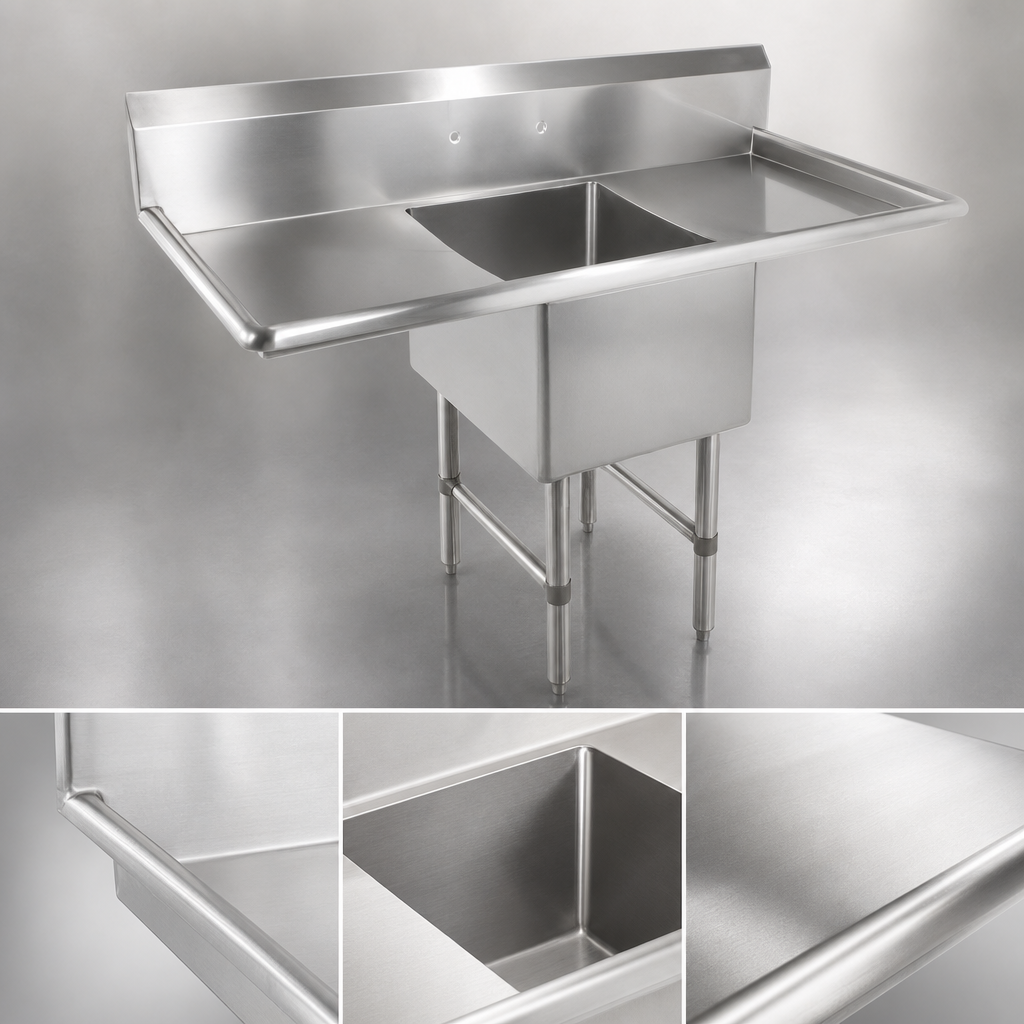

16-Gauge Type 300 Stainless Steel Construction

Heavy-duty stainless steel top and bowls are built for commercial use and finished with a #4 polish satin surface.

Single 16" x 20" x 14" Compartment

Provides a deep work bowl for prep, washing, and cleanup tasks.

Left and Right 18" Drainboards

Offers extra landing and drying space on both sides of the sink.

10" Boxed Backsplash

Includes a 45° top, 2" return to the wall, and turned-down rear lip to help contain splashes.

Coved Corners and Bullnosed Edges

Rounded bowl corners and polished outside corners make cleaning easier and improve safety.

3-1/2" Die-Stamped Drain Opening

The bowl bottom is formed for efficient drainage.

Stainless Steel Legs and Bracing

Features stainless steel legs, side bracing, and adjustable bullet feet for stable support.

Splash-Mount Faucet Holes

Prepared with faucet holes on 8-inch centers for top-mount faucet installation.

Type Compartment Sink
Style 1 Compartment with 2 Drain Boards
Series B-Series
Installation Type Floor Model
Material 300 Series Stainless Steel
Interior Finish Stainless Steel
Finish Satin Finish
Top Gauge 16 Gauge
Compartments 1
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Backsplash Height 10 Inches
Drainboard Configuration Left and Right
Base Type Legs with Side Crossrails
Drain Opening 3-1/2 Inches
Faucet Hole Centers 8 Inches
Shipping Width 56 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 68 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The sink has one compartment that measures 16 inches wide by 20 inches front-to-back by 14 inches deep.
Yes. It includes left and right 18-inch drainboards.
It has a full-length 10-inch boxed backsplash with a 45° top and 2-inch return to the wall.
The top and bowls are made from 16-gauge Type 300 stainless steel with a #4 polish satin finish.
The sink uses stainless steel legs, side bracing, and adjustable stainless steel bullet feet.
The backsplash includes splash-mount faucet holes with 8-inch centers.
