John Boos

John Boos B Series Floor Model 1-Compartment Sink with Right-Hand Drainboard and 10-Inch Backsplash

SKU: 1B16204-1D18R-X
$874.38
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

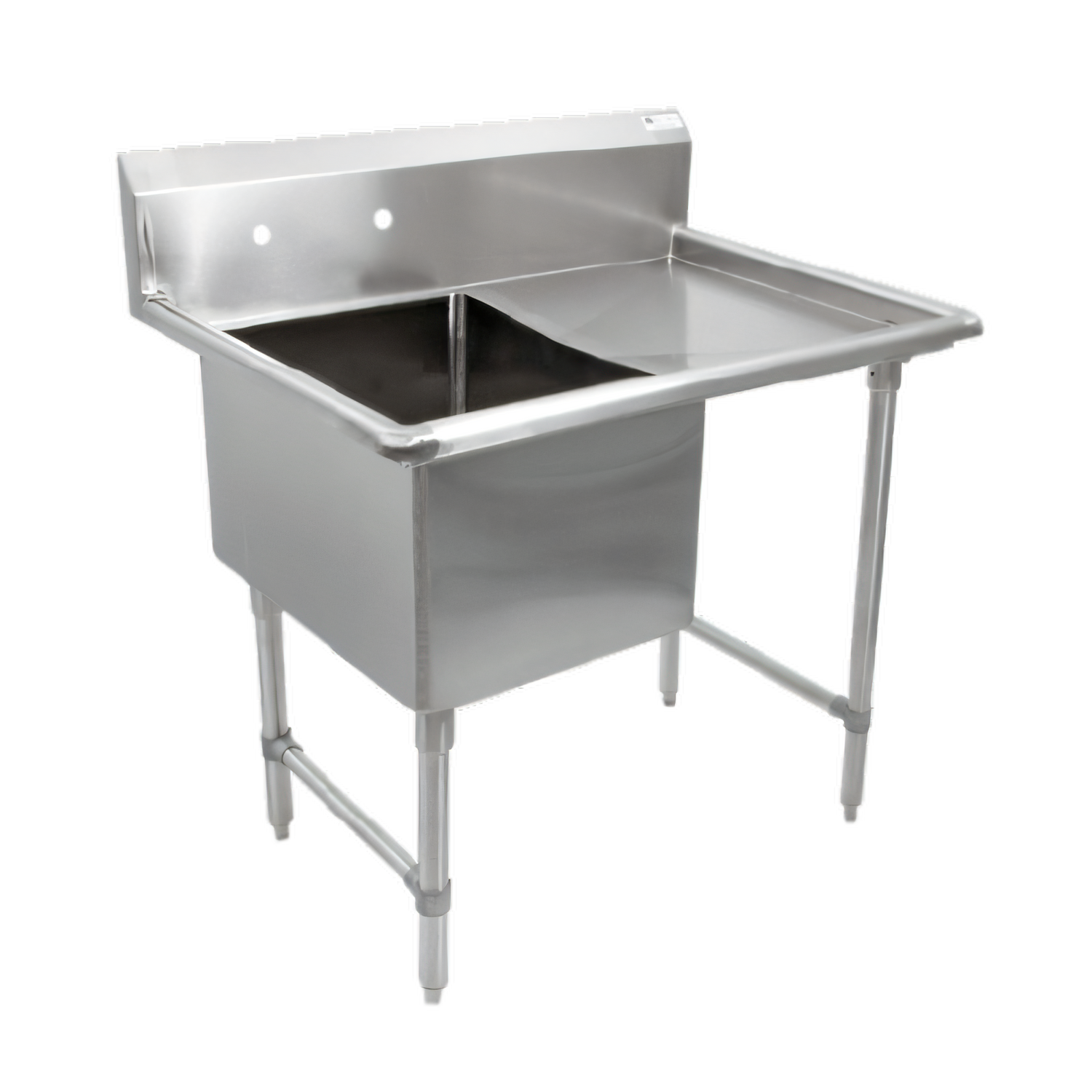

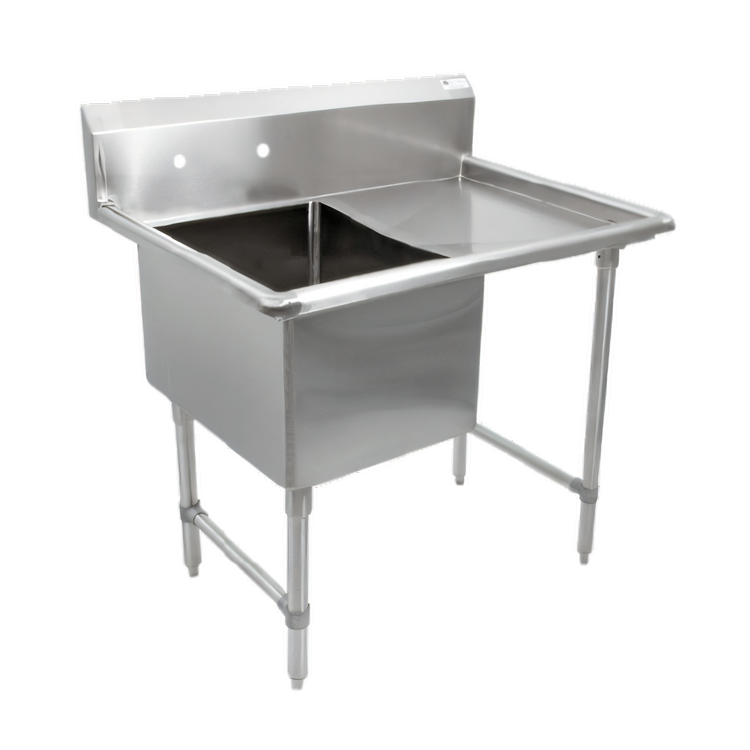

John Boos B Series Floor Model 1-Compartment Sink with Right-Hand Drainboard and 10-Inch Backsplash

16 Gauge, 300 Series Stainless Steel, 38-3/16 in. x 25-1/2 in.

A rugged floor-model prep sink with a deep single bowl, right-hand drainboard, and splash-protecting backsplash built for busy commercial kitchens.

  • One 16" W x 20" front-to-back x 14" deep compartment provides ample washing and prep space.
  • 18" right-hand drainboard adds convenient landing and drip-dry area.
  • 10" boxed backsplash with a 45° top and 2" return helps protect walls from splashes.
  • 16 gauge, 300 series stainless steel construction delivers durable commercial performance.
  • Stainless steel legs with adjustable side bracing and bullet feet help keep the sink stable and level.
  • Splash-mount faucet holes on 8" centers and a 3-1/2" die-stamped drain opening support straightforward installation.
  • NSF listed for use in foodservice environments.

Overall Dimensions:

38.18"W x 25.5"D x 44.0"H

Product Weight:

58.0 lb

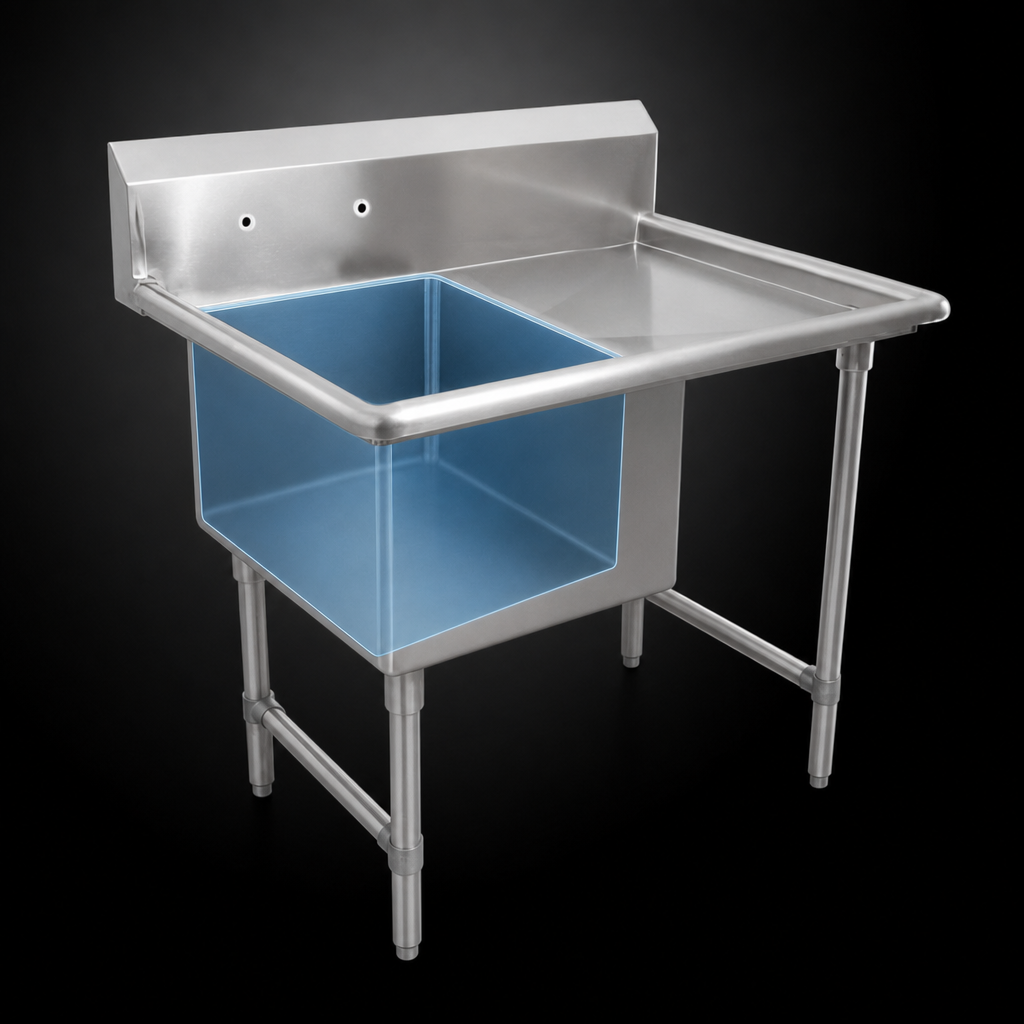

Single Compartment Bowl

One 16" wide x 20" front-to-back x 14" deep compartment provides a practical wash basin for foodservice tasks.

Right-Hand Drainboard

An 18" drainboard offers extra workspace and a place for items to drain or air dry.

10-Inch Boxed Backsplash

The boxed backsplash includes a 45° top and 2" return to help contain water and splashes.

16 Gauge Stainless Steel Construction

Heavy-duty stainless steel construction is built for daily commercial use.

Stainless Steel Base Support

Stainless steel legs with adjustable side bracing and bullet feet provide added strength and leveling.

Splash-Mount Faucet Holes

Includes one set of splash mount faucet holes with 8" centers and a 3-1/2" die-stamped drain opening.

NSF Listed

Meets NSF sanitation requirements for commercial kitchen use.

Type Sink
Style 1 Compartment with Right-Hand Drainboard
Installation Type Floor Model
Material Stainless Steel
Top Gauge 16 Gauge
Top Stainless Series 300 Series
Compartments 1
Drainboards 1 Right-Hand
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Backsplash Height 10 Inches
Base Type Legs with Side Crossrails
Faucet Holes 1 Set, 8 Inch Centers
Drain Opening 3-1/2 Inches
Shipping Width 39 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 58 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The overall size is 38-3/16" W x 25-1/2" D x 44" H.
It has one compartment with a 16" W x 20" front-to-back x 14" deep bowl.
Yes, it includes an 18" right-hand drainboard.
It has a 10" boxed backsplash with a 45° top and 2" return.
The sink includes one set of splash mount faucet holes with 8" centers.
