John Boos

John Boos B Series 1-Compartment 16 Gauge Stainless Steel Sink with Left Drainboard

SKU: 1B16204-1D18L-X
$874.38
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

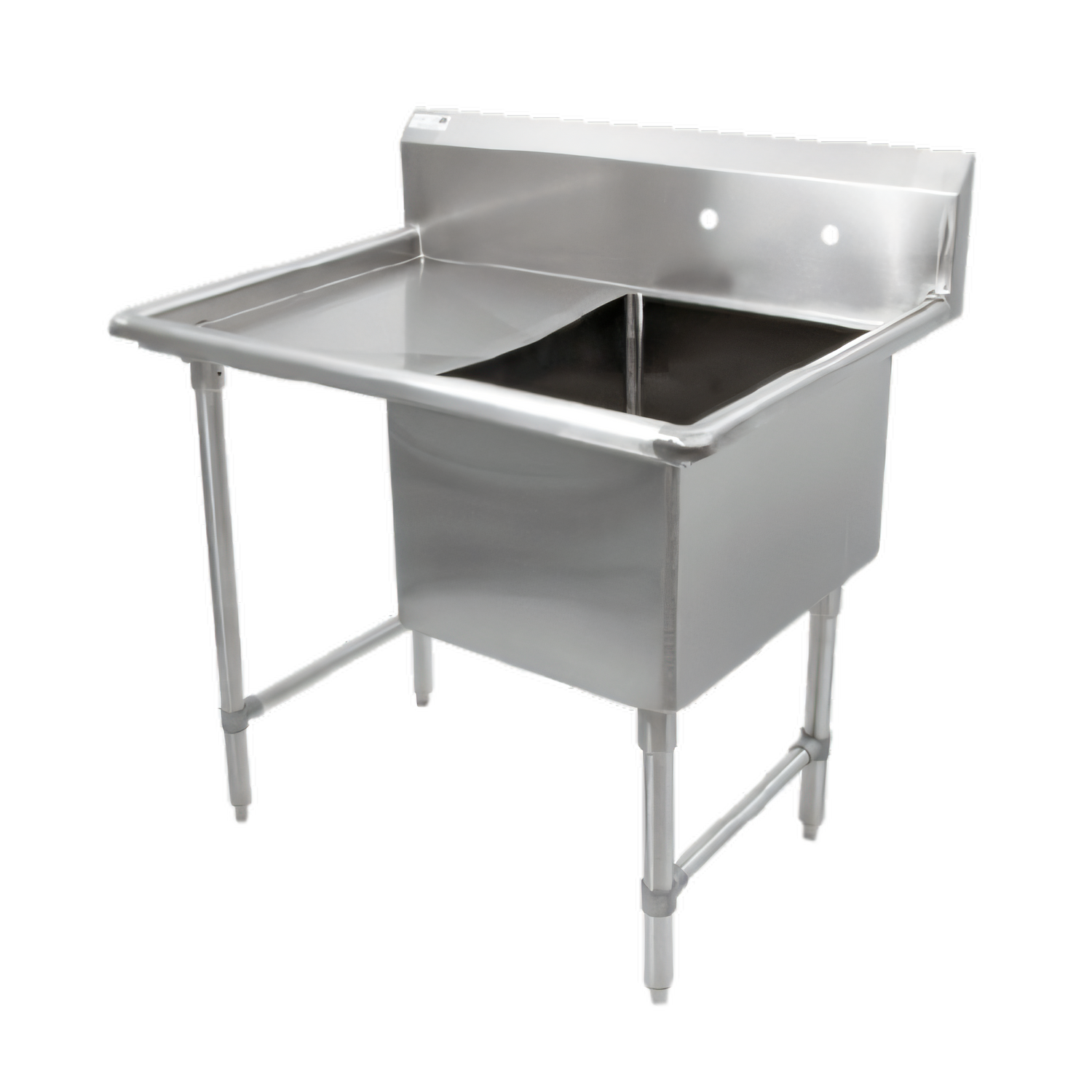

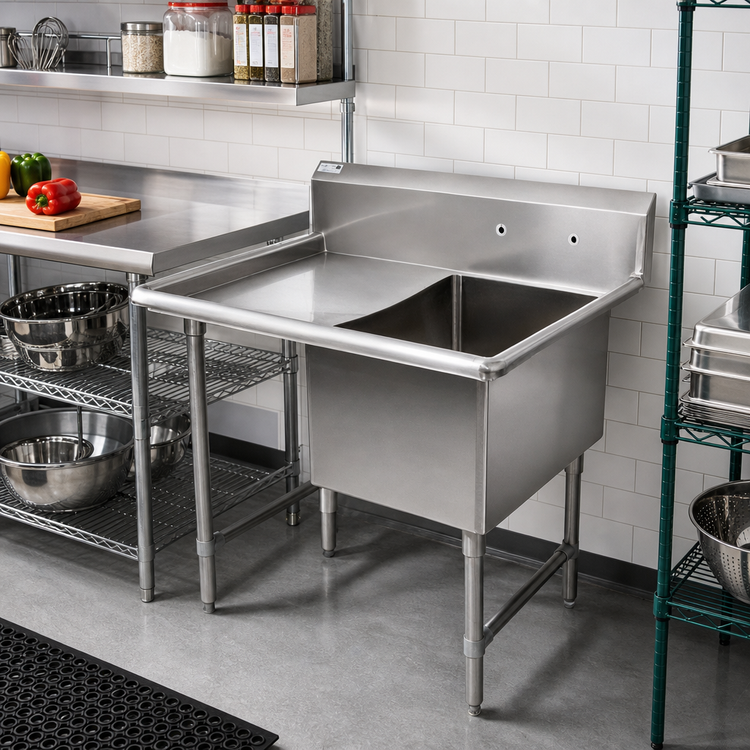

John Boos B Series 1-Compartment 16 Gauge Stainless Steel Sink with Left Drainboard

38-3/16"W x 25-1/2"D x 44"H Overall, 16" x 20" x 14" Bowl, 10" Backsplash

This durable floor-model sink combines a roomy one-compartment bowl, left drainboard, and tall backsplash to keep wash stations efficient and clean.

  • Single 16" x 20" x 14" compartment provides a practical wash and prep station.
  • 18" left drainboard adds convenient space for drying and staging.
  • 10" boxed backsplash with a 45° top and 2" return helps protect the wall behind the sink.
  • 16-gauge stainless steel construction with stainless steel base components is built for demanding commercial use.
  • Splash-mount faucet holes, die-stamped drain opening, and adjustable bullet feet support easier installation and setup.

Overall Dimensions:

38.18"W x 25.5"D x 44.0"H

Product Weight:

58.0 lb

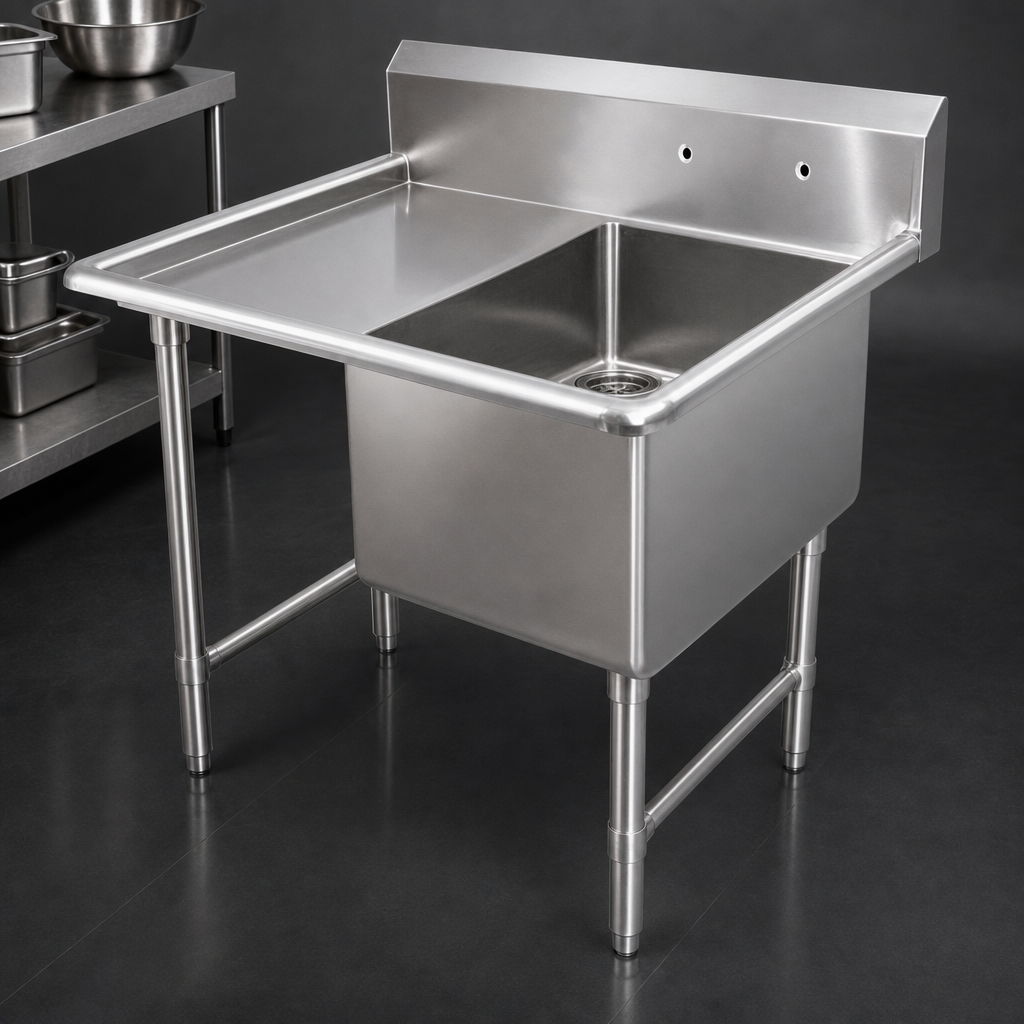

One-Compartment Sink

Single-bowl design offers a dedicated wash area for a compact commercial workspace.

Left Drainboard

An integrated 18-inch left drainboard provides extra surface area for draining and staging items.

16-Gauge Stainless Steel Construction

Heavy-duty 16-gauge, 300 series stainless steel construction helps withstand daily use.

10-Inch Boxed Backsplash

The tall backsplash includes a 45° top and 2-inch return to help reduce wall splashes.

Splash-Mount Faucet Holes

One set of faucet holes on 8-inch centers supports splash-mount faucet installation.

Die-Stamped Drain Opening

A 3-1/2-inch die-stamped drain opening is designed for dependable drainage.

Stainless Steel Legs and Bracing

Stainless steel legs with adjustable side bracing provide support and stability.

Adjustable Bullet Feet

Bullet feet make it easier to level the sink on uneven flooring.

Type Sink
Style B Series
Installation Type Floor Model
Material Stainless Steel
Base Construction Stainless Steel
Compartments 1
Top Gauge 16 Gauge
Drainboard Location Left
Drainboard Length 18 Inches
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Backsplash Height 10 Inches
Backsplash Return 2 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Shipping Width 39 Inches
Shipping Depth 26 Inches
Shipping Height 44 Inches
Shipping Weight 58 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The compartment measures 16 inches wide by 20 inches front-to-back by 14 inches deep.
Yes. It includes an 18-inch left drainboard.
It has a 10-inch boxed backsplash with a 45° top and 2-inch return.
The sink includes one set of splash-mount faucet holes with 8-inch centers.
It has a 3-1/2-inch die-stamped drain opening.
It is built with 16/300 stainless steel construction and stainless steel legs.
