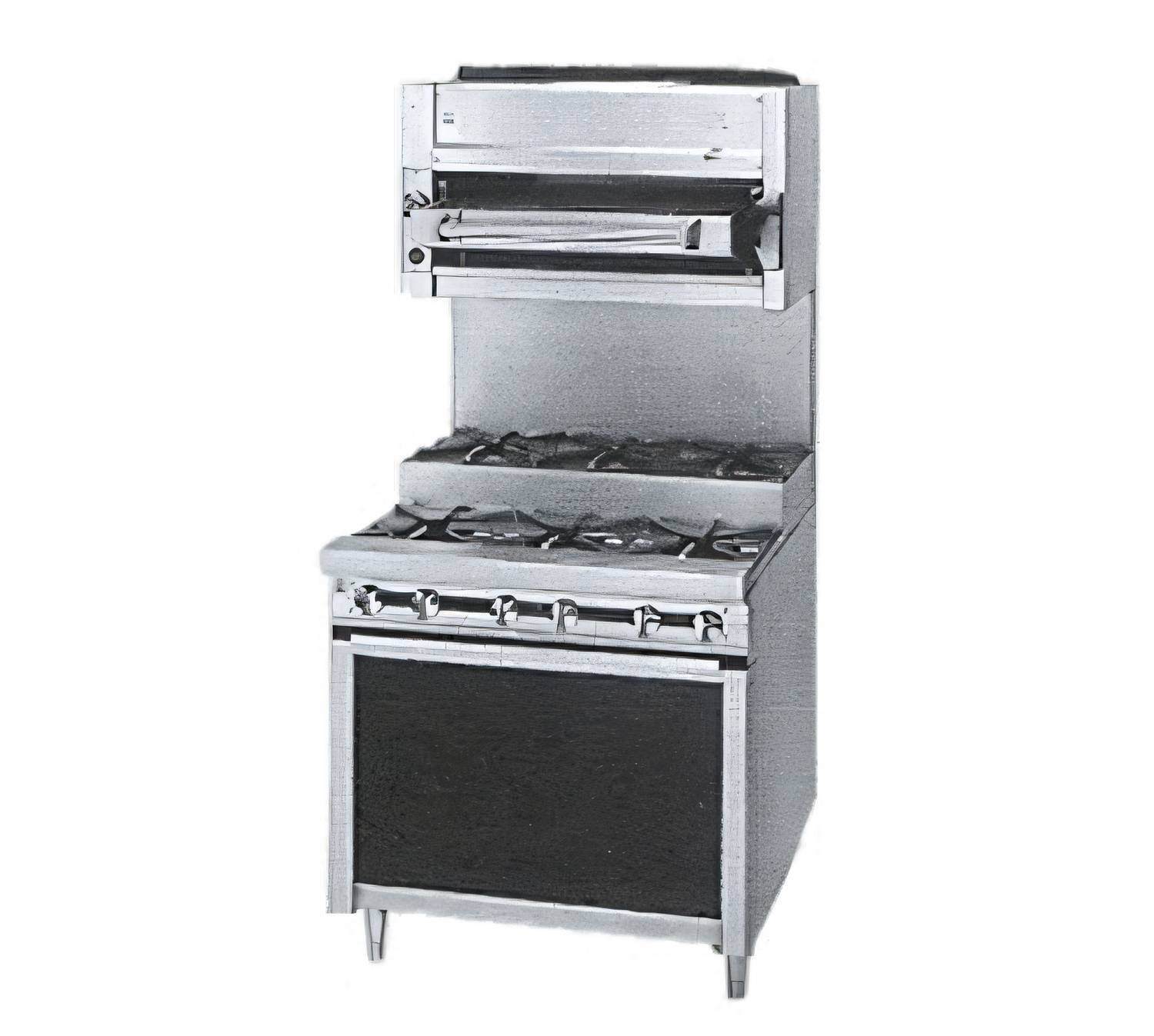

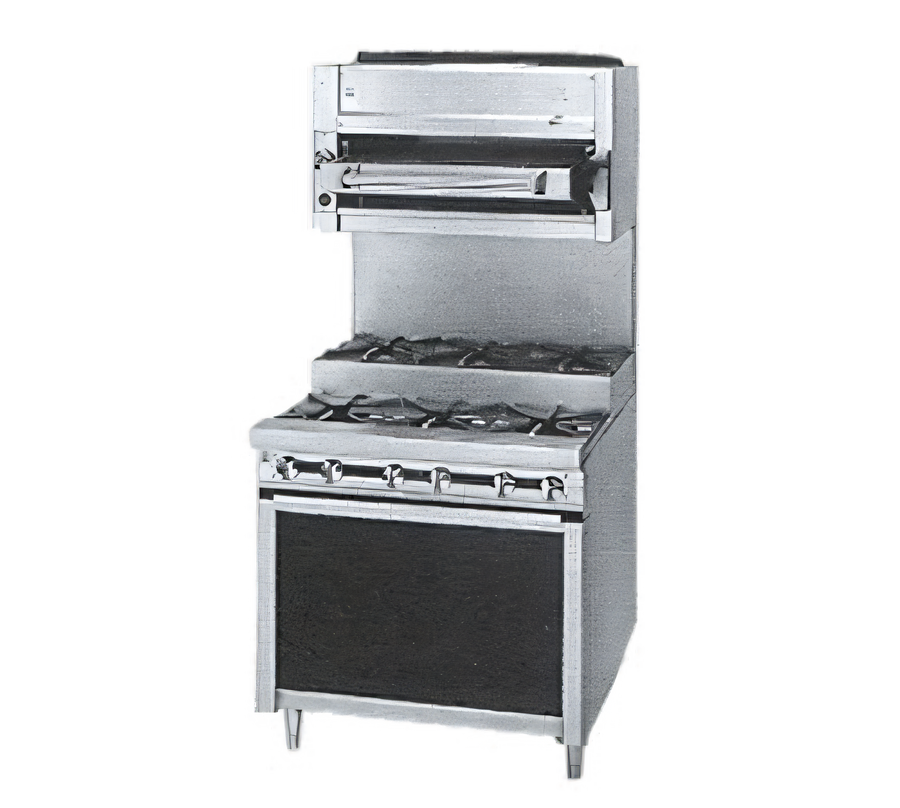

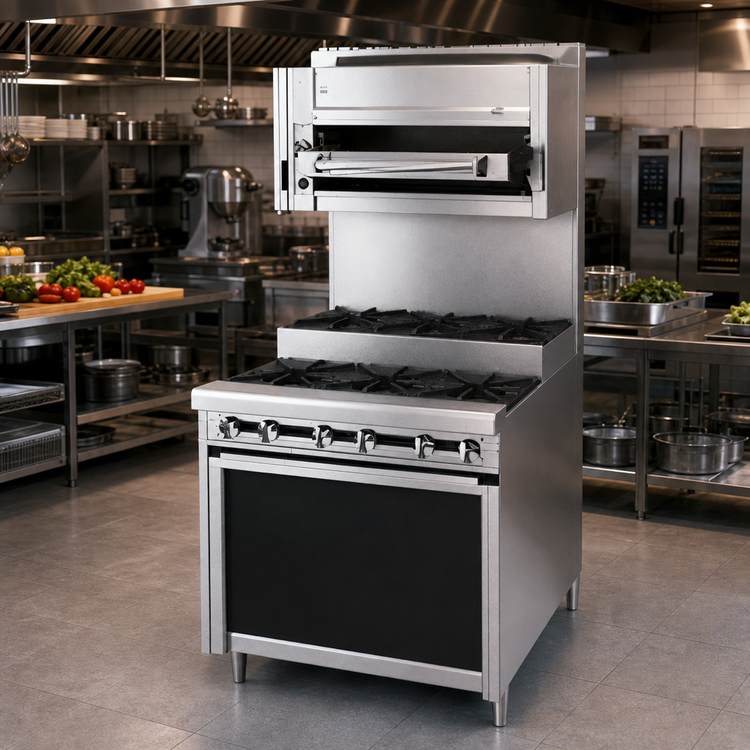

Titan JTRHE-6-6 Heavy Duty 72-Inch Gas Cabinet Base Step-Up Range with 12 Open Burners

Full-Size, Natural Gas or Propane, Standard Depth

Experience robust cooking performance and exceptional durability with the Titan JTRHE-6-6 heavy duty gas range, designed for demanding commercial kitchens.

  • Equipped with twelve 30,000 BTU/hr cast iron open burners (6 front, 6 step-up rear) for high-volume cooking.
  • Features a spacious cabinet base for convenient storage of cookware and kitchen essentials.
  • Constructed with 14 gauge all-welded stainless steel for superior strength and longevity.
  • Individual lift-off steel top grates and stainless steel pilots ensure easy cleaning and maintenance.
  • Includes a 6-inch stainless steel plate shelf for convenient plating and holding.
  • Designed with adjustable 6-inch stainless steel legs for stable and level installation.

Overall Dimensions:

72.0"W x 38.0"D x 36.5"H

Product Weight:

980.0 lb

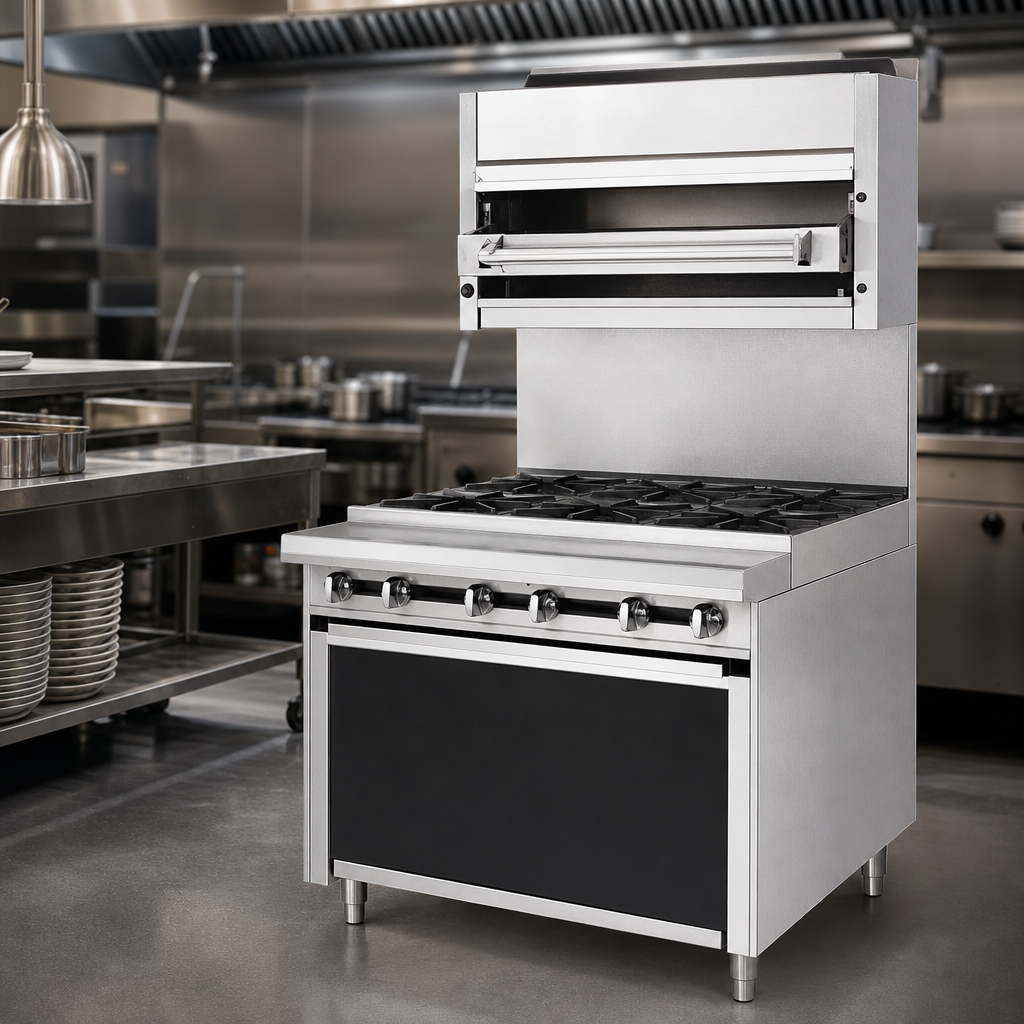

Heavy Duty Construction

Built with a 14 gauge all-welded body, stainless steel front, sides, stub back, and bottom, ensuring extreme durability and resistance to wear in busy commercial environments.

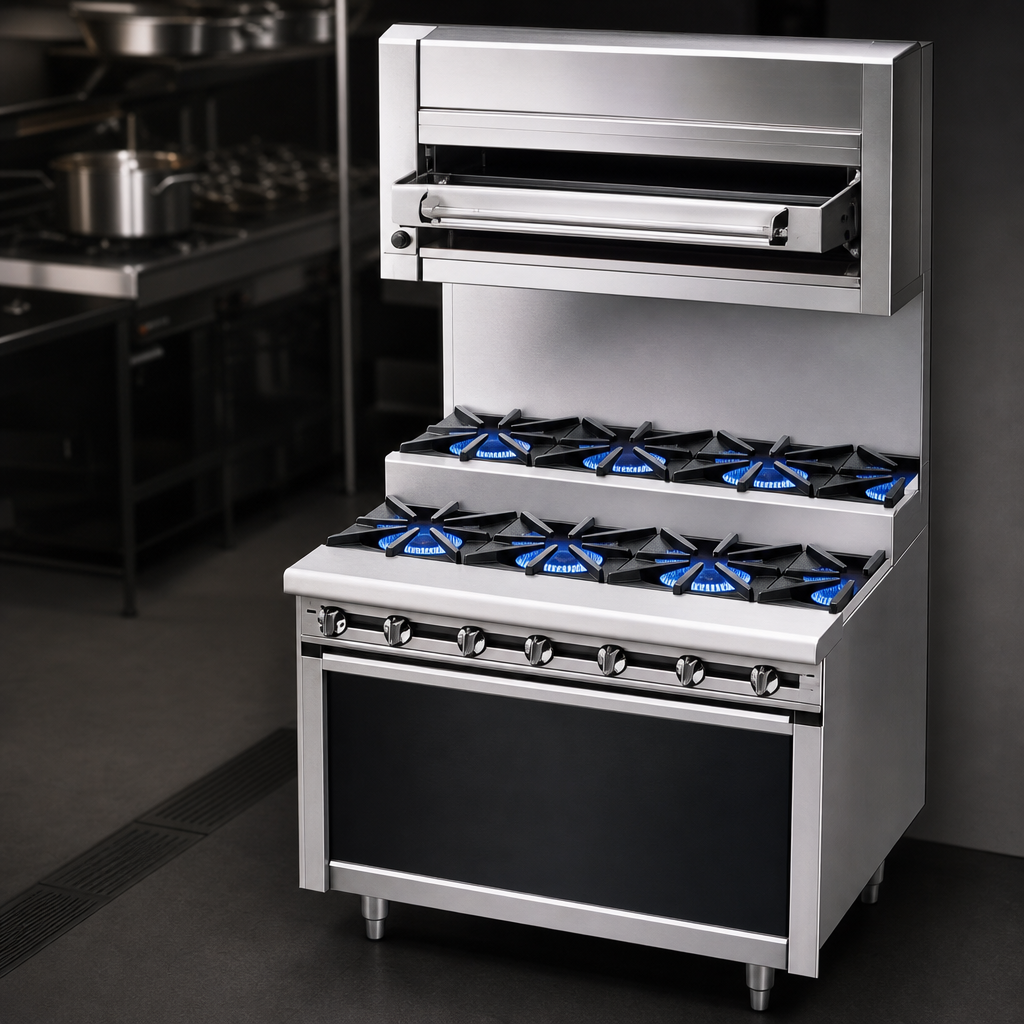

High-Performance Burners

Features twelve 30,000 BTU/hr cast iron open burners, with a unique 'step-up' configuration (6 front, 6 rear) to provide ample cooking power and versatile cooking zones.

Individual Lift-Off Top Grates

Each burner includes an individual lift-off steel top grate, simplifying cleaning and allowing for easy access to burner components.

Stainless Steel Interior & Exterior Cabinet

The cabinet base offers enclosed storage with a full stainless steel interior and exterior, providing a sanitary and durable space for storing kitchen supplies.

Precision Gas Control

Each open burner is controlled by an infinite gas valve, allowing for precise temperature adjustments and optimal cooking results.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf is included, offering a convenient surface for holding prepared dishes or frequently used utensils.

Adjustable Legs

Equipped with 6-inch stainless steel adjustable legs to ensure a stable and level installation on uneven kitchen floors.

Stainless Steel Gas Tubing

All internal gas tubing is constructed from stainless steel for enhanced durability and corrosion resistance.

Type Heavy Duty Range
Style Cabinet Base Step-Up Range
Installation Type Floor Model (With Adjustable Legs)
Number of Burners 12
Burner BTU 30,000 BTU/hr Per Burner
Total BTU 360,000 BTU
Controls Infinite Gas Valves
Material Stainless Steel, Cast Iron
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Gas Type Natural Gas or Propane (Specify when ordering)
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure Natural Gas: 5 Inches W.C. Minimum; Propane Gas: 10 Inches W.C. Minimum, 14 Inches W.C. Maximum
Compartments 1
Shipping Width 72 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 980 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRHE-6-6 range can be configured for either Natural Gas or Propane. Please specify the required gas type when placing your order.
The range is supplied with a 1-1/4 inch front manifold connection and a capped 1 inch or 3/4 inch rear manifold connection. A 3/4 inch gas pressure regulator is supplied loose and must be installed for proper operation. Optional 1 inch or 1-1/4 inch regulators are available as accessories.
Yes, but you must specify your altitude when ordering if it is above 2,000 feet, as adjustments may be necessary for optimal performance.
For Natural Gas, a minimum of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. and a maximum of 14 inches W.C. are required.
The JTRHE-6-6 model is equipped with a total of twelve 30,000 BTU/hr open burners, arranged in a 'step-up' configuration with 6 burners in the front row and 6 in the rear row.
