Jade Titan JTRHE-5-5 60" Heavy Duty Cabinet Base Step-Up Gas Range with 10 Open Burners

60 Inches Wide, Natural Gas or Propane, (5) Front Open Burners, (5) Step-Up Open Burners, Cabinet Base

Experience superior cooking versatility and robust performance with the Jade Titan JTRHE-5-5 Heavy Duty Step-Up Gas Range, designed for demanding commercial kitchens.

  • Heavy-duty 14 gauge all-welded body construction ensures exceptional durability and longevity.
  • Features five front and five step-up 30,000 BTU cast iron open burners for high-intensity, versatile cooking.
  • Equipped with a spacious stainless steel cabinet base for convenient storage of cookware and supplies.
  • Individual lift-off steel top grates and stainless steel pilots simplify cleaning and maintenance.
  • Stainless steel front, sides, stub back, bottom, and a 6-inch plate shelf provide a professional, easy-to-clean finish.
  • Supplied with a 3/4 inch gas regulator for proper and safe operation.

Overall Dimensions:

60.0"W x 38.0"D x 36.5"H

Product Weight:

810.0 lb

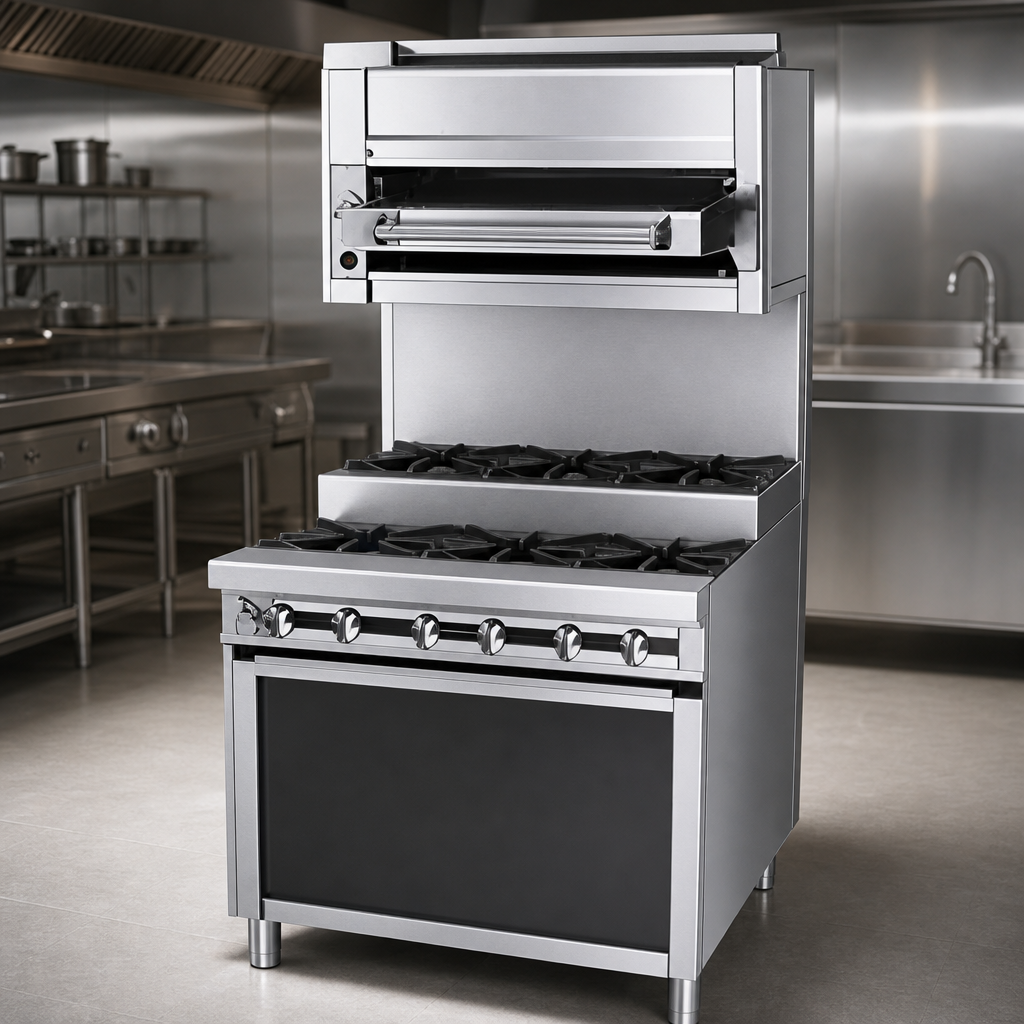

Heavy Duty Construction

Built with a 14 gauge all-welded body, this range offers exceptional durability and a long service life in demanding commercial environments.

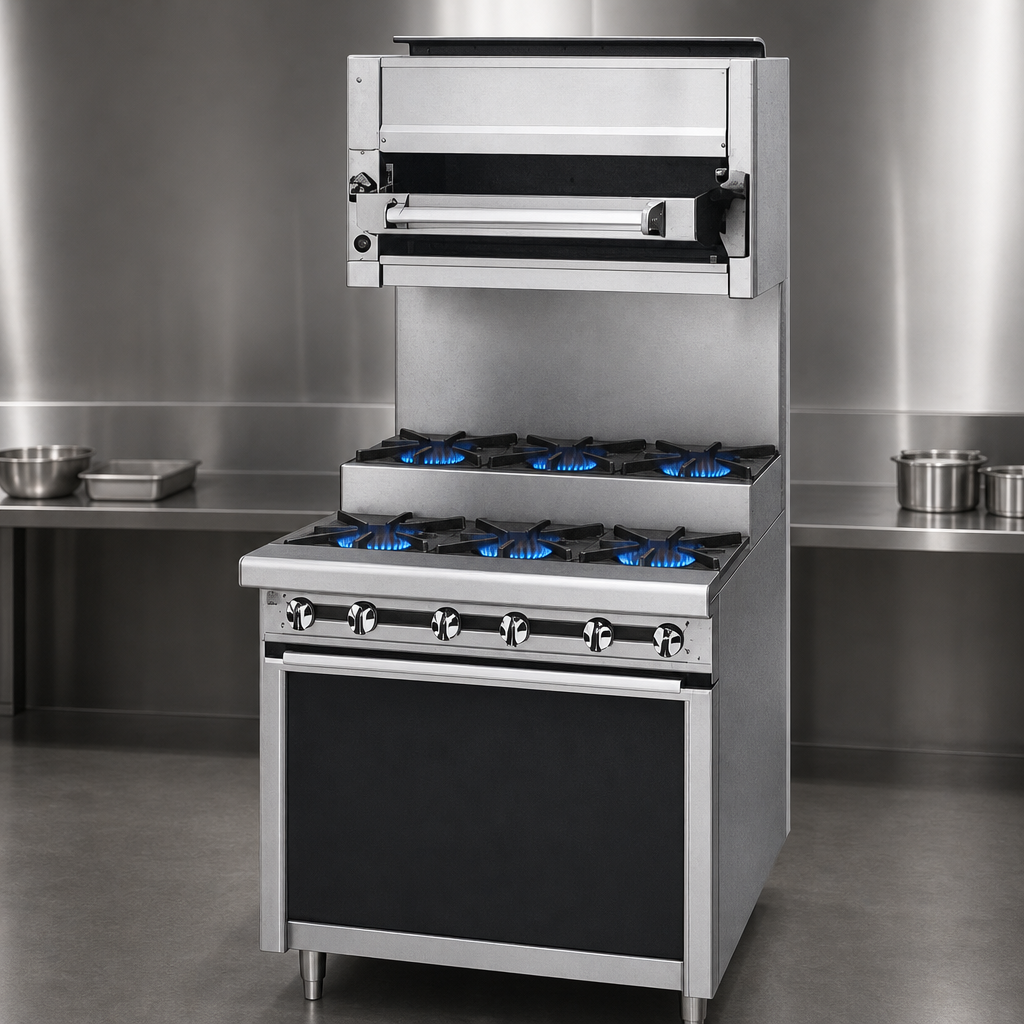

High-Performance Open Burners

Includes five front and five step-up 30,000 BTU/hr cast iron open burners, providing powerful and consistent heat for a wide range of cooking tasks.

Individual Lift-Off Top Grates

Each burner features individual lift-off steel top grates, making cleaning and maintenance quick and easy.

Reliable Ignition

Equipped with one stainless steel pilot per burner, ensuring reliable and efficient ignition every time.

Stainless Steel Cabinet Base

The spacious stainless steel cabinet base offers convenient and hygienic storage for pots, pans, and other kitchen essentials.

Premium Stainless Steel Exterior

Features a stainless steel front, sides, stub back, and bottom for a professional appearance, enhanced durability, and easy cleaning.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf is included, providing convenient staging space for finished dishes or ingredients.

Adjustable Legs

Stainless steel adjustable 6-inch legs allow for easy leveling on uneven floors and ensure proper airflow underneath the unit.

Flexible Gas Connection

Designed with a variable size multi-point gas connection, featuring a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection for versatile utility hook-up options.

Type Heavy Duty Range
Style Cabinet Base Step-Up Range
Installation Type Floor Model
BTU 300,000 BTU Total
Burners 10 Open Burners
BTU Per Burner 30,000 BTU/hr
Controls Infinite Gas Valves
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Plate Shelf 6 Inches
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches Front Manifold, 1 Inch or 3/4 Inch Rear Manifold
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 810 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRHE-5-5 range can be configured for either Natural Gas or Propane. Please specify the type of gas when ordering to ensure proper setup and operation.
For Natural Gas, the minimum required operating pressure is 5 inches W.C. For Propane Gas, it is 10 inches W.C. The maximum pressure for either gas type is 14 inches W.C.
Yes, the range is supplied with a 3/4 inch gas pressure regulator, which is shipped loose and must be installed for proper operation. Larger regulators (1 inch or 1-1/4 inches) are available as accessories if needed.
Yes, the JTRHE-5-5 can be adapted for high-altitude use. However, you must specify the altitude if it is above 2,000 feet when placing your order.
The JTRHE-5-5 features five front and five step-up open burners. Each burner provides 30,000 BTU/hr, totaling 300,000 BTU for the entire unit. The burners are made of cast iron and are controlled by infinite gas valves.
