Jade Range (Middleby)

Titan JTRHE-4-4 48 Inch Heavy Duty Gas Step-Up Range with Cabinet Base

SKU: JTRHE-4-4
$17,369.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

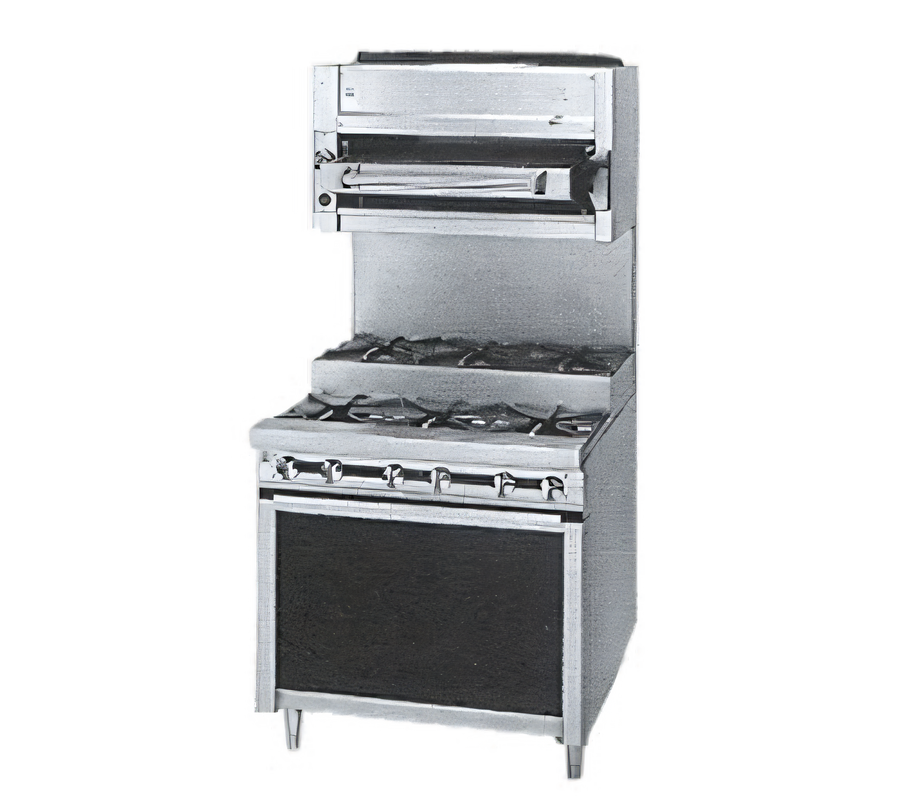

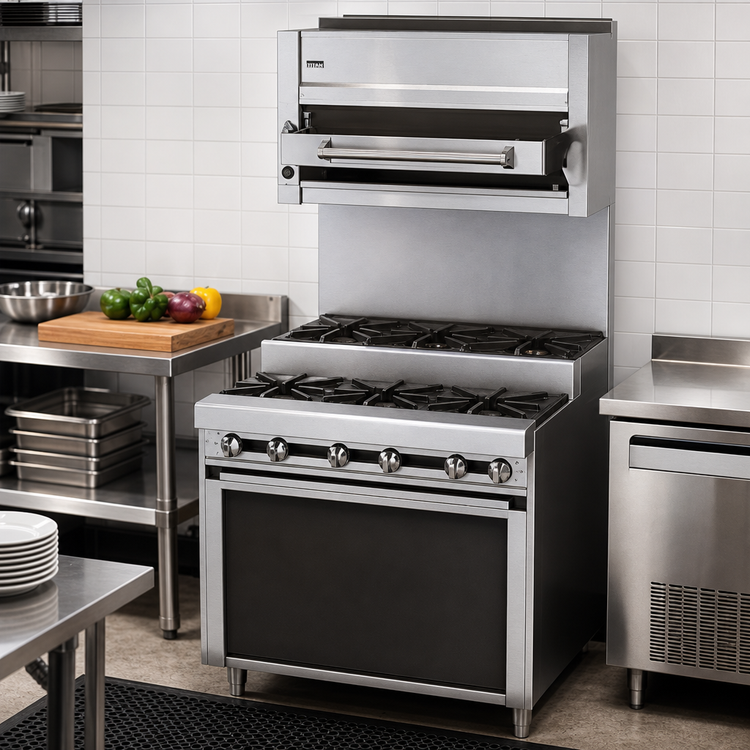

Titan JTRHE-4-4 48 Inch Heavy Duty Gas Step-Up Range with Cabinet Base

48 Inch, 8 Open Burners, Natural Gas/Propane, Cabinet Base

Experience superior cooking performance and durability with the Titan JTRHE-4-4 heavy-duty gas range, designed for demanding commercial kitchens.

  • Features (4) 30,000 BTU open burners in front and (4) 30,000 BTU step-up open burners in the rear.
  • Robust 14 gauge all-welded stainless steel body construction ensures lasting durability.
  • Equipped with a spacious cabinet base for convenient storage.
  • Individual lift-off cast iron top grates for easy cleaning and maintenance.
  • Supplied with a 6" stainless steel plate shelf and 6" adjustable legs.

Overall Dimensions:

48.0"W x 38.0"D x 36.5"H

Product Weight:

650.0 lb

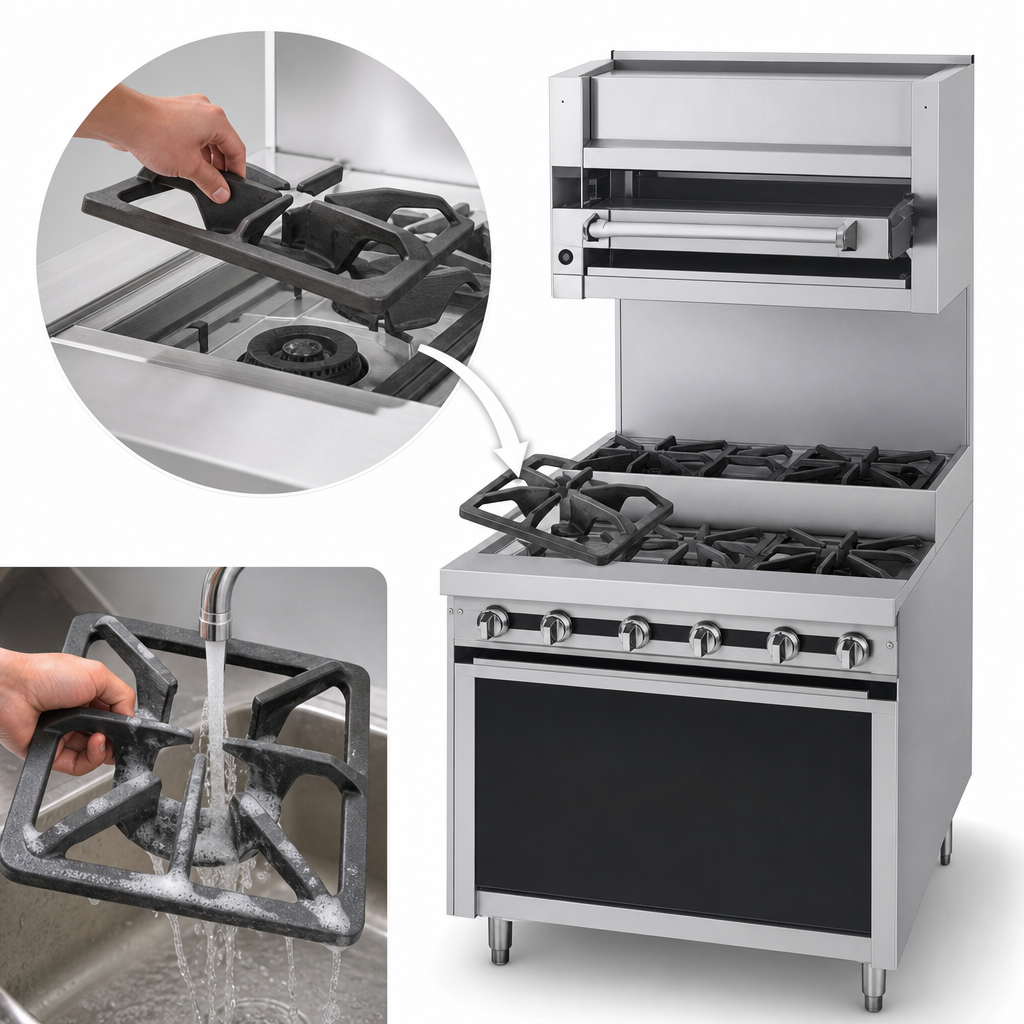

Individual Lift-Off Steel Top Grates

Facilitates easy cleaning and maintenance, allowing for quick removal and sanitation.

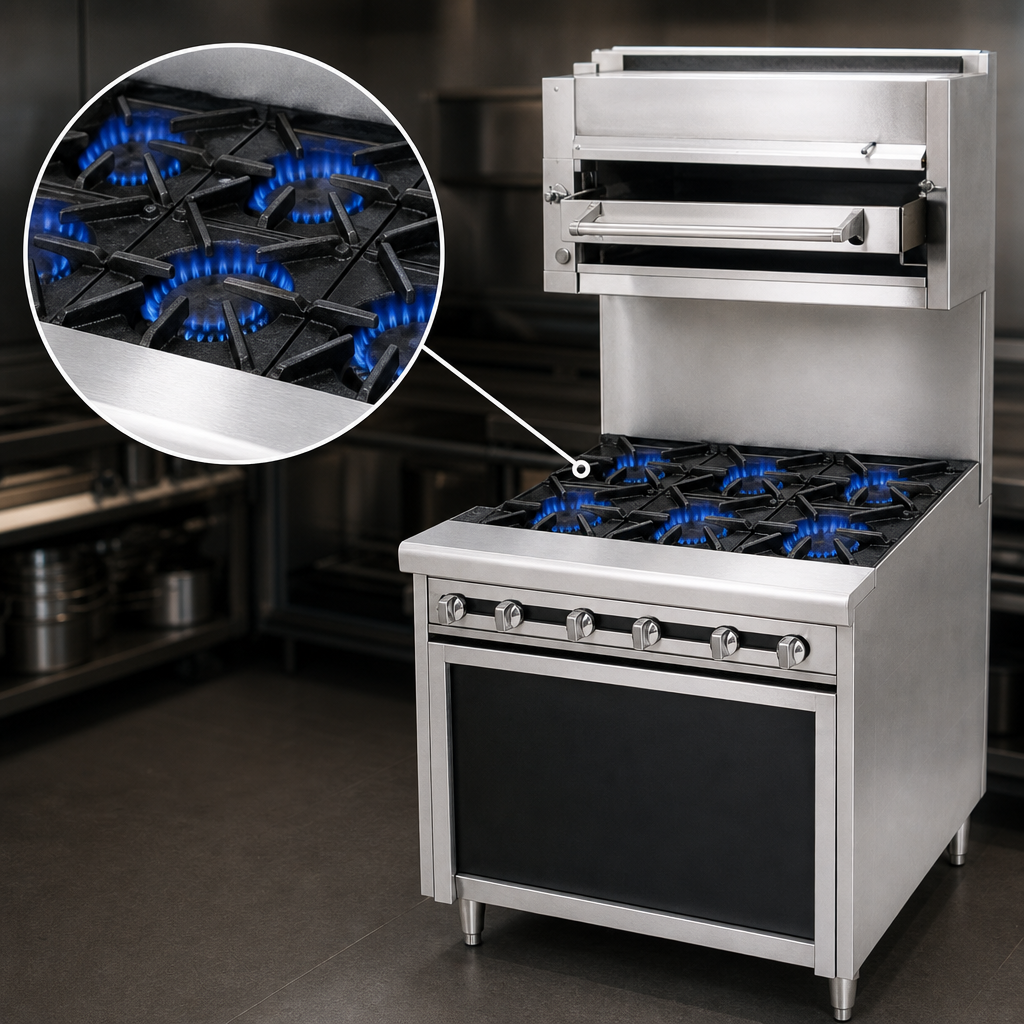

30,000 BTU/hr Cast Iron Open Burners

Eight powerful cast iron open burners (four in front, four step-up in rear) provide high heat output for rapid cooking and consistent results.

Infinite Gas Valves

Offers precise and independent control over the flame intensity for each burner, enabling versatile cooking.

Stainless Steel Pilot Per Burner

Ensures reliable and efficient ignition for each individual burner.

14 Gauge All Welded Body Construction

Provides exceptional strength and durability, designed to withstand the rigors of a busy commercial kitchen.

Stainless Steel Cabinet Interior and Exterior

Offers superior corrosion resistance, enhances hygiene, and maintains a professional appearance.

Stainless Steel Gas Tubing Throughout

Ensures longevity, resists corrosion, and provides safe, consistent gas delivery.

Stainless Steel Front, Sides, Stub Back and Bottom

Durable and easy-to-clean exterior surfaces that contribute to the unit's robust construction.

Stainless Steel 6" Plate Shelf

Provides a convenient and accessible area for warming plates or staging ingredients.

Stainless Steel Adjustable 6" Legs

Allows for easy leveling of the unit on uneven floors and facilitates cleaning underneath the range.

Step-Up Open Burner Configuration

The unique step-up design allows for easier access and management of pots and pans on the rear burners, optimizing cooking efficiency.

Type Commercial Gas Range
Style Step-Up Range
Installation Type Floor Model (With 6" Adjustable Legs)
Capacity 8 Open Burners
Cooking Surface Width 48 Inches
Cooking Surface Depth 38 Inches
Controls Infinite Gas Valves
BTU 240,000 BTU
BTU Per Burner 30,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. minimum
Gas Inlet Pressure (Maximum) 14 Inches W.C.
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 650 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

null

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRHE-4-4 range can be configured for either Natural Gas or Propane. You must specify your desired gas type when ordering.
For Natural Gas, a minimum operating pressure of 5" W.C. is required. For Propane Gas, a minimum operating pressure of 10" W.C. is required. The maximum operating pressure for both gas types is 14" W.C.
Yes, the range is supplied with a 3/4" gas pressure regulator, which must be properly installed for safe and efficient operation. Larger regulators are available as accessories.
The JTRHE-4-4 model features a total of eight 30,000 BTU open burners: four in the front and four in a step-up configuration in the rear, providing ample cooking capacity.
Yes, this range can be installed at high altitudes, but it is critical to specify the altitude when ordering to ensure the unit is correctly calibrated for optimal performance.
The range boasts a heavy-duty 14 gauge all-welded body construction with stainless steel used for the front, sides, stub back, bottom, cabinet interior, and all gas tubing, ensuring durability and ease of cleaning.
