Jade Range (Middleby)

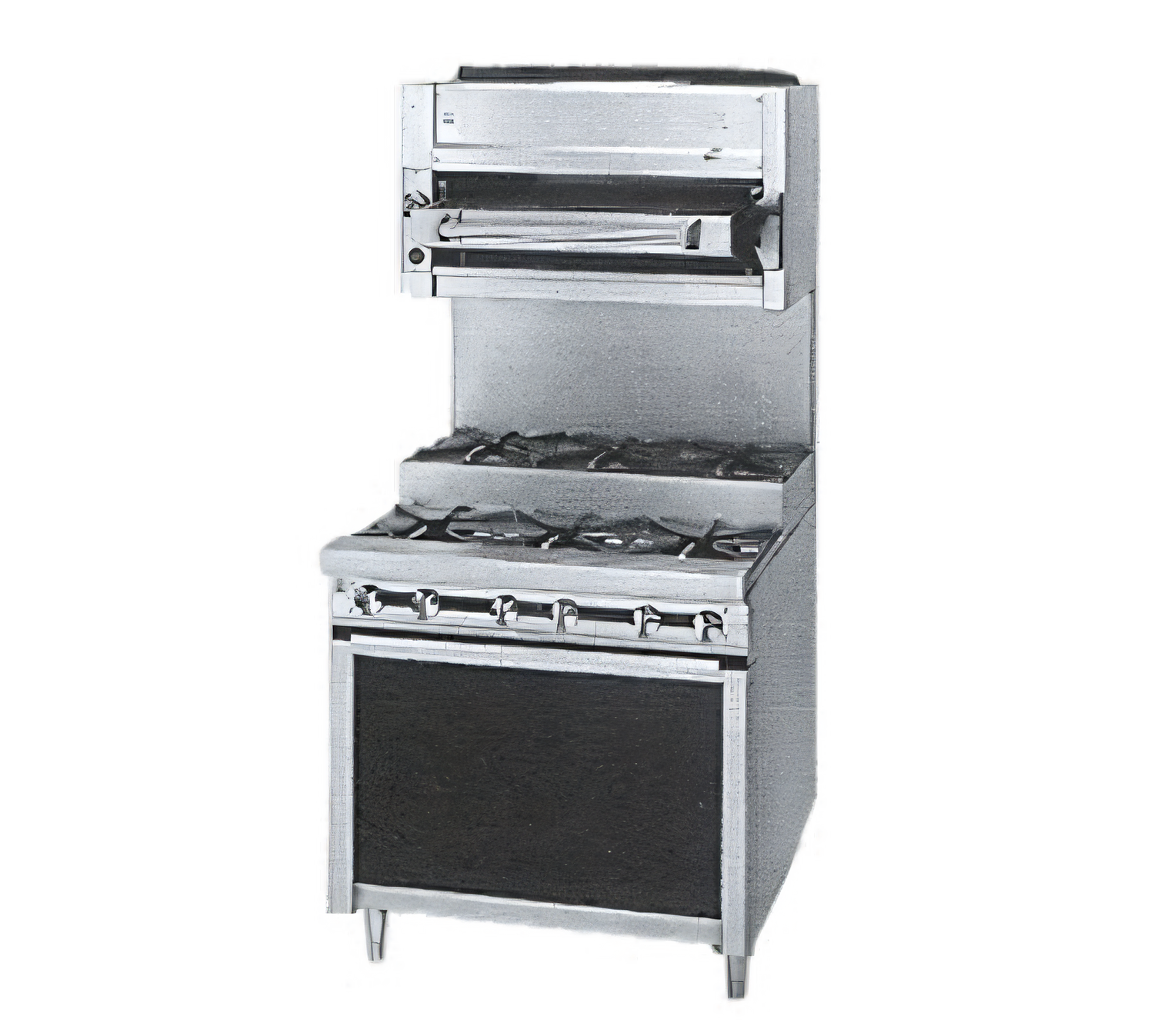

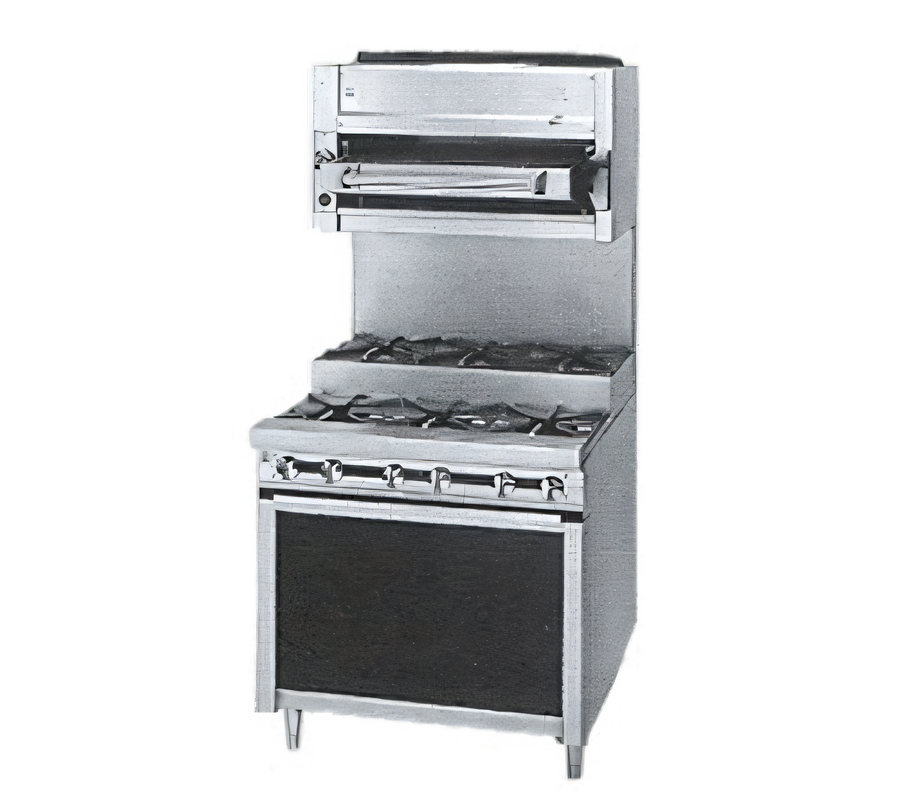

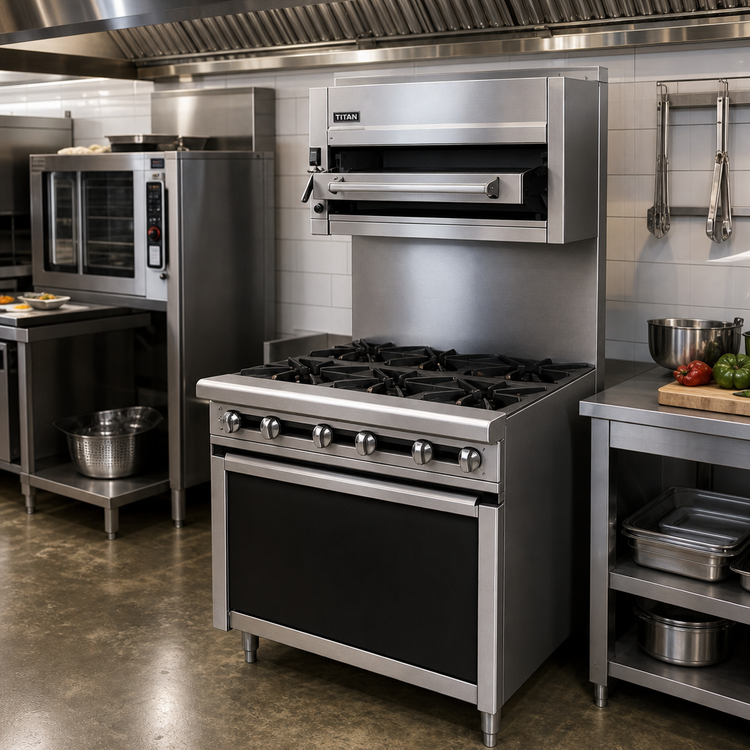

Titan JTRHE-2-2 24" Heavy Duty Gas Step-Up Range with 4 Open Burners and Cabinet Base

SKU: JTRHE-2-2
$9,623.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRHE-2-2 24" Heavy Duty Gas Step-Up Range with 4 Open Burners and Cabinet Base

24-Inch, 120,000 BTU, Natural Gas or Propane Ready

Experience robust cooking power and unparalleled durability with the Titan JTRHE-2-2 heavy-duty gas step-up range, designed for demanding commercial kitchens.

  • Equipped with two front and two step-up rear 30,000 BTU cast iron open burners for versatile cooking.
  • Features a durable 14 gauge all-welded stainless steel body construction for lasting performance.
  • Includes a convenient cabinet base for storage and a 6" stainless steel plate shelf.
  • Individual lift-off steel top grates and stainless steel pilots ensure easy cleaning and reliable ignition.
  • Adjustable 6" stainless steel legs allow for precise leveling and stability.
  • Total 120,000 BTU output provides ample power for various cooking tasks.

Overall Dimensions:

24.0"W x 38.0"D x 36.5"H

Product Weight:

265.0 lb

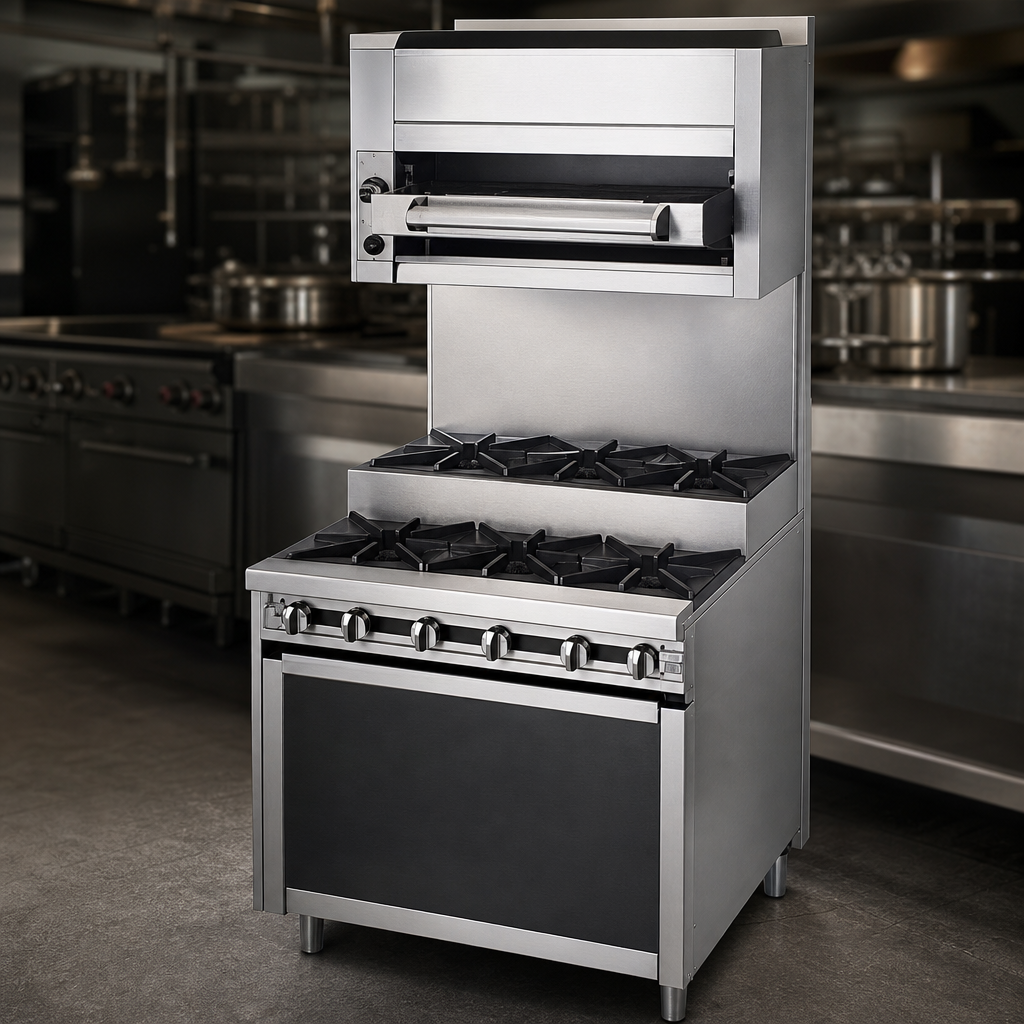

Heavy Duty Construction

Constructed with 14 gauge all-welded stainless steel for maximum durability and longevity in a demanding commercial kitchen environment.

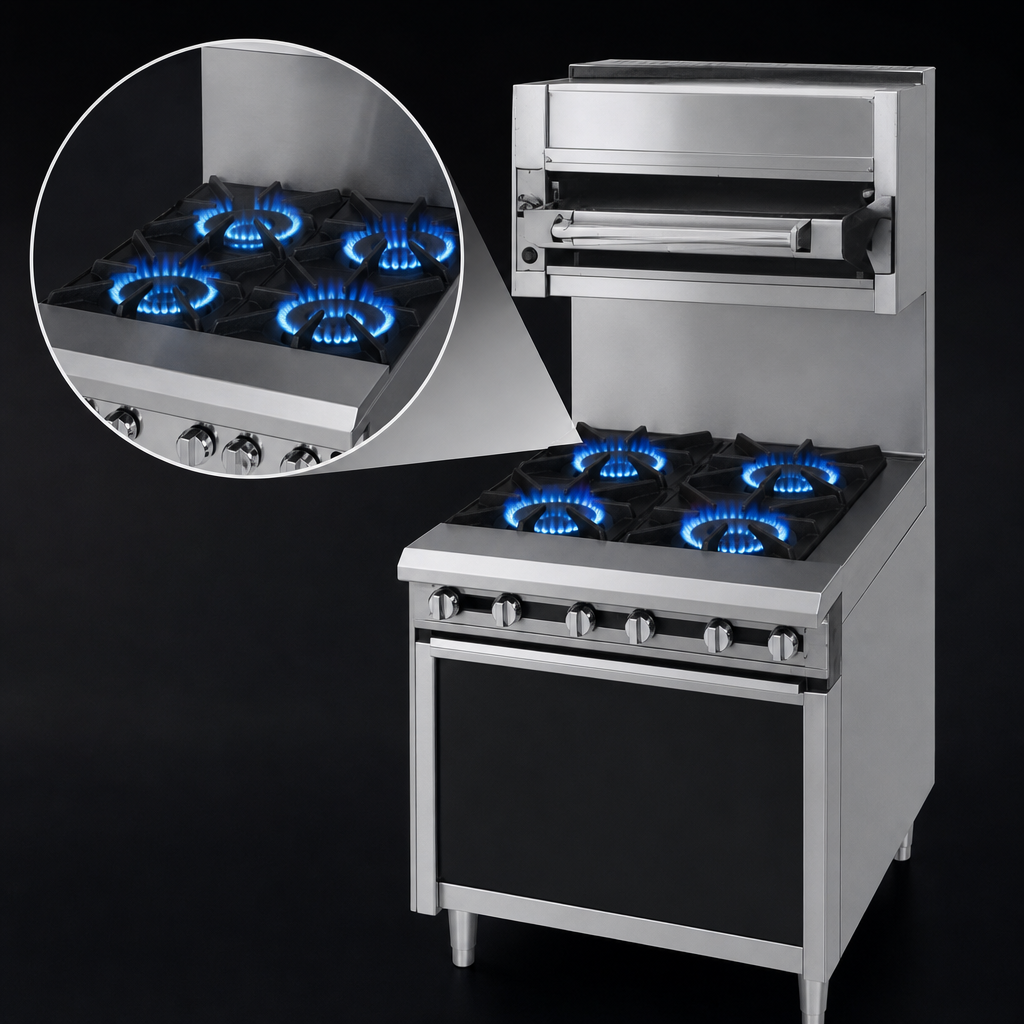

High-Performance Open Burners

Features four (4) 30,000 BTU/hr cast iron open burners, including a step-up configuration, perfect for simultaneous cooking with varying heat requirements.

Individual Lift-Off Grates

Each burner is equipped with individual lift-off steel top grates, making cleaning and maintenance simple and efficient.

Stainless Steel Cabinet Base

Provides convenient enclosed storage space, with a stainless steel interior and exterior that matches the range's aesthetic and simplifies cleaning.

6" Stainless Steel Plate Shelf

A welded 6" stainless steel plate shelf offers a practical area for holding plates, ingredients, or cooking utensils.

Adjustable Legs

Stands on 6" adjustable stainless steel legs, allowing for proper leveling on uneven floors and ensuring stability.

Stainless Steel Gas Tubing

Internal gas tubing is made entirely of stainless steel for enhanced safety and corrosion resistance.

Infinite Gas Valves

Burners are controlled by infinite gas valves, providing precise temperature control for a wide range of cooking applications.

Stainless Steel Pilots

Each burner has its own stainless steel pilot for reliable ignition.

Type Heavy Duty Range
Style Cabinet Base Step-Up Range
Installation Type Floor Model (With Adjustable Legs)
BTU 120,000 BTU
Burners 4 Open Burners
BTU Per Burner 30,000 BTU/hr
Controls Infinite Controls
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches (Front), 1 Inch or 3/4 Inch (Rear)
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Compartments 1
Shipping Width 24 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 265 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRHE-2-2 range can be configured for either Natural Gas or Propane. Please specify your required gas type when ordering.
This range features four cast iron open burners, each rated at 30,000 BTU/hr, for a total output of 120,000 BTU.
Yes, a 3/4" gas pressure regulator is supplied with the unit and must be installed for proper operation. Larger regulators (1" or 1-1/4") are available as accessories if needed.
The required minimum operating pressure is 5" W.C. for Natural Gas and 10" W.C. for Propane Gas, with a maximum of 14" W.C. for both.
Yes, the manufacturer requests that you specify your altitude if it is above 2,000 feet when ordering, to ensure proper configuration.
