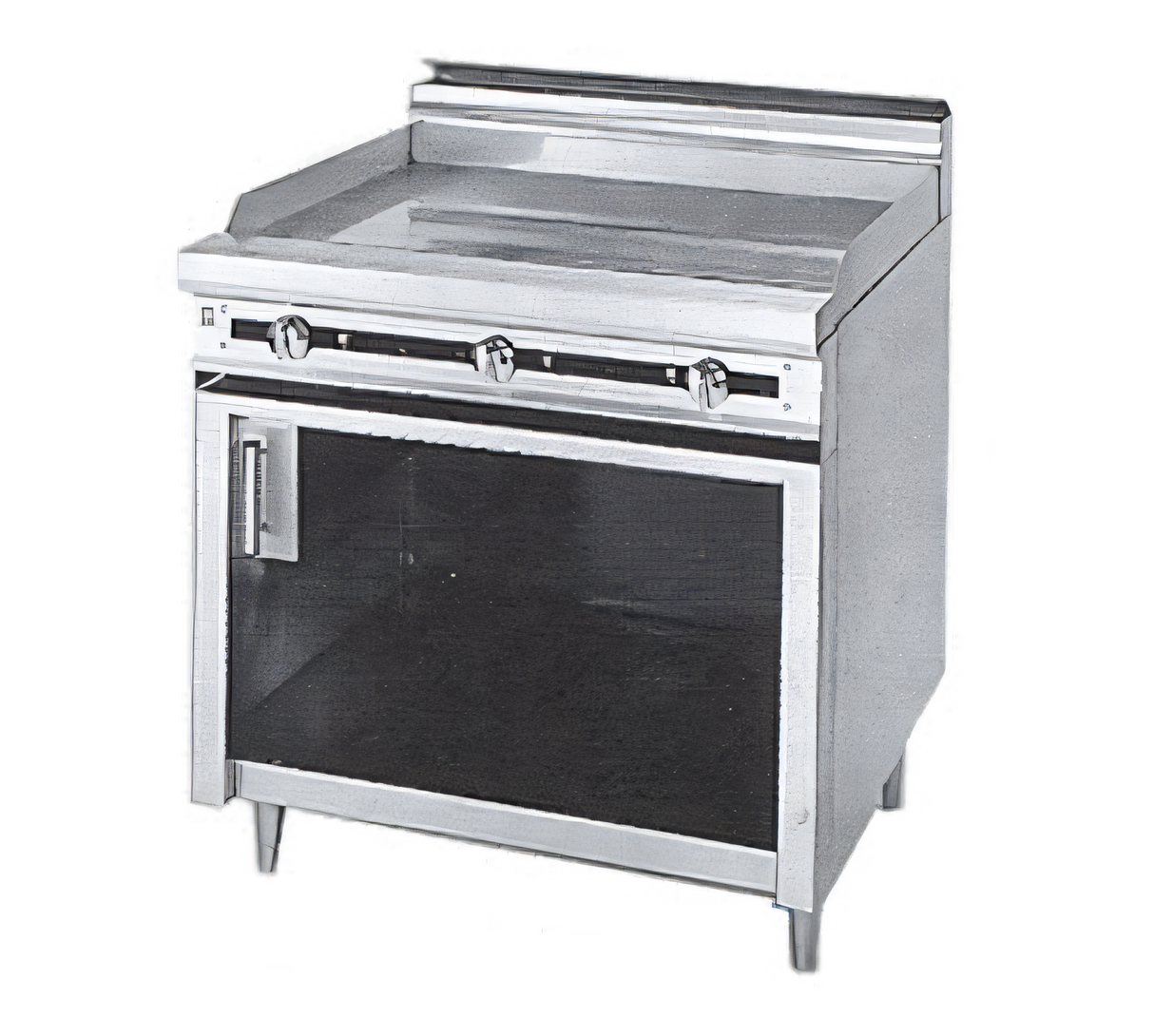

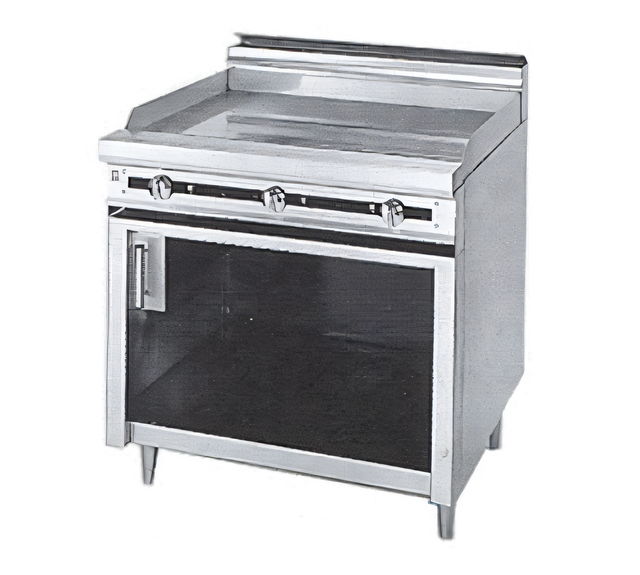

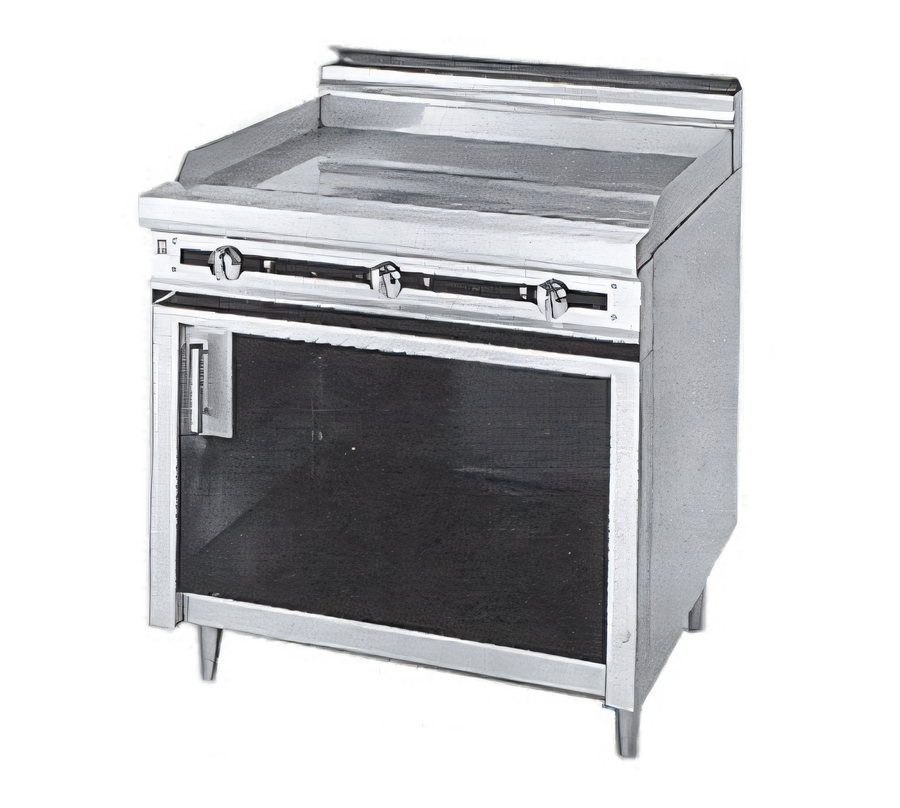

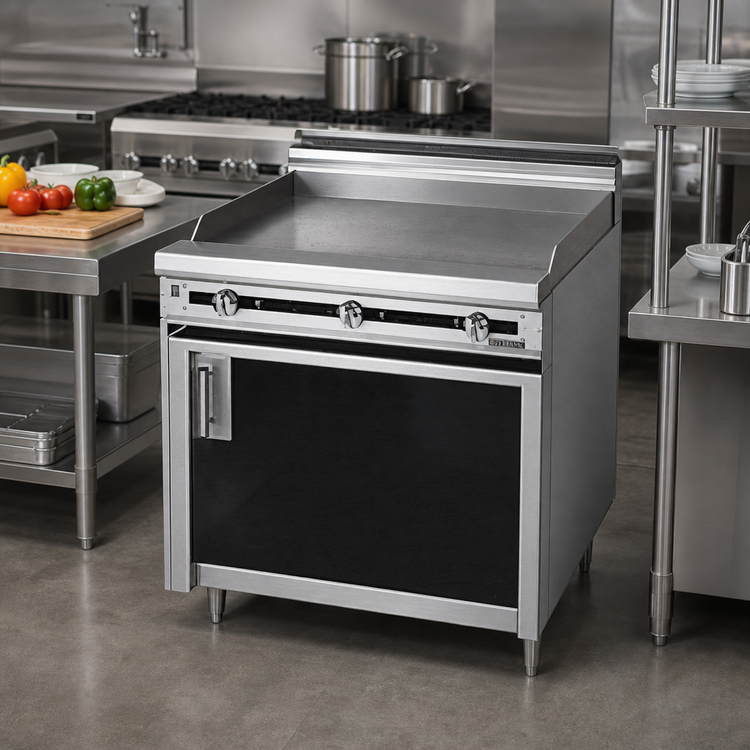

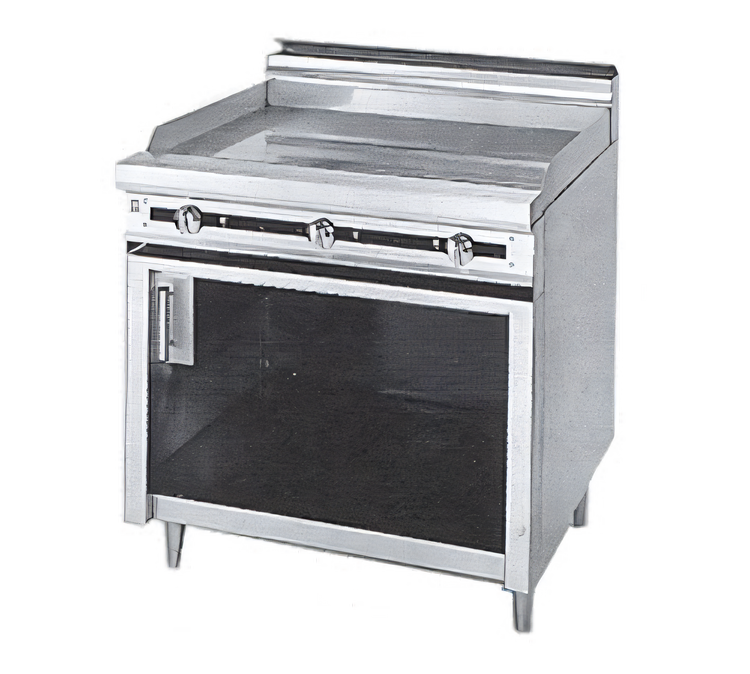

Titan JTRH-72G 72" Heavy Duty Cabinet Base Gas Griddle Top Range with Manual Controls
Titan JTRH-72G 72" Heavy Duty Cabinet Base Gas Griddle Top Range with Manual Controls
Full-Size, Natural Gas or Propane Ready, 1" Thick Polished Steel Griddle
Engineered for demanding commercial kitchens, the Titan JTRH-72G griddle top range combines robust construction with a spacious, high-performance cooking surface.
- Equipped with a durable 1" thick polished steel griddle plate for consistent heat and lasting performance.
- Features a spacious 72-inch wide cooking surface, ideal for high-volume griddle cooking.
- Built with a sturdy stainless steel cabinet base, front, sides, stub back, and bottom for durability and easy cleaning.
- Manual controls provide precise heat management across the griddle sections without a thermostat.
- Includes a 6" plate shelf and adjustable 6" legs for convenient operation and stable placement.
- Delivers a powerful 210,000 BTU, ensuring rapid heat-up and recovery for continuous use.
Overall Dimensions:
72.0"W x 38.0"D x 36.5"HProduct Weight:

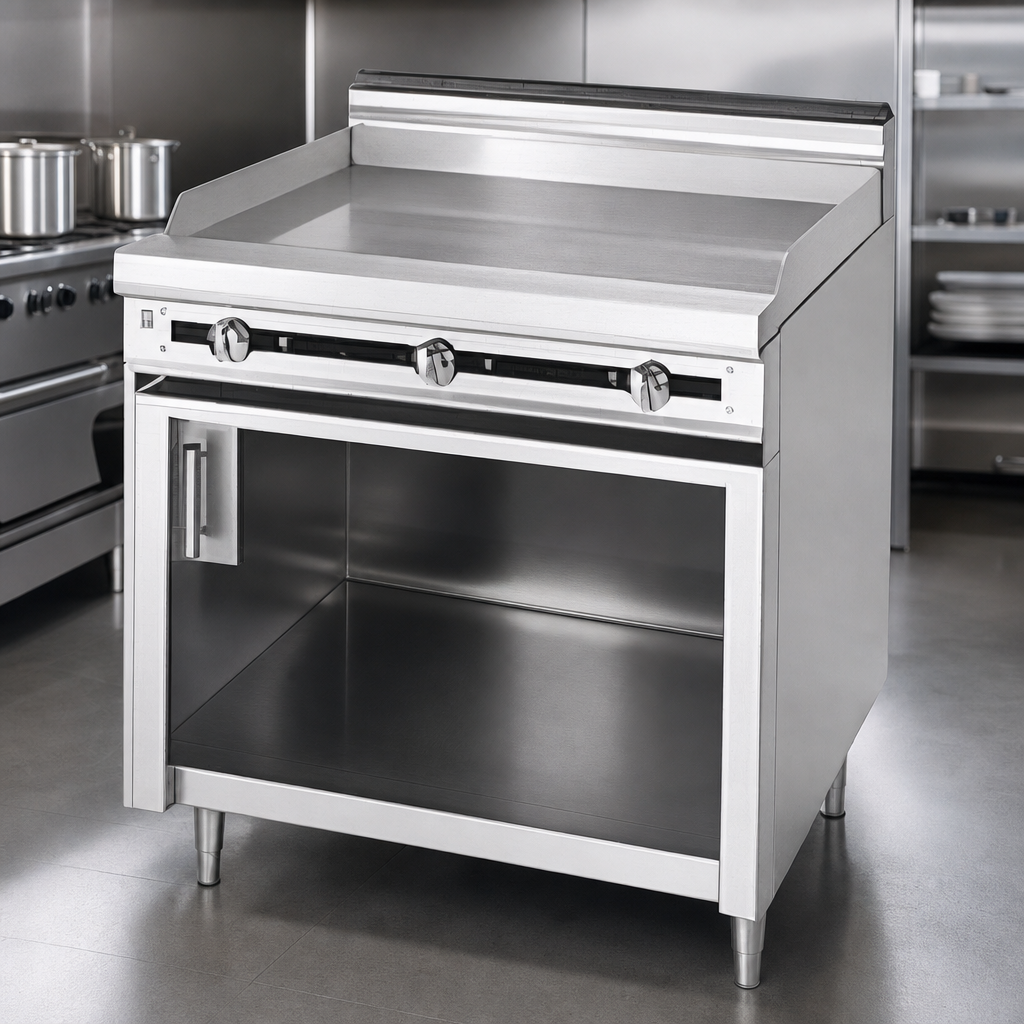

1060.0 lbHeavy Duty Construction
Constructed with a 14 gauge all-welded body, stainless steel front, sides, stub back, and bottom, and a stainless steel cabinet interior and exterior for maximum durability and longevity in busy commercial environments.

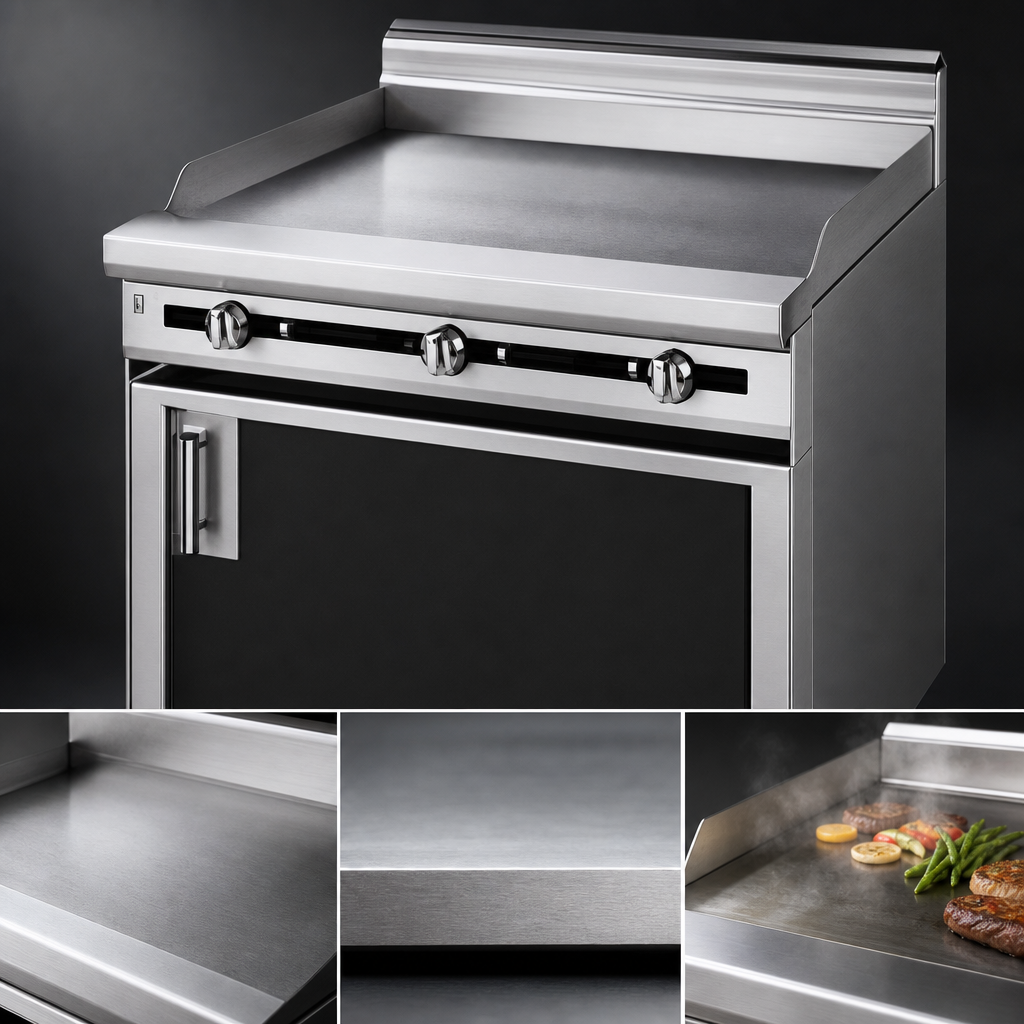

High-Performance Griddle Plate
Features a polished 1" thick steel griddle plate, reinforced for even heat distribution and quick recovery, ideal for high-volume cooking.
Manual Griddle Controls
Each griddle burner section is controlled by infinite manual gas valves, providing precise heat adjustment for different cooking needs. This model does not include a temperature thermostat.
Integrated Splashguards and Grease Trough
Equipped with 14 gauge stainless steel side and rear splashguards and a stainless steel grease trough to contain splatter and facilitate easy cleanup.
Convenient Storage and Workspace
A spacious cabinet base offers enclosed storage, while a stainless steel 6" plate shelf provides convenient plating space.
Adjustable Legs
Features 6" stainless steel adjustable legs for leveling on uneven floors and ensuring a comfortable working height.
Stainless Steel Gas Tubing
All gas tubing throughout the unit is made of stainless steel for enhanced durability and corrosion resistance.
Flexible Gas Connection
Supplied with a 1-1/4" front manifold connection and either a 1" or 3/4" capped rear manifold connection to accommodate various installation requirements.
