Jade Range Titan JTRH-6HT 72-Inch Six Hot Top Cabinet Base Gas Range

SKU: JTRH-6HT
$23,835.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Titan JTRH-6HT 72-Inch Six Hot Top Cabinet Base Gas Range

Heavy Duty, Natural Gas or Propane, Floor Model

The Jade Range Titan JTRH-6HT heavy-duty gas range offers robust construction and six powerful hot top sections, perfect for high-volume commercial kitchens.

  • 72-inch wide heavy-duty commercial gas range with a cabinet base.
  • Features six 12-inch hot top sections, each with a 35,000 BTU/hr burner.
  • Total 210,000 BTU/hr output for high-performance cooking.
  • Durable 14 gauge all-welded stainless steel construction for longevity.
  • Equipped with stainless steel 6-inch adjustable legs and a plate shelf.
  • Infinite controls per hot top section for precise temperature management.

Highly Polished Reinforced Cast Iron Plates

Provides excellent heat retention and durability for the cooking surface, ideal for heavy-duty use.

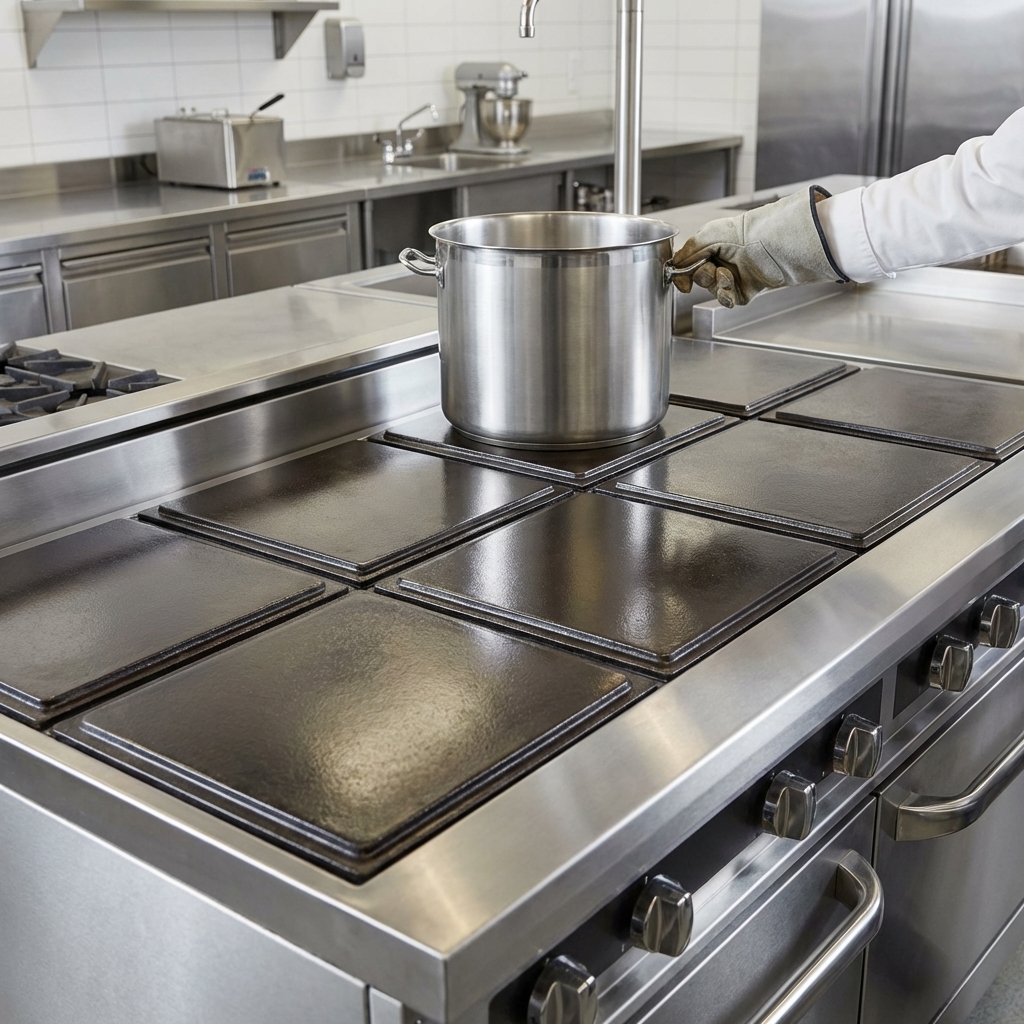

Showcasing exceptional durability and heat retention, this image highlights the range's highly polished, reinforced cast iron plates for heavy-duty commercial use.

35,000 BTU/hr Burner Per Section

Ensures powerful and even heating across each of the six hot top sections for efficient cooking.

Witness the even and powerful 35,000 BTU/hr heating across all six hot top sections, ensuring uniform cooking results.

Infinite Controls

Allows precise and independent temperature adjustment for each hot top section, offering versatility for different cooking needs.

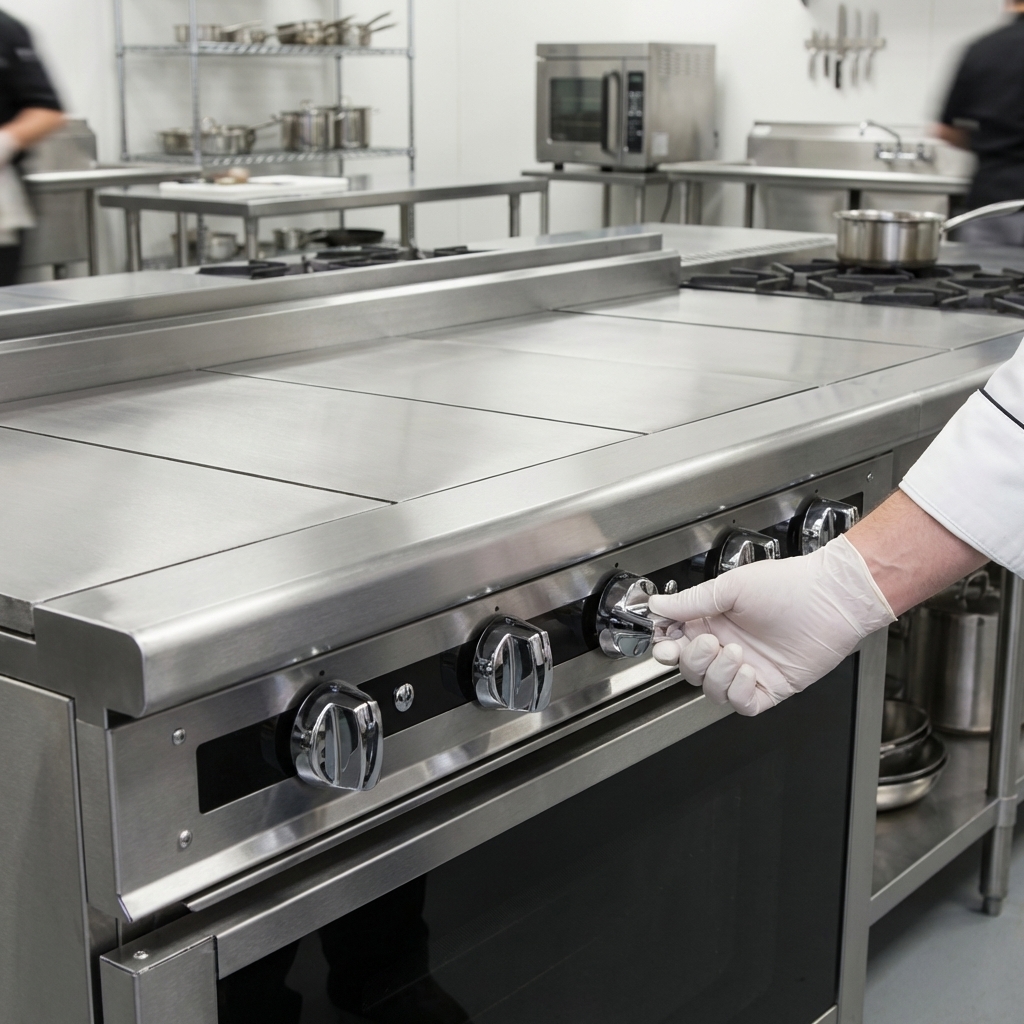

Experience unparalleled cooking flexibility with the Infinite Controls, allowing precise and independent temperature adjustment for each hot top section.

14 Gauge All-Welded Body Construction

Guarantees exceptional strength and longevity, making it suitable for demanding commercial kitchen environments.

Stainless Steel Cabinet Interior and Exterior

Offers superior corrosion resistance, easy cleaning, and maintains a professional appearance.

Stainless Steel Gas Tubing Throughout

Enhances the durability and safety of the gas system, reducing maintenance over time.

Stainless Steel Front, Sides, Stub Back, and Bottom

Provides a robust, easy-to-clean exterior that withstands the rigors of commercial use.

Stainless Steel 6-Inch Plate Shelf

Offers a convenient and durable storage or staging area for plated dishes or ingredients.

Stainless Steel Adjustable 6-Inch Legs

Ensures stability and allows for proper leveling on uneven floors, with options for casters.

3/4" Gas Regulator

Supplied loose with the unit and must be installed for proper and safe operation, ensuring correct gas pressure.

Specifications

Type Hot Top Range
Style Cabinet Base
Installation Type Floor Model (With 6-Inch Adjustable Legs)
BTU 210,000 BTU
Pan Capacity Six 12-Inch Hot Tops
Controls Infinite
Material 14 Gauge Stainless Steel Body
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches NPT (Front), 1 Inch or 3/4 Inch NPT (Rear)
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Shipping Width 72 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 940 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

72.0"W x 38.0"D x 36.5"H

Product Weight:

940.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 72.0in
Depth 38.0in
Shipping Weight 940.0lbs
Base cabinet(s)
Exterior Finish stainless steel front & sides
Top (6) hot tops
Specifications Titan™ Heavy Duty Range, gas, 72", (6) 12" 35,000 BTU hot tops, infinite controls, cabinet base, stainless steel 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 210,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer reserves the right to change materials and specifications without notice

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-6HT range can be configured for either Natural Gas or Propane. It is essential to specify the gas type when placing an order.
Each of the six hot top sections is equipped with a powerful 35,000 BTU/hr burner, providing a total output of 210,000 BTU/hr for the entire unit.
Yes, the JTRH-6HT range is supplied with a 3/4" gas pressure regulator, which must be installed to ensure proper and safe operation. Optional 1" or 1-1/4" regulators are available as accessories.
For Natural Gas, a minimum of 5" W.C. operating pressure is required. For Propane Gas, a minimum of 10" W.C. operating pressure is required. The maximum operating pressure for both gas types is 14" W.C.
The range features a heavy-duty 14 gauge all-welded body construction with stainless steel used for the front, sides, stub back, bottom, cabinet interior, and all gas tubing for maximum durability and hygiene.
