Jade Range (Middleby)

Titan 60-Inch Heavy-Duty Gas Plancha Top Range with Cabinet Base and 5/8-Inch Steel Plate

SKU: JTRH-60IP
$27,356.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

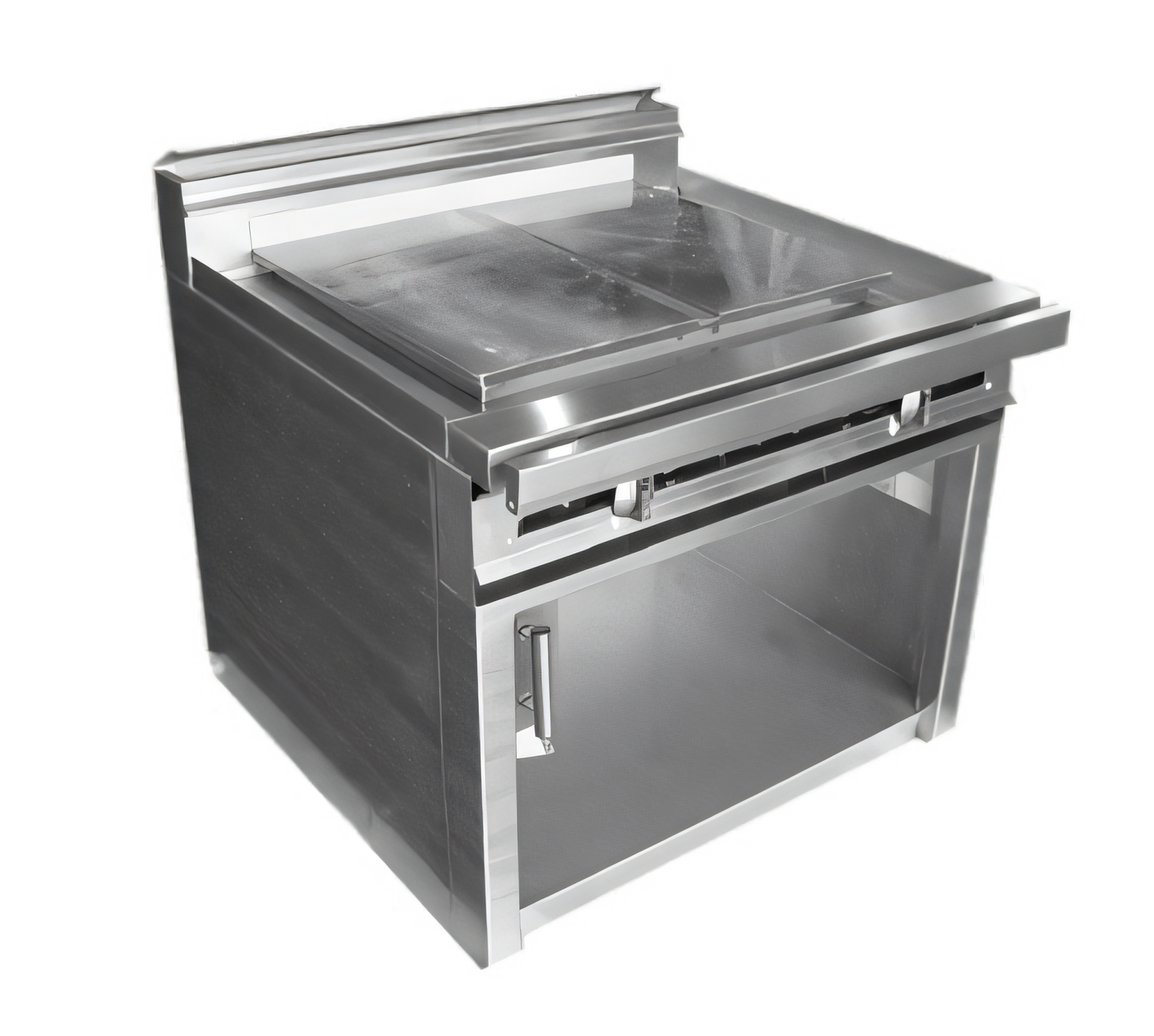

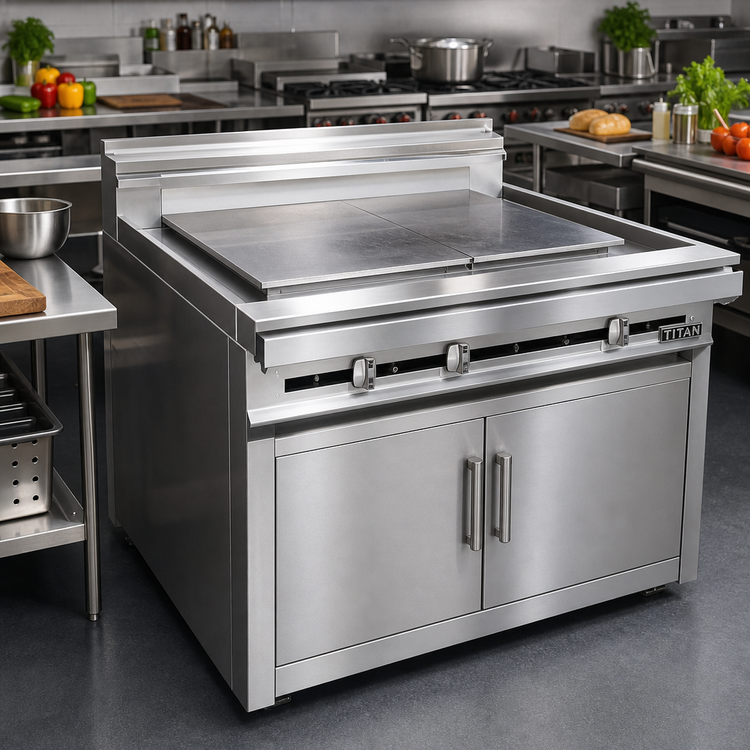

Titan 60-Inch Heavy-Duty Gas Plancha Top Range with Cabinet Base and 5/8-Inch Steel Plate

Stainless steel front, sides, and stub back; 70,000 BTU output

This 60-inch gas plancha range delivers high-output, even-heat cooking with a heavy-duty steel plate and stainless steel cabinet construction.

  • 5/8-inch polished steel plancha plate for even heat and strong searing performance
  • 70,000 BTU output for demanding line cooking
  • Stainless steel front, sides, stub back, interior/exterior, and grease trough
  • Cabinet base design with a 6-inch plate shelf and adjustable 6-inch legs
  • Variable multi-point gas connection with regulator supplied loose for installation
  • Optional risers, shelves, casters, hose kits, regulators, and doors available

Overall Dimensions:

60.0"W x 38.0"D x 36.5"H

Product Weight:

690.0 lb

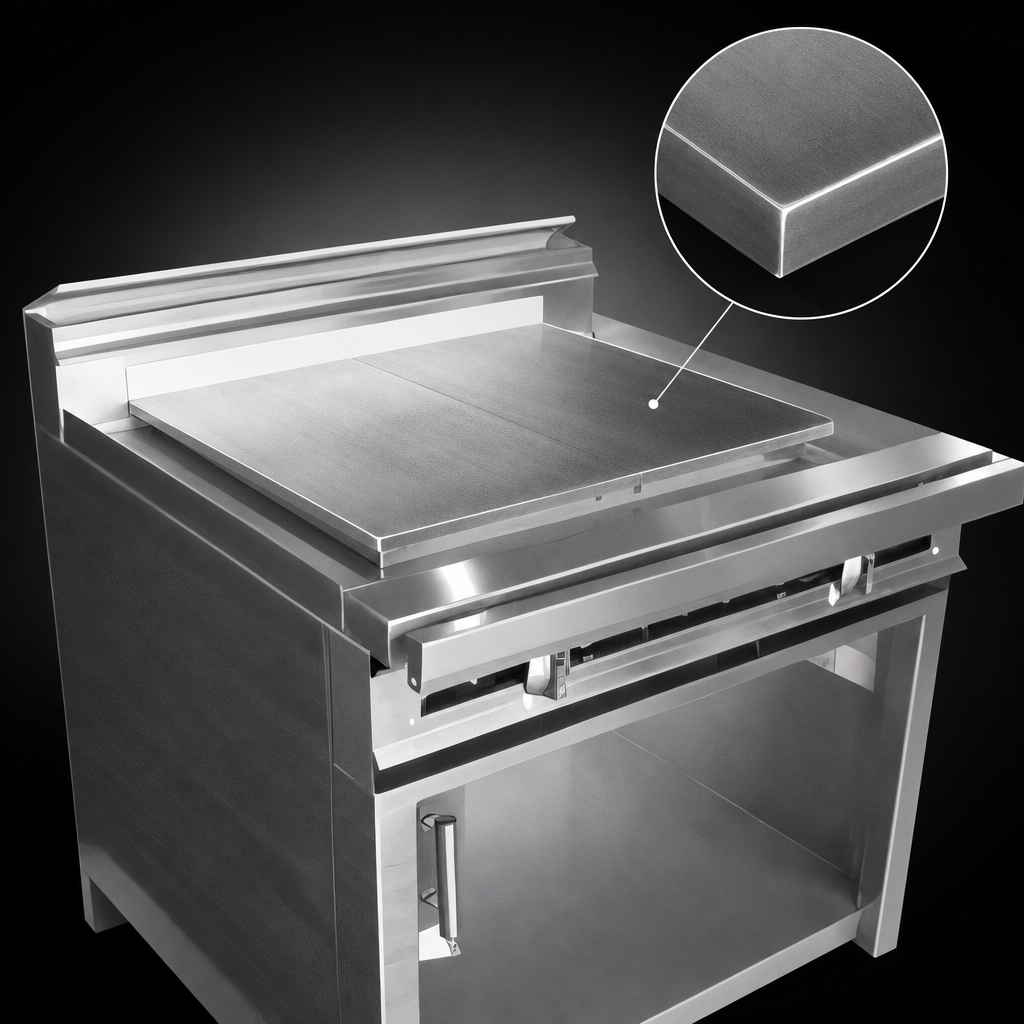

5/8-Inch Polished Steel Plancha Plate

Heavy-duty cooking surface is built for even heat distribution and high-volume searing.

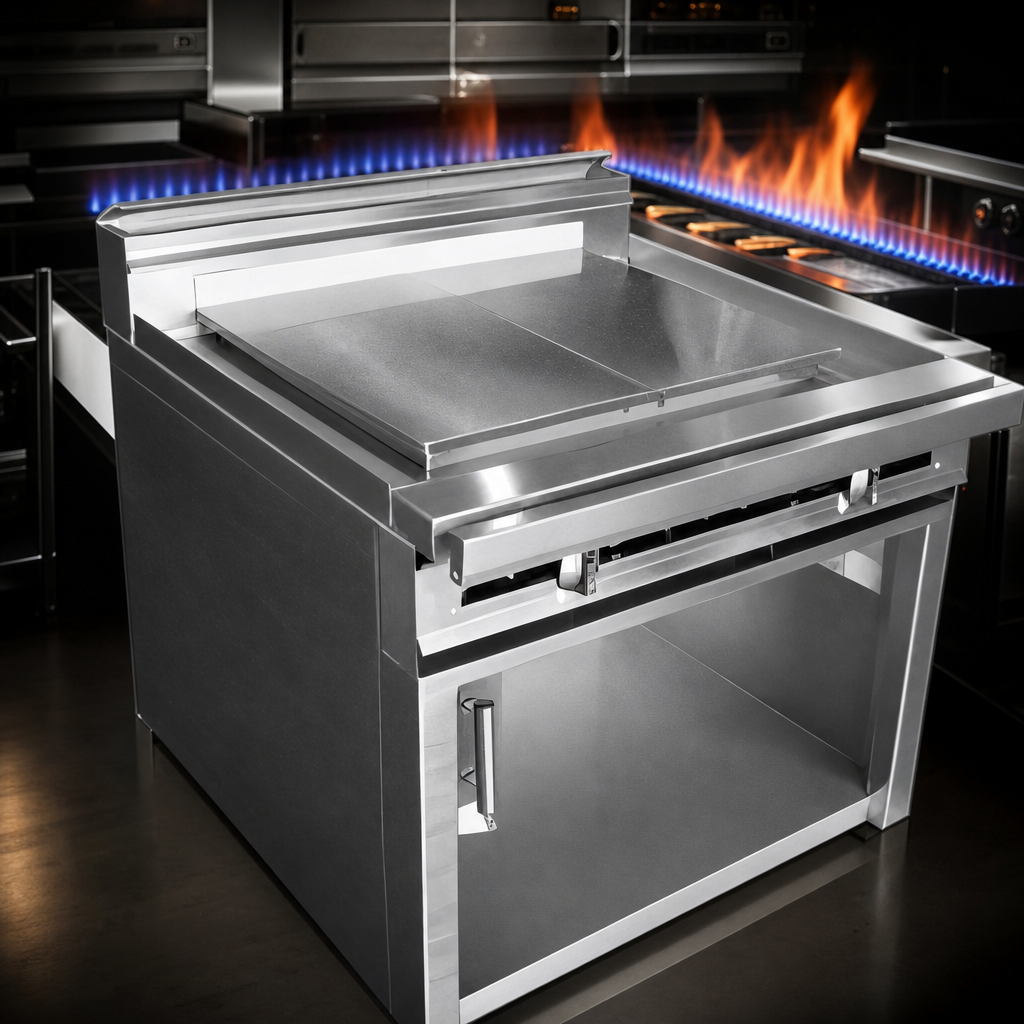

70,000 BTU Output

High heat output supports fast recovery and consistent performance during busy service.

Cabinet Base Construction

Floor-model cabinet base provides a sturdy footprint and enclosed undercounter storage.

Stainless Steel Construction

Stainless steel front, sides, stub back, cabinet interior and exterior, and grease trough help improve durability and cleanup.

6-Inch Stainless Steel Plate Shelf

Front shelf offers a convenient landing area for pans, tools, and plated items.

Adjustable 6-Inch Legs

Helps level the unit during installation on uneven flooring.

Gas Utility Package

Variable size multi-point gas connection and a 3/4-inch gas regulator are included; gas type is specified at order.

Type Plancha Top Range
Style Cabinet Base
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
BTU 70,000 BTU
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch or 3/4 Inch Rear Manifold
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 690 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is ordered by specifying gas type. The utility information lists natural gas at 5 inches W.C. minimum and propane at 10 inches W.C. minimum, with 14 inches W.C. maximum.
Standard features include a polished 5/8-inch thick steel plancha plate, stainless steel grease trough, stainless steel front/sides/stub back, stainless steel 6-inch plate shelf, adjustable 6-inch legs, and a 3/4-inch gas regulator shipped loose.
The unit measures 60 inches wide, 38 inches deep, and 36.5 inches high, with an approximate shipping weight of 690 pounds.
Yes. Documented accessories include casters, flex hoses with quick disconnect, gas pressure regulators, and stainless steel doors.
Yes. It is supplied with a 1-1/4-inch front manifold connection and a capped rear manifold connection that can be 1 inch or 3/4 inch depending on the setup.
