Jade Range (Middleby)

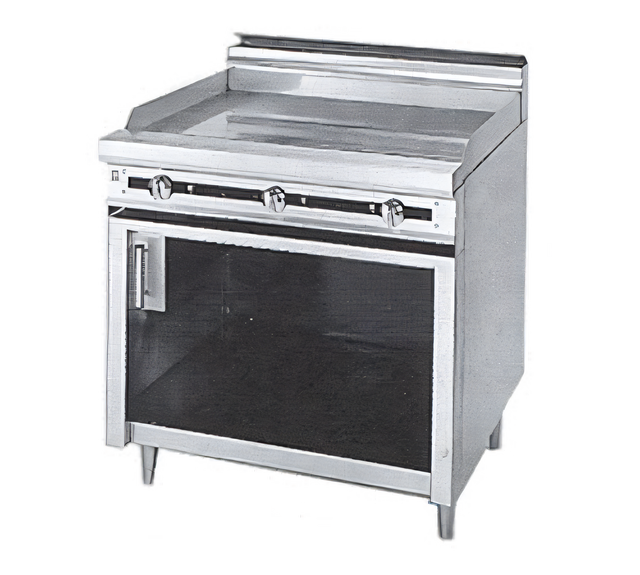

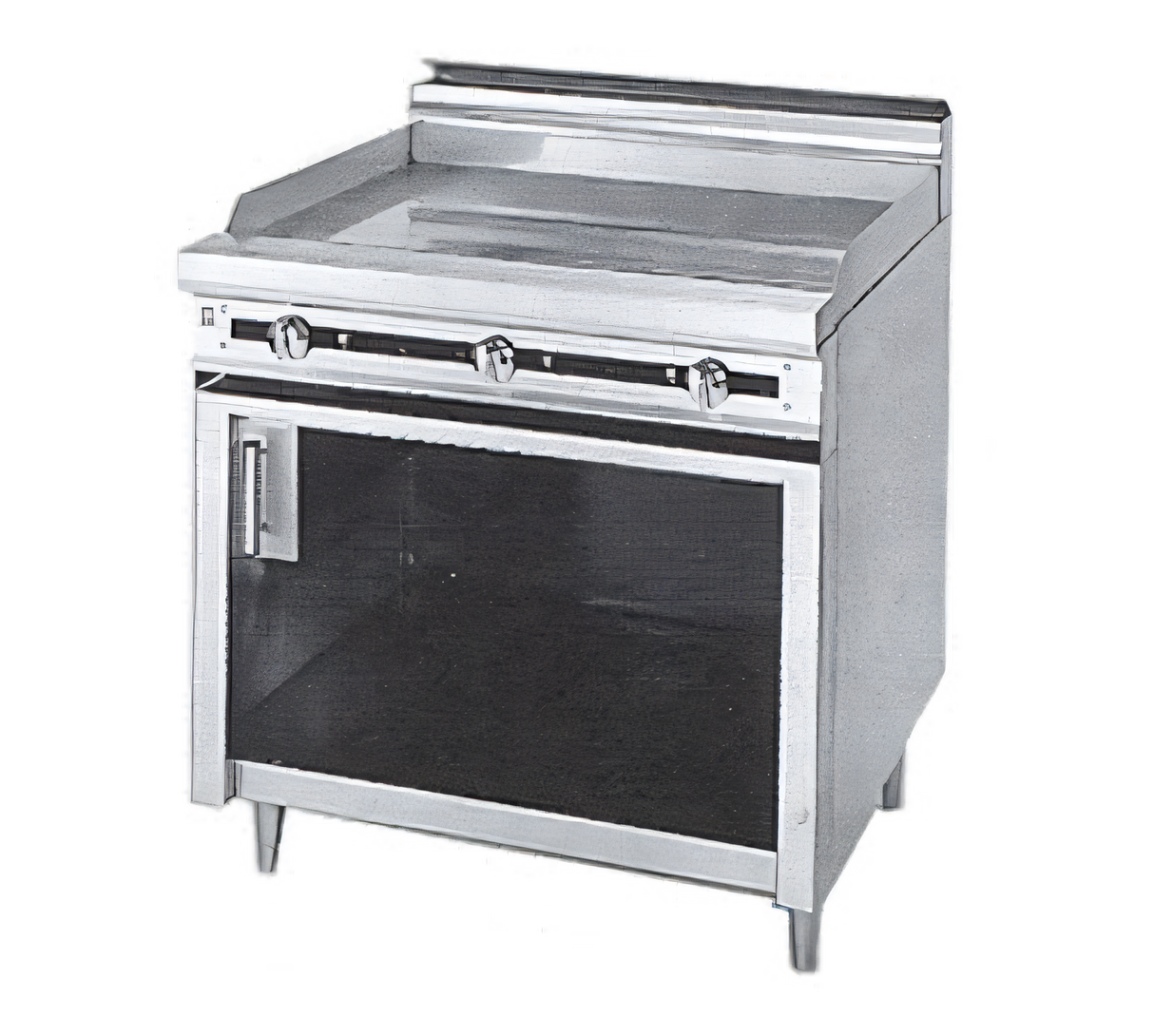

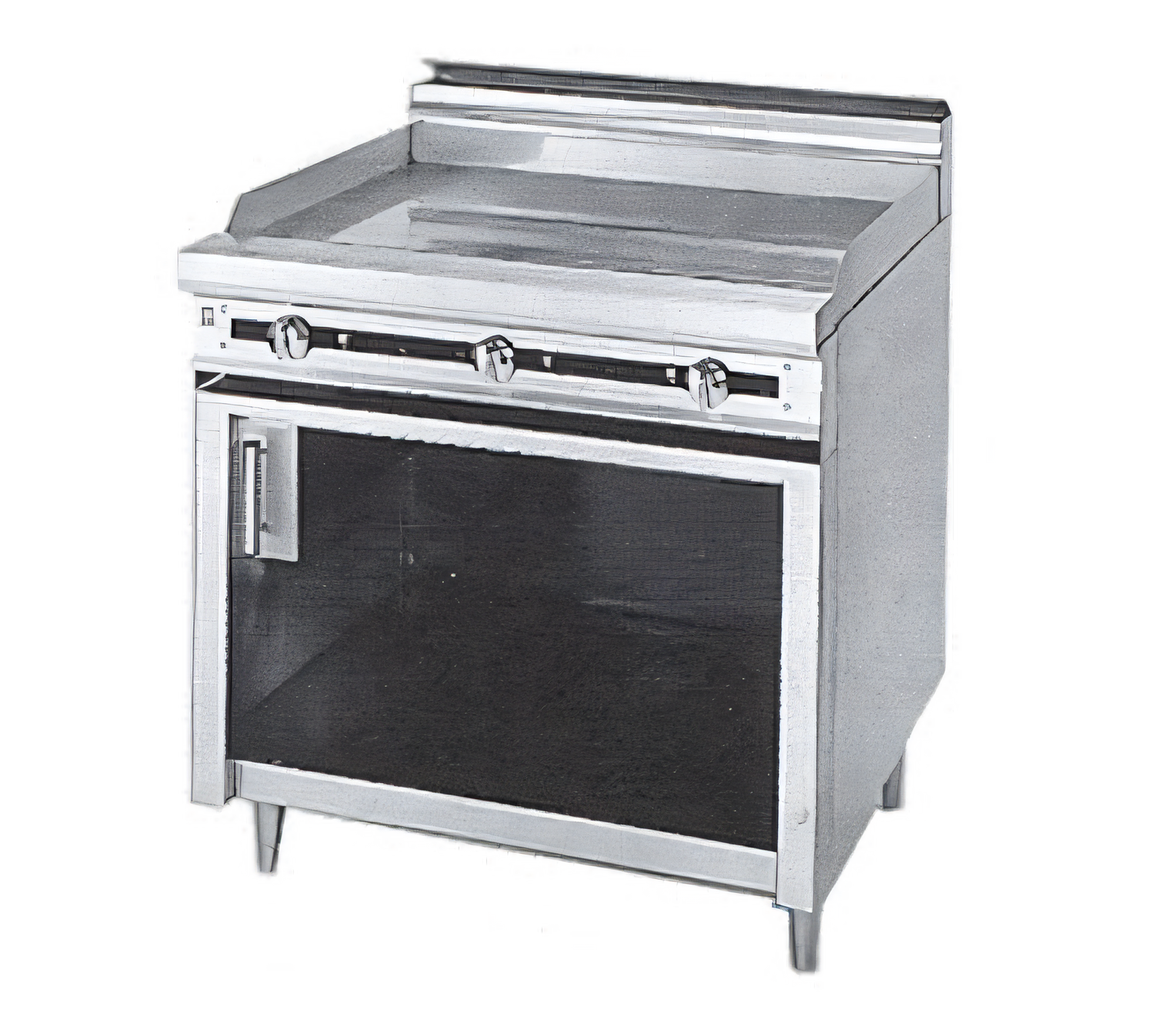

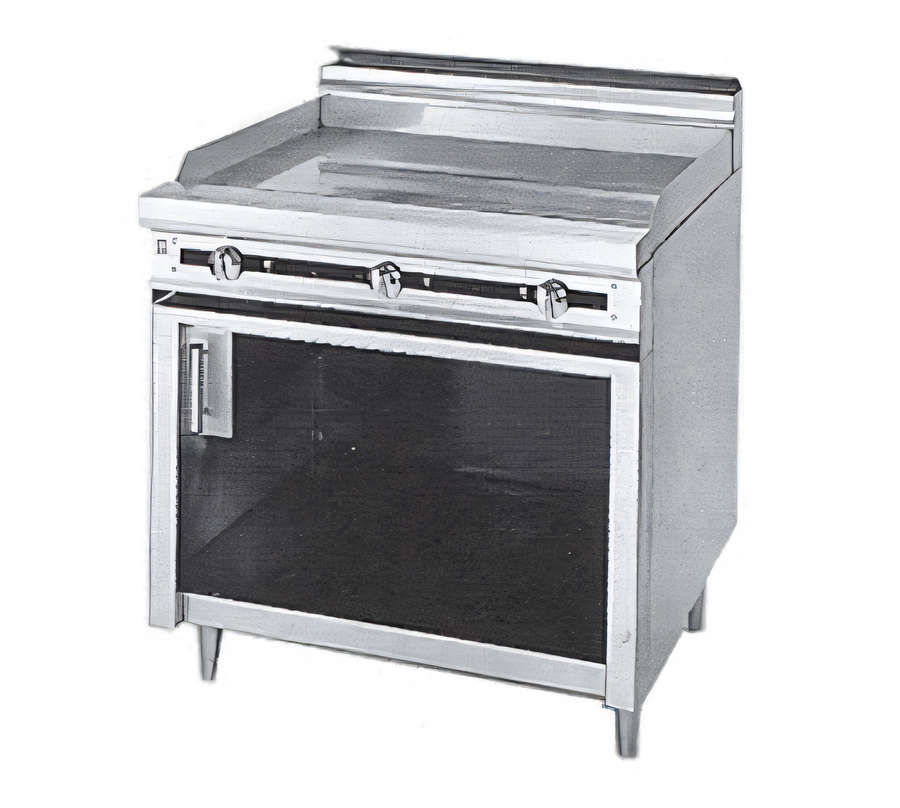

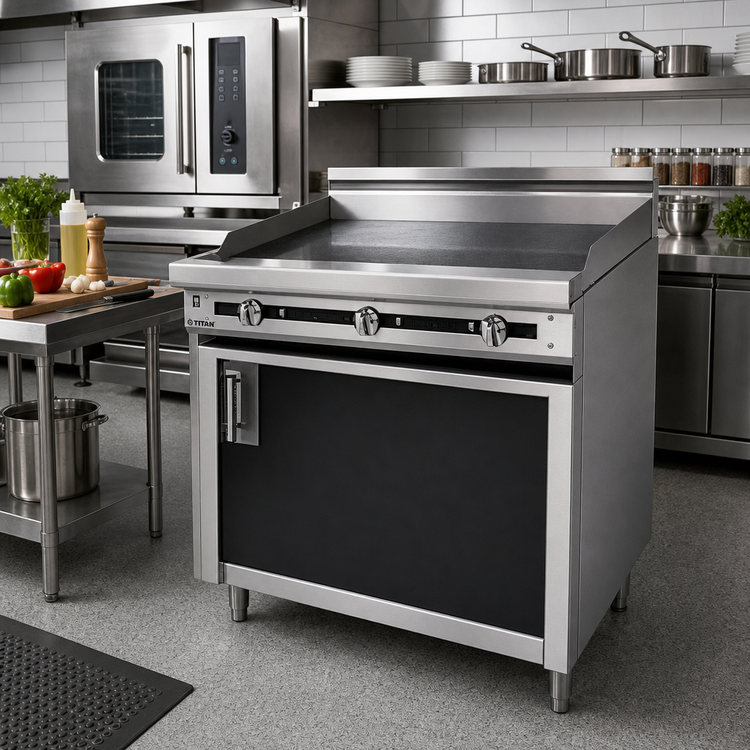

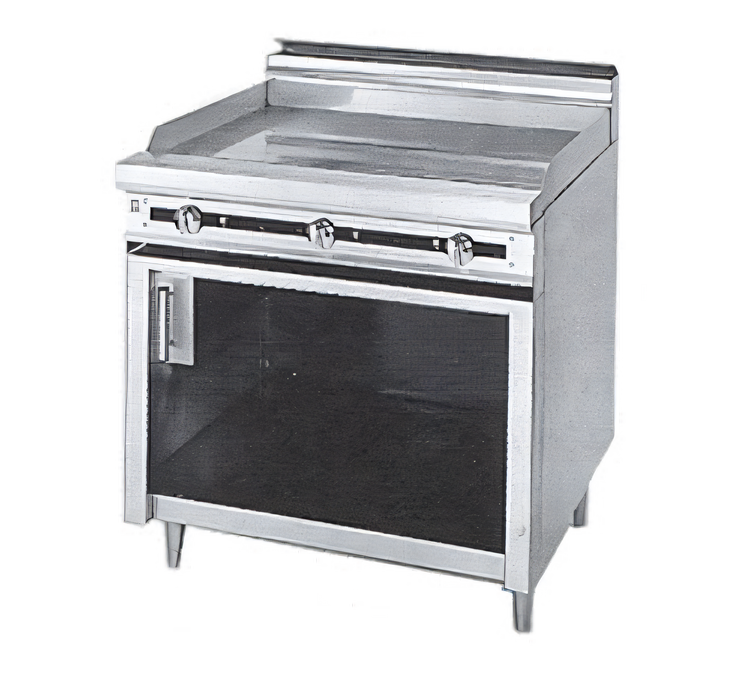

Titan JTRH-60GT 60" Heavy Duty Cabinet Base Gas Griddle Range with Thermostatic Controls

SKU: JTRH-60GT
$21,524.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRH-60GT 60" Heavy Duty Cabinet Base Gas Griddle Range with Thermostatic Controls

60-Inch, Cabinet Base, Thermostatic Griddle

Experience superior cooking performance and durability with the Titan JTRH-60GT heavy-duty gas griddle range, featuring a 1" polished steel griddle and robust stainless steel construction.

  • Large 60-inch griddle cooking surface with 1" thick polished steel plate for excellent heat retention and even cooking.
  • Thermostatic controls provide precise temperature management across the griddle surface.
  • Heavy-duty 14 gauge stainless steel construction ensures lasting durability for demanding commercial kitchens.
  • Cabinet base offers convenient storage or additional workspace beneath the cooking surface.
  • Equipped with a 6" plate shelf and splashguards for increased functionality and cleanliness.
  • High BTU output of 150,000 ensures rapid heating and recovery.
  • Designed for commercial use with NSF and CSAus certifications.

Overall Dimensions:

60.0"W x 38.0"D x 36.5"H

Product Weight:

830.0 lb

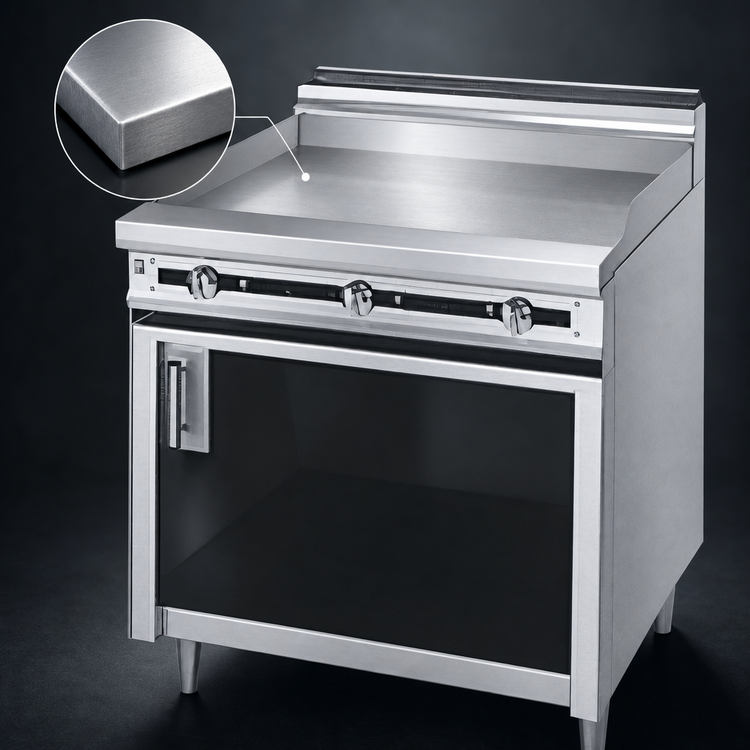

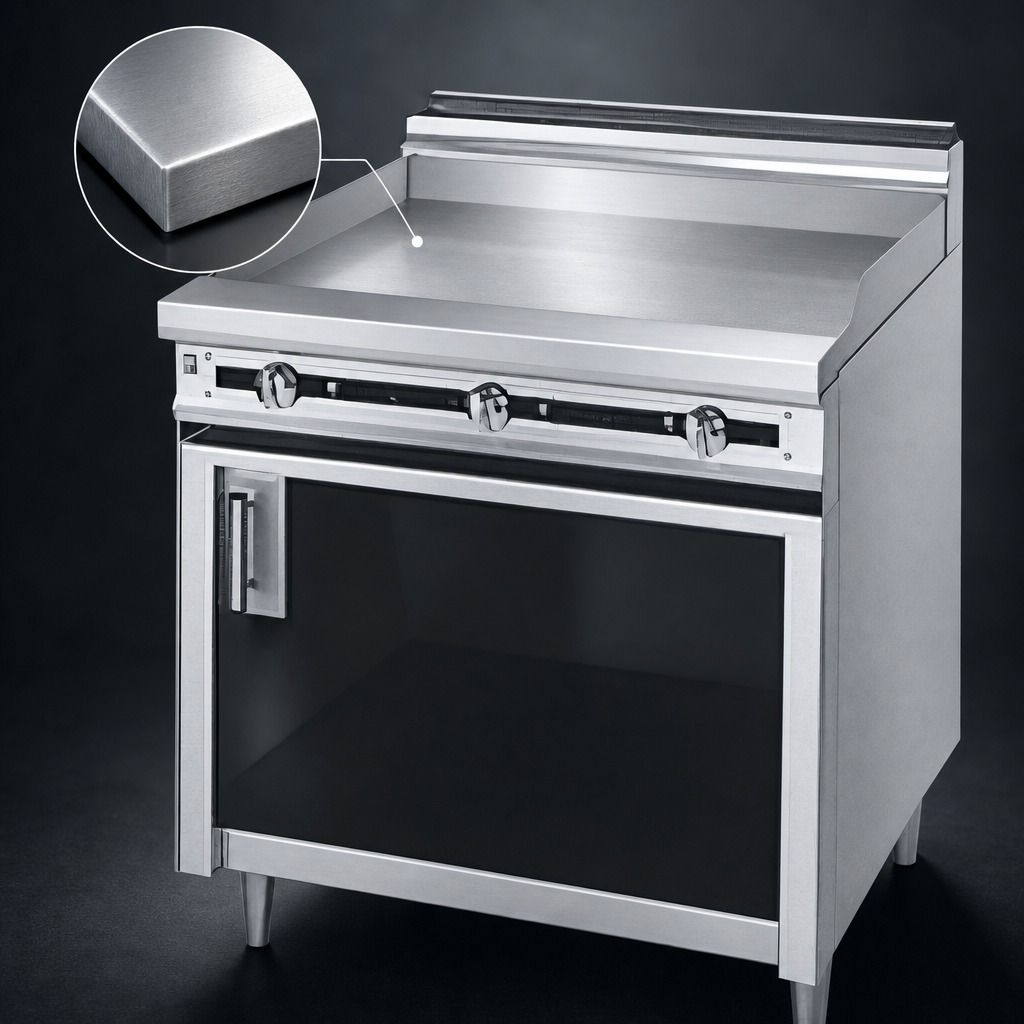

Polished 1" Thick Steel Griddle Plate

Provides superior heat distribution and retention for consistent cooking results across the entire 60-inch surface.

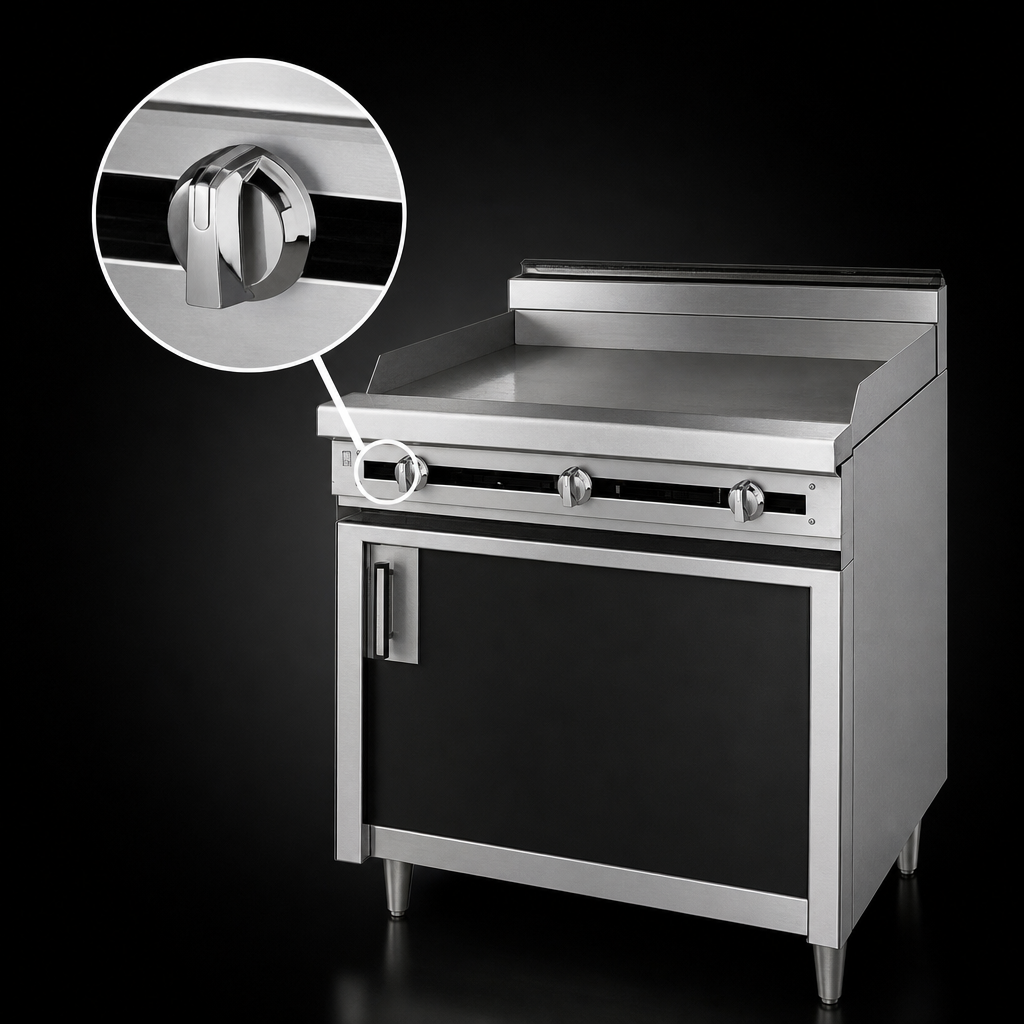

Thermostatic Controls

Offers precise and consistent temperature adjustment across the griddle surface for various cooking needs.

Heavy-Duty Stainless Steel Construction

Features 14 gauge stainless steel front, sides, stub back, bottom, and cabinet interior/exterior for maximum durability, corrosion resistance, and easy cleaning.

Integrated Stainless Steel Grease Trough

A 14 gauge stainless steel grease trough helps efficiently manage cooking byproducts, promoting a cleaner workspace.

Stainless Steel Splashguards

14 gauge stainless steel side and rear splashguards prevent messes and enhance hygiene in busy kitchen environments.

6" Plate Shelf

A stainless steel plate shelf provides convenient staging or holding space for plates and ingredients.

Adjustable 6" Legs

Stainless steel adjustable 6" legs allow for easy leveling on uneven floors and ensure proper ventilation underneath the unit.

Cabinet Base

The cabinet base provides enclosed storage or additional workspace directly beneath the griddle top, optimizing kitchen organization.

Type Commercial Gas Range
Style Cabinet Base
Installation Type Floor Model (With 6" Adjustable Legs)
Top Griddle
Controls Thermostatic
Cooking Surface Width 60 Inches
Cooking Surface Depth 38 Inches
Griddle Plate Thickness 1 Inch
Material 14 Gauge Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
BTU 150,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inches (Rear Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. minimum
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 830 lb.
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-60GT is designed for use with either Natural Gas or Propane. It is important to specify the desired gas type when placing an order.
The JTRH-60GT features a polished 1-inch thick steel griddle plate, reinforced for superior heat retention, even temperature distribution, and lasting durability.
The range comes with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection. A 3/4" gas pressure regulator is supplied loose and must be installed for proper operation.
Yes, but if your operating altitude is above 2,000 feet, you must specify this when ordering to ensure proper calibration and operation.
For Natural Gas, a minimum of 5" W.C. operating pressure is required. For Propane Gas, a minimum of 10" W.C. operating pressure is required, with a maximum of 14" W.C. for both gas types.
The JTRH-60GT comes standard with 6" stainless steel adjustable legs. Casters are available as an optional accessory.
