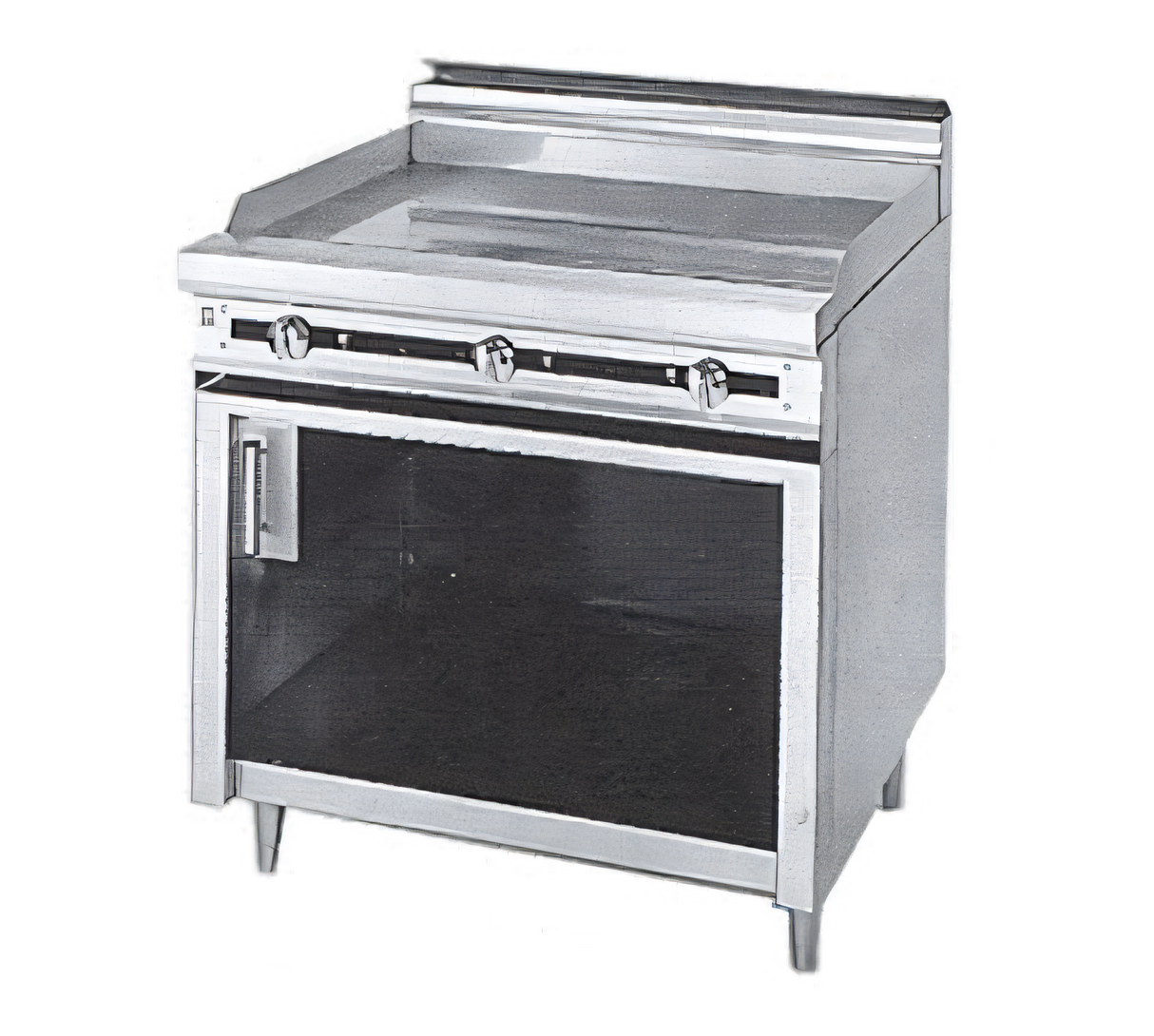

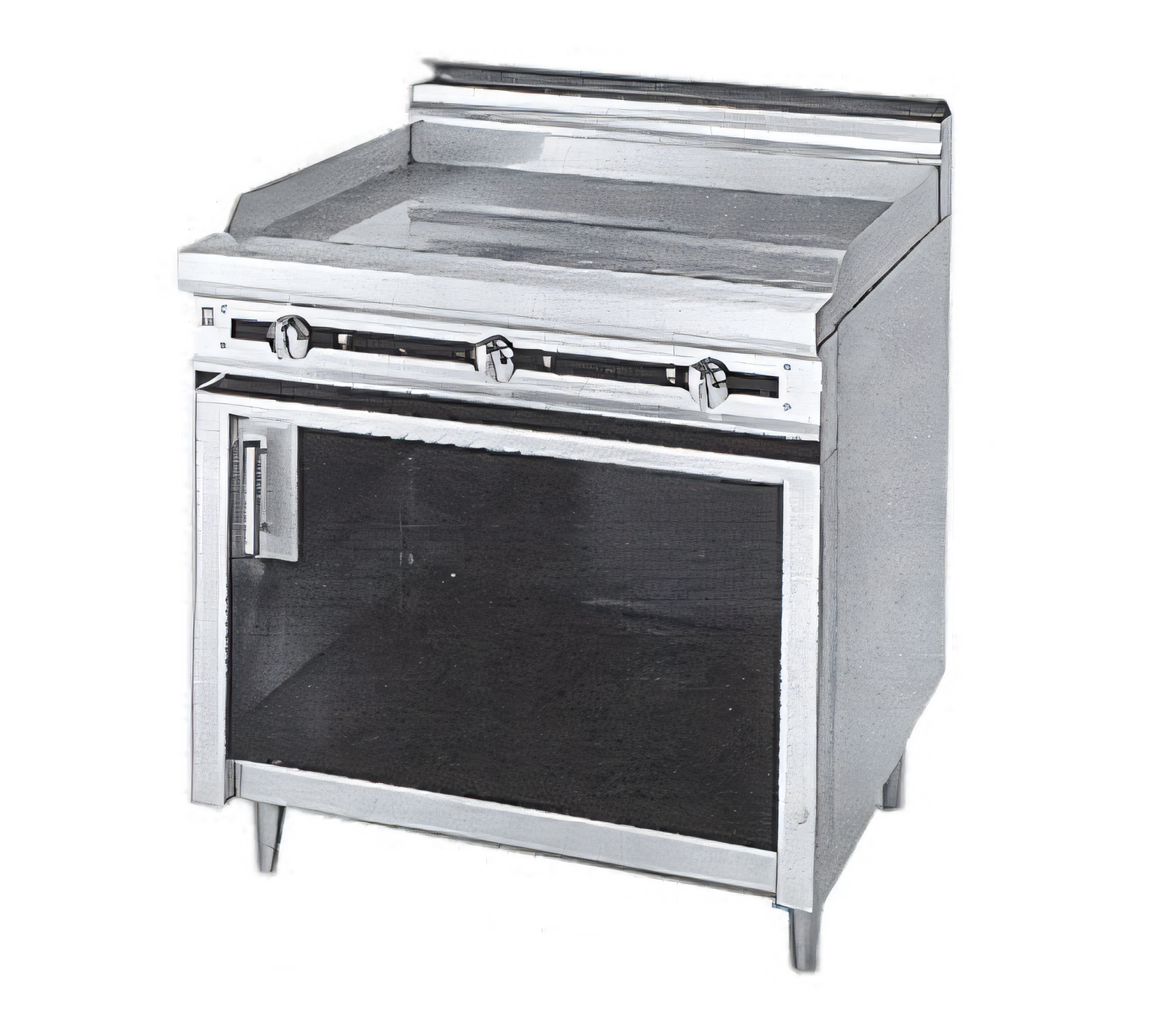

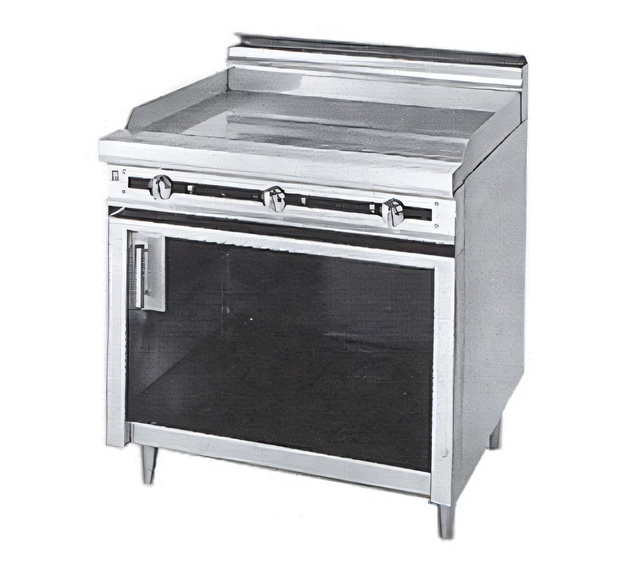

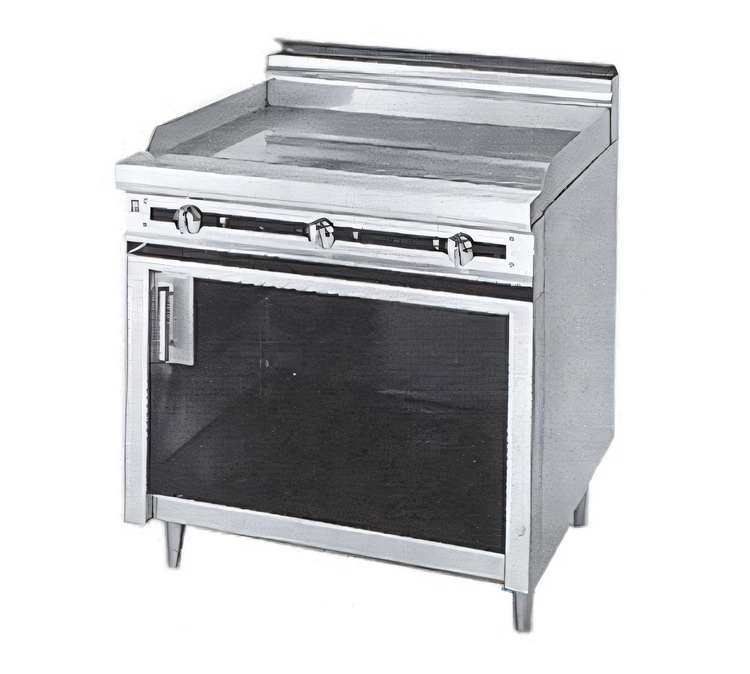

Titan JTRH-60G 60-Inch Heavy Duty Gas Griddle Range with Cabinet Base
Titan JTRH-60G 60-Inch Heavy Duty Gas Griddle Range with Cabinet Base
60-Inch, Gas, Manual Controls, 1" Thick Polished Steel Griddle Plate
Experience powerful, precise griddling with the Titan JTRH-60G heavy-duty gas griddle range, designed for robust commercial kitchen performance and durability.
- Equipped with a durable 1-inch thick polished steel griddle plate for superior heat retention and even cooking.
- Features heavy-duty all-welded body construction with a stainless steel front, sides, stub back, and bottom for lasting reliability.
- Provides ample storage with a spacious cabinet base, complemented by a convenient 6-inch stainless steel plate shelf.
- Designed with manual controls for precise, consistent temperature management without a thermostat.
- High output of 175,000 BTU ensures rapid heating and quick recovery during peak hours.
- Includes a 14 gauge stainless steel grease trough and splash guards for easy cleanup and maintenance.
- Supported by 6-inch adjustable stainless steel legs for leveling and optimal working height.

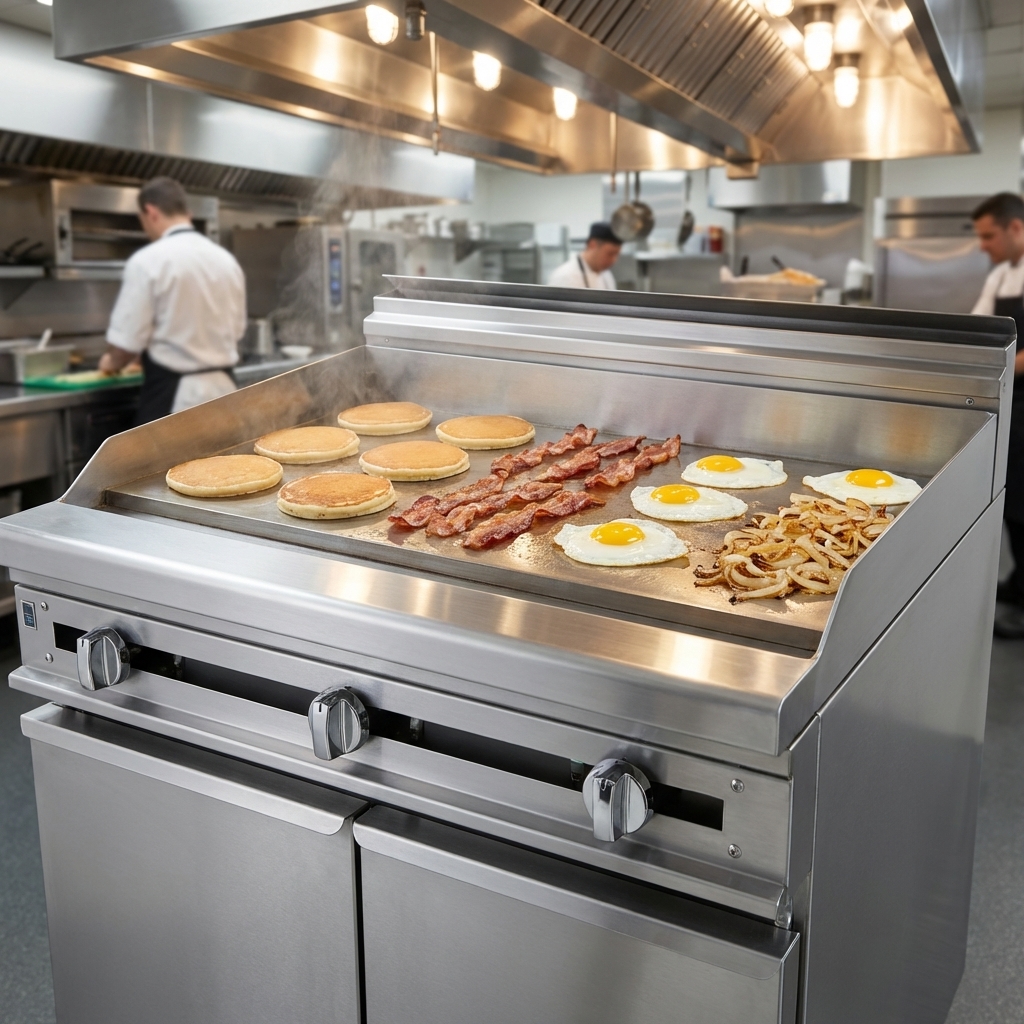

Polished 1" Thick Steel Griddle Plates
Ensures excellent heat retention and even cooking across the entire surface, ideal for high-volume griddling.

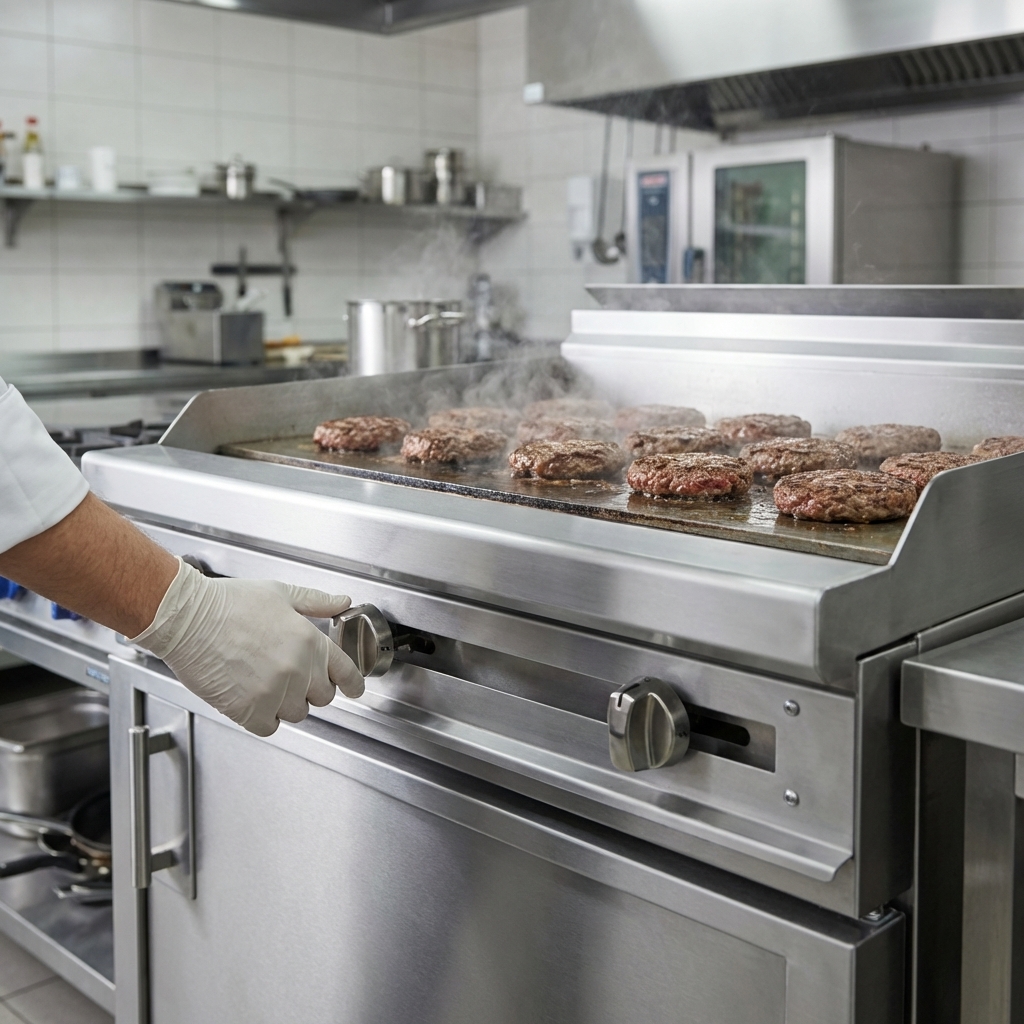

Manual Griddle Controls
Offers precise, reliable heat management for each griddle section without a thermostat, allowing for consistent results.

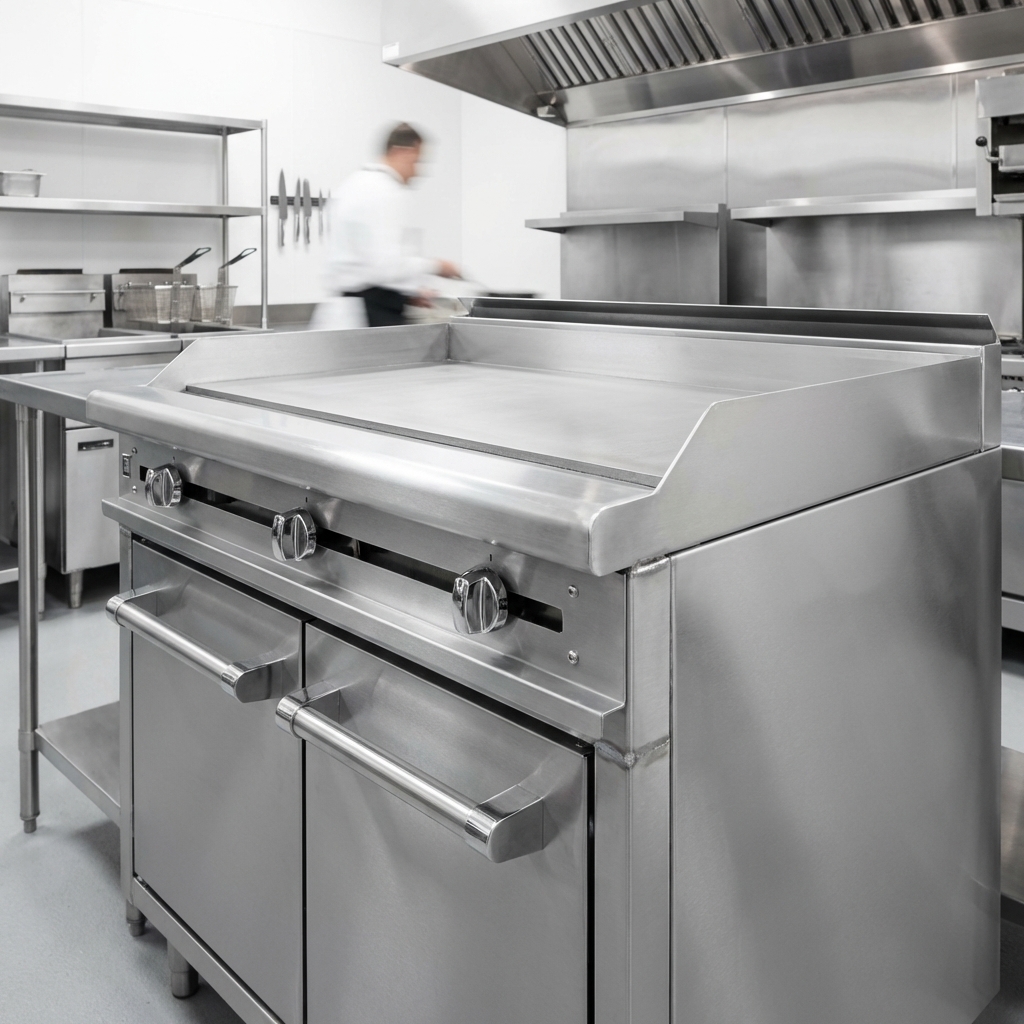

Heavy-Duty Stainless Steel Construction
Built with a 14 gauge all-welded body, stainless steel front, sides, stub back, and bottom for exceptional durability and corrosion resistance.
Stainless Steel Cabinet Base
Provides convenient enclosed storage space, keeping kitchen essentials organized and out of sight.
Integrated Grease Trough and Splash Guards
Features a 14 gauge stainless steel grease trough and side/rear splash guards to contain splatter and facilitate easy cleanup.
6" Stainless Steel Plate Shelf
Offers a practical staging area for plates, ingredients, or finished dishes, enhancing kitchen workflow.
Adjustable 6" Stainless Steel Legs
Allows for precise leveling on uneven floors and provides adequate clearance for cleaning underneath the unit.
Variable Multi-Point Gas Connection
Equipped with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection for flexible gas line installation.
3/4" Gas Pressure Regulator
Shipped loose and required for installation, ensuring proper gas pressure for optimal and safe operation.
Specifications
| Type | Heavy Duty Griddle Range |
|---|---|
| Style | Griddle Top |
| Installation Type | Floor Model (With 6" Adjustable Legs) |
| Width | 60 Inches |
| Depth | 38 Inches |
| Height | 36.5 Inches |
| Weight | 830 lb. |
| Shipping Width | 60 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 830 lb. |
| BTU | 175,000 BTU |
| Gas Type | Natural Gas or Propane |
| Gas Connection Size | 3/4 Inch (Regulator) |
| Gas Inlet Pressure (Natural Gas) | 5 Inches W.C. (Minimum) |
| Gas Inlet Pressure (Propane) | 10 Inches W.C. (Minimum) |
| Controls | Manual |
| Plate Thickness | 1 Inch |
| Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Base | Cabinet |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
60.0"W x 38.0"D x 36.5"HProduct Weight:
830.0 lbCertifications & Compliance
