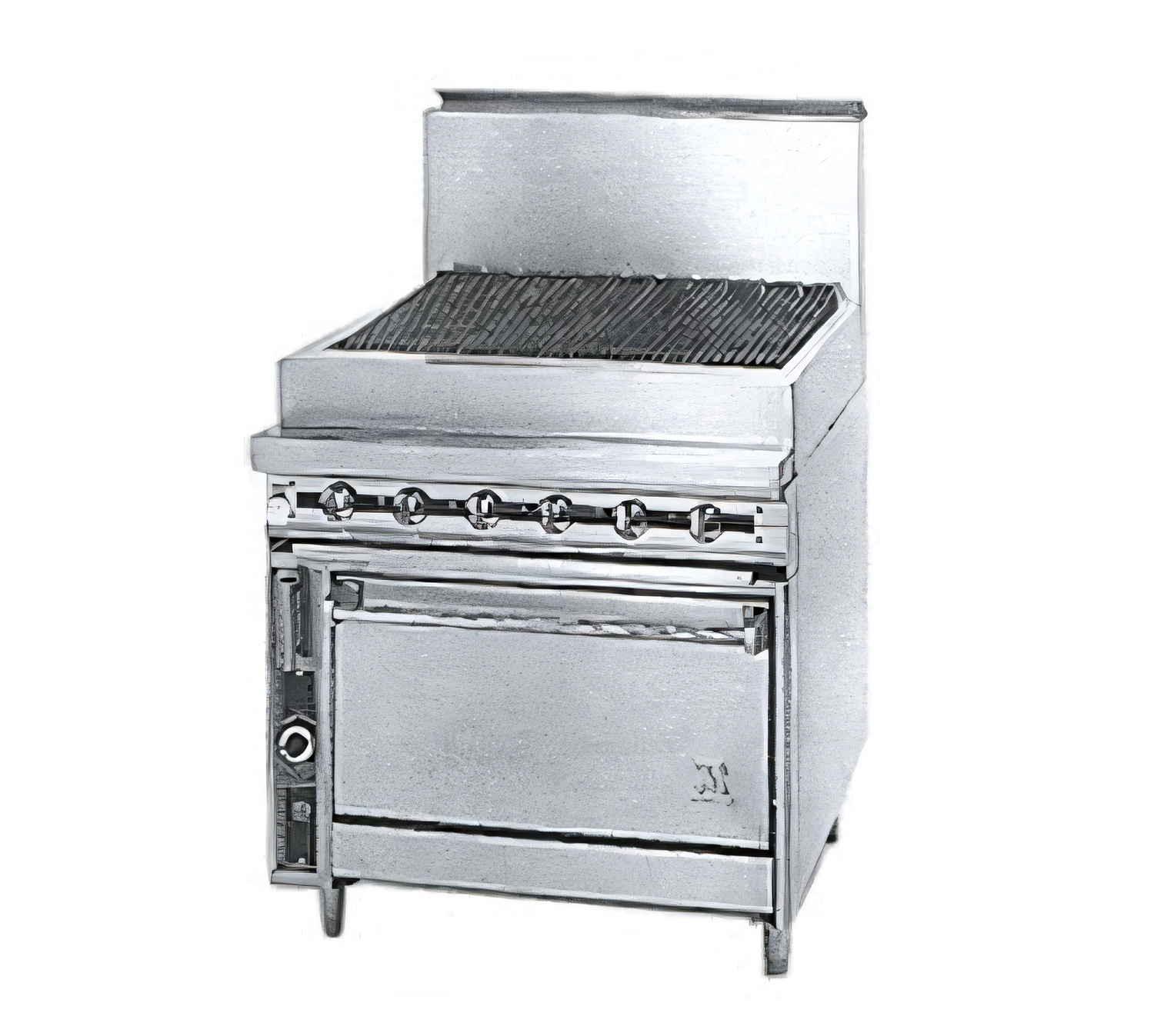

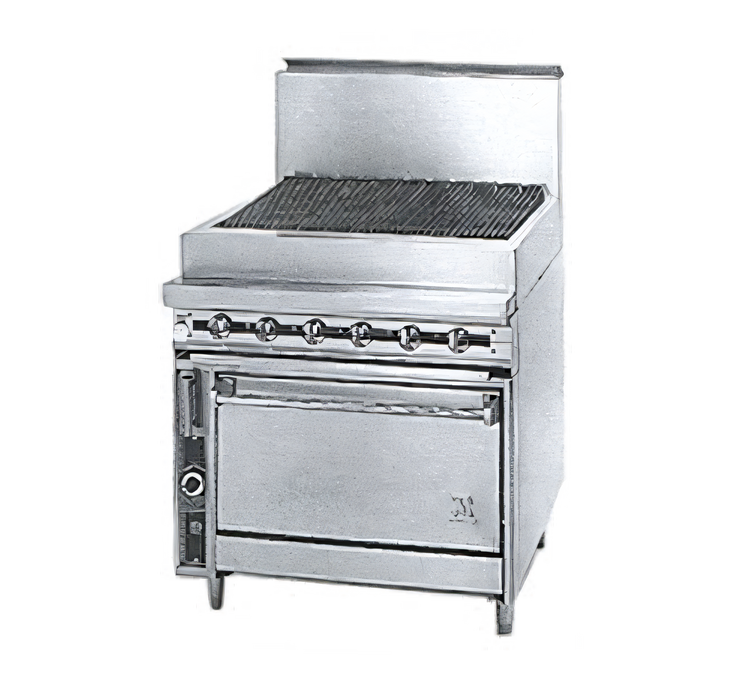

Titan JTRH-60B 60 Inch Heavy Duty Gas Range Match Charbroiler with Cabinet Base
Titan JTRH-60B 60 Inch Heavy Duty Gas Range Match Charbroiler with Cabinet Base
60 Inch, Charbroiler Top, Cabinet Base, 150,000 BTU
This heavy-duty Titan range features a 60-inch charbroiler and robust all-welded stainless steel construction, providing precise heat control and durability for demanding commercial kitchens.
- Equipped with a 60-inch charbroiler top featuring heavy-duty cast iron grates and radiants.
- Individual 15,000 BTU/hr burners every 6 inches with infinite manual controls for precise heat management.
- Constructed with a durable 14 gauge all-welded stainless steel body, front, top, and sides.
- Includes a convenient stainless steel cabinet base for storage and easy cleaning.
- Features two separate 14 gauge steel drip pans to help control flare-ups and simplify maintenance.
- Designed with a stainless steel 6-inch plate shelf and adjustable 6-inch stainless steel legs.

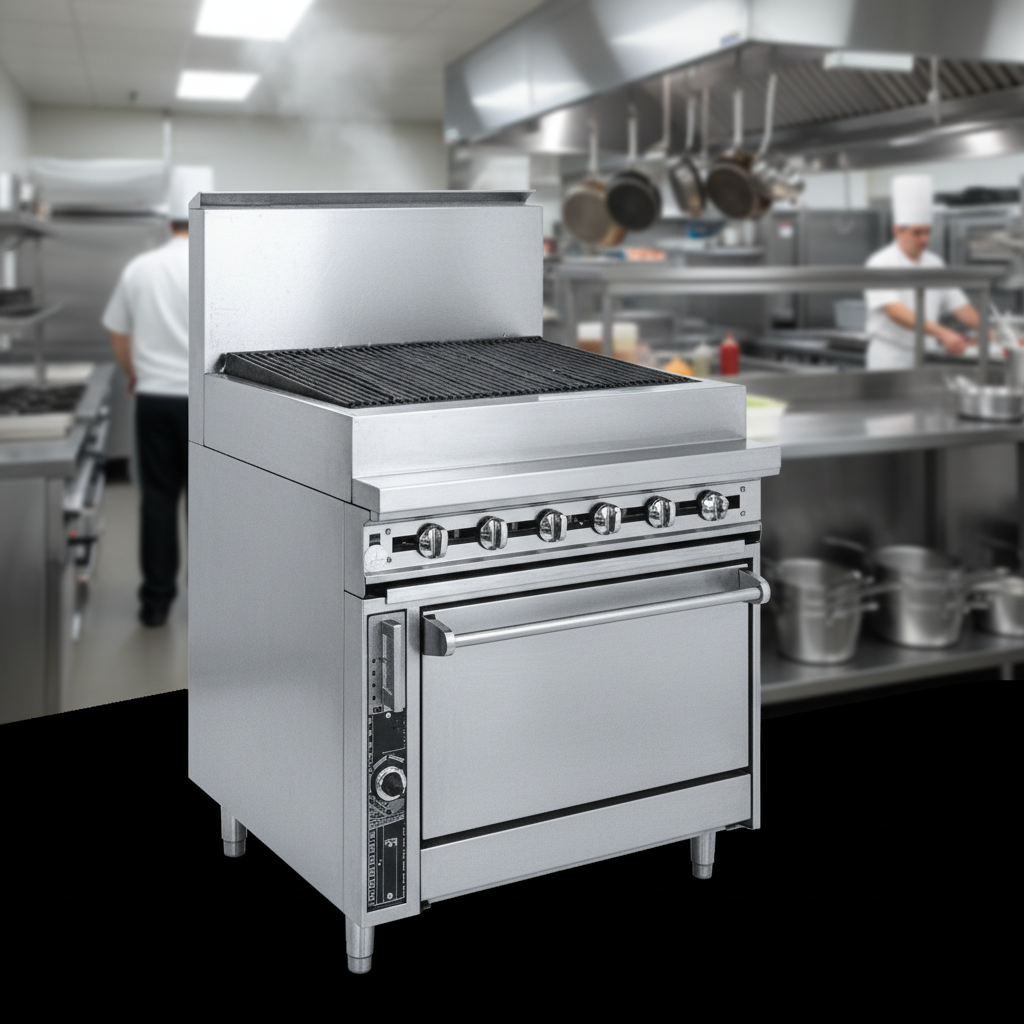

Heavy Duty Construction
Features 14 gauge all-welded body construction and 12 gauge all-welded firebox construction for exceptional durability and longevity in a commercial setting.

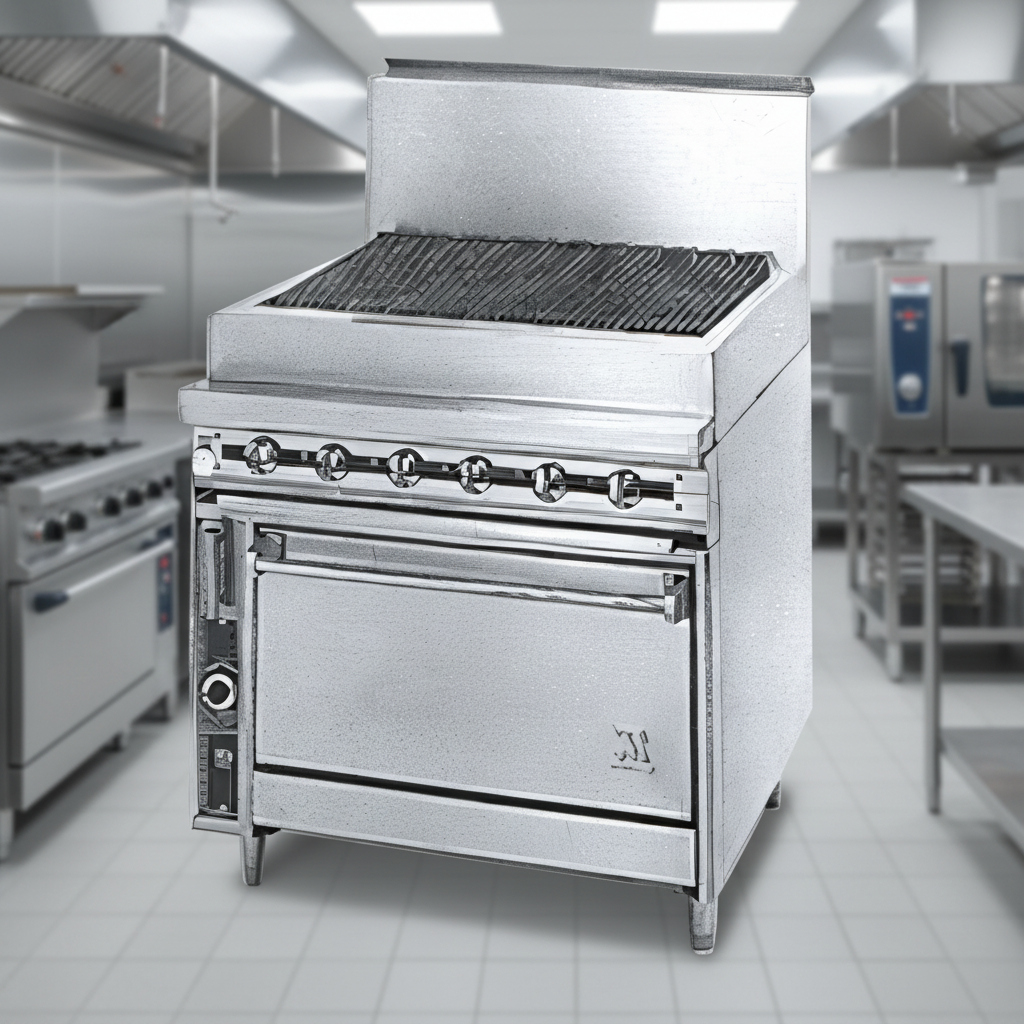

Stainless Steel Exterior
Stainless steel front, top, sides, stub back, and tray bed provide a professional appearance, corrosion resistance, and are easy to clean.

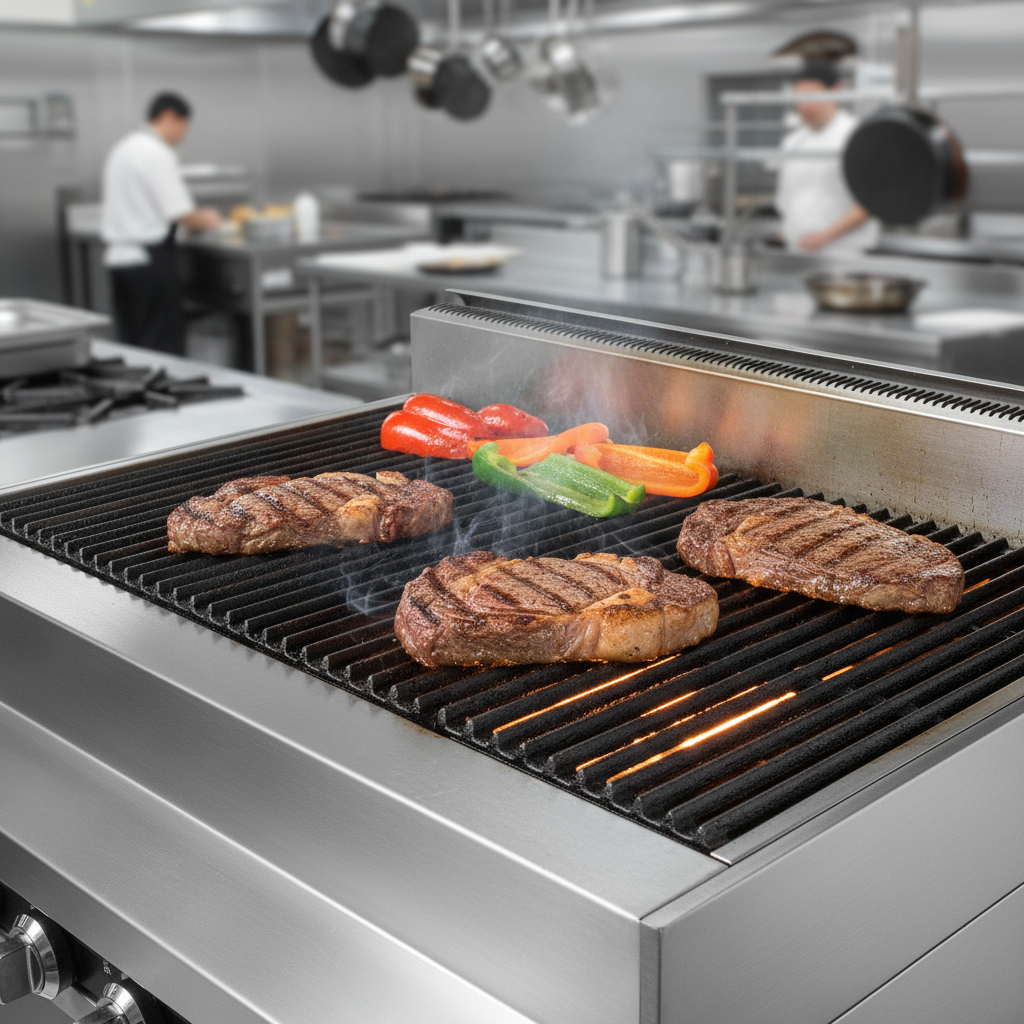

Cast Iron Radiants and Grates
Heavy-duty cast iron burner radiants and top grates ensure even heat distribution and intense charbroiling performance.
Precise Heat Control
Equipped with one 15,000 BTU/hr burner for every 6 inches of broiler, each controlled by an infinite manual gas valve for precise temperature adjustments.
Cabinet Base
The stainless steel cabinet base provides integrated storage and maintains a cohesive aesthetic with the unit.
Flare-Up Control
Two separate 14 gauge steel drip pans are included to collect grease and debris, helping to control flare-ups during operation.
Integrated Plate Shelf
A 6-inch stainless steel plate shelf offers convenient space for holding plates or utensils during cooking.
Adjustable Legs
Stainless steel adjustable 6-inch legs allow for precise leveling and easy cleaning underneath the unit.
Gas Manifold System
Supplied with a variable size multi-point gas connection, including a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection for installation flexibility.
Specifications
| Type | Range Match Charbroiler |
|---|---|
| Style | Heavy Duty Range |
| Installation Type | Floor Model (With Cabinet Base) |
| Cooking Surface Width | 60 Inches |
| BTU | 150,000 BTU |
| Gas Type | Natural Gas or Propane (Specify) |
| Gas Connection Size | 1-1/4 Inches NPT |
| Gas Inlet Pressure (Natural Gas Minimum) | 5 Inches W.C. |
| Gas Inlet Pressure (Propane Gas Minimum) | 10 Inches W.C. |
| Gas Inlet Pressure (Maximum) | 14 Inches W.C. |
| Controls | Infinite Manual Gas Valves |
| Material | Stainless Steel, Cast Iron |
| Exterior Finish | Stainless Steel |
| Interior Finish | Stainless Steel (Cabinet) |
| Shipping Width | 60 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 750 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
60.0"W x 38.0"D x 36.5"HProduct Weight:
750.0 lbCertifications & Compliance
Warranty & Protection
Standard Manufacturer Warranty
