Titan JTRH-5HT Heavy Duty 60-Inch Gas Hot Top Range with 5 Sections, Cabinet Base

Full-Size, Natural Gas or Propane, Cabinet Base, Standard Depth

Experience superior performance and durability with the Titan JTRH-5HT heavy duty gas hot top range, designed for demanding commercial kitchen environments.

  • Equipped with five 12-inch highly polished, reinforced cast iron hot top sections.
  • Each section features a 35,000 BTU/hr burner, totaling a powerful 175,000 BTU/hr output.
  • Features infinite controls for precise temperature management across all hot top sections.
  • Constructed with a robust 14 gauge all-welded stainless steel body for long-lasting commercial use.
  • Includes a stainless steel cabinet base for convenient storage and a 6-inch stainless steel plate shelf.
  • Supplied with 6-inch adjustable stainless steel legs for customizable height and stability.

Overall Dimensions:

60.0"W x 38.0"D x 36.5"H

Product Weight:

750.0 lb

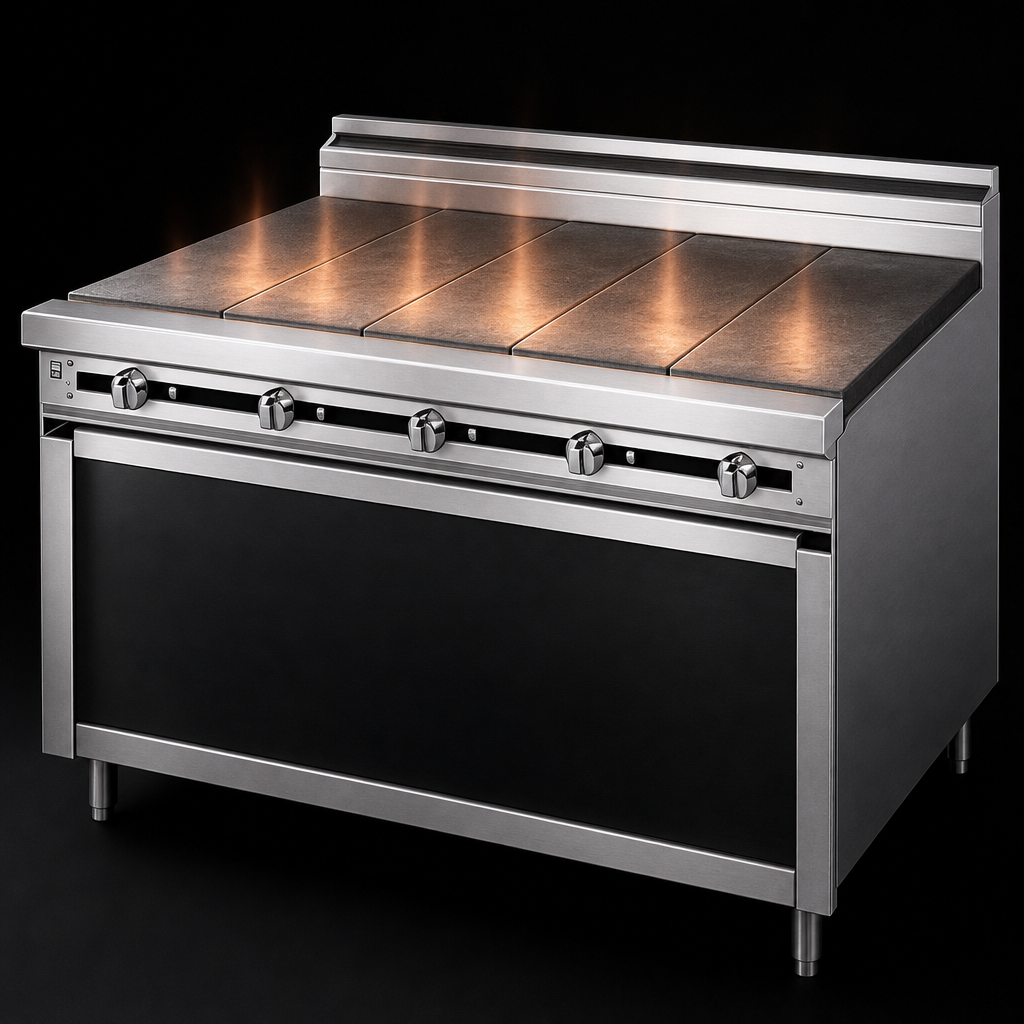

Heavy-Duty Hot Tops

Comprises five highly polished, reinforced cast iron hot top plates, designed for consistent and intense heat distribution.

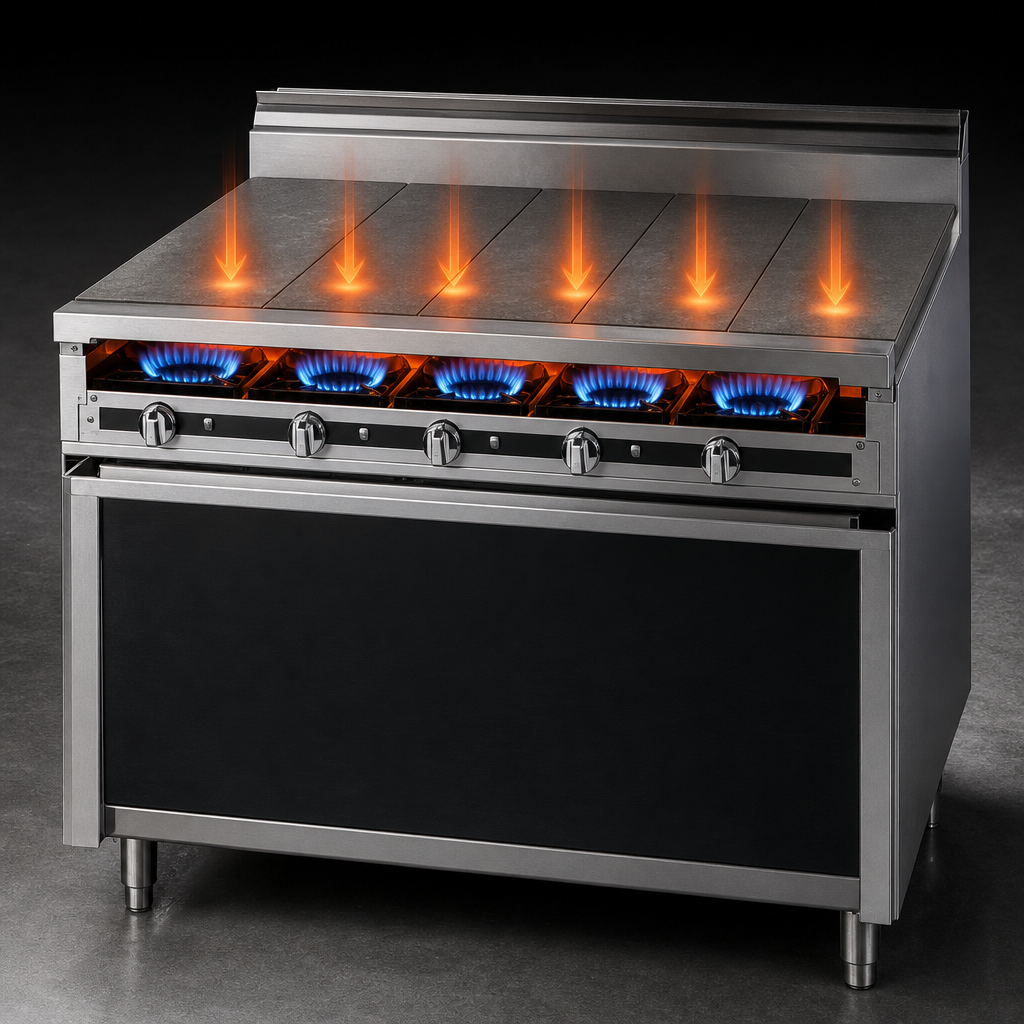

Powerful Burners

Each hot top section is equipped with a 35,000 BTU/hr burner, ensuring rapid and even heating for various cooking tasks.

Infinite Controls

Individual infinite gas valves for each hot top section allow for precise temperature adjustments and versatile cooking.

Durable Construction

Built with 14 gauge all-welded body construction, featuring stainless steel front, sides, stub back, and bottom for exceptional longevity.

Stainless Steel Cabinet Base

Integrated cabinet base with stainless steel interior and exterior offers additional storage space and maintains a professional appearance.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf provides convenient staging area for plates or ingredients.

Adjustable Legs

Features 6-inch adjustable stainless steel legs to achieve optimal working height and stability on uneven floors.

Flexible Gas Connection

Equipped with a 1-1/4 inch front manifold connection and a capped 1 inch or 3/4 inch rear manifold connection for versatile gas line hookup.

Stainless Steel Components

All internal gas tubing is made of stainless steel for enhanced durability and corrosion resistance.

Type Hot Top Range
Style Cabinet Base
Installation Type Floor Model (With Adjustable Legs)
BTU 175,000 BTU
Pan Capacity 5 Hot Top Sections
Controls Infinite
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Material Stainless Steel
Interior Finish Stainless Steel
Cooking Surface Material Cast Iron
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 750 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer provides a standard commercial warranty.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-5HT range can operate on either Natural Gas or Propane, which must be specified when ordering to ensure the correct setup.
Each of the five hot top sections is powered by a 35,000 BTU/hr burner, resulting in a total output of 175,000 BTU/hr for the entire range.
Yes, a 3/4-inch gas pressure regulator is supplied loose with the unit and must be installed for proper and safe operation.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, the minimum operating pressure is 10 inches W.C. The maximum operating pressure is 14 inches W.C. for both gas types.
The range features a 14 gauge all-welded body construction with stainless steel front, sides, stub back, and bottom. The cabinet interior and exterior are also stainless steel, and the hot tops are made of highly polished reinforced cast iron.
