Jade Range (Middleby)

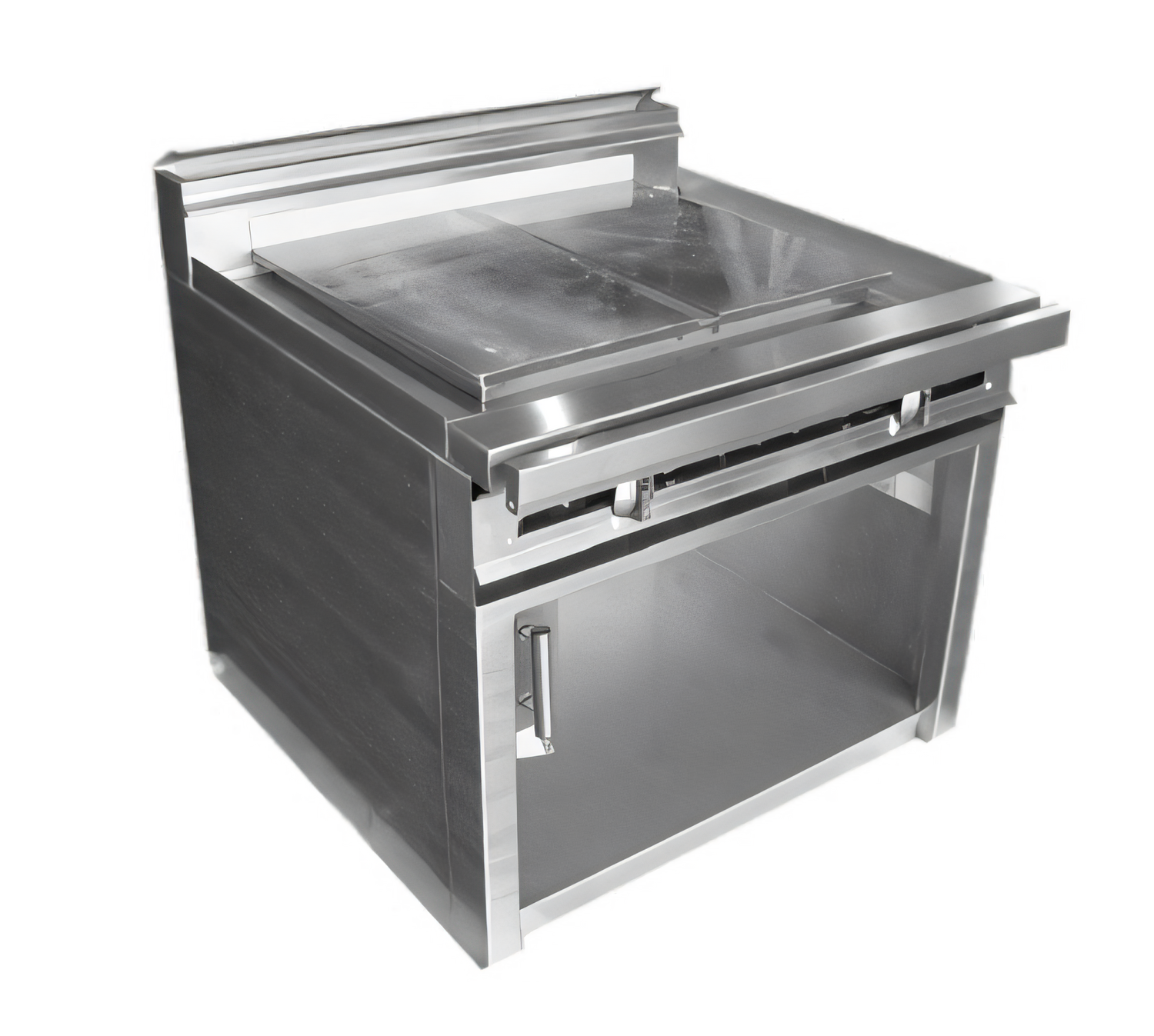

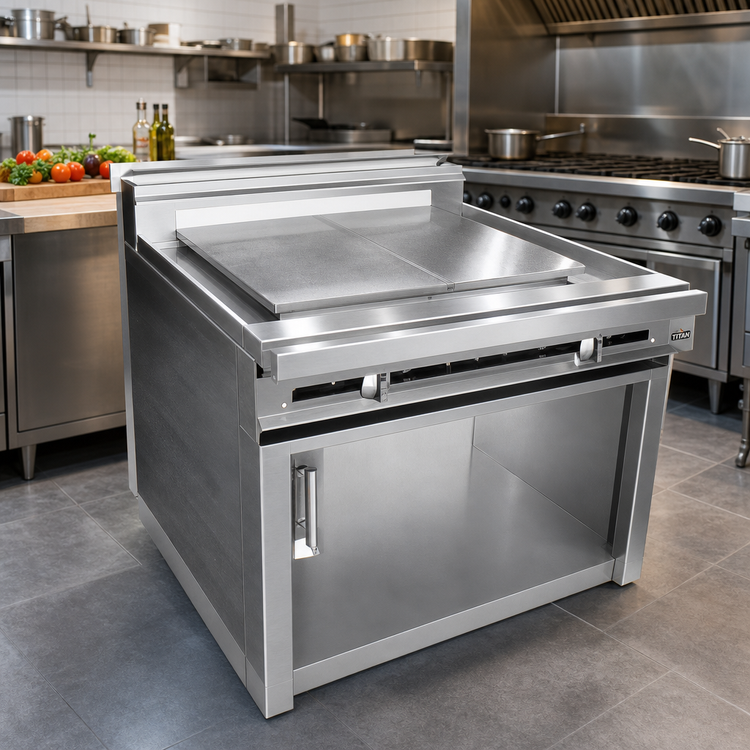

Titan Heavy Duty 48-Inch Gas Plancha Top Range with Cabinet Base and Island Style Plate

SKU: JTRH-48IP
$23,146.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan Heavy Duty 48-Inch Gas Plancha Top Range with Cabinet Base and Island Style Plate

5/8-Inch Polished Steel Plate, Infinite Controls, 42,500 BTU

Built for high-volume service, this 48-inch gas plancha range combines a thick polished steel plate, infinite heat control, and rugged stainless steel construction.

  • 48-inch gas plancha top range with cabinet base and island style plate
  • 5/8-inch polished steel cooking plate helps retain and distribute heat evenly
  • Infinite controls provide precise heat adjustment across the plate
  • 42,500 BTU output supports demanding commercial cooking
  • Stainless steel front, sides, stub back, and grease trough add durability and simplify cleanup
  • Includes a stainless steel 6-inch plate shelf and adjustable 6-inch legs

Overall Dimensions:

48.0"W x 38.0"D x 36.5"H

Product Weight:

610.0 lb

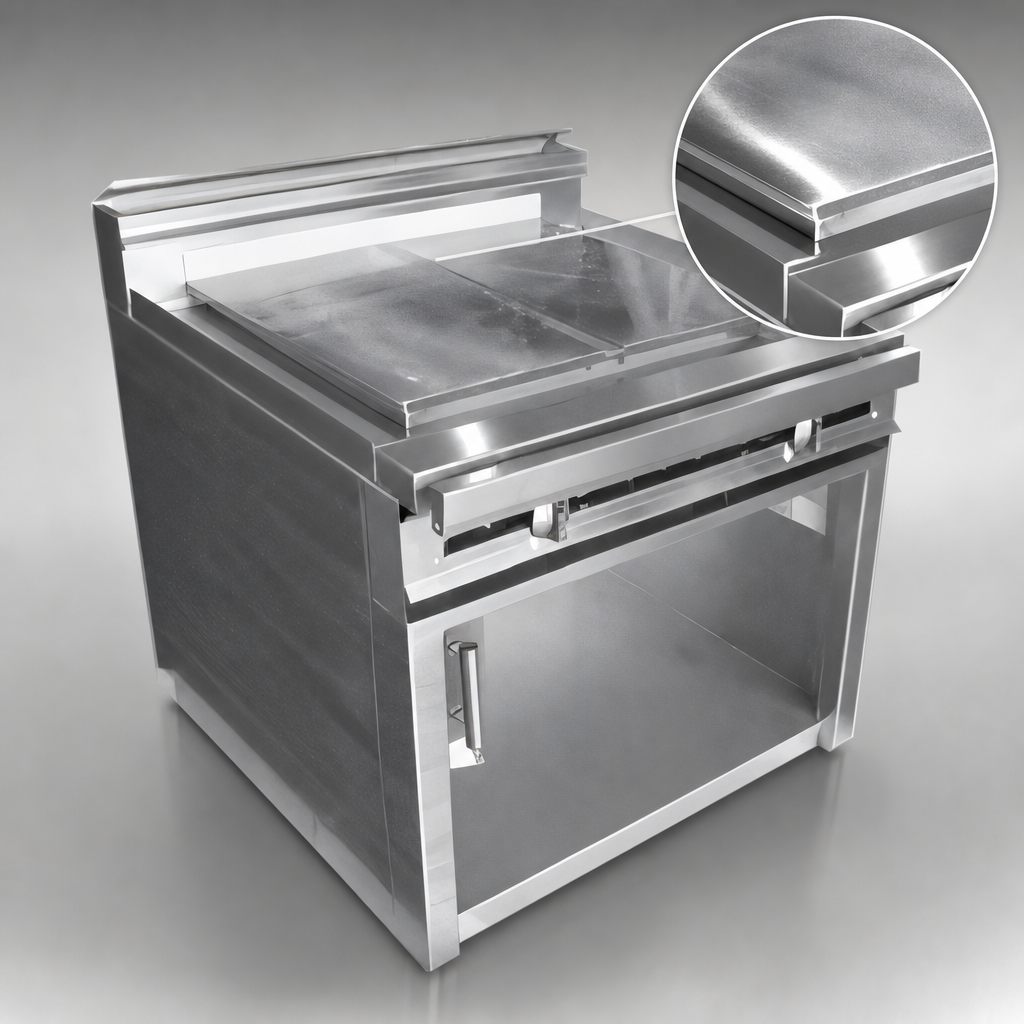

5/8-Inch Polished Steel Plancha Plate

Heavy-duty steel cooking surface is designed for even heat retention and consistent cooking performance.

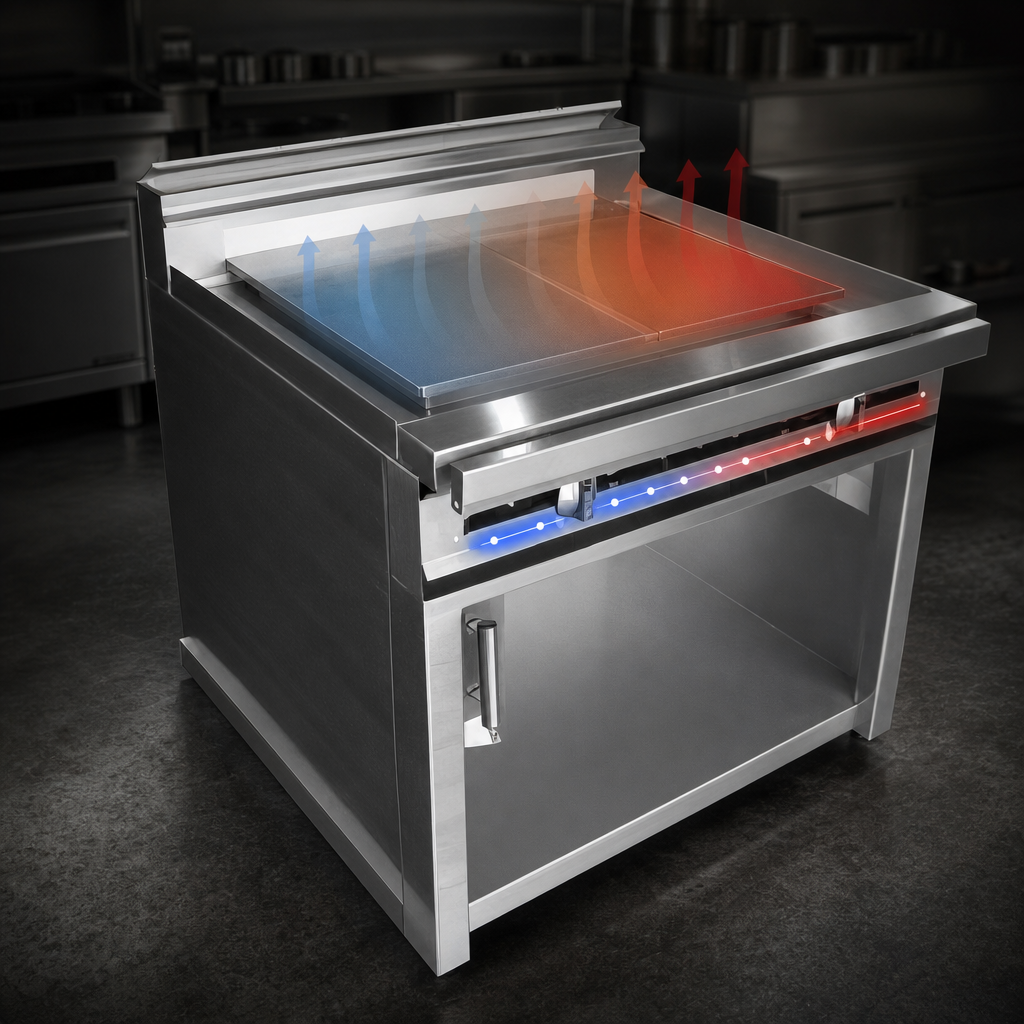

Infinite Controls

Allows precise heat adjustment across the plancha for better control during service.

Four-Sided Grease Trough

Surrounds the cooking area to help capture runoff and keep the work area cleaner.

Stainless Steel Cabinet Construction

Front, sides, stub back, cabinet interior, and exterior are stainless steel for durability in demanding kitchens.

6-Inch Stainless Steel Plate Shelf

Provides a front landing area for pans, tools, or plated items.

Adjustable 6-Inch Legs

Helps level the range on uneven floors and provides floor clearance.

3/4-Inch Gas Regulator Included

Supplied loose for installation; required for proper operation.

Variable Multi-Point Gas Connection

Offers flexible utility connection options for installation planning.

42,500 BTU Output

High-output gas performance for busy commercial cooking applications.

Type Plancha Top Range
Style Island Style Plate
Installation Type Floor Model (With Cabinet Base)
Plate Thickness 5/8 Inch
Controls Infinite
BTU 42,500 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inch Front Manifold, 1 Inch or 3/4 Inch Rear Manifold
Gas Inlet Pressure 5 Inches W.C. Minimum Natural Gas, 10 Inches W.C. Minimum Propane, 14 Inches W.C. Maximum
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 610 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It can be ordered for Natural Gas or Propane. Required operating pressure is 5 Inches W.C. minimum for Natural Gas and 10 Inches W.C. minimum for Propane, with 14 Inches W.C. maximum.
Yes. The unit is supplied with a 3/4-inch gas pressure regulator shipped loose for installation. Larger 1-inch and 1-1/4-inch regulators are available as accessories.
It features a polished 5/8-inch thick steel plancha plate with a four-sided trough and island style plate design.
The unit measures 48 Inches wide, 38 Inches deep, and 36.5 Inches high.
The range includes stainless steel front, sides, stub back, cabinet interior and exterior, plus a stainless steel grease trough and plate shelf.
Yes. Available add-ons include casters, flex hoses with quick disconnects, gas pressure regulators, stainless steel doors, and several riser or shelf options.
