Jade Range (Middleby)

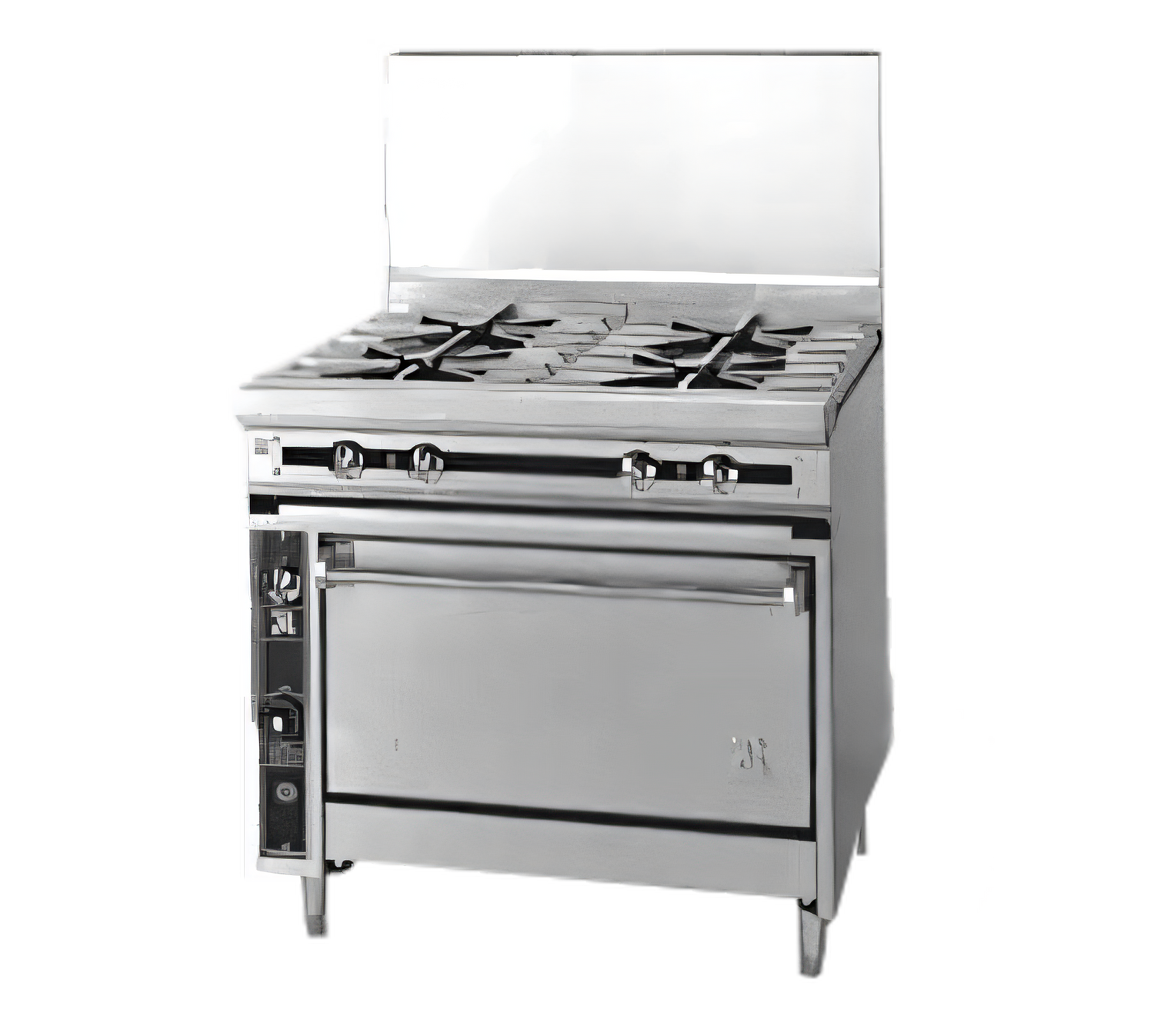

Titan JTRH-4-36C 36-Inch 4-Burner Gas Heavy Duty Range with Convection Oven

SKU: JTRH-4-36C
$18,165.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRH-4-36C 36-Inch 4-Burner Gas Heavy Duty Range with Convection Oven

Full-Size, Natural Gas or Propane, Standard Depth

Experience robust cooking power and precise temperature control with the Titan JTRH-4-36C heavy duty gas range, featuring four powerful open burners and a dedicated convection oven.

  • Equipped with four 35,000 BTU/hr cast iron open burners for high-performance cooking.
  • Integrated convection oven with a 30,000 BTU burner and 1/4 HP blower motor for even baking.
  • Durable 14 gauge all-welded stainless steel construction ensures longevity.
  • Features a spacious 6-inch stainless steel plate shelf for convenient plating.
  • Adjustable 6-inch legs provide stability and easy leveling.
  • Certified by NSF and CSAus for commercial use.

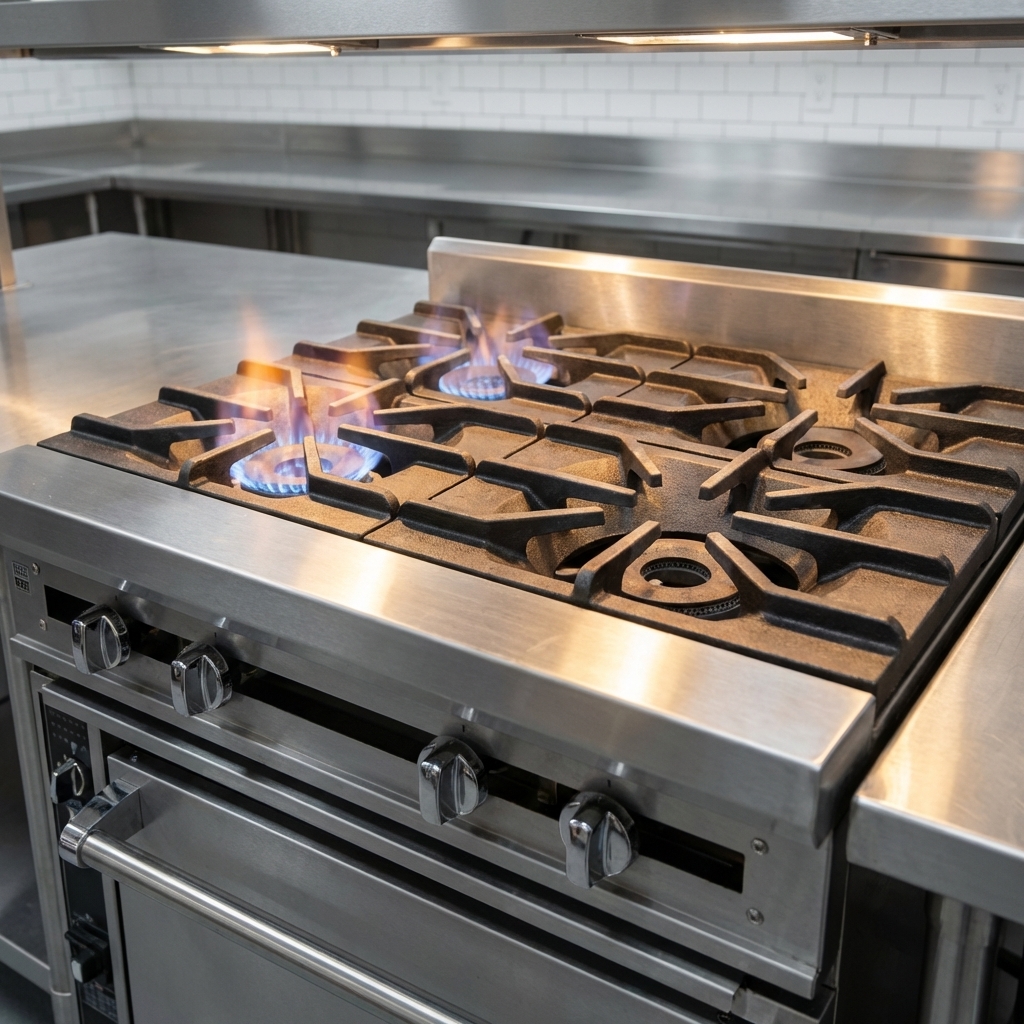

Four Open Burners

Four individual 35,000 BTU/hr cast iron open burners with infinite controls provide powerful and precise heat management for diverse cooking needs.

Experience versatile and powerful cooking with four robust, individually controlled open burners on this heavy-duty gas range.

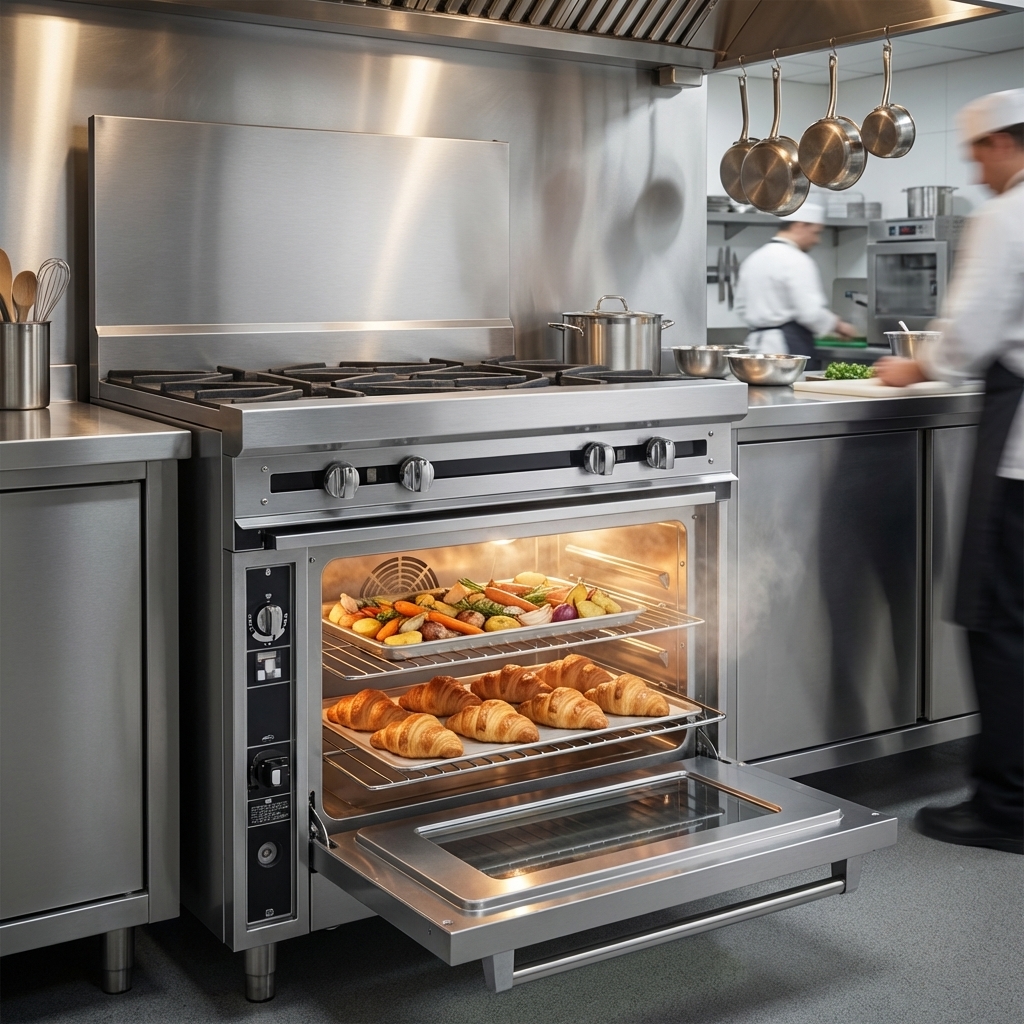

Convection Oven Base

Features a dedicated convection oven with a 14 gauge stainless steel interior, a 30,000 BTU burner, and a 1/4 HP 115/60/1 blower motor for consistent and even heat distribution across the oven cavity.

Showcasing its powerful convection oven base, this range ensures consistent and even heat distribution for all your baking and roasting needs.

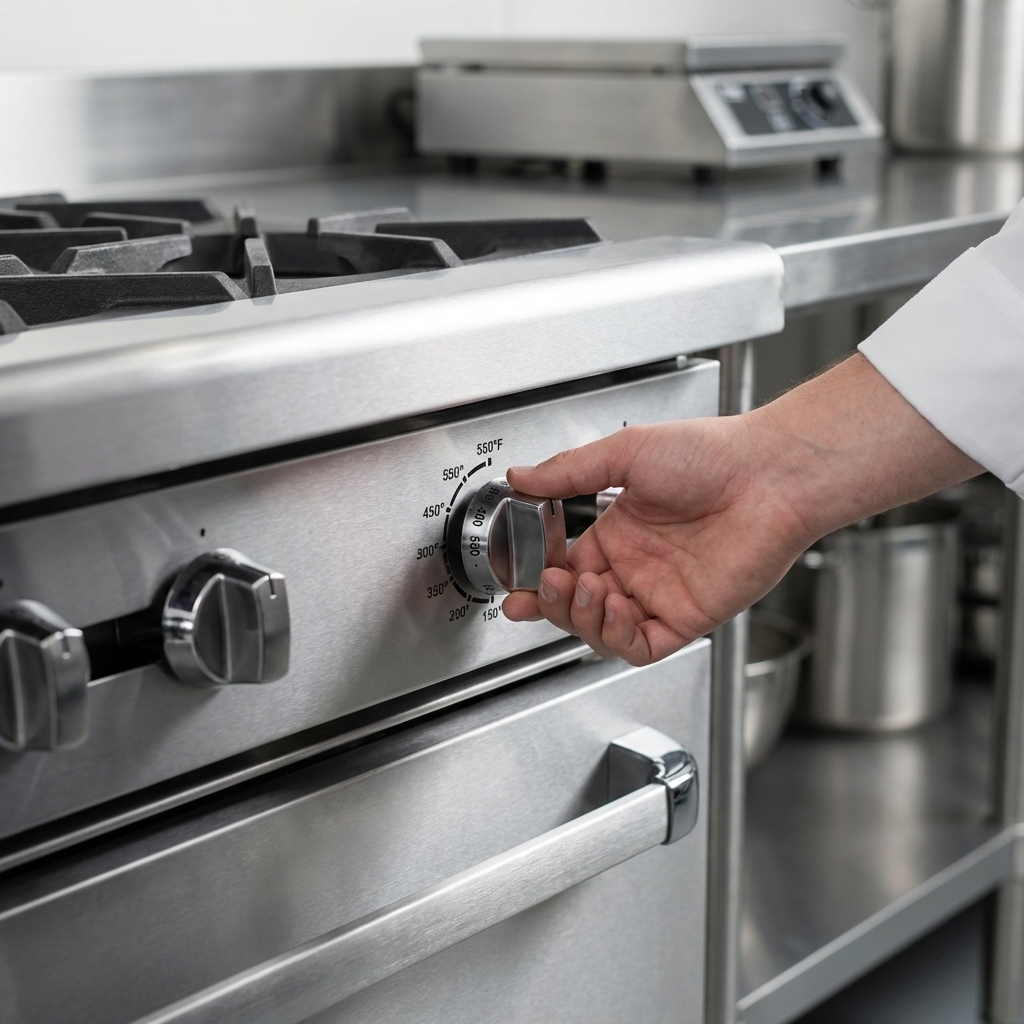

Thermostatic Oven Control

The oven's thermostat allows for temperature adjustments from 150°F to 550°F, with the control located in a cool zone for enhanced durability and longevity.

Effortlessly set precise oven temperatures with the durable thermostatic control, designed for consistent performance and longevity.

Removable Oven Racks

Includes two chrome plated oven racks, designed with wires curled and welded around the main frame for safety and convenience, providing ample cooking space.

Stainless Steel Construction

Built with a 14 gauge all-welded body, stainless steel front, sides, stub back, and stainless steel gas tubing throughout, ensuring maximum durability and easy cleaning in a commercial kitchen environment.

Integrated Spill Pan

A single spill pan located beneath all burners helps to contain messes and simplify cleanup after cooking.

Adjustable Legs

Equipped with 6-inch stainless steel adjustable legs, allowing for stability and easy leveling on various kitchen surfaces.

Plate Shelf

Features a 6-inch stainless steel plate shelf, providing a convenient staging area for plating dishes or holding ingredients.

Electronic Spark Ignitor

The convection oven includes an electronic spark ignitor, activated by a power switch, which reliably ignites the standing pilot.

Convection Fan Switch

The convection oven is fitted with a three-position fan switch, allowing for normal operation, a quick cool down function, or turning the fan off.

Specifications

Type Heavy Duty Range
Style 4 Open Burners with Convection Oven
Installation Type Floor Model (With 6" Adjustable Legs)
Burners 4
BTU Per Burner 35,000 BTU/hr
Oven Burner BTU 30,000 BTU
Total BTU 170,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches (Front), 1 Inch or 3/4 Inch (Rear)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Maximum Gas Inlet Pressure 14 Inches W.C.
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.0 Amps
Horsepower 1/4 HP (Blower Motor)
Cord Length 6 Feet
Plug Type 3-Prong
Temperature Range 150°F to 550°F (Oven)
Interior Finish 14 Gauge Stainless Steel (Convection Oven)
Controls Infinite (Burners), Thermostatic (Oven)
Pan Capacity 2 Chrome Plated Oven Racks
Material Stainless Steel
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 730 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

705.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 36.0in
Depth 38.0in
Shipping Weight 705.0lbs
Base (1) convection oven
Top (4) open burners
Exterior Finish all stainless steel exterior
Specifications Titan™ Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, infinite controls, convection oven, (2) chrome plated racks, stainless steel oven liner, 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 115v/60/1-ph, 4.4 amps, 1/4 HP, 170,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-4-36C model is equipped with a convection oven base, featuring a 14 gauge stainless steel interior and a powerful 30,000 BTU burner for even heat distribution.
The convection oven requires a 115V, 60Hz, 1-phase electrical supply, drawing a maximum of 4.0 amps. It includes a 6-foot cord and a 3-prong plug for convenience.
The convection oven's thermostat allows for precise temperature control, adjustable from 150°F to 550°F, making it suitable for a wide range of cooking applications.
This range is supplied with a 1-1/4 inch front manifold connection and either a 1 inch or 3/4 inch capped rear manifold connection. A 3/4 inch gas pressure regulator is also included.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is required. The maximum allowable inlet pressure for both gas types is 14 inches W.C.
Yes, additional chrome-plated oven racks are available as an accessory, should you require more than the two racks supplied with the range.
