Jade Range (Middleby)

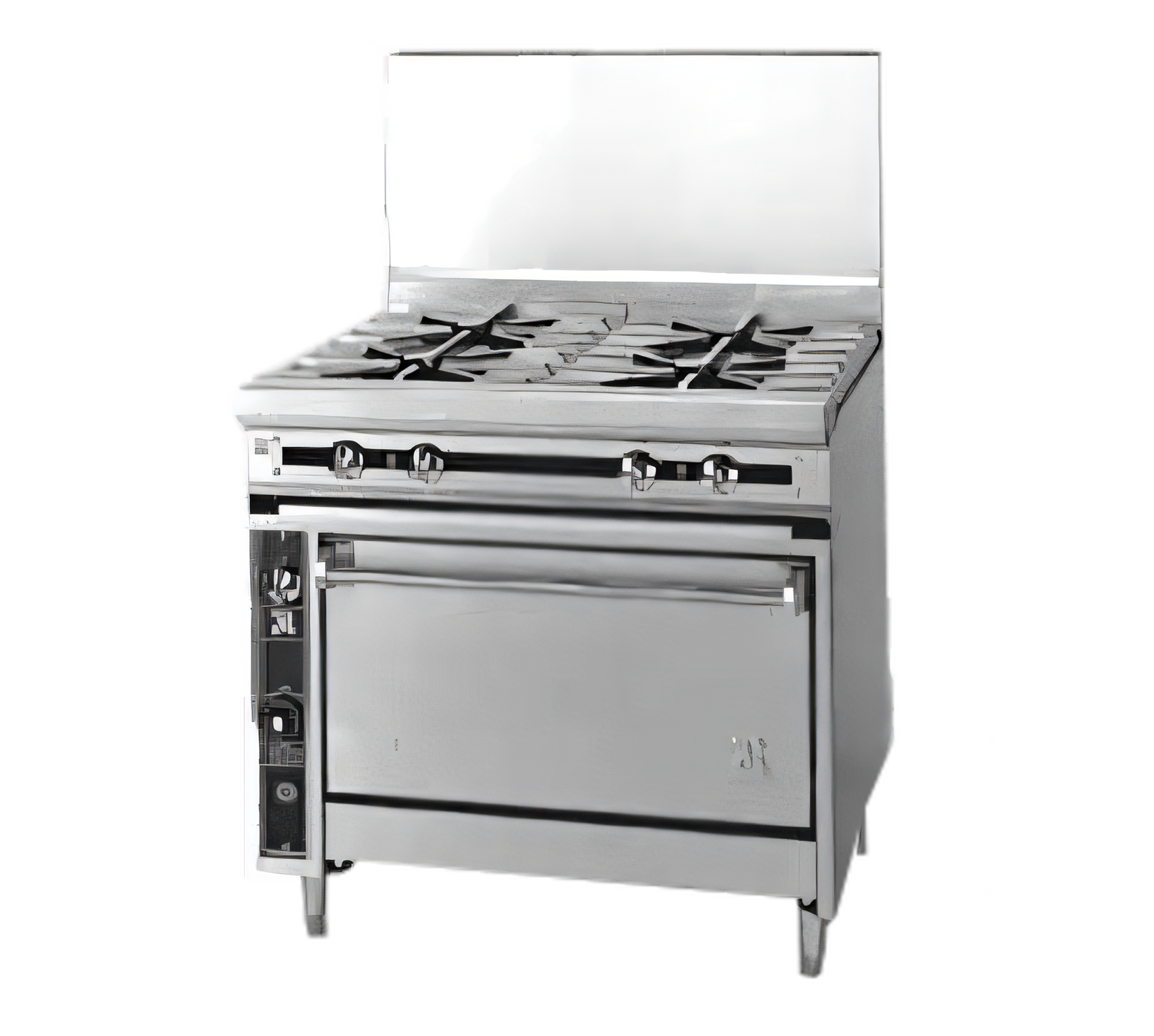

Titan JTRH-4-36 Heavy Duty 36" Gas Range with (4) Open Burners and Standard Oven

SKU: JTRH-4-36
$13,538.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

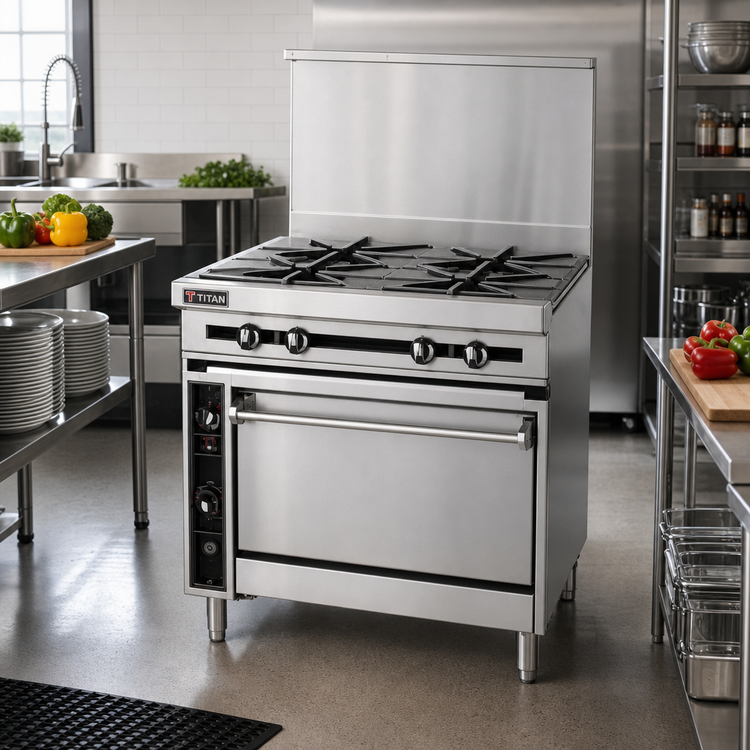

Titan JTRH-4-36 Heavy Duty 36" Gas Range with (4) Open Burners and Standard Oven

Full-Size, Natural Gas or Propane, Standard Depth

Engineered for demanding commercial kitchens, the Titan JTRH-4-36 gas range delivers powerful cooking performance with four open burners and a spacious standard oven.

  • Equipped with four 35,000 BTU/hr cast iron open burners for high-efficiency cooking.
  • Features a robust 14 gauge all-welded body construction with stainless steel front and sides for durability.
  • Includes a standard oven base with a 35,000 BTU burner and two chrome plated racks.
  • Oven thermostat offers a wide temperature range from 150°F to 550°F for versatile baking and roasting.
  • Designed with a 6" stainless steel plate shelf and adjustable legs for convenience and stability.
  • All stainless steel gas tubing ensures long-lasting performance and reliability.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

680.0 lb

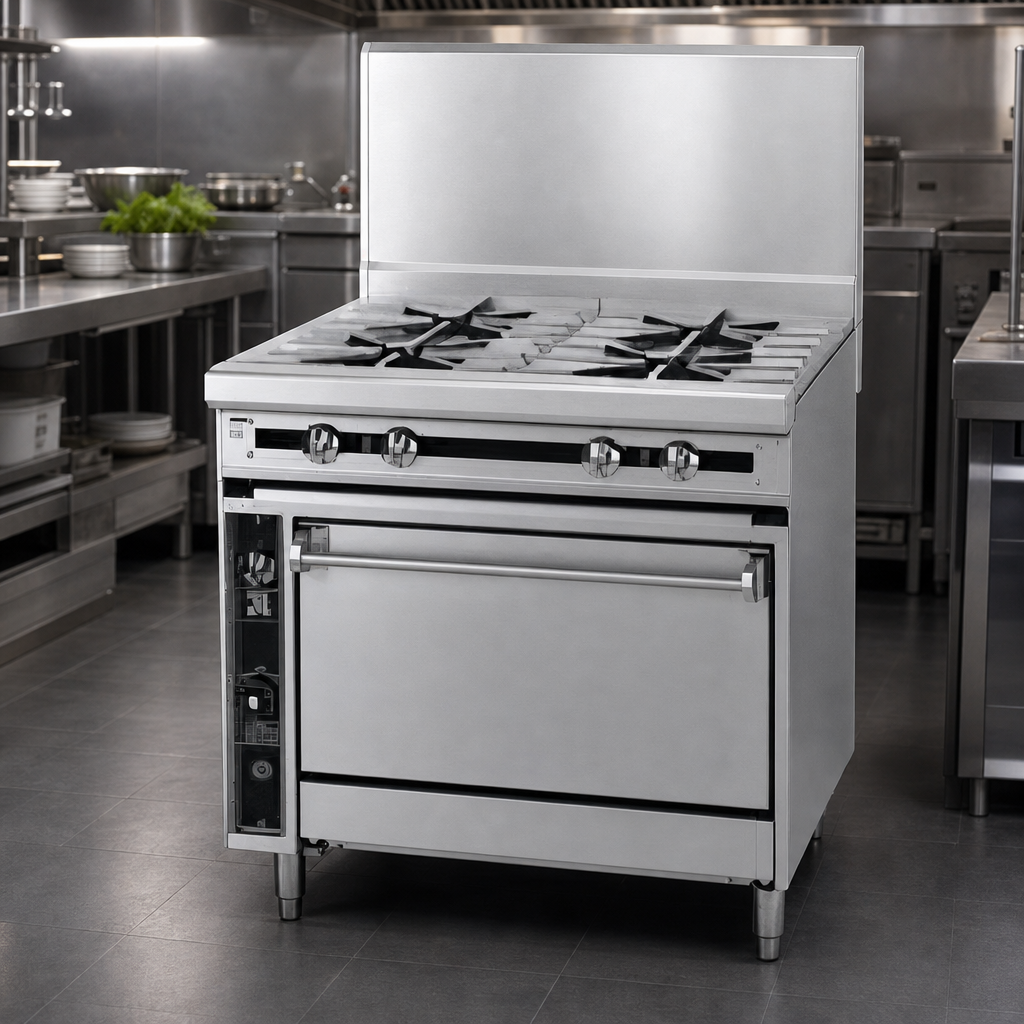

Heavy Duty Construction

Built with a 14 gauge all-welded body, stainless steel front, sides, and stub back for superior durability and longevity in busy commercial environments.

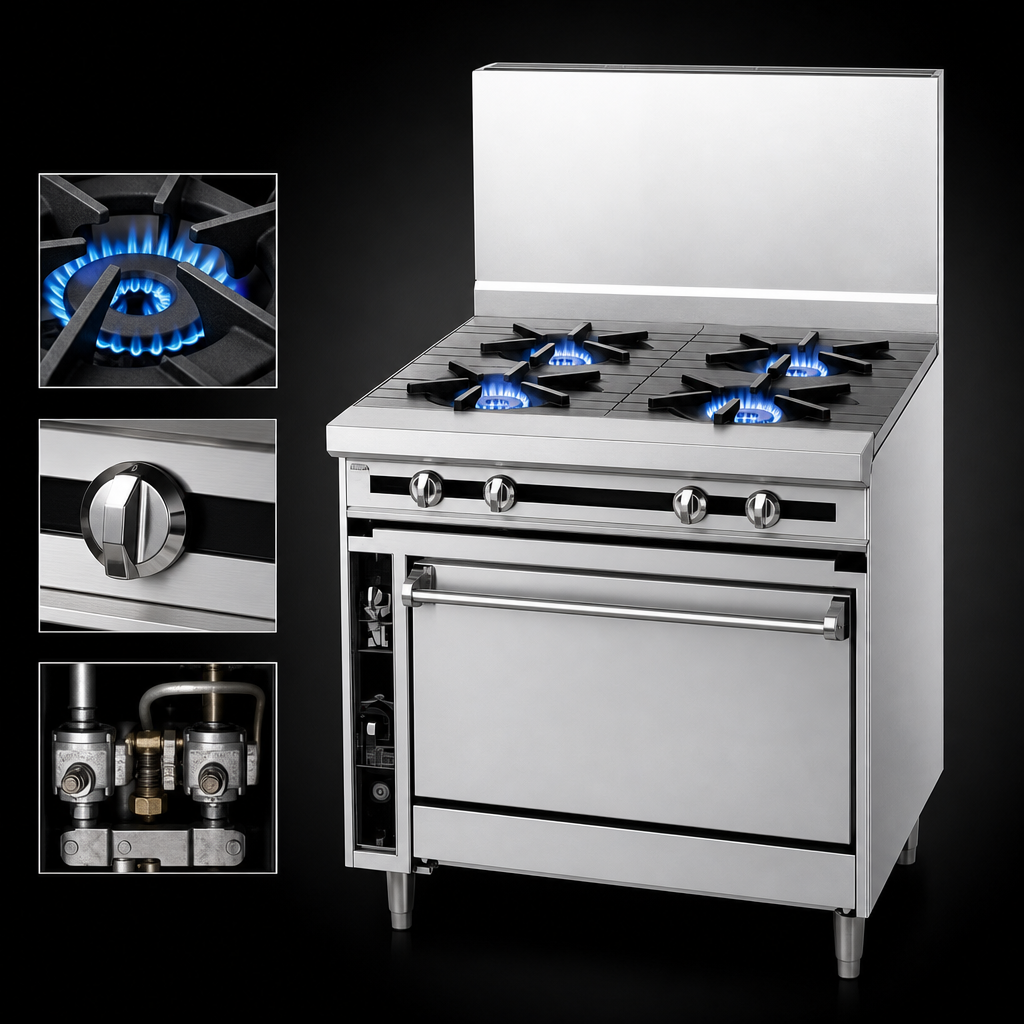

High-Performance Open Burners

Features four 35,000 BTU/hr cast iron open top burners, individually controlled by infinite gas valves, providing precise heat for various cooking tasks.

Standard Oven Base

The conventional oven base includes a stainless steel lining, two chrome plated oven racks, and a 35,000 BTU burner with a thermostat adjustable from 150°F to 550°F.

Removable Oven Interior

Oven sides and bottom are designed to be removable without tools, simplifying cleaning and maintenance.

Convenient Spill Pan

One spill pan is located below all burners, catching drips and making cleanup easier.

Integrated Plate Shelf

A 6" stainless steel plate shelf is included, providing convenient staging space.

Adjustable Legs

Comes with 6" stainless steel adjustable legs to ensure stable and level positioning.

Stainless Steel Gas Tubing

All internal gas tubing is constructed from stainless steel for enhanced reliability and safety.

Cool Zone Oven Control

The oven control is strategically located in a cool zone to protect components from excessive heat.

Type Commercial Gas Range
Style Open Burner Range with Standard Oven
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 175,000 BTU
Burner BTU 35,000 BTU/hr Per Burner
Oven BTU 35,000 BTU
Pan Capacity 2 Chrome Plated Racks
Temperature Range 150°F - 550°F
Compartments 1
Controls Infinite Controls (Burners), Thermostat (Oven)
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4" Front Manifold, 1" or 3/4" Rear Manifold
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Material Stainless Steel (Exterior), Cast Iron (Burners)
Interior Finish Stainless Steel
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 680 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer reserves the right to change materials and specifications without notice.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-4-36 is equipped with a standard conventional oven base. Its interior dimensions are 28-1/4" W x 14" H x 27-3/4" D.
Each of the four open burners provides 35,000 BTU/hr, and the standard oven burner also provides 35,000 BTU. The total BTU output for the unit is 175,000 BTU.
The range is supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection. A 3/4" gas pressure regulator is included and must be installed. Required operating pressure is 5" W.C. for Natural Gas and 10" W.C. for Propane, with a maximum of 14" W.C.
Yes, the standard oven base features a stainless steel lining, and the oven sides and bottom are designed to be removable without tools for convenient cleaning.
No, the JTRH-4-36 model with a standard oven does not require an electrical connection. Electrical power is only needed for models equipped with a convection oven.
