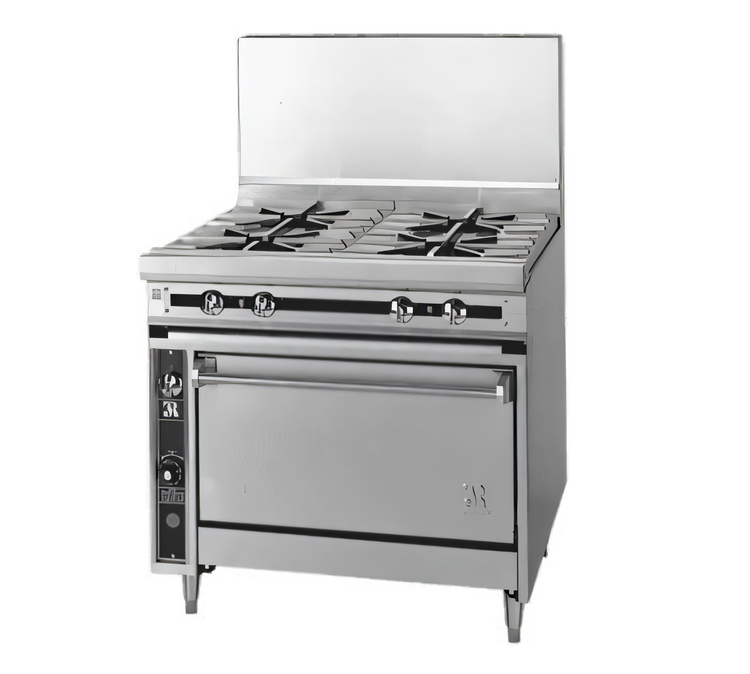

Titan JTRH-4-30 30" Four Burner Heavy Duty Gas Range with Space Saver Oven
Titan JTRH-4-30 30" Four Burner Heavy Duty Gas Range with Space Saver Oven
Four Open Burners, Space Saver Oven, 175,000 BTU
Designed for demanding commercial kitchens, the Titan JTRH-4-30 offers robust cooking power and a versatile space saver oven in a compact 30-inch footprint.
- Equipped with four 35,000 BTU cast iron open burners for high-performance cooking.
- Features a spacious space saver oven that accommodates full-size sheet pans.
- Constructed with durable 14-gauge all-welded body and stainless steel exterior for longevity.
- Includes two chrome-plated oven racks and a stainless steel oven interior for easy cleaning.
- Adjustable 6-inch stainless steel legs ensure stable placement and easy leveling.
- Offers a total output of 175,000 BTU, ideal for busy commercial environments.

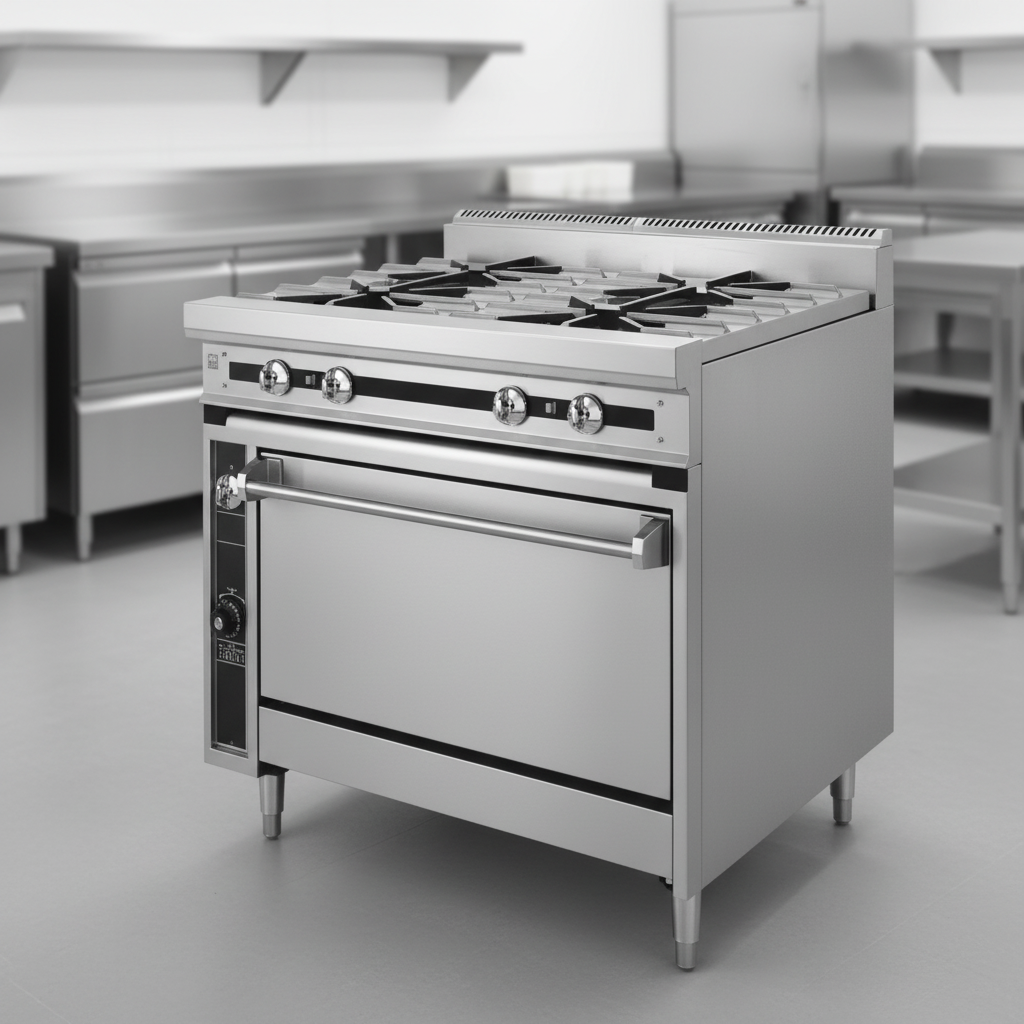

Heavy-Duty Construction
14-gauge all-welded body construction with stainless steel front, sides, stub back, and bottom ensures exceptional durability and resistance to harsh kitchen environments.

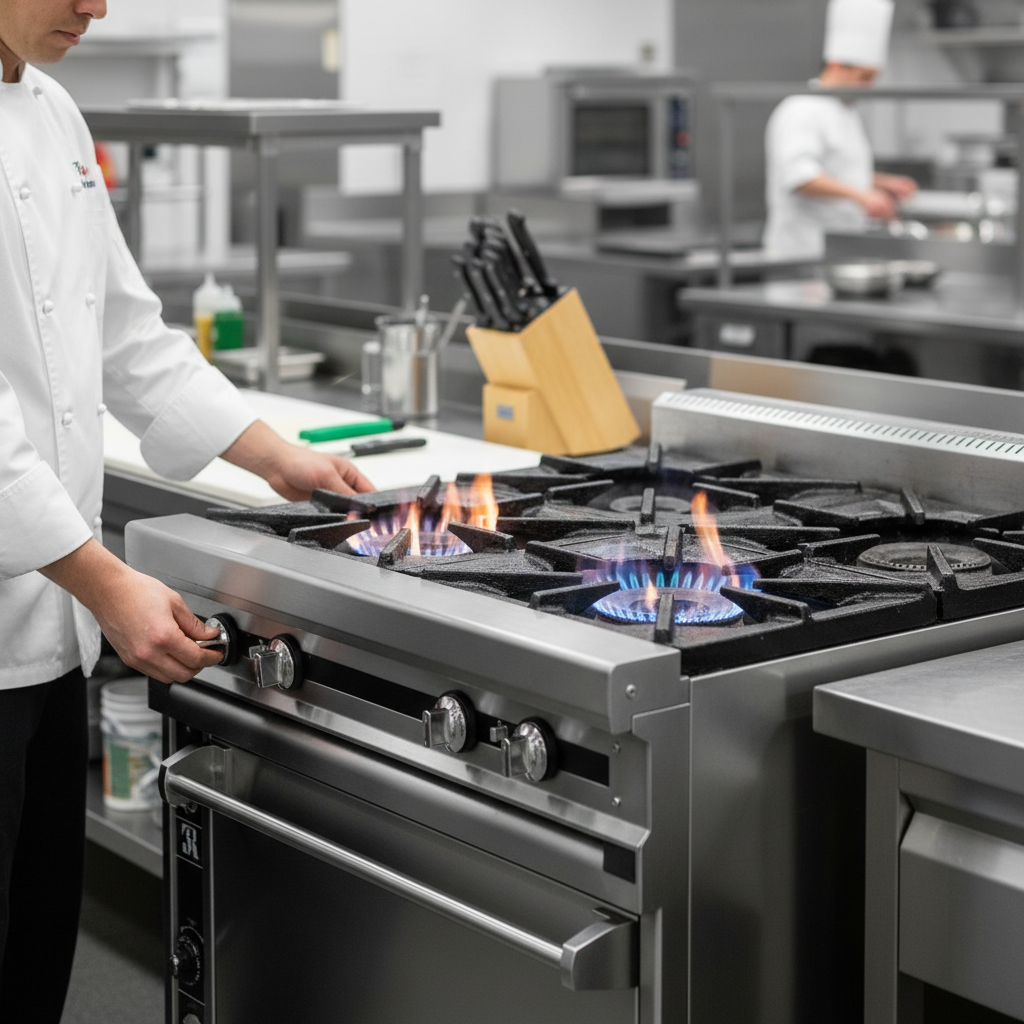

High-Performance Open Burners
Four individual lift-off steel top grates with four 35,000 BTU/hr cast iron open burners controlled by infinite gas valves provide precise heat management for various cooking tasks.

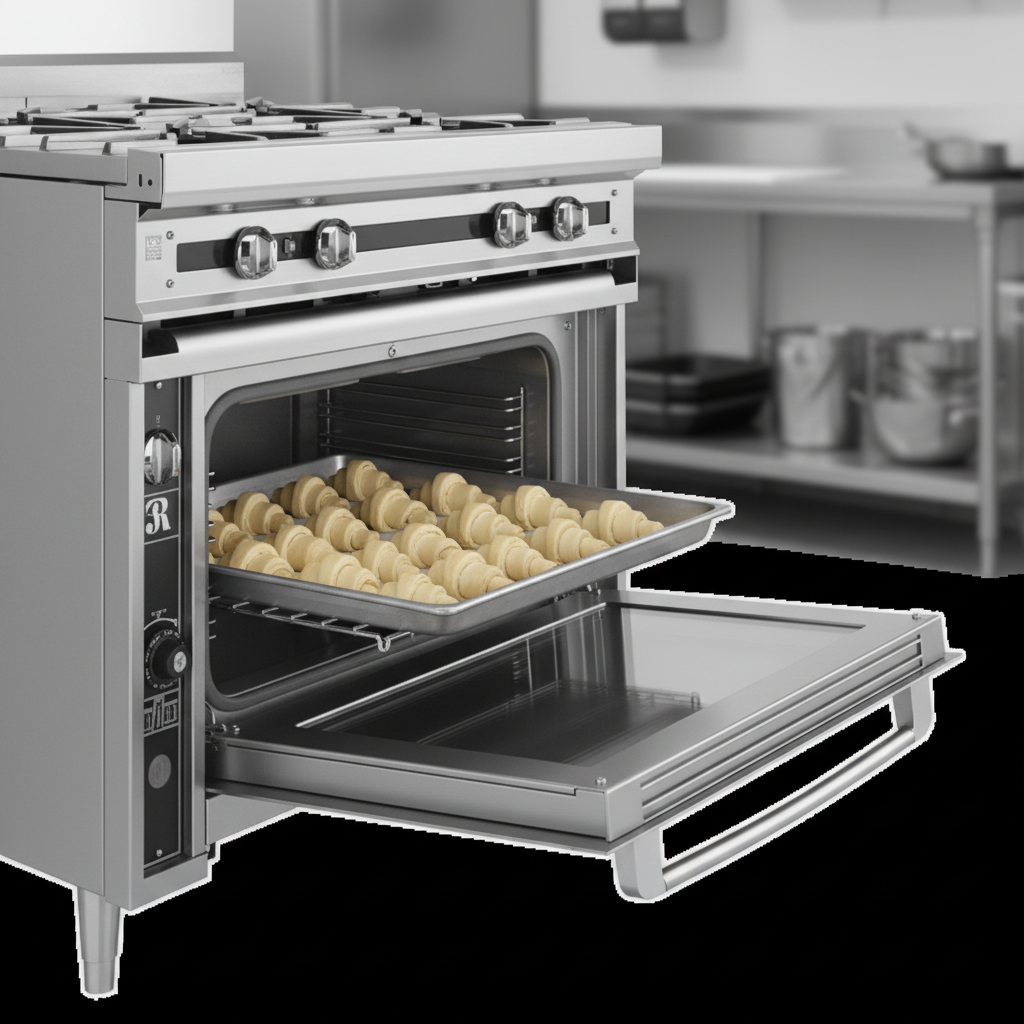

Space Saver Oven
Conventional oven base with a 35,000 BTU burner and stainless steel lining. The oven interior measures 22-1/4" W x 14" H x 27-3/4" D and accommodates full-size sheet pans.
Removable Oven Interior
Oven sides and bottom are removable without tools for convenient cleaning and maintenance.
Chrome Plated Oven Racks
Comes with two chrome plated oven racks, designed with wires curled and welded around the main frame to eliminate sharp ends.
Precision Oven Control
Oven thermostat adjusts from 150°F to 550°F, with the control located in a cool zone for reliability.
Integrated Plate Shelf
Includes a 6-inch stainless steel plate shelf for convenient plating and holding.
Adjustable Legs
Equipped with 6-inch stainless steel adjustable legs for easy leveling and stability.
Stainless Steel Tubing
All internal gas tubing is made of stainless steel for long-lasting performance and corrosion resistance.
Gas Pressure Regulator Included
A 3/4" gas pressure regulator is shipped loose and must be installed for proper operation.
Specifications
| Type | Heavy Duty Range |
|---|---|
| Style | Open Burner Range with Space Saver Oven |
| Installation Type | Floor Model (With 6" Adjustable Legs) |
| BTU | 175,000 BTU Total |
| Burner BTU | 35,000 BTU Per Burner |
| Oven BTU | 35,000 BTU |
| Gas Type | Natural Gas or Propane (Specify when ordering) |
| Gas Connection Size | 1-1/4 Inches Front Manifold, 1 Inch or 3/4 Inch Capped Rear Manifold |
| Gas Inlet Pressure | 5 Inches W.C. (Natural Gas Minimum), 10 Inches W.C. (Propane Minimum), 14 Inches W.C. Maximum |
| Pan Capacity | Full-Size Sheet Pans (Space Saver Oven) |
| Compartments | 1 |
| Controls | Infinite Gas Valves (Burners), Thermostatic (Oven) |
| Temperature Range | 150°F to 550°F (Oven) |
| Cooking Surface Width | 15 Inches Per Burner |
| Cooking Surface Depth | 14 Inches Per Burner |
| Interior Finish | Stainless Steel (Oven) |
| Material | Stainless Steel, Cast Iron |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
| Shipping Width | 30 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 580 lb. |
Overall Dimensions:
30.0"W x 38.0"D x 36.5"HProduct Weight:
580.0 lbCertifications & Compliance
