Jade Range (Middleby)

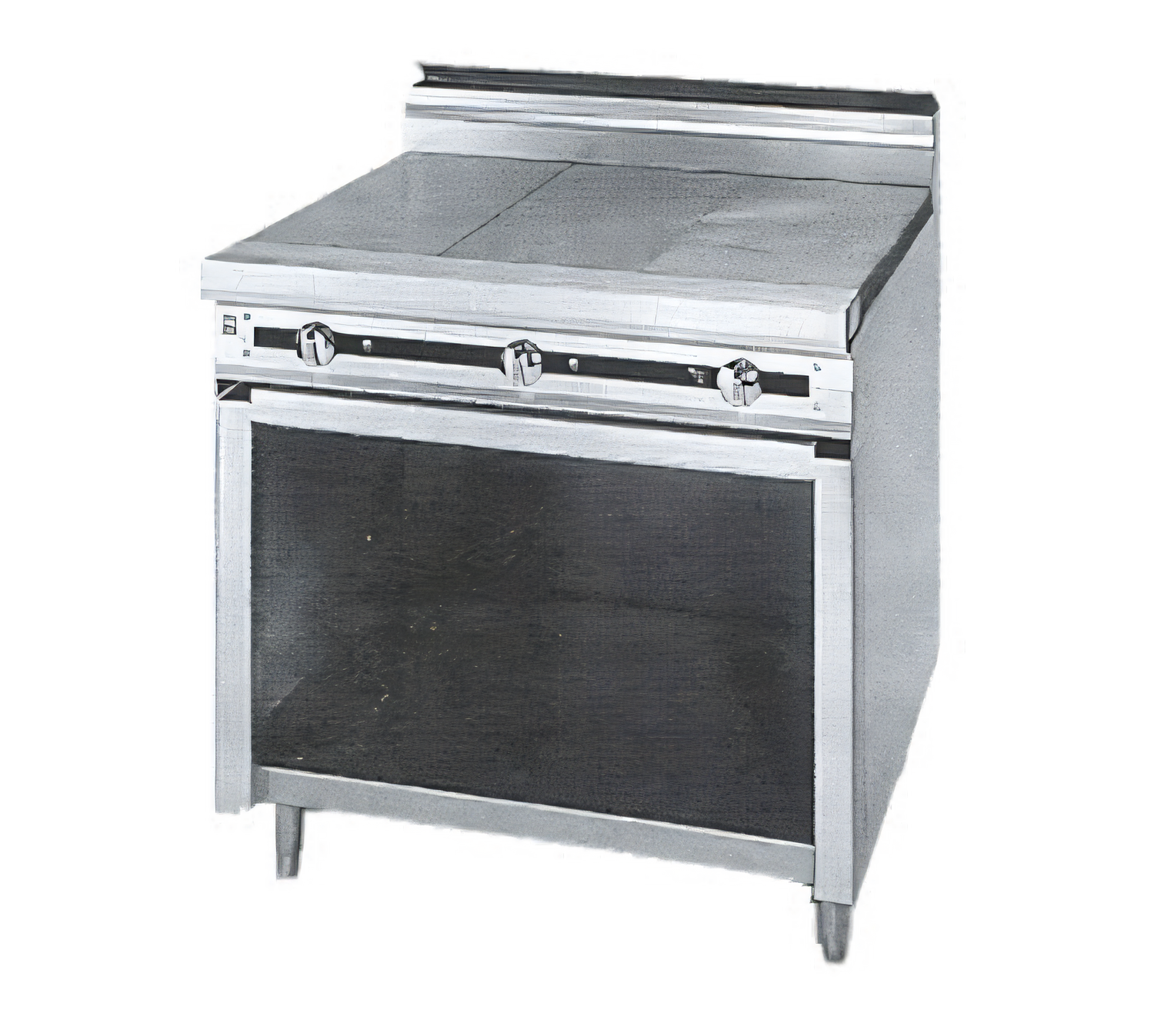

Titan JTRH-3HT 36-Inch Gas Heavy Duty Range with (3) Hot Tops and Cabinet Base

SKU: JTRH-3HT
$14,846.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRH-3HT 36-Inch Gas Heavy Duty Range with (3) Hot Tops and Cabinet Base

Full-Size, Natural Gas / Propane Convertible, Standard Depth

Experience robust and consistent cooking performance with the Titan JTRH-3HT, designed for demanding commercial kitchens requiring reliable hot top cooking.

  • Features three highly polished, reinforced cast iron hot tops, each with a 35,000 BTU/hr burner for efficient cooking.
  • Built with 14 gauge all-welded stainless steel construction for superior durability and easy cleaning.
  • Equipped with infinite controls, providing precise temperature management for each hot top section.
  • Cabinet base offers convenient storage space, enhancing kitchen organization and efficiency.
  • Comes standard with a 6-inch stainless steel plate shelf and adjustable legs for versatile installation.
  • Designed for heavy-duty commercial use, backed by Jade Range's reputation for quality.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

470.0 lb

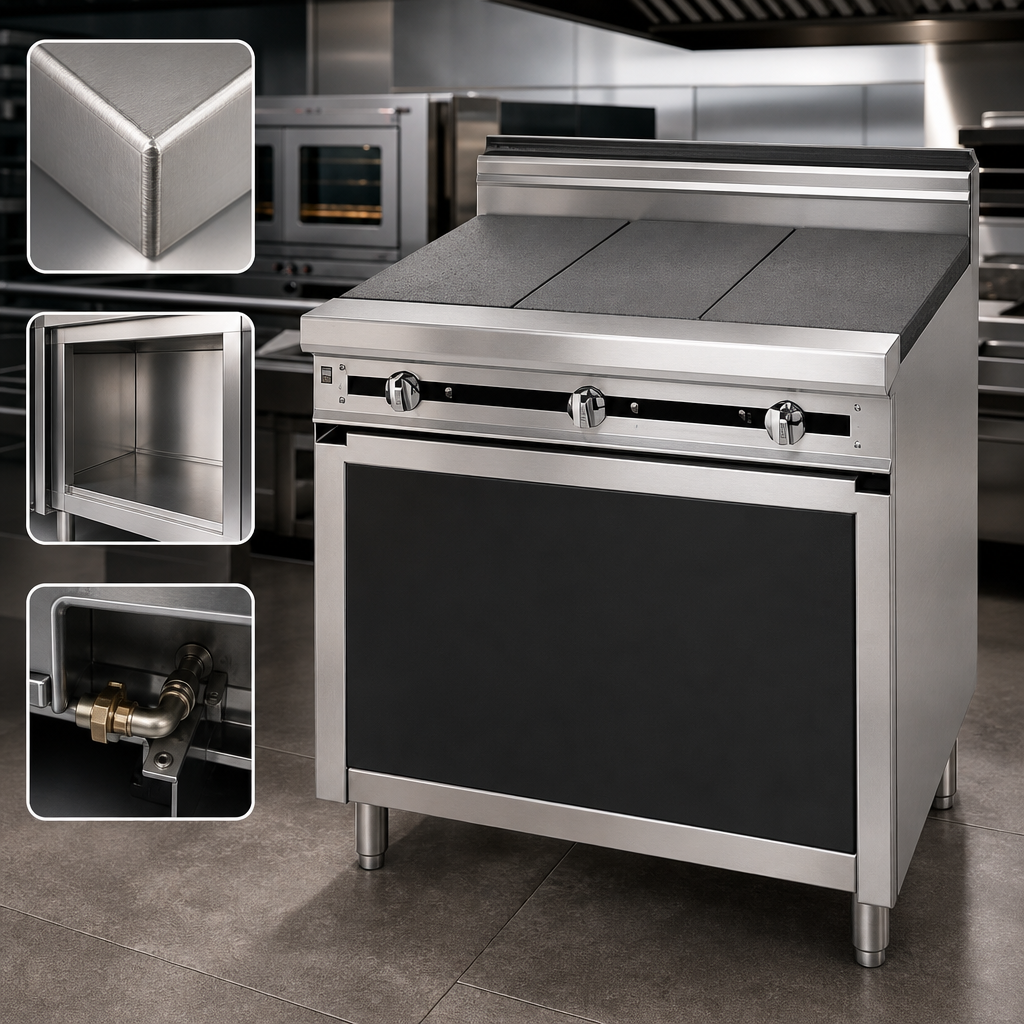

Heavy Duty Construction

Constructed with a 14 gauge all-welded body, stainless steel cabinet interior and exterior, and stainless steel gas tubing throughout for maximum durability and longevity in demanding commercial environments.

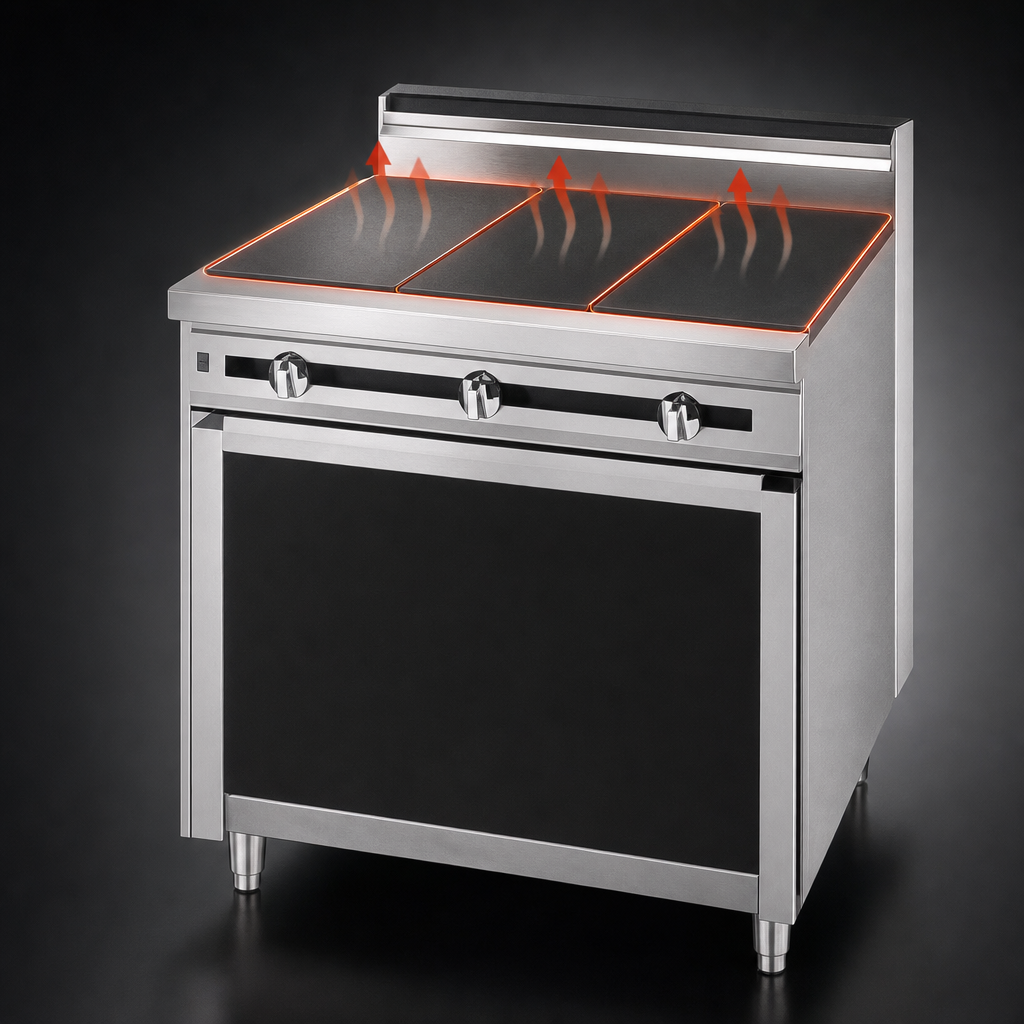

(3) Hot Top Sections

Includes three 12-inch highly polished, reinforced cast iron hot top plates, each powered by an independent 35,000 BTU/hr burner.

Infinite Controls

Each hot top section is controlled by infinite gas valves, allowing for precise and independent temperature adjustment.

Stainless Steel Components

Features a stainless steel front, sides, stub back, bottom, and a 6-inch plate shelf for corrosion resistance and ease of cleaning.

Cabinet Base

Provides enclosed storage within the base, ideal for keeping essential cooking tools and supplies organized and within reach.

Adjustable Legs

Comes with 6-inch adjustable stainless steel legs for easy leveling and custom installation height.

Gas Regulator Included

A 3/4-inch gas pressure regulator is shipped loose and must be installed for proper operation, ensuring safe and efficient gas flow.

Type Heavy Duty Range
Style Cabinet Base Hot Top
Installation Type Floor Model (With 6-inch adjustable legs)
BTU 105,000 BTU
Hot Top Sections 3
BTU Per Section 35,000 BTU
Material Stainless Steel
Interior Finish Stainless Steel
Controls Infinite Controls
Gas Connection Size 1-1/4 Inches
Gas Inlet Pressure 5-14 Inches W.C. (Natural Gas), 10-14 Inches W.C. (Propane Gas)
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 470 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's Standard Warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-3HT is designed to operate on either Natural Gas or Propane. It is crucial to specify the type of gas when ordering, and a 3/4-inch gas pressure regulator is supplied for installation.
For Natural Gas, a minimum of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is required. The maximum operating pressure for both gas types is 14 inches W.C.
Yes, the JTRH-3HT features a cabinet base made of stainless steel, providing convenient storage directly beneath the cooking surface.
Yes, but it is important to specify the altitude when ordering if it is above 2,000 feet, as adjustments may be necessary for proper operation.
The range is supplied with a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection for versatile utility hookup.
