Jade Range (Middleby)

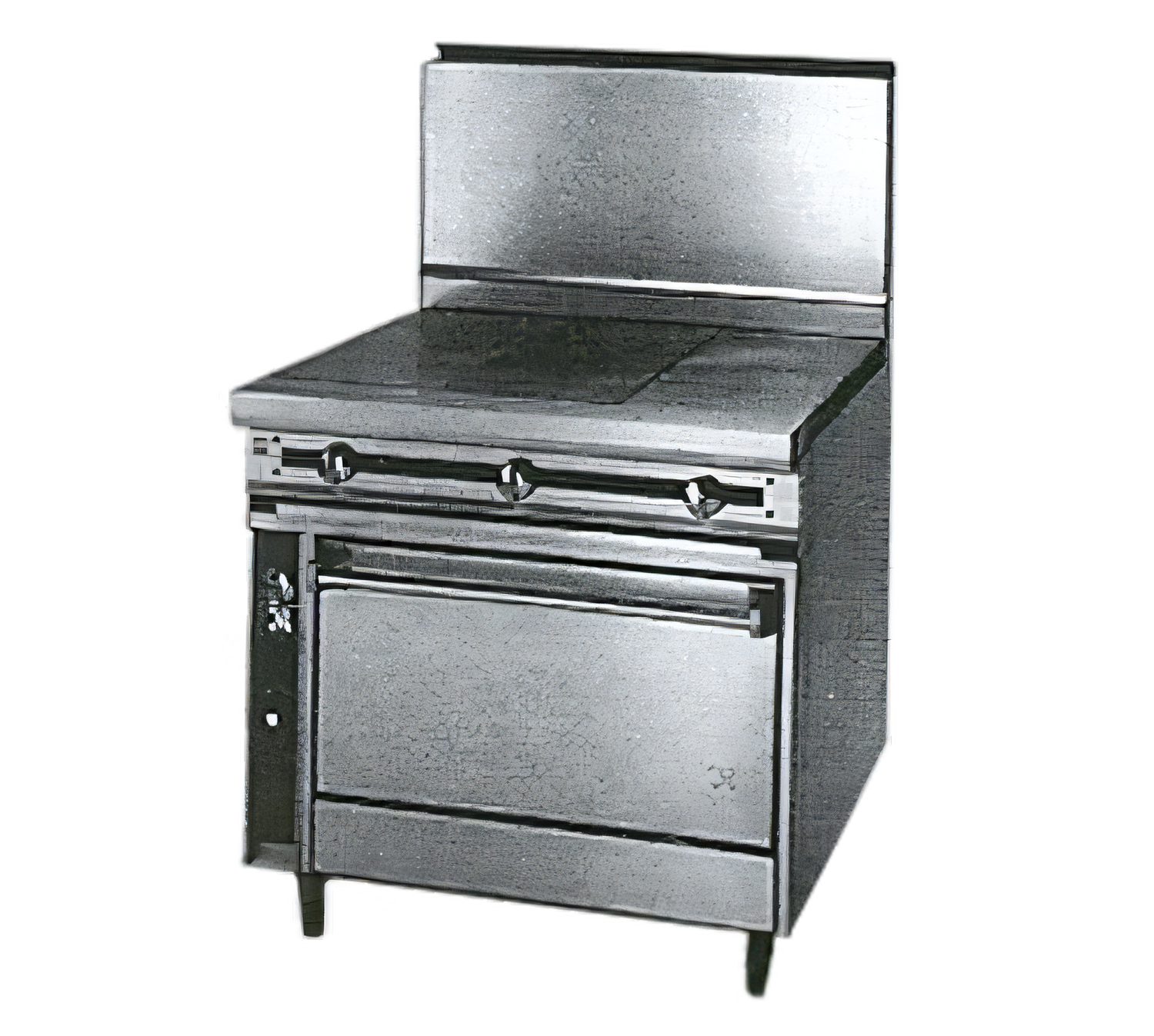

Jade Range Titan JTRH-3HT-36C 36" Heavy Duty Gas Hot Top Range with Convection Oven

SKU: JTRH-3HT-36C
$20,173.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Titan JTRH-3HT-36C 36" Heavy Duty Gas Hot Top Range with Convection Oven

Full-Size, Natural Gas or Propane, Standard Depth, 3 Hot Tops, Convection Oven Base

Engineered for demanding commercial kitchens, the Jade Range Titan JTRH-3HT-36C offers a powerful hot top cooking surface combined with an efficient convection oven.

  • Equipped with three 35,000 BTU hot top sections for versatile cooking.
  • Features a convection oven base with a 30,000 BTU burner and 1/3 HP blower for even baking.
  • Constructed with a heavy-duty 14 gauge all-welded stainless steel body for exceptional durability.
  • Includes a 6-inch stainless steel plate shelf and adjustable 6-inch legs for convenience.
  • Designed for reliability and consistent performance in high-volume environments.
  • Offers precise temperature control for both the hot tops and the oven, ranging from 150°F to 550°F.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

720.0 lb

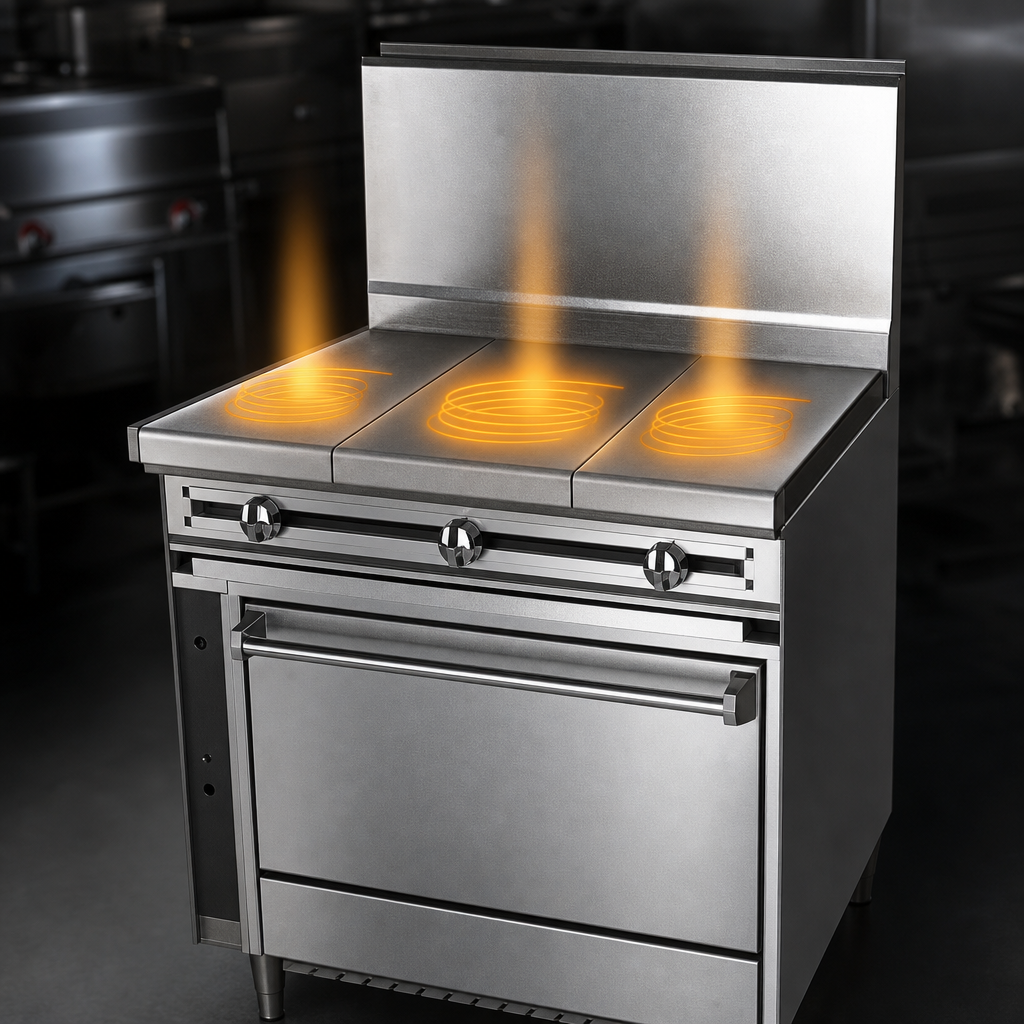

Heavy Duty Hot Top Sections

Consists of three highly polished reinforced cast iron plates, each with a 35,000 BTU/hr burner for intense and even heat.

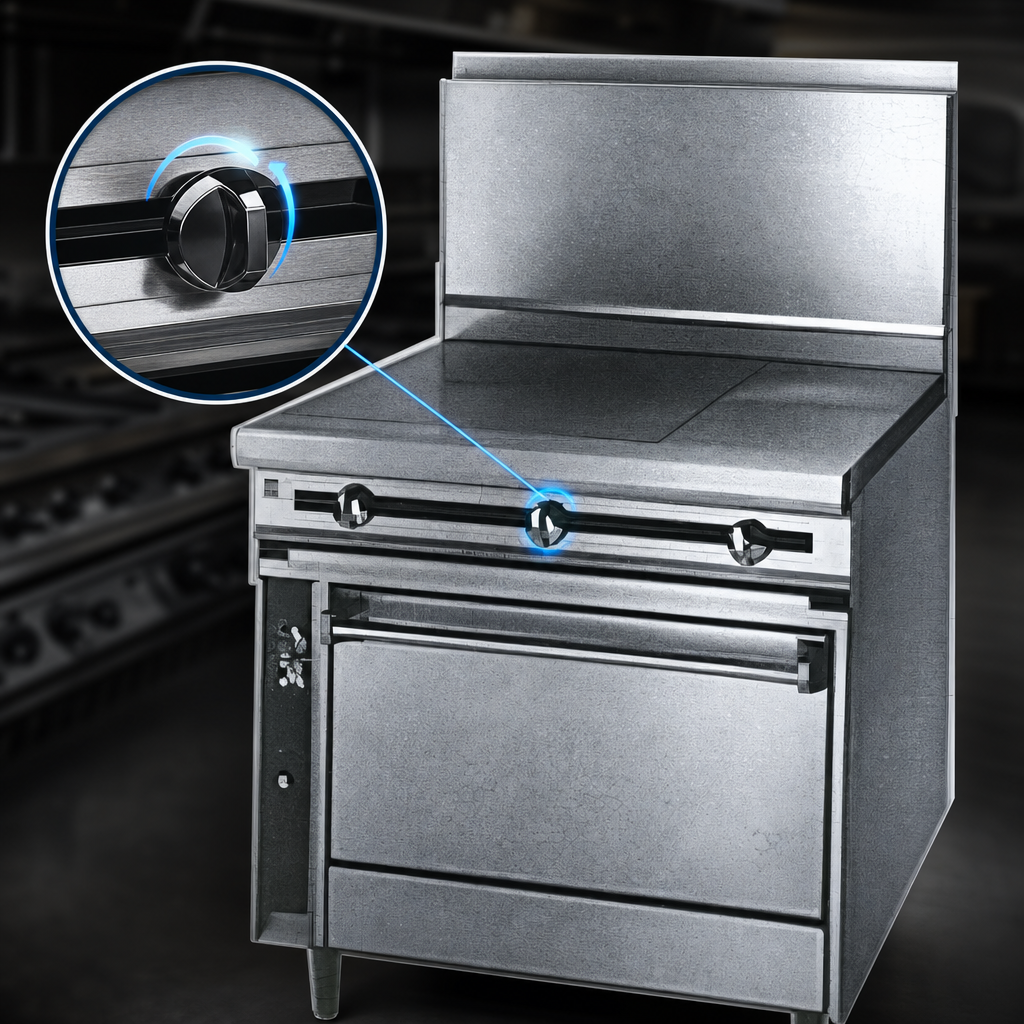

Infinite Hot Top Controls

Each hot top section is controlled by an infinite gas valve, allowing for precise temperature adjustments.

Convection Oven Base

Features a convection oven with a 14 gauge stainless steel interior, a 30,000 BTU burner, and a 1/3 HP blower motor for uniform heat distribution.

Thermostatic Oven Control

The oven thermostat adjusts from 150°F to 550°F, with the control located in a cool zone for durability.

Durable Oven Racks

Supplied with two chrome plated oven racks, designed with wires curled and welded around the main frame for safety and strength.

Robust Construction

Built with a 14 gauge all-welded body, featuring stainless steel front, sides, stub back, and bottom for lasting performance.

Stainless Steel Plate Shelf

Includes a 6-inch stainless steel plate shelf, providing convenient staging space.

Adjustable Legs

Equipped with 6-inch stainless steel adjustable legs for leveling and stability.

Electronic Spark Ignitor

The convection oven features an electronic spark ignitor, activated by a power switch, to ignite the standing pilot.

Three-Position Fan Switch

The convection oven fan offers three positions: on for normal operation, on for quick cool down, and off.

Type Heavy Duty Range
Style Hot Top Range with Convection Oven
Installation Type Floor Model (With 6 Inches Adjustable Legs)
Cooking Surface Width 36 Inches
Compartments 1
Pan Capacity 2 Oven Racks
Controls Infinite Gas Valves (Hot Tops), Thermostatic (Oven)
Temperature Range 150°F to 550°F (Oven)
BTU 135,000 BTU
BTU Per Hot Top Burner 35,000 BTU
BTU Per Convection Oven 30,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inches NPT
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.0 Amps
Cord Length 6 Feet
Plug Type 3 Prong Plug
Material Stainless Steel (Exterior), Cast Iron (Hot Tops)
Interior Finish 14 Gauge Stainless Steel (Convection Oven)
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 720 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-3HT-36C model is equipped with a convection oven base, featuring a 14 gauge stainless steel interior, a 30,000 BTU burner, and a 1/3 HP blower motor.
The convection oven interior measures 28 inches wide, 13-3/4 inches high, and 24-1/2 inches deep.
The oven thermostat can be adjusted to maintain temperatures from 150°F to 550°F.
This range can operate on either Natural Gas (requiring 5 inches W.C. minimum operating pressure) or Propane Gas (requiring 10 inches W.C. minimum operating pressure). The gas type must be specified when ordering.
The convection oven requires a 115 Volt, 60 Hz, 1-Phase electrical supply, drawing a maximum of 4.0 Amps, and comes with a 6-foot cord and a 3-prong plug.
