Titan JTRH-36IP 36-Inch Cabinet Base Gas Plancha Top Range with 5/8" Even Heat Plate

SKU: JTRH-36IP
$18,937.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

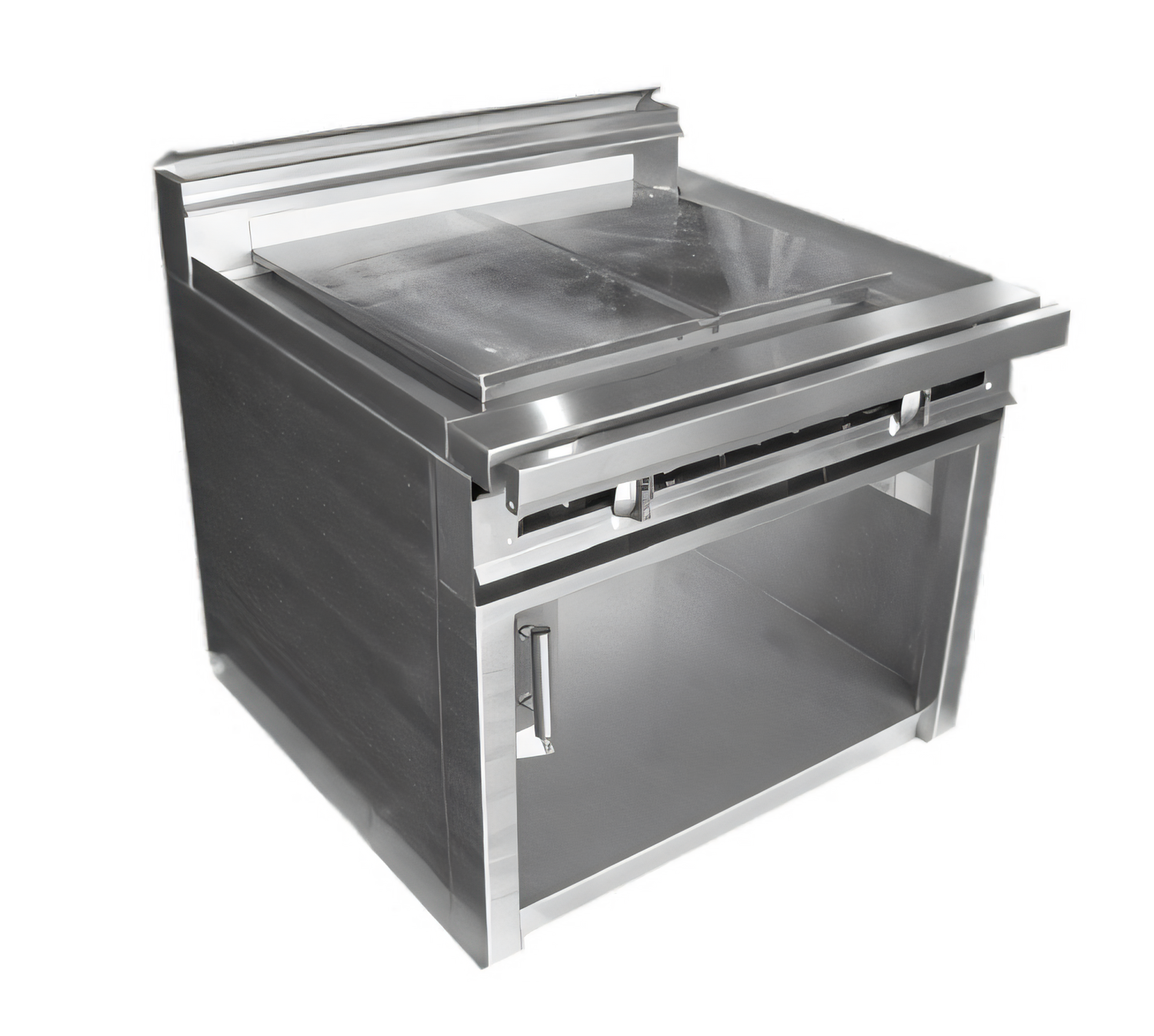

Titan JTRH-36IP 36-Inch Cabinet Base Gas Plancha Top Range with 5/8" Even Heat Plate

Full-Size, Natural Gas or Propane, Standard Depth

Experience superior cooking performance with the Titan JTRH-36IP, a heavy-duty gas plancha top range designed for high-volume commercial kitchens.

  • Equipped with a polished 5/8" thick steel plancha plate for even heat distribution and exceptional cooking results.
  • Features durable stainless steel construction on the front, sides, and stub back, ensuring longevity and easy cleaning.
  • Includes a cabinet base for convenient storage, making it ideal for optimizing kitchen space.
  • Integrated 4-sided trough with an Island style plate design and a 14 gauge stainless steel grease trough for efficient grease management.
  • Comes standard with a 6" stainless steel plate shelf, enhancing operational efficiency and prep space.
  • CSA-us and NSF certified, meeting rigorous standards for safety and sanitation in commercial settings.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

530.0 lb

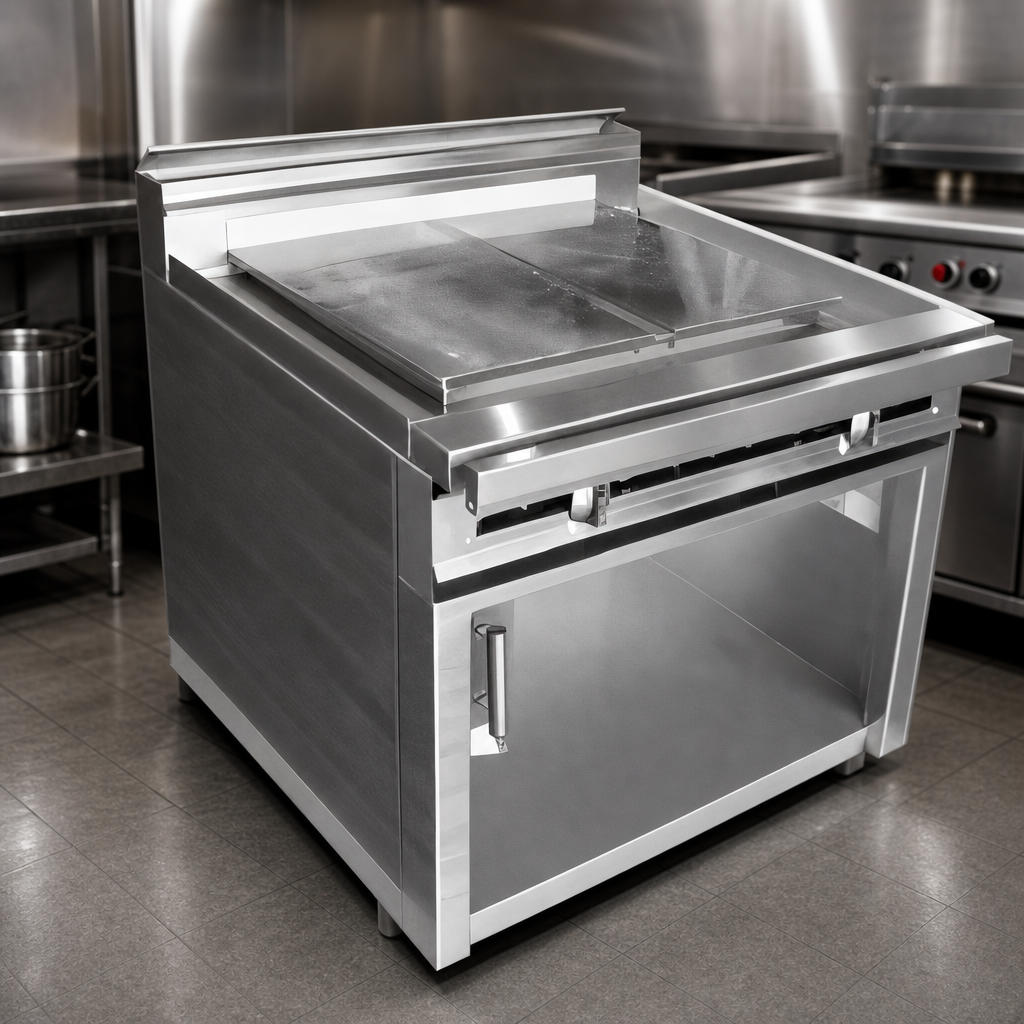

Heavy-Duty Construction

Built with a stainless steel front, sides, and stub back for enhanced durability and a professional appearance in demanding commercial kitchen environments.

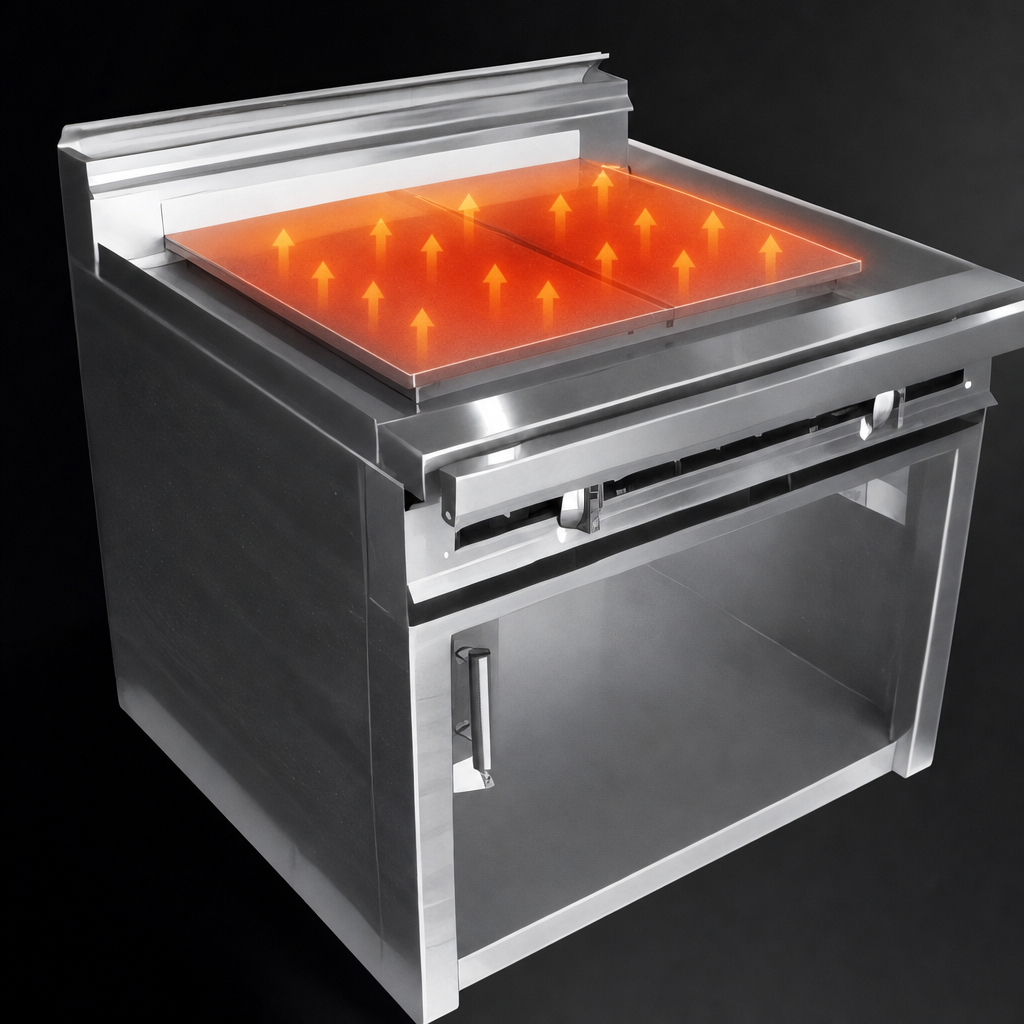

Even Heat Plancha Plate

Features a polished 5/8" thick steel plancha plate, engineered to provide consistent and even heat across the entire cooking surface for superior cooking results.

Cabinet Base

Includes a robust cabinet base, offering convenient storage for cookware, utensils, or ingredients, helping to keep your kitchen organized and efficient.

Efficient Grease Management

Designed with a 4-sided trough, Island style plate, and a 14 gauge stainless steel grease trough to effectively collect and manage cooking grease, simplifying cleanup.

Infinite Controls

Provides infinite control settings, allowing precise temperature adjustments for versatile cooking applications.

Integrated Plate Shelf

Comes standard with a 6" stainless steel plate shelf, providing an immediate staging area for prepared dishes or ingredients.

Adjustable Legs

Equipped with 6" adjustable legs to ensure stable placement and easy leveling on uneven kitchen floors.

Multi-Point Gas Connection

Features a variable size multi-point gas connection (1-1/4" front, 1" or 3/4" rear) for flexible installation options.

Type Plancha Top Range
Style Cabinet Base
Installation Type Floor Model (With Cabinet Base)
Cooking Surface Width 36 Inches
Plate Thickness 5/8 Inches
BTU 35,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size Variable Multi-Point (3/4 Inch, 1 Inch, 1-1/4 Inches)
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Material Stainless Steel (Exterior), Steel (Plancha Plate)
Exterior Finish Stainless Steel
Controls Infinite Controls
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 530 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

The JTRH-36IP range can be configured for either Natural Gas or Propane. Please specify the gas type when ordering.
For Natural Gas, a minimum of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is required. The maximum operating pressure for both is 14 inches W.C.
The JTRH-36IP features a polished 5/8 inch thick steel plancha plate.
Yes, the range is supplied with a 3/4 inch gas pressure regulator, which ships loose and must be installed for proper operation.
Yes, if installing the unit above 2,000 feet, you must specify the altitude when ordering.
The range features a durable stainless steel front, sides, and stub back for commercial use.
