Jade Range (Middleby)

Titan JTRH-36G 36-Inch Heavy Duty Gas Griddle Range with Cabinet Base and Manual Controls

SKU: JTRH-36G
$14,040.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

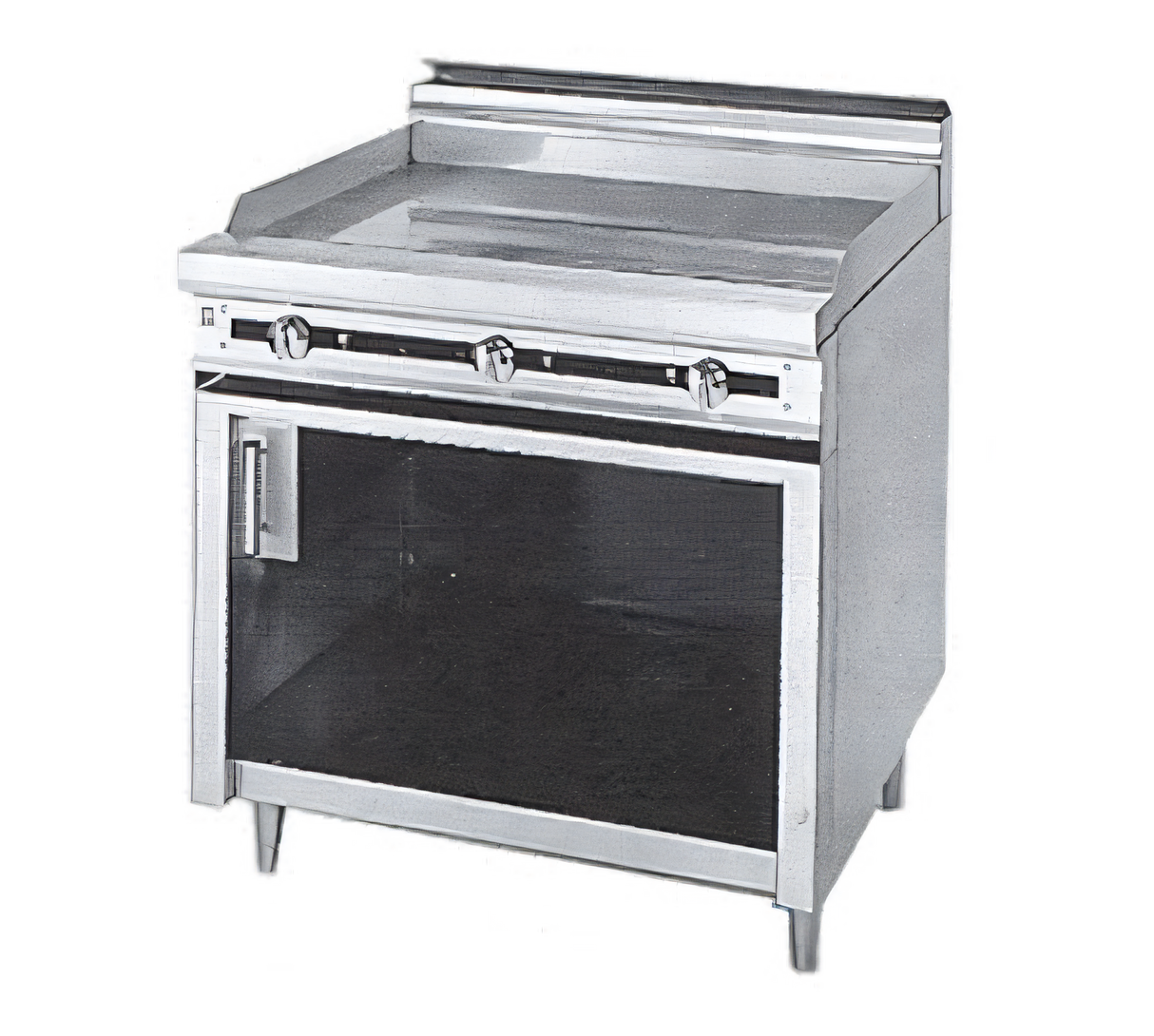

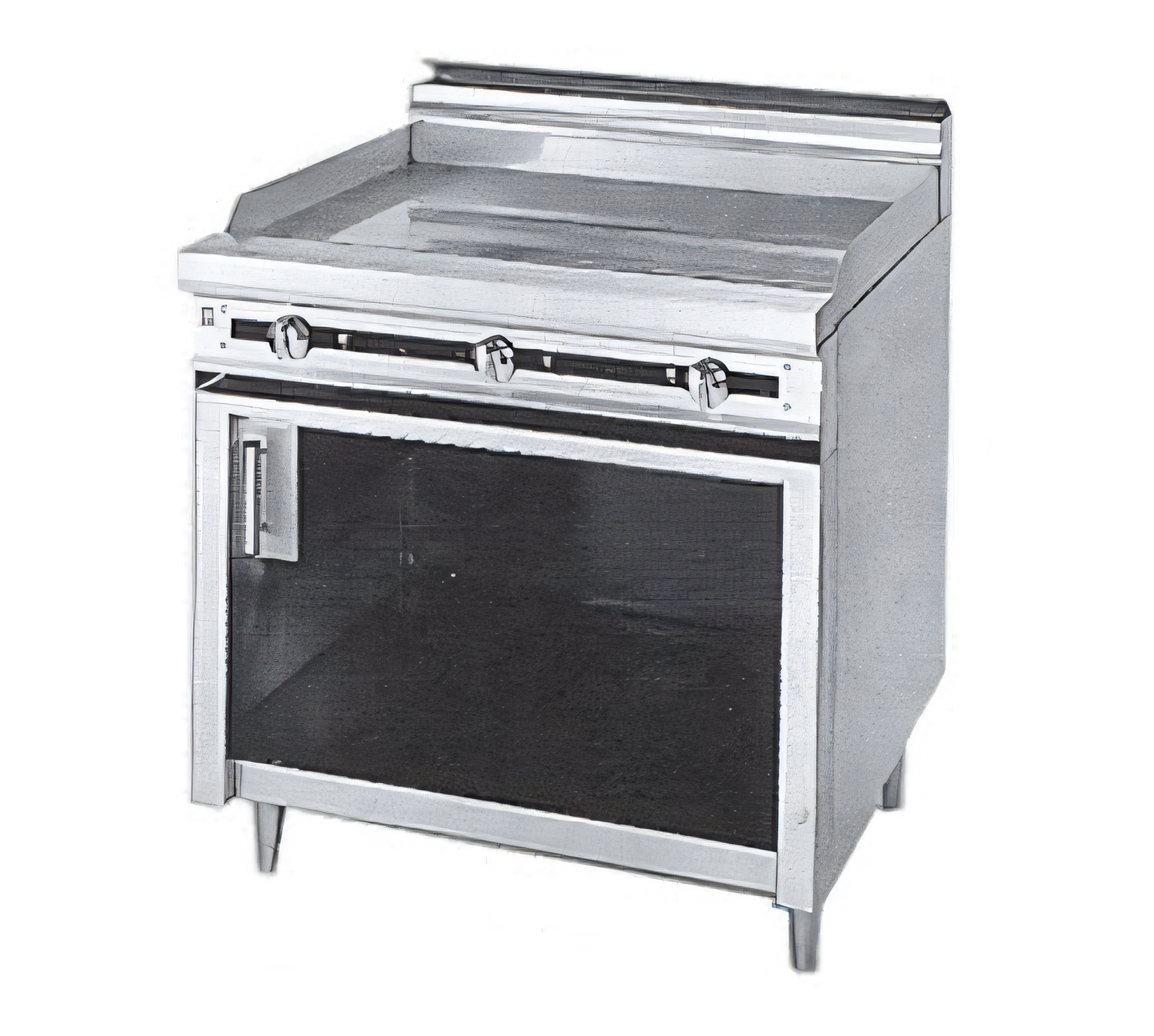

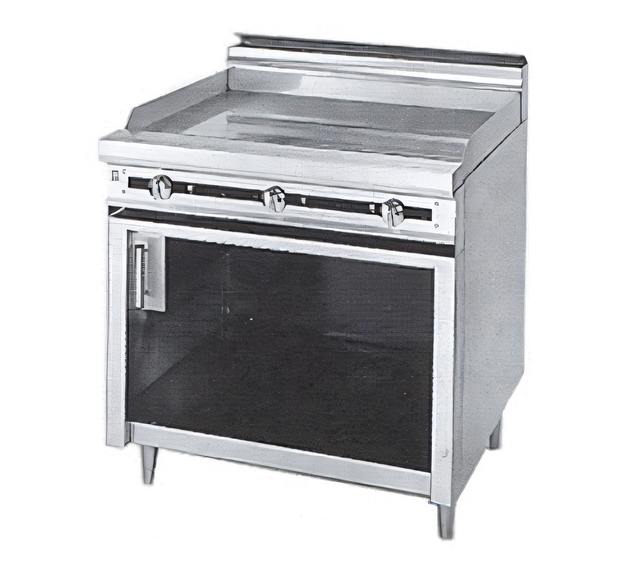

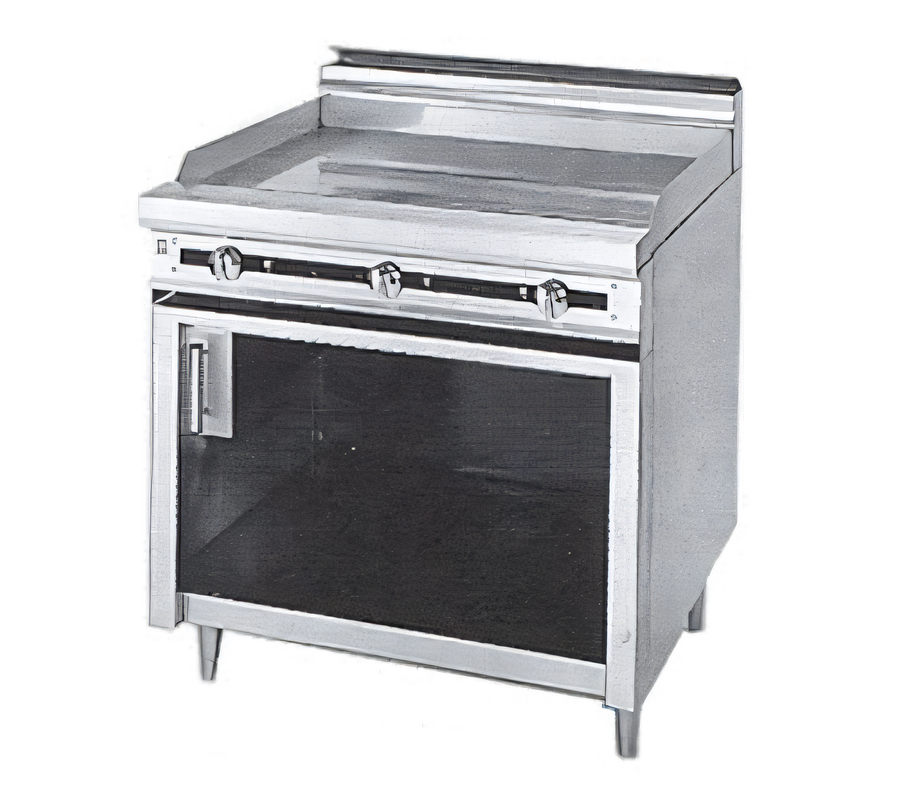

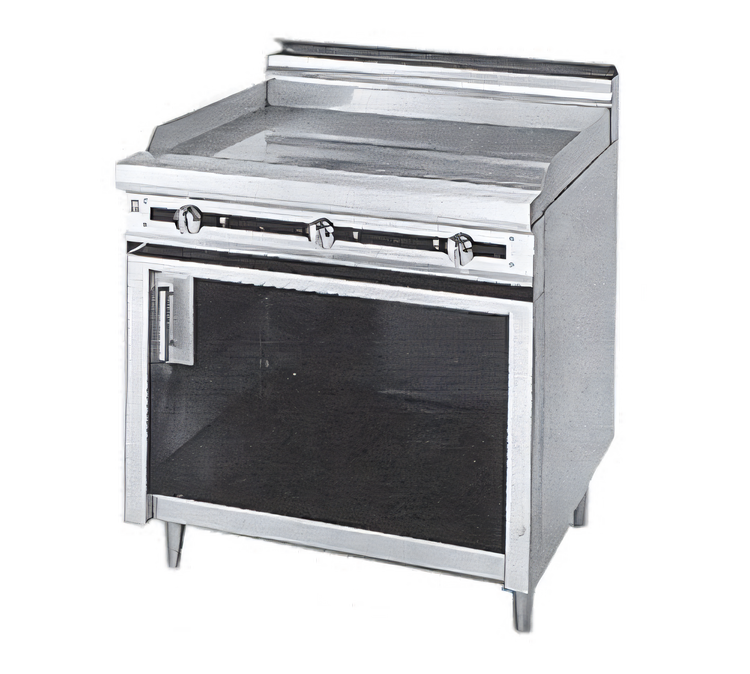

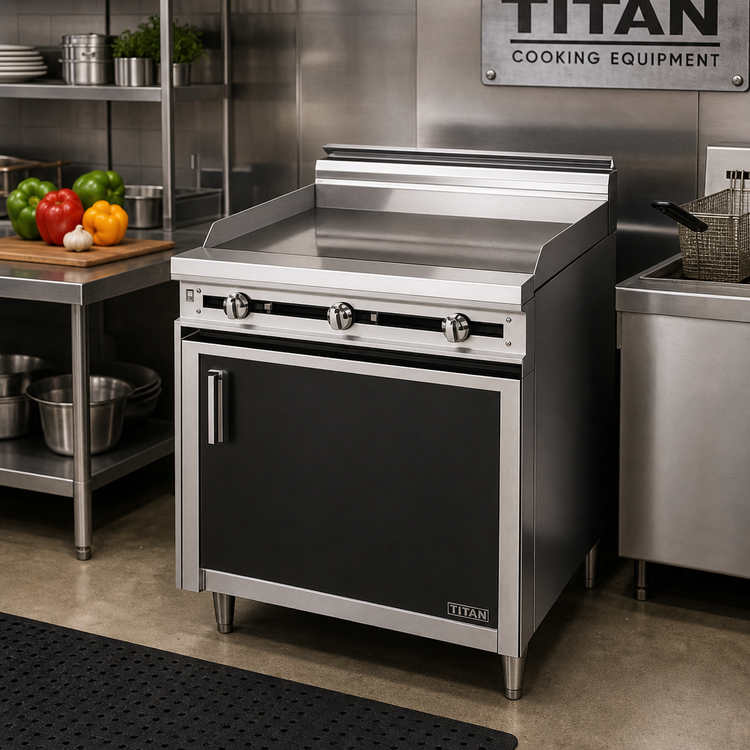

Titan JTRH-36G 36-Inch Heavy Duty Gas Griddle Range with Cabinet Base and Manual Controls

36-Inch, Manual Control, 1-Inch Polished Steel Griddle Plate

Designed for demanding commercial kitchens, the Titan JTRH-36G heavy-duty gas griddle range delivers consistent high-performance cooking with durable stainless steel construction and precise manual controls.

  • Equipped with a robust 1-inch thick polished steel griddle plate for even heating and superior heat retention.
  • Features intuitive manual controls, allowing precise heat adjustment across the 36-inch griddle surface.
  • Built with a durable stainless steel cabinet base for convenient storage and a heavy-duty workhorse design.
  • Generates 105,000 BTU, providing ample power for high-volume griddle operations.
  • Constructed with a full stainless steel exterior (front, sides, stub back, bottom) and interior for long-lasting performance and easy cleaning.
  • Includes a 6-inch plate shelf and 6-inch adjustable stainless steel legs for ergonomic operation and installation flexibility.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

530.0 lb

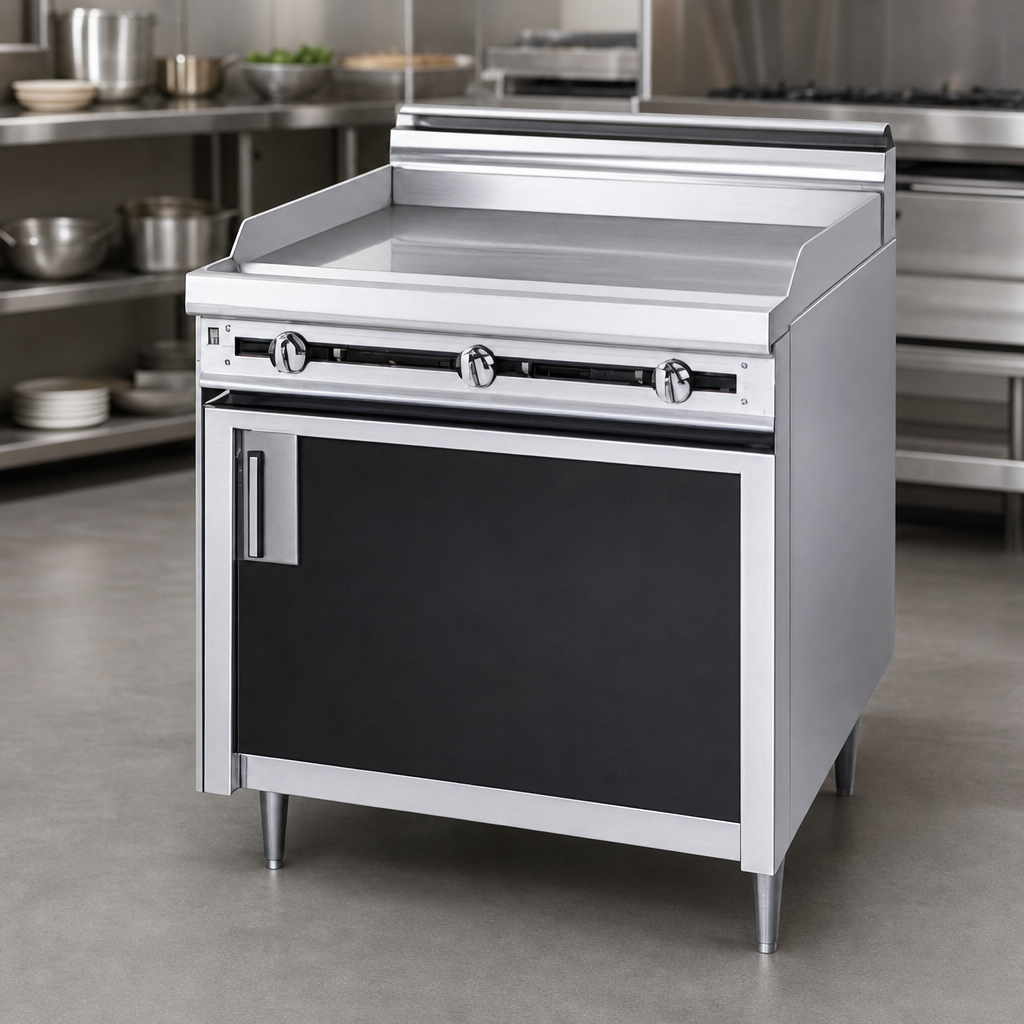

Heavy Duty Construction

All-welded 14 gauge body with stainless steel front, sides, stub back, and bottom for exceptional durability in a commercial environment.

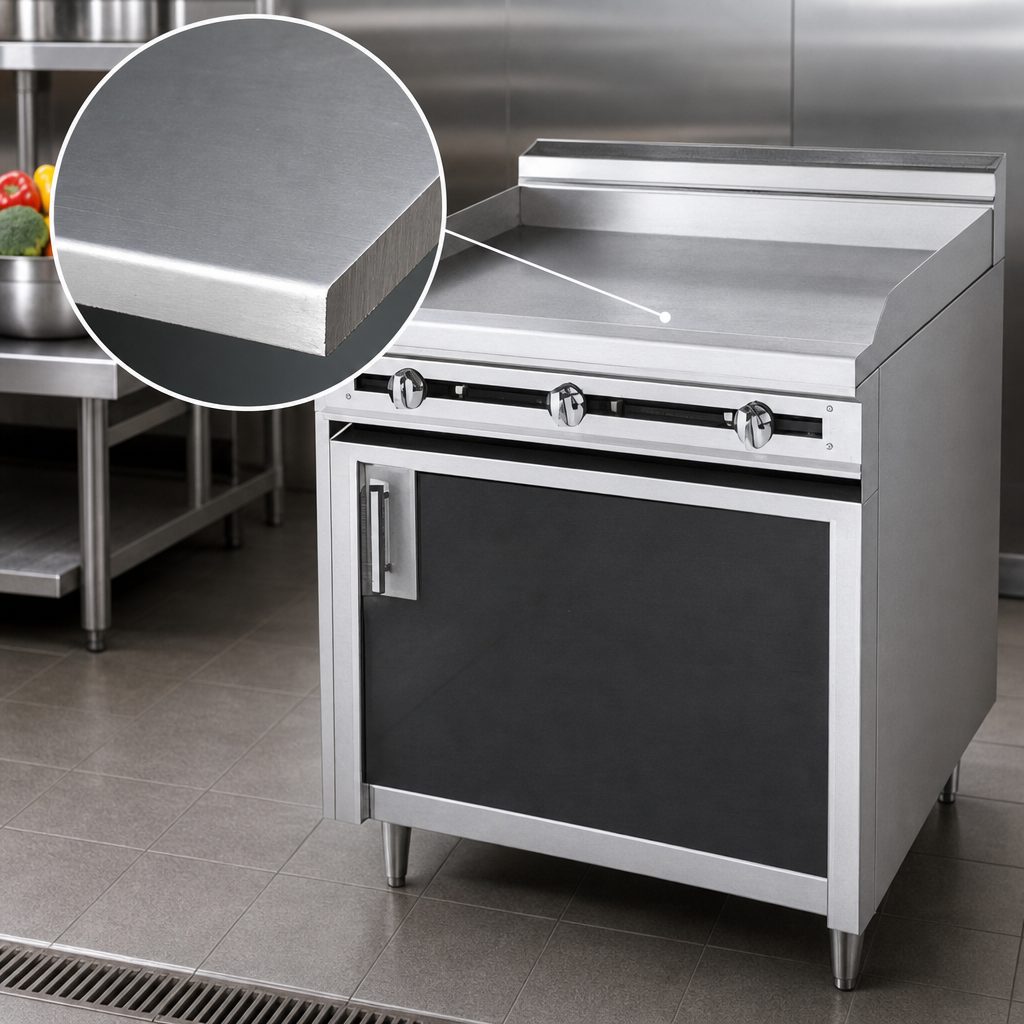

1-Inch Polished Steel Griddle Plate

Thick, reinforced griddle plate provides excellent heat distribution and retention for consistent cooking results.

Manual Controls

Offers precise heat management for the griddle sections through infinite gas valves, without a thermostat.

Stainless Steel Cabinet Base

Provides enclosed storage space underneath the griddle for kitchen essentials, enhancing organization and efficiency.

Integrated Splashguards

14 gauge stainless steel side and rear splashguards help contain grease and food splatter, maintaining a cleaner cooking area.

Stainless Steel Grease Trough

A 14 gauge stainless steel grease trough simplifies grease collection and cleanup.

6-Inch Plate Shelf

Convenient stainless steel plate shelf along the front provides a staging area for food and plates.

Adjustable Legs

Equipped with 6-inch adjustable stainless steel legs for leveling and customized working height.

Stainless Steel Tubing

All internal gas tubing is constructed from stainless steel for enhanced longevity and reliability.

Type Griddle Range
Style Cabinet Base
Installation Type Floor Model (With Cabinet Base)
Cooking Surface Width 36 Inches
Controls Manual
Griddle Plate Thickness 1 Inch
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
BTU 105,000 BTU
Gas Type Natural Gas (Convertible to Propane)
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 530 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer reserves the right to change materials and specifications without notice.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-36G comes standard for Natural Gas, but it can be converted to Propane. Please specify the gas type when ordering.
No, the JTRH-36G features manual controls for its griddle top sections, allowing for precise adjustment via infinite gas valves without a thermostat. If thermostatic control is desired, refer to the JTRH-36GT model.
Ranges are supplied with a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection. A 3/4 inch gas pressure regulator is supplied loose and must be installed for proper operation. Required operating pressure is 5 inches W.C. for Natural Gas and 10 inches W.C. for Propane, with a maximum of 14 inches W.C.
The griddle plate is made of 1-inch thick polished steel, reinforced for heavy-duty use and excellent heat retention.
Yes, if operating above 2,000 feet, please specify the altitude when ordering to ensure proper calibration.
