Jade Range (Middleby)

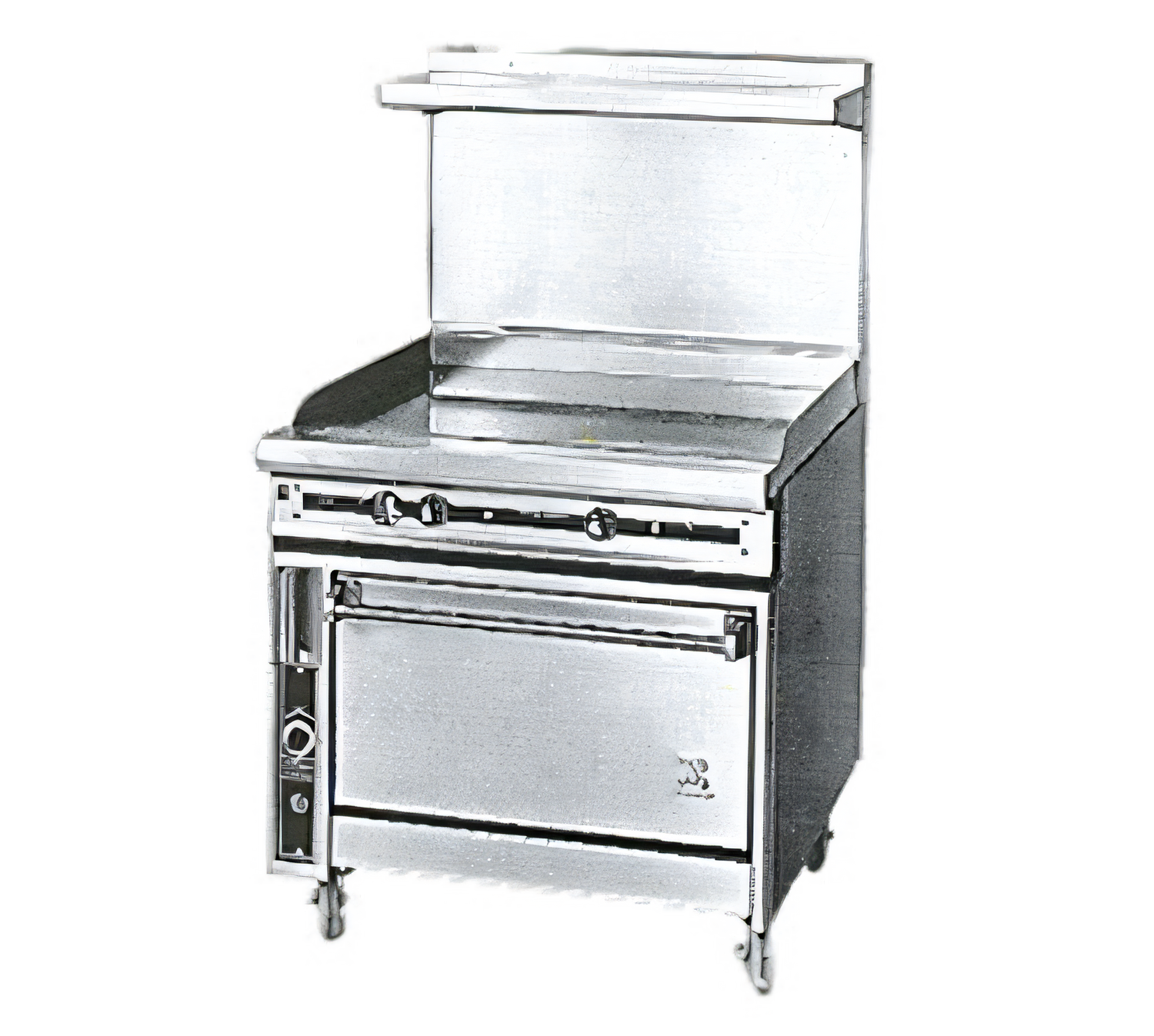

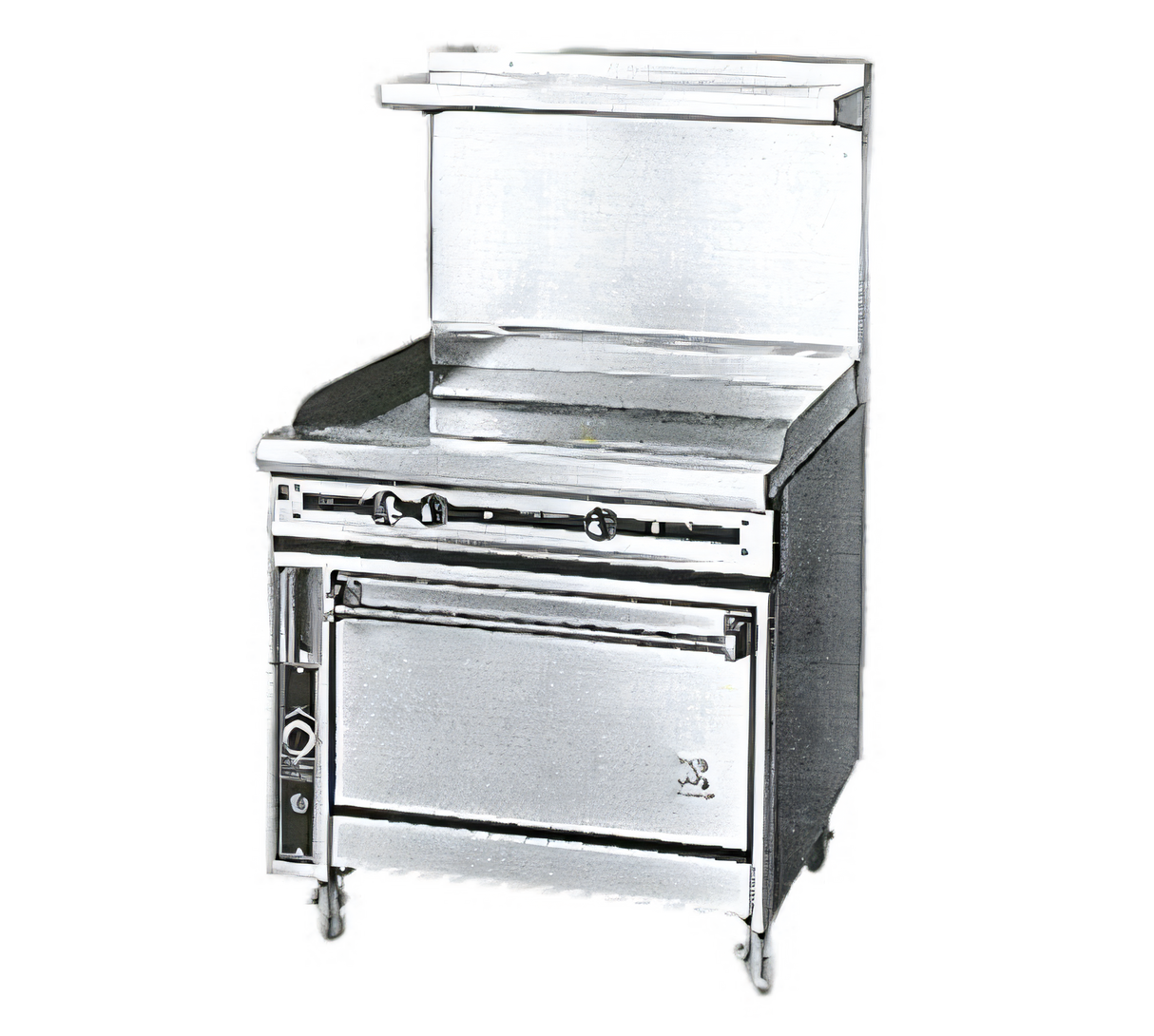

Titan JTRH-36G-36 Heavy Duty 36" Gas Griddle Top Range with Standard Oven

SKU: JTRH-36G-36
$14,650.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Titan JTRH-36G-36 Heavy Duty 36" Gas Griddle Top Range with Standard Oven

Full-Size, Manual Griddle, Standard Oven, Natural Gas or Propane

Engineered for demanding commercial kitchens, the Titan JTRH-36G-36 delivers powerful griddle cooking and a reliable standard oven in a robust, space-efficient design.

  • Features a 36-inch wide griddle with a 1" thick polished steel plate for even heat distribution and durability.
  • Equipped with manual griddle controls, ensuring precise flame adjustment without temperature thermostats.
  • Includes a standard oven base with a 35,000 BTU burner and thermostat control from 150°F to 550°F.
  • Constructed with heavy-duty 14 gauge stainless steel front, sides, stub back, and bottom for lasting performance.
  • Comes with two chrome-plated oven racks and a removable stainless steel oven interior for easy cleaning.
  • Total heating power of 140,000 BTU to handle high-volume cooking tasks.

Heavy-Duty Construction

Built with 14 gauge all-welded stainless steel body, front, sides, stub back, and bottom for maximum durability and longevity in a commercial kitchen environment.

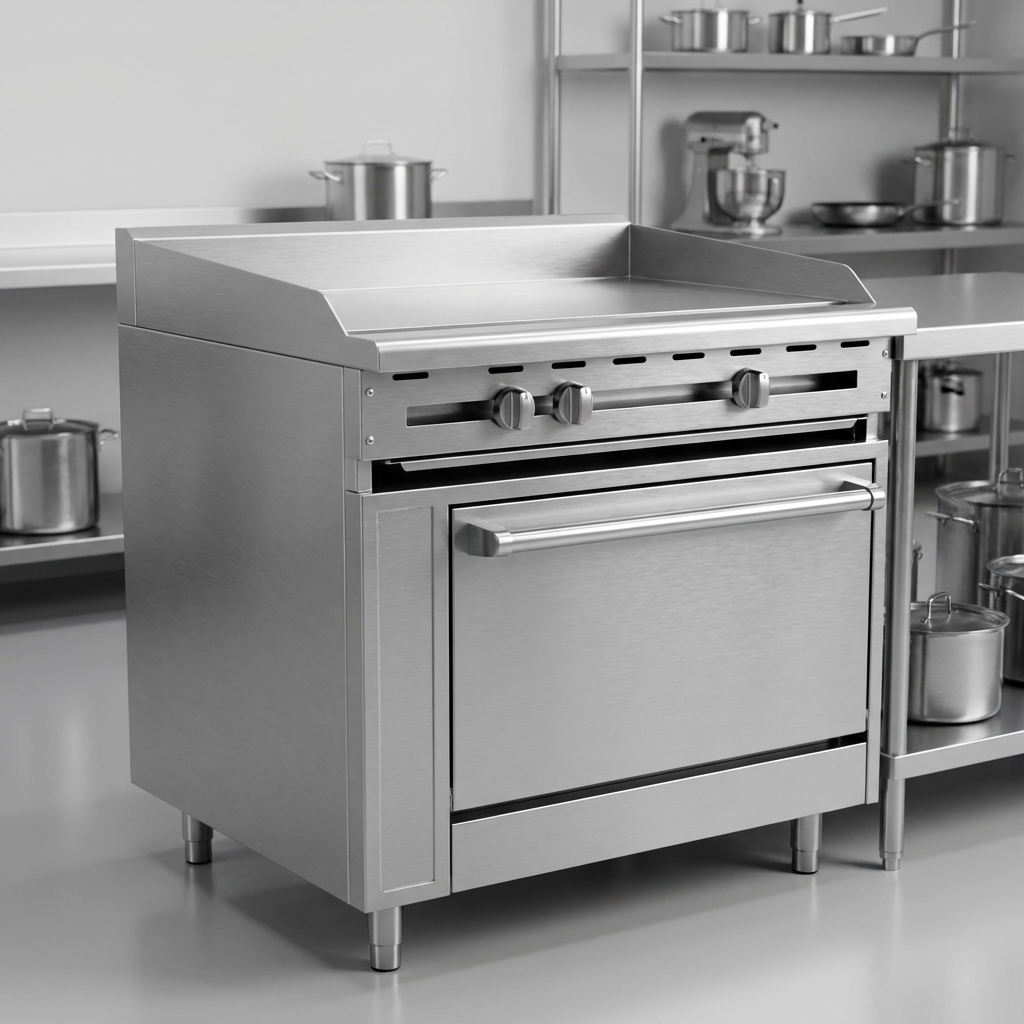

Experience the exceptional durability of this commercial range, built with heavy-duty, all-welded 14-gauge stainless steel for lasting performance.

High Performance Griddle

A 36-inch wide griddle features a 1" thick polished steel plate for superior heat retention and distribution, ideal for high-volume cooking. It includes a 14 gauge stainless steel grease trough and 2-1/2" high splash guards.

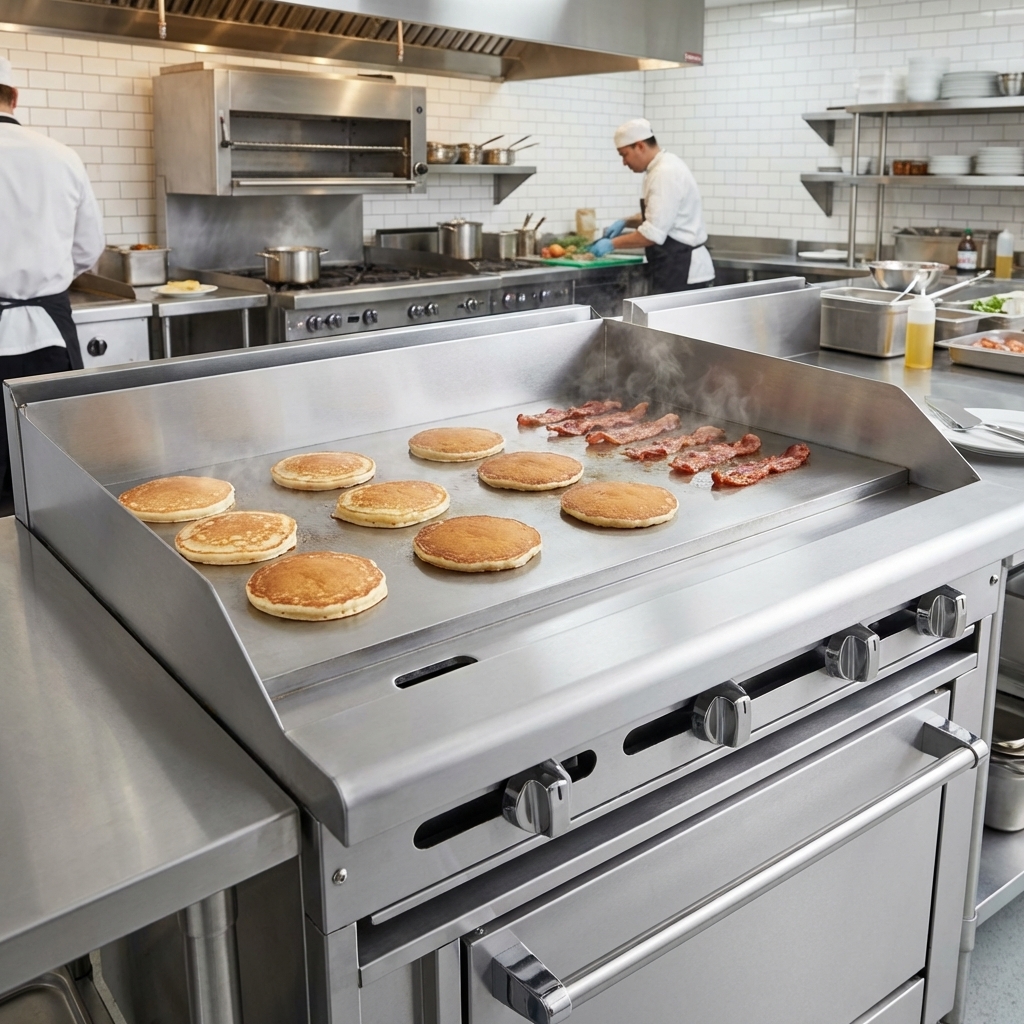

Experience efficient high-volume cooking with the 36-inch griddle's 1" thick polished steel plate and robust splash guards, engineered for superior heat performance.

Manual Griddle Controls

Griddle operation is managed by manual infinite gas valves, providing direct control over heat without a temperature thermostat for versatile cooking.

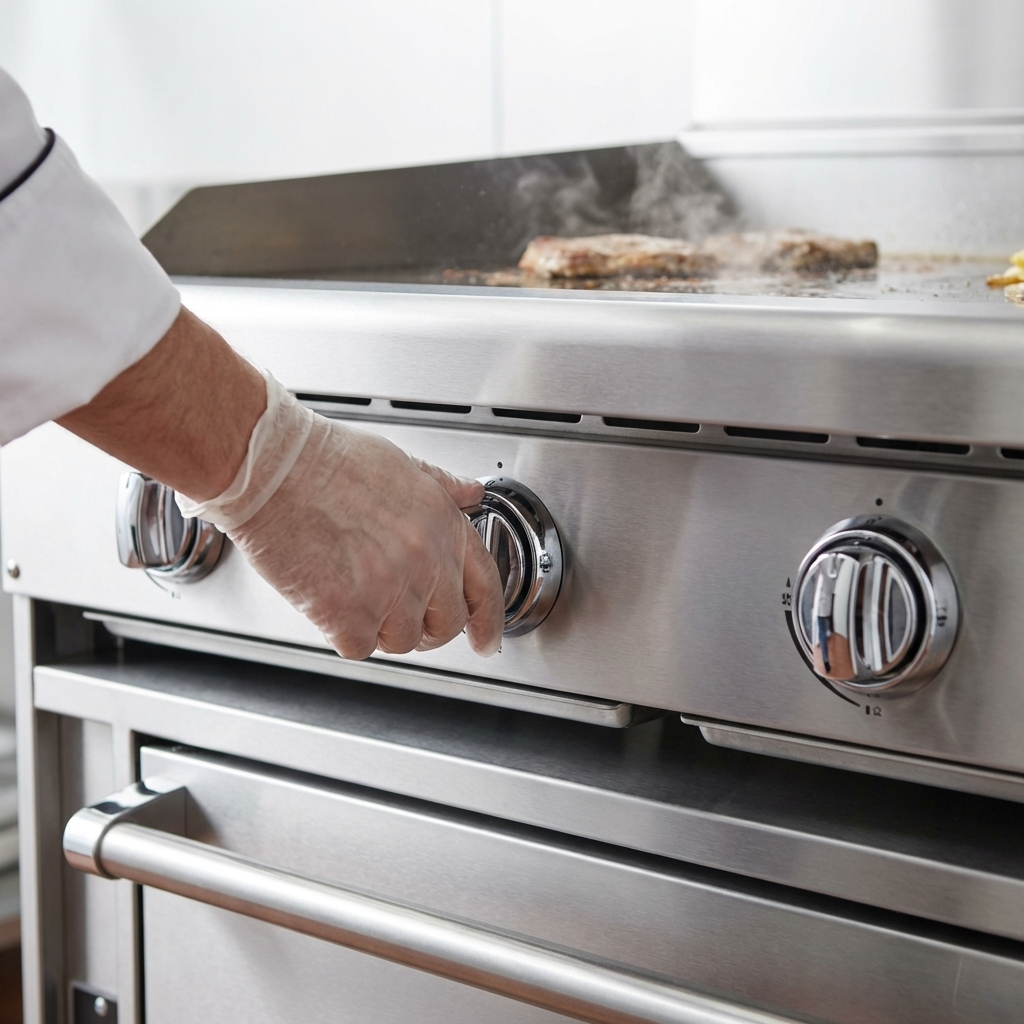

Experience precise, direct heat control for versatile cooking with the robust manual griddle controls on this heavy-duty gas griddle top range.

Standard Oven Base

The oven base is a conventional design with a 35,000 BTU burner, capable of temperatures from 150°F to 550°F, controlled by a reliable thermostat.

Easy-Clean Oven Interior

The oven features a stainless steel lining, with sides and bottom that are removable without tools, simplifying the cleaning process. Two chrome-plated oven racks are included.

Stainless Steel Gas Tubing

All internal gas tubing is constructed from stainless steel for enhanced durability and corrosion resistance.

Adjustable Legs

The range is supported by 6-inch stainless steel adjustable legs, allowing for proper leveling and cleaning underneath the unit.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf is included, providing convenient space for plates or utensils during service.

Specifications

Type Range
Style Griddle Top Range
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 140,000 BTU
Griddle Width 36 Inches
Griddle Plate Thickness 1 Inch
Griddle Controls Manual
Oven Type Standard
Oven BTU 35,000 BTU
Temperature Range 150°F to 550°F (Oven)
Pan Capacity Accommodates multiple full-size pans (Oven)
Compartments 1 (Oven)
Oven Racks 2
Interior Finish Stainless Steel (Oven)
Exterior Finish Stainless Steel
Gas Connection Size 1-1/4" Front Manifold, 1" or 3/4" Rear Manifold
Gas Inlet Pressure Natural Gas 5" W.C. (min), Propane Gas 10" W.C. (min), 14" W.C. (max)
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 790 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

790.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 36.0in
Depth 38.0in
Shipping Weight 790.0lbs
Base (1) standard oven
Top (1) griddle
Plate Thickness 1.000" = 1"
Exterior Finish all stainless steel exterior
Specifications Titan™ Heavy Duty Range, gas, 36" griddle, 1" thick polished steel plate, manual controls (NO TEMPERATURE THERMOSTAT), standard oven, (2) chrome plated racks, stainless steel oven liner, grease trough, splashguards, 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 140,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty is included.

Frequently Asked Questions

The JTRH-36G-36 features a 1" thick, highly polished steel griddle plate for excellent heat retention and even cooking.
No, the griddle on the JTRH-36G-36 uses manual controls (infinite gas valves) and does not have a temperature thermostat, allowing for direct flame adjustment.
The standard oven has a thermostat that can be adjusted from 150°F to 550°F.
The oven interior measures 28-1/4" W x 14" H x 27-3/4" D.
Yes, the range is supplied with a 3/4" gas pressure regulator, which must be installed for proper operation. Larger regulators are available as accessories if needed.
