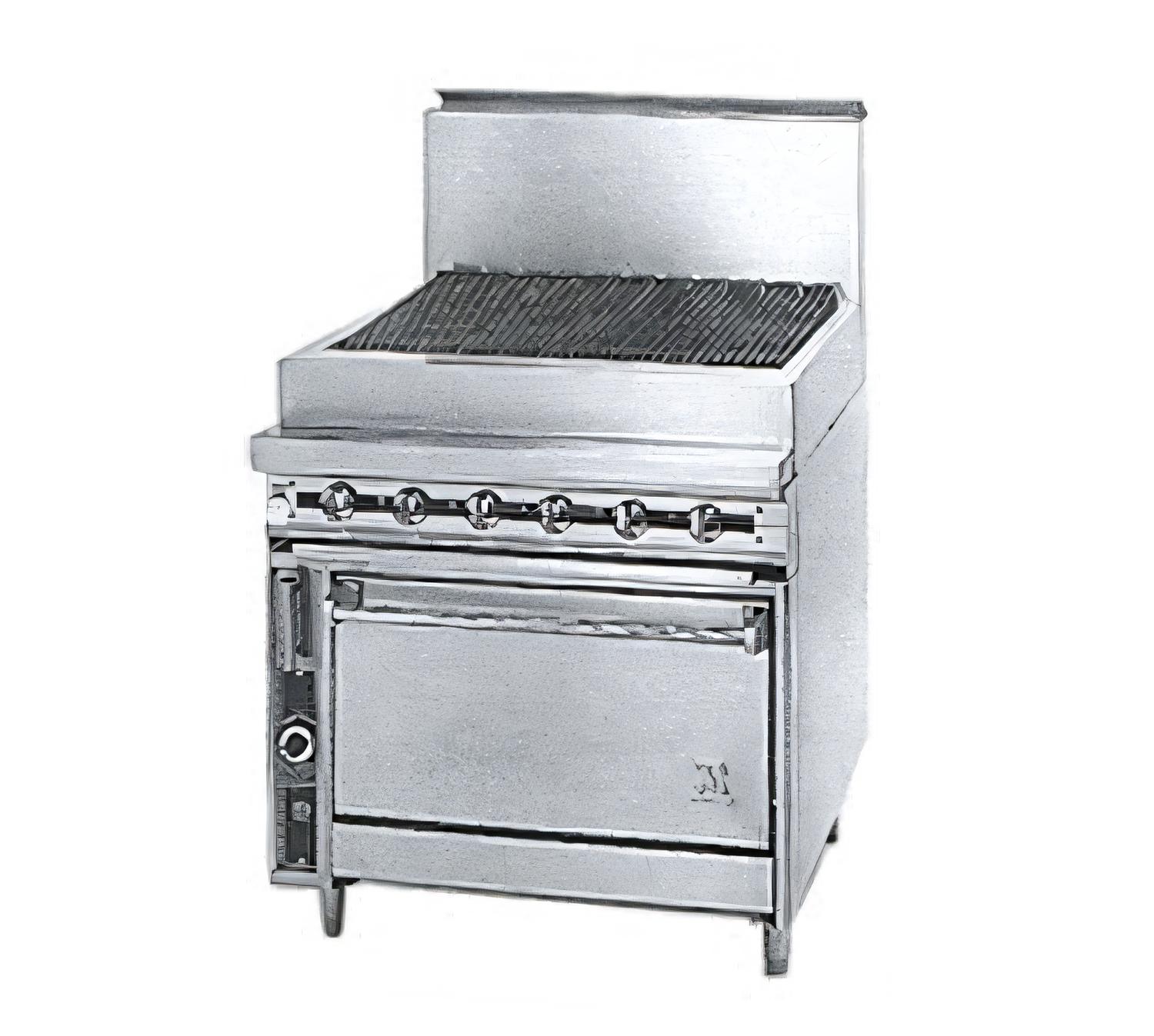

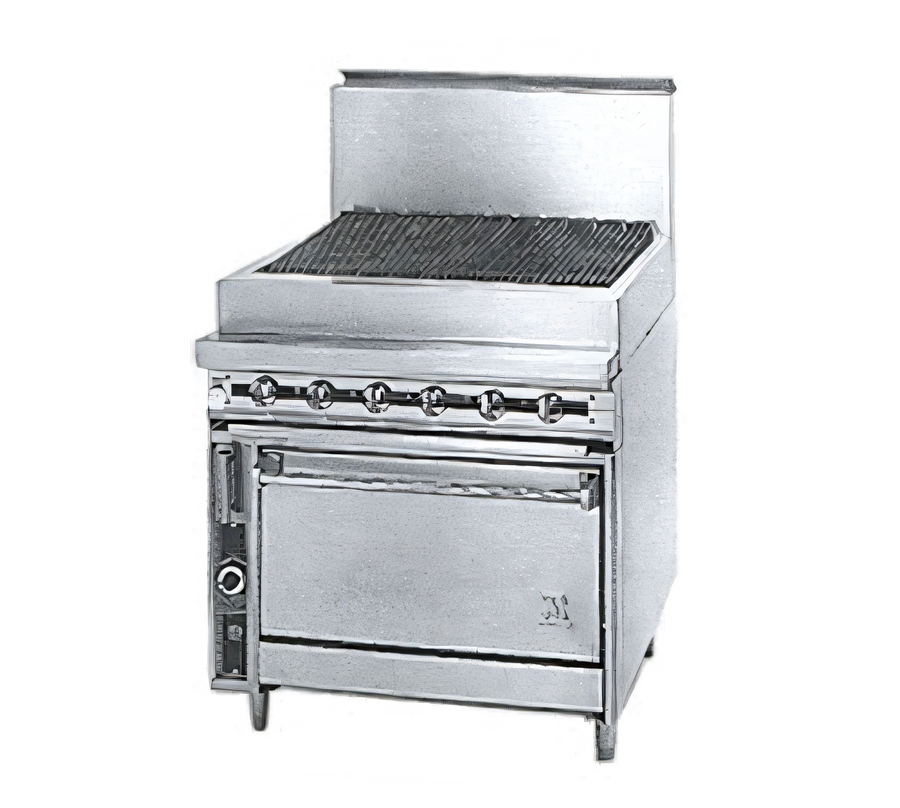

Jade Range Titan JTRH-36B 36-Inch Heavy Duty Gas Charbroiler Range with Cabinet Base
Jade Range Titan JTRH-36B 36-Inch Heavy Duty Gas Charbroiler Range with Cabinet Base
Full-Size, Natural Gas or Propane, Standard Depth
Engineered for robust performance and precise cooking control, the Titan JTRH-36B charbroiler offers heavy-duty construction and consistent heat distribution for perfectly grilled results.
- 36-inch wide heavy-duty charbroiler with a stainless steel cabinet base for robust commercial use.
- Features six individually controlled 15,000 BTU/hr burners for precise, zone-specific temperature management.
- Durable 14 gauge all-welded stainless steel construction ensures longevity, corrosion resistance, and easy cleaning.
- Equipped with heavy-duty cast iron burner radiants and top grates for even heat distribution and distinctive grill marks.
- Includes two separate 14 gauge steel drip pans to effectively collect grease, control flare-ups, and simplify cleanup.
- Designed with a convenient 6-inch stainless steel plate shelf for efficient plating and holding of finished dishes.
- Adjustable 6-inch stainless steel legs allow for leveling on uneven floors and facilitate under-unit cleaning.

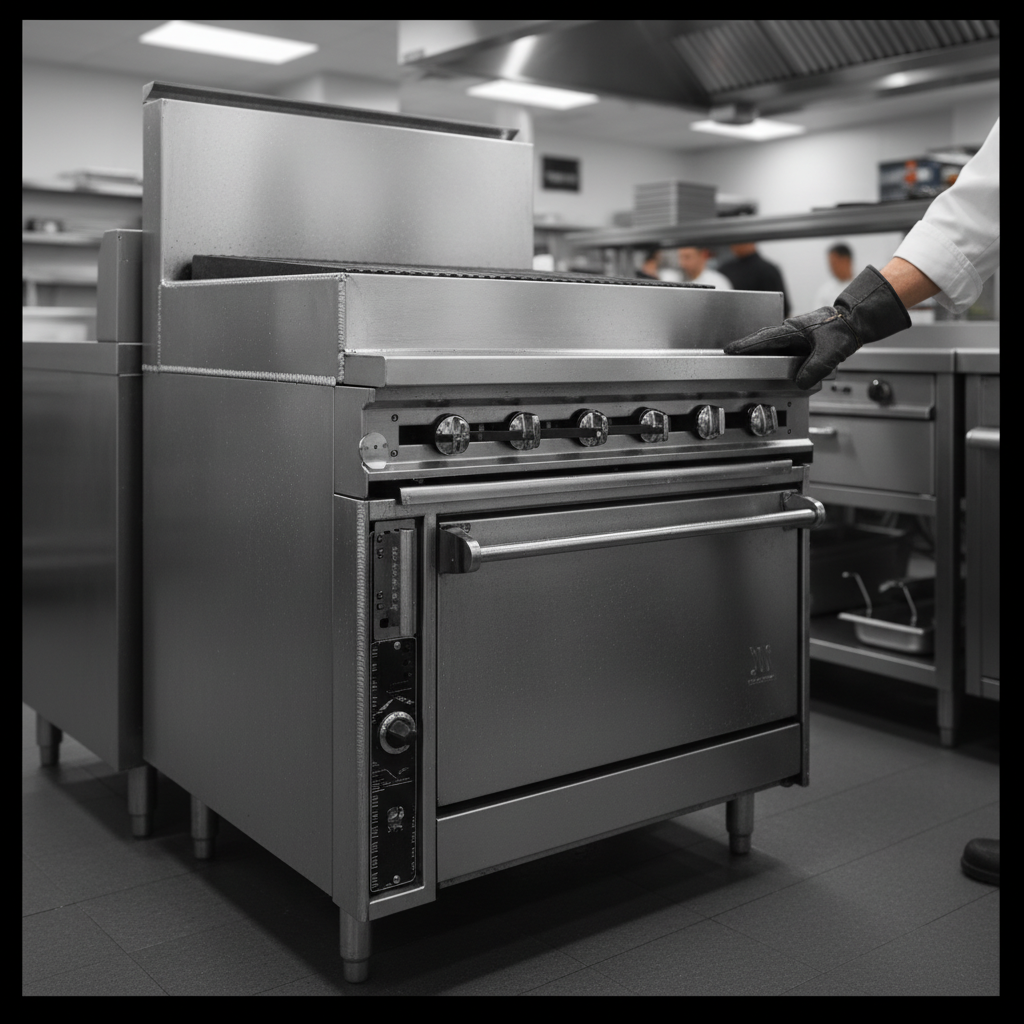

Heavy Duty Construction
Built with 14 gauge all-welded body construction and a 12 gauge all-welded firebox for exceptional durability and strength in demanding commercial kitchens.

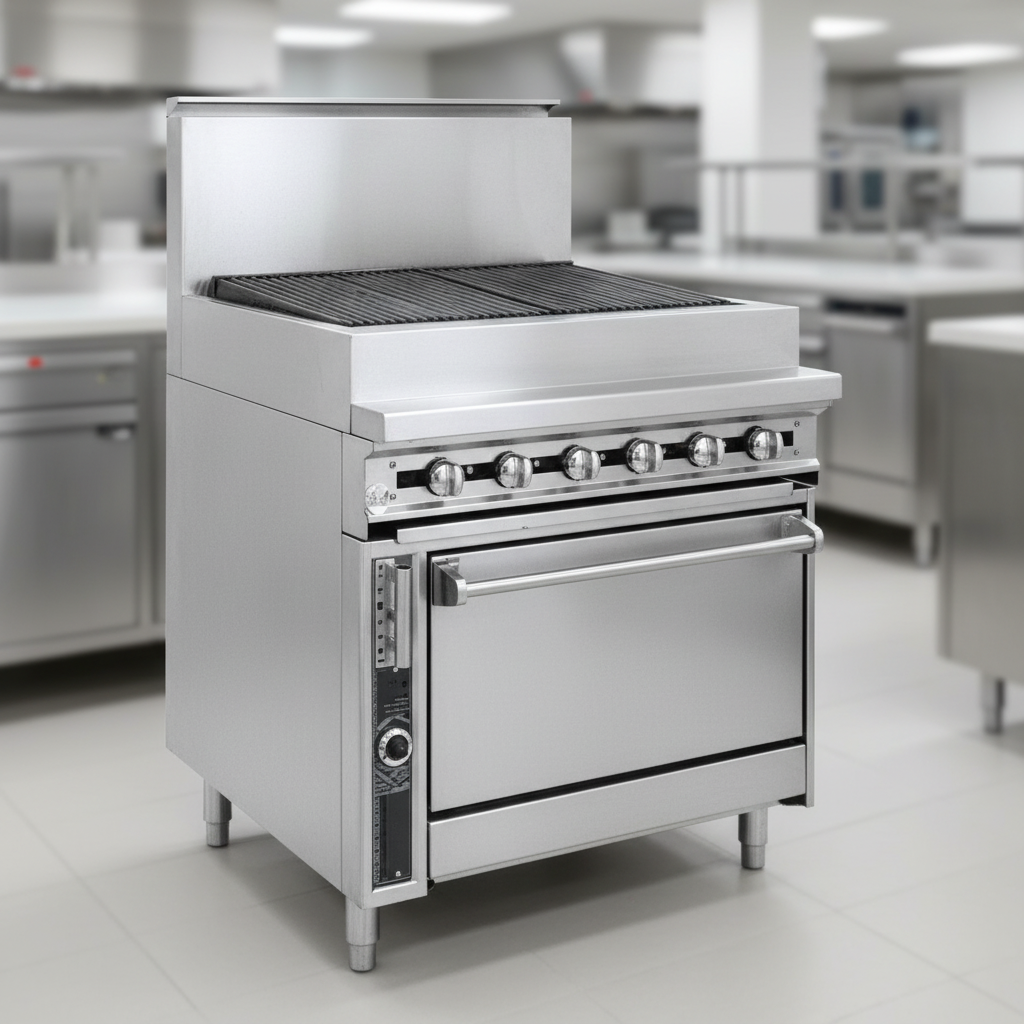

All Stainless Steel Exterior
Features a stainless steel front, top, sides, stub back, and tray bed, ensuring superior corrosion resistance, easy maintenance, and a professional appearance.

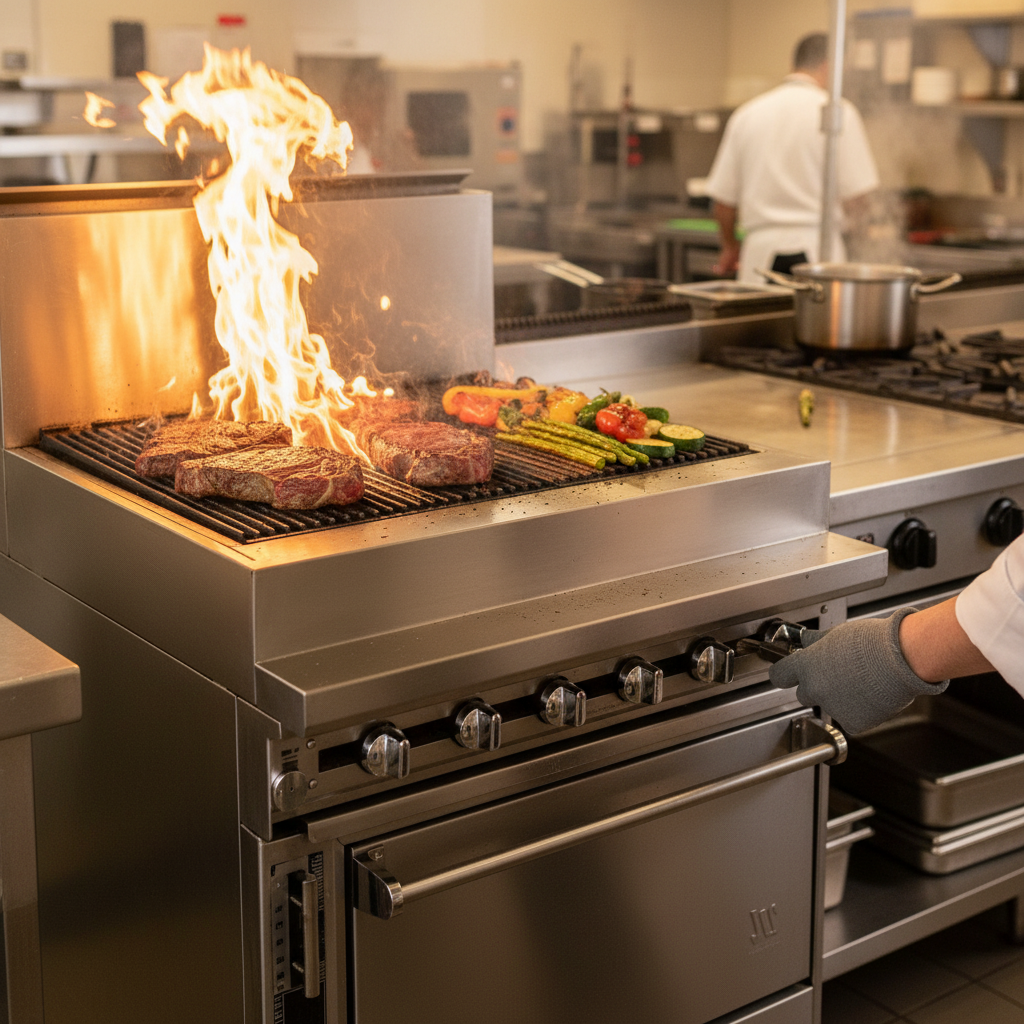

Precision Temperature Control
Equipped with one 15,000 BTU/hr burner for every 6 inches of broiler, each controlled by an infinite manual gas valve, allowing for precise heat management across multiple cooking zones.
Optimized Grilling Surface
Includes heavy-duty cast iron burner radiants and top grates that provide excellent heat retention, even distribution, and professional sear marks.
Efficient Grease Management
Two separate 14 gauge steel drip pans are provided to effectively collect grease and debris, helping to control flare-ups and making the cleaning process simpler.
Integrated Plate Shelf
A stainless steel 6-inch plate shelf offers a sturdy and convenient surface for plating prepared dishes or temporarily holding items.
Cabinet Base Storage
Features a stainless steel cabinet interior and exterior, providing valuable enclosed storage space for kitchen essentials directly beneath the charbroiler.
Adjustable Legs
Fitted with stainless steel adjustable 6-inch legs, allowing the unit to be leveled on uneven flooring and providing clearance for easy cleaning underneath.
Flexible Gas Connection
Comes with a variable size multi-point gas connection, including a 1-1/4 inch front manifold connection and options for 1 inch or 3/4 inch rear manifold connections, to suit various installations.
Gas Pressure Regulator Included
A 3/4 inch gas pressure regulator is shipped loose and must be installed for proper and safe operation of the unit.
Specifications
| Type | Charbroiler |
|---|---|
| Style | Range Match |
| Installation Type | Floor Model (With Cabinet Base) |
| Cooking Surface Width | 36 Inches |
| BTU | 90,000 BTU/hr |
| Gas Type | Natural Gas or Propane |
| Gas Connection Size | 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold) |
| Gas Inlet Pressure (Natural Gas) | 5 Inches W.C. Minimum |
| Gas Inlet Pressure (Propane Gas) | 10 Inches W.C. Minimum, 14 Inches W.C. Maximum |
| Controls | Infinite Manual |
| Compartments | 1 |
| Material | Stainless Steel |
| Interior Finish | Stainless Steel |
| Finish | Stainless Steel |
| Color | Silver |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 36 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 475 lb. |
| Country of Origin | USA |
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:
475.0 lbCertifications & Compliance
