Jade Range (Middleby)

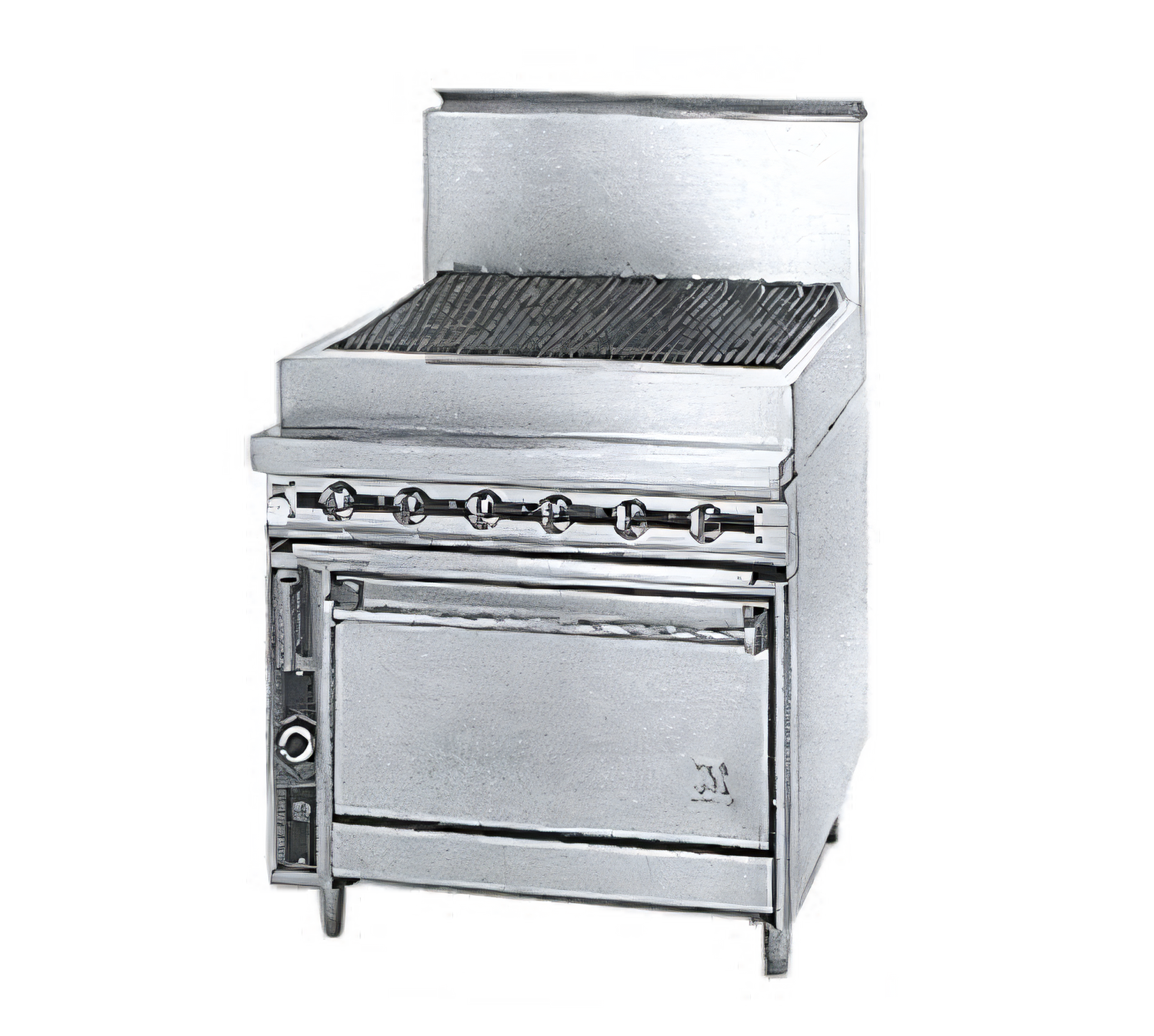

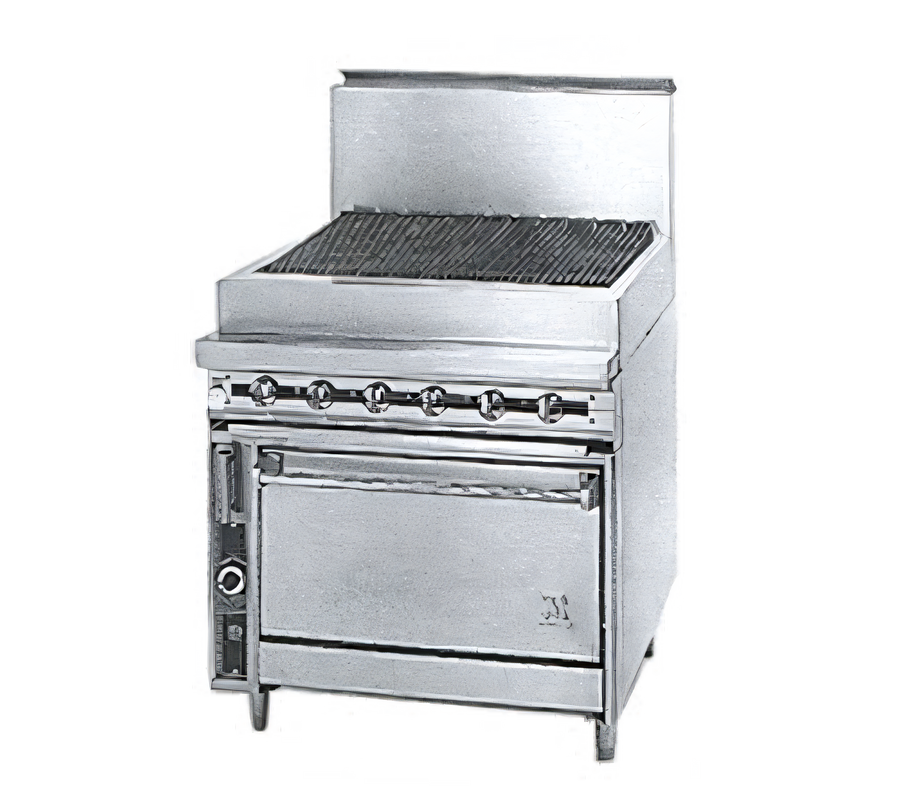

Titan 30" Heavy Duty Gas Range Match Charbroiler with Cabinet Base

SKU: JTRH-30B
$12,165.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan 30" Heavy Duty Gas Range Match Charbroiler with Cabinet Base

Full-Size, Natural Gas or Propane, Standard Depth

Designed for demanding commercial kitchens, the Titan JTRH-30B offers powerful charbroiling performance and robust stainless steel construction.

  • Equipped with 75,000 BTU for high-volume charbroiling operations.
  • Heavy-duty cast iron radiants and grates ensure consistent heat distribution and durability.
  • Features infinite manual controls for precise temperature management across each 6" broiler section.
  • All-welded 14 gauge stainless steel body and cabinet base provide exceptional strength and longevity.
  • Includes a stainless steel 6" plate shelf and two separate drip pans for convenience and easy cleaning.

Overall Dimensions:

30.0"W x 38.0"D x 36.5"H

Product Weight:

420.0 lb

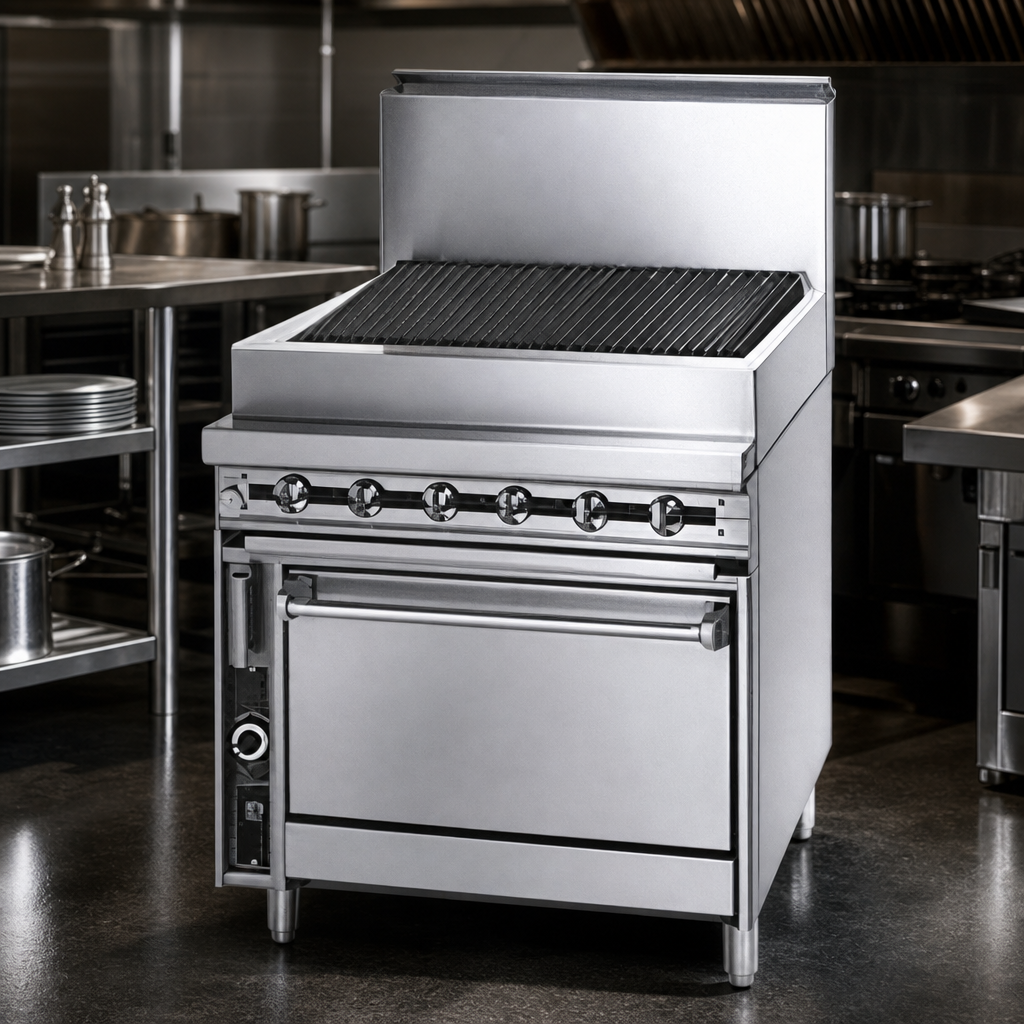

Heavy Duty Construction

14 gauge all welded body construction with a 12 gauge all welded firebox ensures long-lasting durability in a demanding kitchen environment.

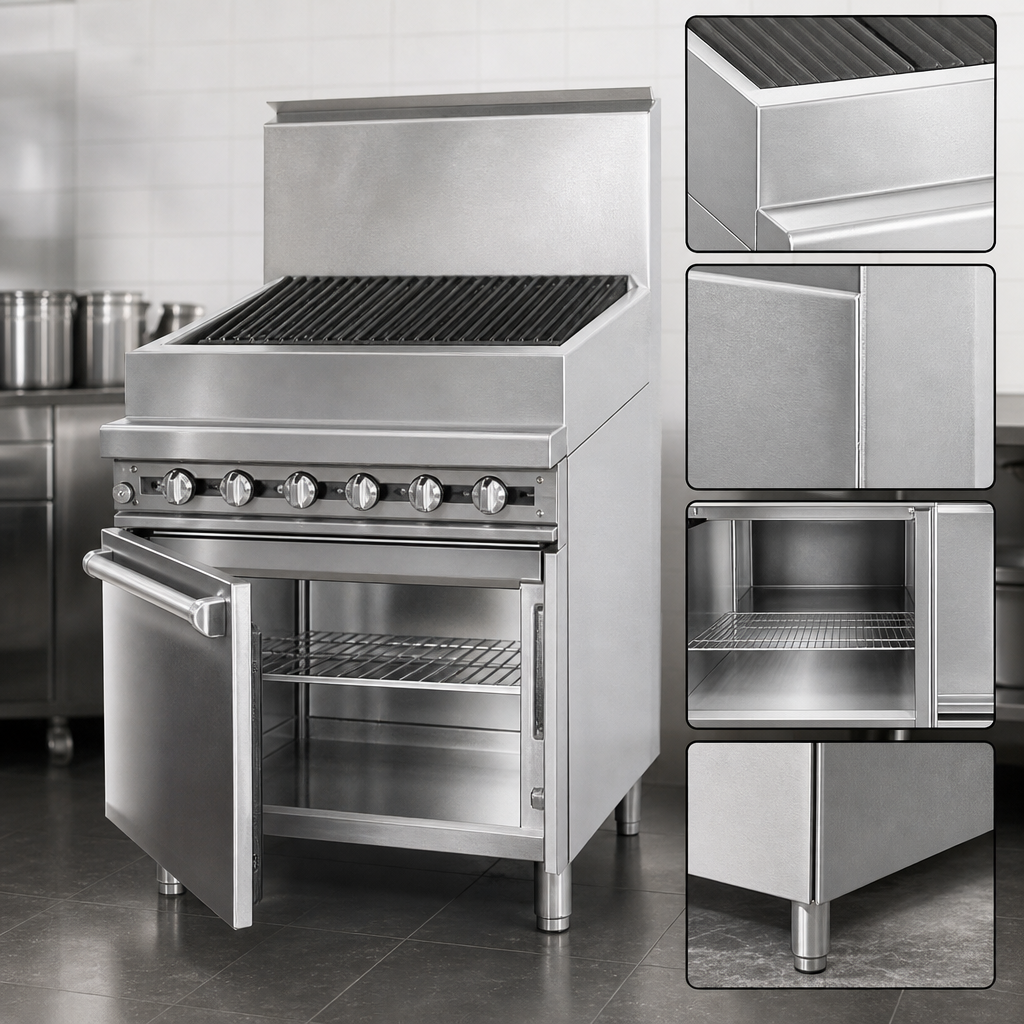

Stainless Steel Exterior and Interior

Features a stainless steel front, top, sides, stub back, and cabinet interior/exterior for enhanced durability, hygiene, and easy cleaning.

High Performance Burners

One 15,000 BTU/hr. burner every 6" of broiler provides intense, even heat across the cooking surface for a total of 5 burners for the 30" model.

Precision Temperature Control

Infinite control manual gas valves at each burner allow for precise heat adjustment and zoned cooking.

Cast Iron Radiants and Grates

Heavy duty cast iron burner radiants and top grates are built to withstand rigorous use and retain heat effectively.

Integrated Drip Pans

Two separate 14 gauge steel drip pans are included to manage flare-ups and simplify cleaning.

Convenient Plate Shelf

A stainless steel 6" plate shelf provides a handy staging area for plates and ingredients.

Adjustable Legs

Equipped with stainless steel adjustable 6" legs to ensure stable and level installation.

Flexible Gas Connection

Supplied with a 1-1/4" front manifold connection and options for a 1" or 3/4" capped rear manifold connection to suit various installations. Includes a 3/4" gas pressure regulator.

Type Charbroiler
Style Range Match
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 75,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4" NPT
Gas Inlet Pressure Natural Gas: 5 Inches W.C. Minimum; Propane: 10 Inches W.C. Minimum
Controls Infinite Manual
Compartments 5
Material Stainless Steel
Interior Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 30 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 420 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-30B is designed for use with either Natural Gas or Propane. Please specify your gas type when ordering.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is needed. The maximum operating pressure for both is 14 inches W.C.
Yes, a 3/4" gas pressure regulator is supplied loose with the unit and must be installed for proper operation.
The 30-inch JTRH-30B charbroiler features one 15,000 BTU/hr. burner for every 6 inches of broiler width, totaling 5 individually controlled burners.
Yes, it features a stainless steel exterior, interior cabinet, and tray bed for easy wiping. Additionally, two separate 14 gauge steel drip pans are included to collect grease and simplify cleaning.
