Jade Range (Middleby)

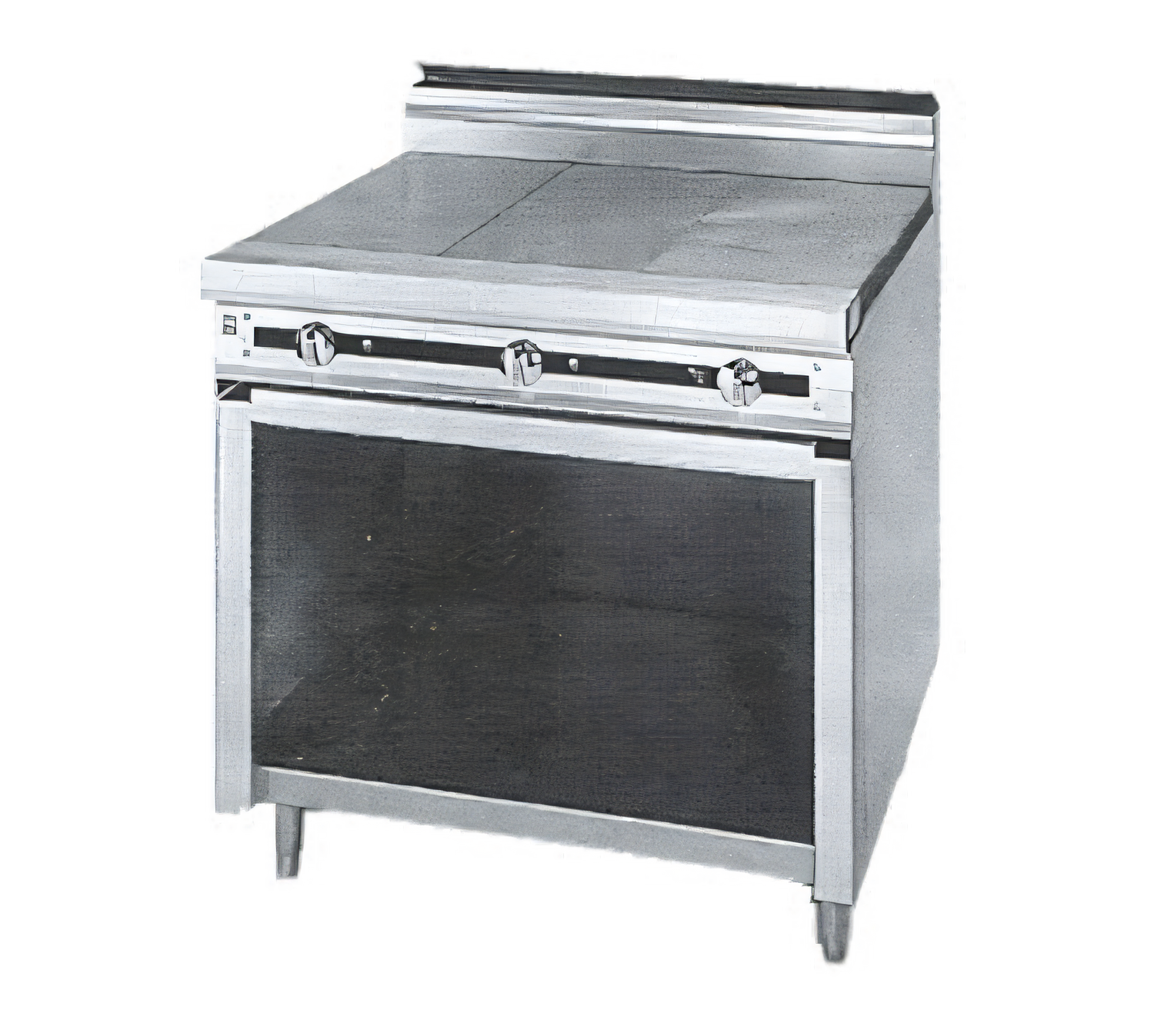

Titan JTRH-2HT Heavy Duty 36-Inch Gas Hot Top Range with Cabinet Base

SKU: JTRH-2HT
$14,846.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Titan JTRH-2HT Heavy Duty 36-Inch Gas Hot Top Range with Cabinet Base

36-Inch Width, Two 18-Inch Hot Top Sections, 70,000 BTU, Natural Gas or Propane

Designed for demanding commercial kitchens, the Titan JTRH-2HT heavy-duty hot top range delivers consistent high-performance heating for a wide array of cooking applications.

  • Equipped with two 18-inch hot top sections, each powered by a 35,000 BTU/hr burner for a total of 70,000 BTU/hr.
  • Features highly polished, reinforced cast iron plates for superior heat retention and even distribution.
  • Robust 14-gauge all-welded body construction ensures exceptional durability in rigorous commercial settings.
  • Full stainless steel construction including front, sides, stub back, bottom, and cabinet interior for easy cleaning and longevity.
  • Infinite gas controls provide precise temperature management for each hot top section.
  • Includes a stainless steel 6-inch plate shelf and adjustable 6-inch legs for convenient operation and leveling.
  • Cabinet base offers practical storage space beneath the cooking surface.

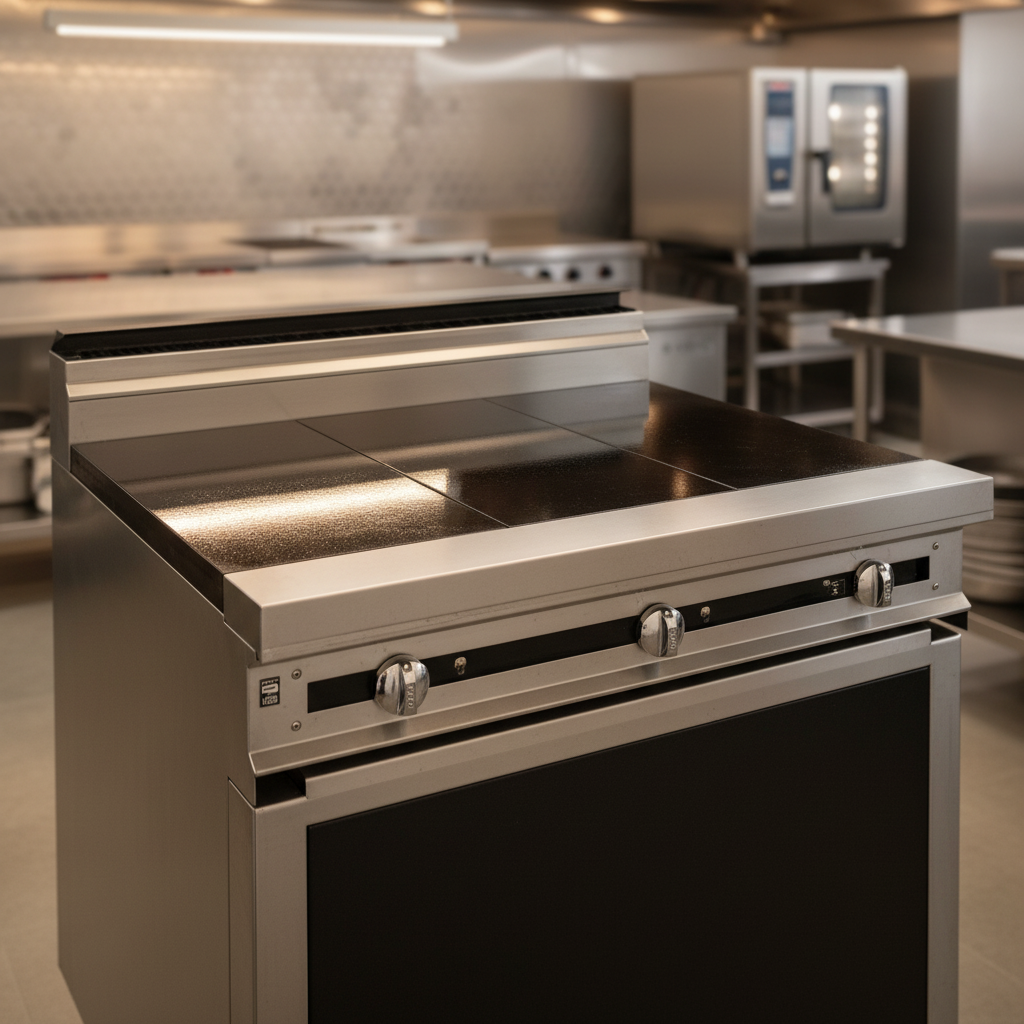

Highly Polished Reinforced Cast Iron Hot Tops

Each 18-inch hot top section features highly polished and reinforced cast iron plates, providing excellent heat transfer and retention for consistent cooking.

Experience superior heat transfer and retention with the gleaming, highly polished reinforced cast iron hot tops of this heavy-duty range.

Powerful Burners

Each hot top section is equipped with a 35,000 BTU/hr burner, totaling 70,000 BTU/hr for the entire unit, ensuring rapid heat-up and powerful performance.

Experience rapid heat-up and powerful performance with the Titan hot top range's robust, high-BTU burners.

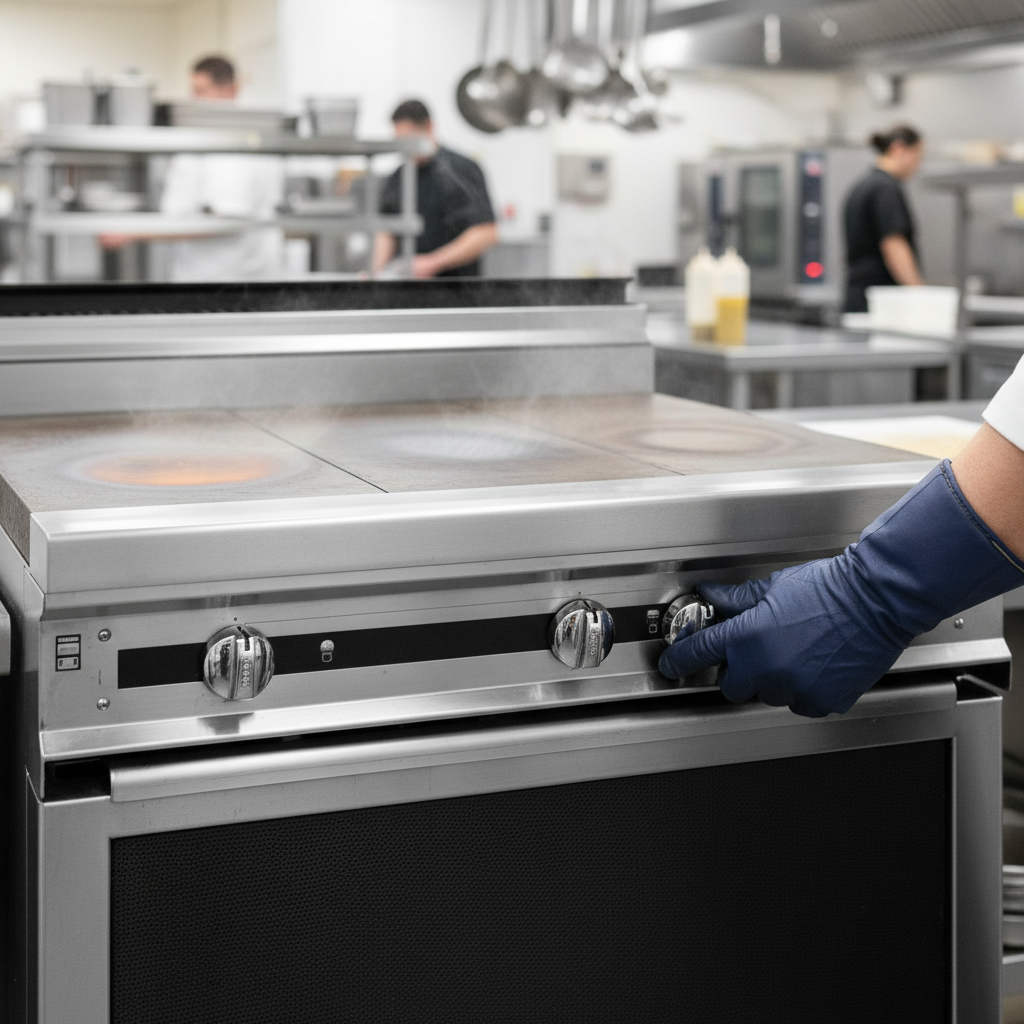

Infinite Gas Controls

Individual infinite gas valves for each burner allow precise and independent control over the heat intensity of each hot top section.

Achieve precise cooking control with individual infinite gas valves for each section of this heavy-duty hot top range.

Durable Welded Body Construction

Constructed with a heavy-duty 14-gauge all-welded body, designed for the rigors of a commercial kitchen environment.

Stainless Steel Construction

Features a full stainless steel exterior (front, sides, stub back, bottom) and interior cabinet, ensuring durability, corrosion resistance, and ease of cleaning.

Stainless Steel Gas Tubing

All internal gas tubing is made from stainless steel for enhanced longevity and safety.

Integrated Plate Shelf

Comes standard with a 6-inch stainless steel plate shelf, providing convenient staging space for dishes or ingredients.

Adjustable Legs

Equipped with 6-inch adjustable stainless steel legs for leveling the unit on uneven surfaces.

Cabinet Base Storage

The cabinet base provides enclosed storage space for pots, pans, or other kitchen essentials, keeping your workspace organized.

Gas Pressure Regulator Included

Supplied with a 3/4-inch gas pressure regulator (shipped loose, requires installation) to ensure proper and safe operation.

Specifications

Type Hot Top Range
Style Cabinet Base
Installation Type Floor Model (With Adjustable Legs)
Number of Hot Tops 2
Hot Top Size 18 Inches (each)
BTU 70,000 BTU
BTU Per Burner 35,000 BTU
Controls Infinite Gas Valves
Material Stainless Steel
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Body Construction 14 Gauge All-Welded
Gas Connection Size 1-1/4 Inch (Front Manifold), 1 Inch or 3/4 Inch (Rear Manifold)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (minimum)
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. (minimum)
Minimum Operating Pressure 14 Inches W.C. (maximum)
Shelf 6 Inch Stainless Steel Plate Shelf
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 460 lb.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

460.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 36.0in
Depth 38.0in
Shipping Weight 460.0lbs
Exterior Finish all stainless steel exterior
Top (2) hot tops
Base cabinet(s)
Specifications Titanâ„¢ Heavy Duty Range, gas, 36", (2) 18" 35,000 BTU hot tops, infinite controls, cabinet base, stainless steel 6" plate shelf, front, sides, stub back & bottom, 6" adjustable legs, 70,000 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

The Jade Titan JTRH-2HT range can operate on either Natural Gas or Propane, but the specific gas type must be specified when ordering. It is supplied with a 3/4-inch gas pressure regulator.
The hot top sections are made from highly polished reinforced cast iron plates, designed for superior heat transfer and durability.
Yes, a 3/4-inch gas pressure regulator is supplied with the range (shipped loose and must be installed for proper operation). Optional 1-1/4 inch or 1 inch regulators are available as accessories.
For Natural Gas, the minimum operating pressure is 5 inches W.C. For Propane Gas, the minimum operating pressure is 10 inches W.C. The maximum operating pressure for both is 14 inches W.C.
The range features a heavy-duty 14-gauge all-welded body construction with a stainless steel front, sides, stub back, bottom, and cabinet interior.
