Jade Range (Middleby)

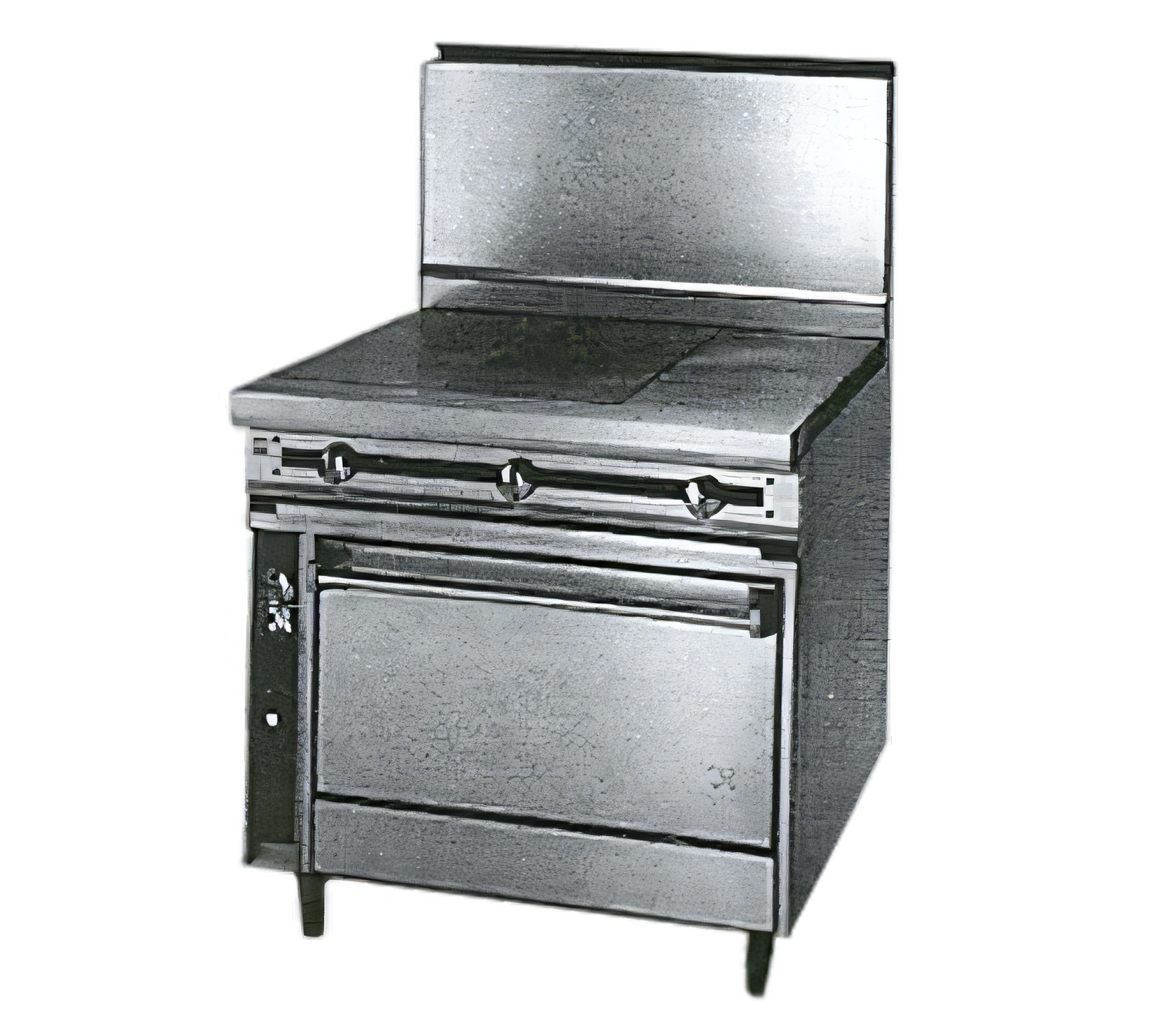

Titan JTRH-2HT-A 24 Inch Heavy Duty Gas Range with Two Hot Tops and Cabinet Base

SKU: JTRH-2HT-A
$9,260.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Titan JTRH-2HT-A 24 Inch Heavy Duty Gas Range with Two Hot Tops and Cabinet Base

Two 12-inch 35,000 BTU Hot Top Sections, Stainless Steel, Standard Depth

Experience robust and precise cooking with the Titan JTRH-2HT-A heavy-duty gas range, featuring two powerful cast iron hot top sections built for demanding commercial kitchens.

  • Equipped with two highly polished reinforced cast iron hot top sections for even and intense heat.
  • Each hot top section is powered by a dedicated 35,000 BTU/hr burner with infinite controls for precise temperature management.
  • Constructed with 14 gauge all-welded body and stainless steel exterior, interior, and gas tubing for ultimate durability and easy cleaning.
  • Features a convenient 6-inch stainless steel plate shelf and 6-inch adjustable stainless steel legs.
  • Designed for heavy-duty commercial use, ensuring long-lasting performance in any professional kitchen.
  • Cabinet base provides useful storage space directly beneath the cooking surface.

Overall Dimensions:

24.0"W x 38.0"D x 36.5"H

Product Weight:

280.0 lb

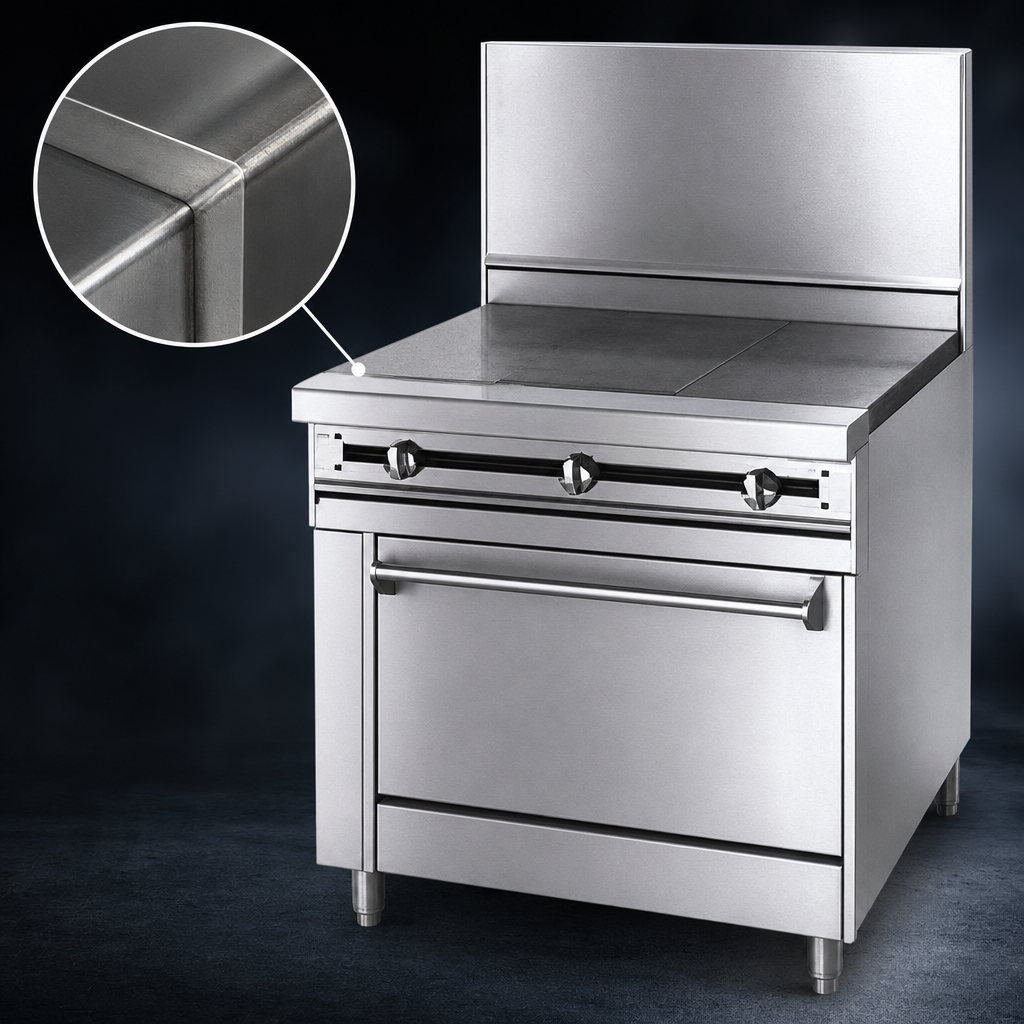

Heavy-Duty Construction

Features 14 gauge all welded body construction with stainless steel front, sides, stub back, and bottom for exceptional durability.

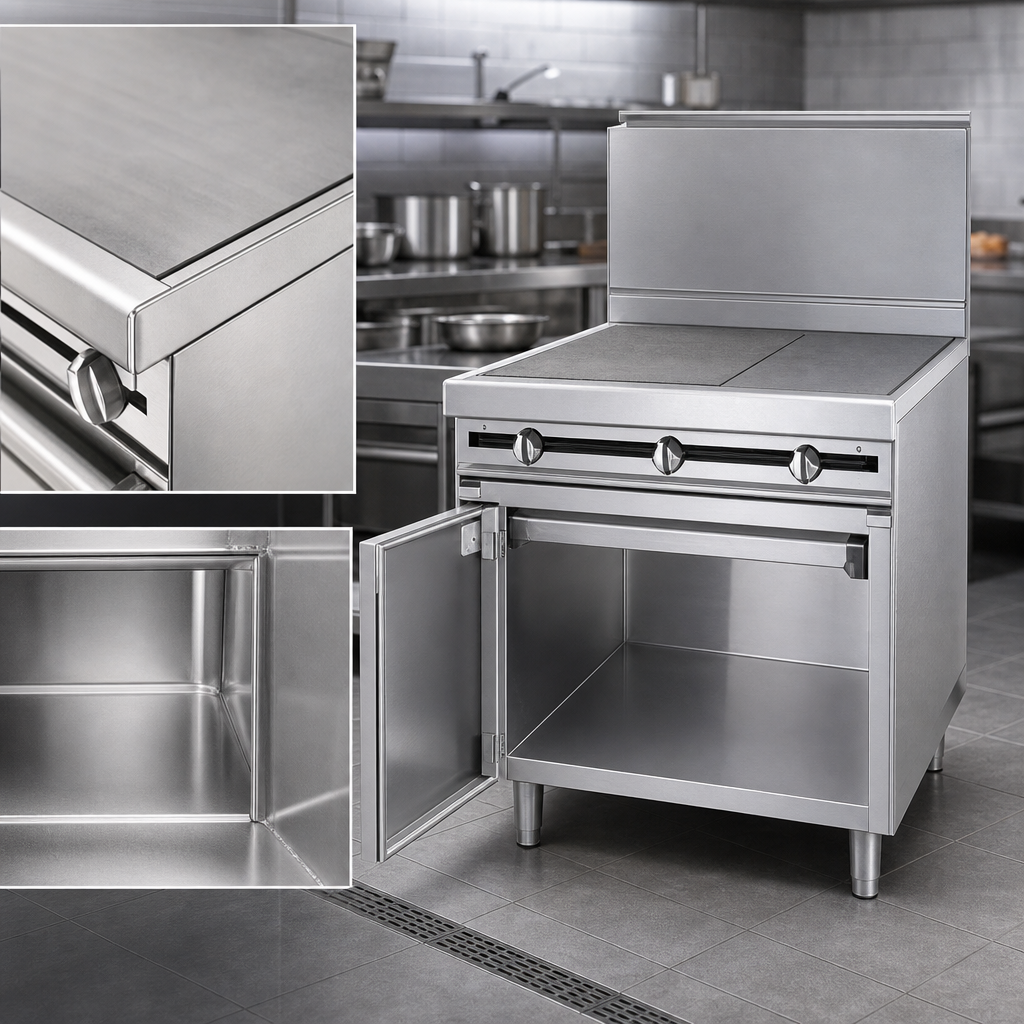

Stainless Steel Interior & Exterior

Cabinet interior and exterior are fully constructed from stainless steel, ensuring longevity and ease of cleaning.

Reinforced Cast Iron Hot Tops

Equipped with highly polished reinforced cast iron plates that provide excellent heat retention and distribution.

High-Efficiency Burners

Each hot top section includes one 35,000 BTU/hr burner, totaling 70,000 BTU for the unit, allowing for powerful and consistent heating.

Infinite Controls

Individual hot top sections are controlled by infinite gas valves, offering precise temperature adjustments for various cooking needs.

Stainless Steel Components

All internal gas tubing is made of stainless steel for corrosion resistance and reliability.

Integrated Plate Shelf

Includes a 6-inch stainless steel plate shelf for convenient plating and holding.

Adjustable Legs

Supported by 6-inch adjustable stainless steel legs to achieve optimal working height and stability.

Standard Gas Regulator

Ships with a 3/4 inch gas pressure regulator (must be installed for proper operation).

Stainless Steel Pilots

Equipped with one stainless steel pilot per burner for reliable ignition.

Type Hot Top Range
Style Heavy Duty
Installation Type Floor Model (With Cabinet Base)
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Hot Top Material Reinforced Cast Iron
Compartments 2
BTU Per Section 35,000 BTU
BTU 70,000 BTU
Controls Infinite
Gas Type Natural Gas (Convertible to Propane)
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum
Shipping Width 24 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 280 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Frequently Asked Questions

The JTRH-2HT-A range is shipped ready for Natural Gas, but it can be converted to Propane. You must specify the gas type when ordering.
For Natural Gas, a minimum of 5 Inches W.C. is required. For Propane Gas, a minimum of 10 Inches W.C. is required. The maximum operating pressure is 14 Inches W.C. for both.
Yes, a 3/4 Inch gas pressure regulator is supplied with the range and must be installed for proper operation.
The hot top sections are made of highly polished reinforced cast iron plates.
Yes, the cabinet base features a stainless steel interior and exterior for durability and easy cleaning.
Yes, but you must specify your altitude when ordering if it is above 2,000 feet for proper configuration.
