Jade Range (Middleby)

Titan JTRH-2HT-36 36 Inch Gas Heavy Duty Hot Top Range with Standard Oven

SKU: JTRH-2HT-36
$15,308.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

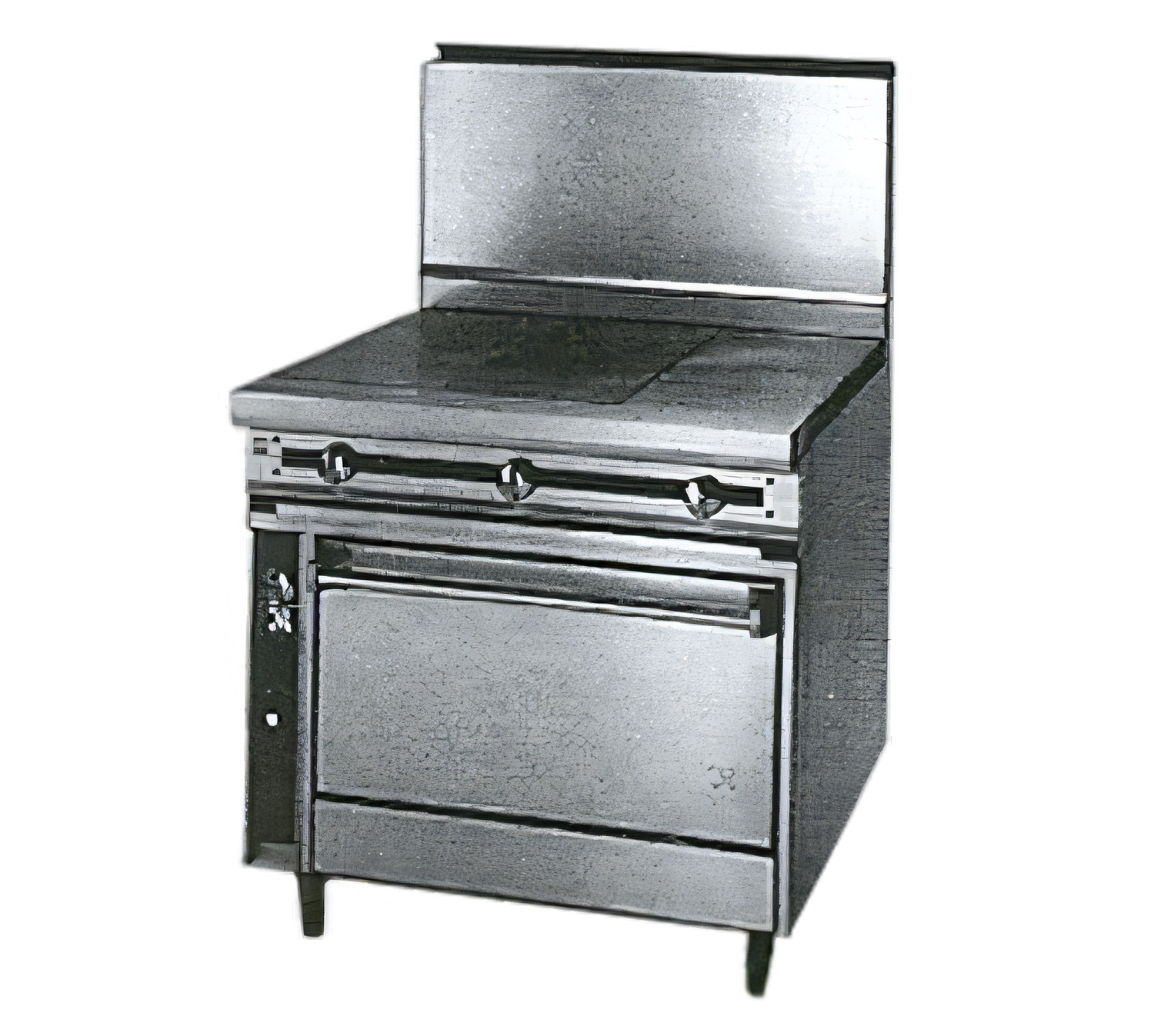

Titan JTRH-2HT-36 36 Inch Gas Heavy Duty Hot Top Range with Standard Oven

Full-Size, Natural Gas or Propane, (2) Hot Tops, Standard Oven Base

Experience unparalleled cooking versatility and robust performance with the Titan JTRH-2HT-36 heavy duty gas range, featuring two powerful hot tops and a spacious standard oven.

  • Equipped with two 35,000 BTU/hr hot top sections, each controlled by infinite gas valves for precise heat management.
  • Features a 35,000 BTU/hr standard oven base with a temperature range of 150°F to 550°F, ideal for baking and roasting.
  • Constructed with a durable 14 gauge all-welded stainless steel body, front, sides, and stub back for commercial durability.
  • Includes two chrome-plated oven racks and a removable stainless steel oven interior for easy cleaning and maintenance.
  • Comes with a 6-inch stainless steel plate shelf and 6-inch adjustable stainless steel legs for convenient operation and installation.
  • Designed for heavy-duty commercial kitchen environments, offering a total of 105,000 BTU.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

660.0 lb

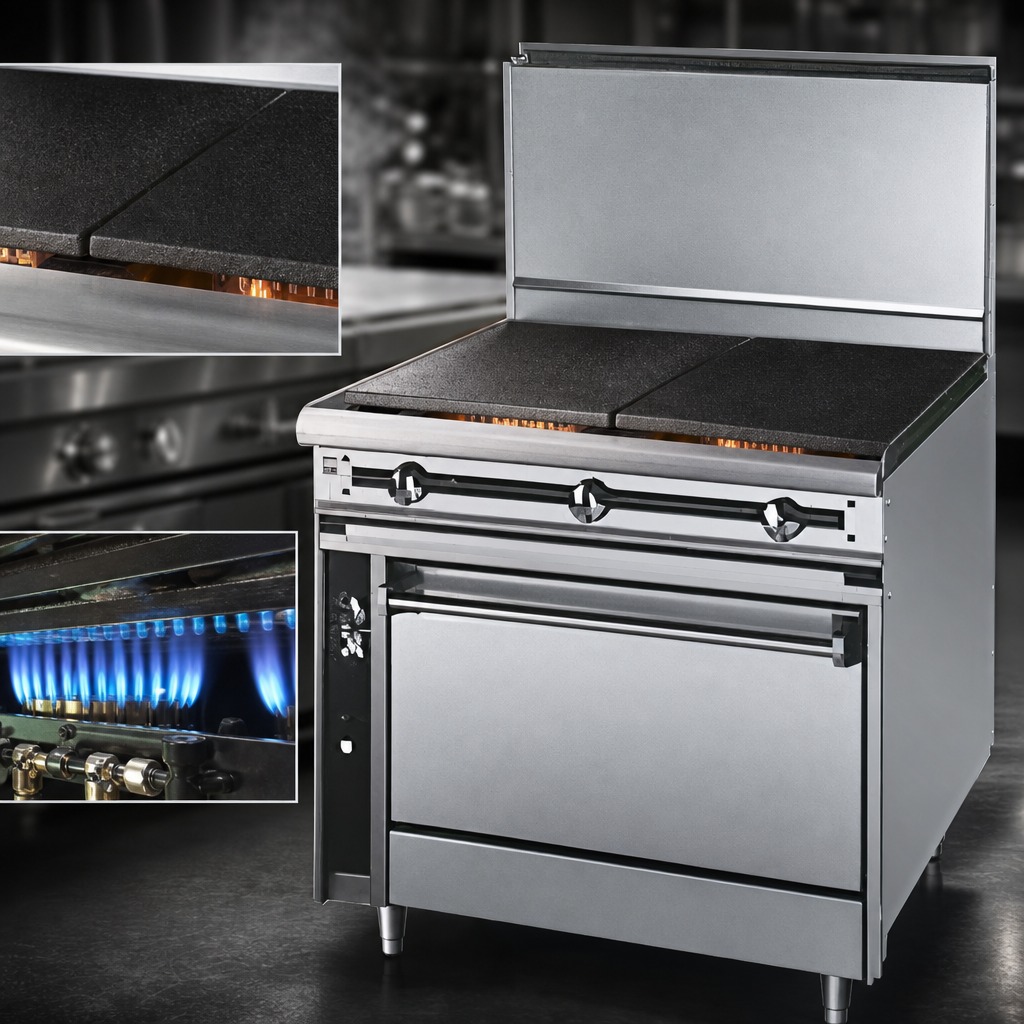

Heavy Duty Hot Top Sections

Features two highly polished, reinforced cast iron hot top plates, each powered by a 35,000 BTU/hr burner with infinite gas valve controls for precise temperature settings.

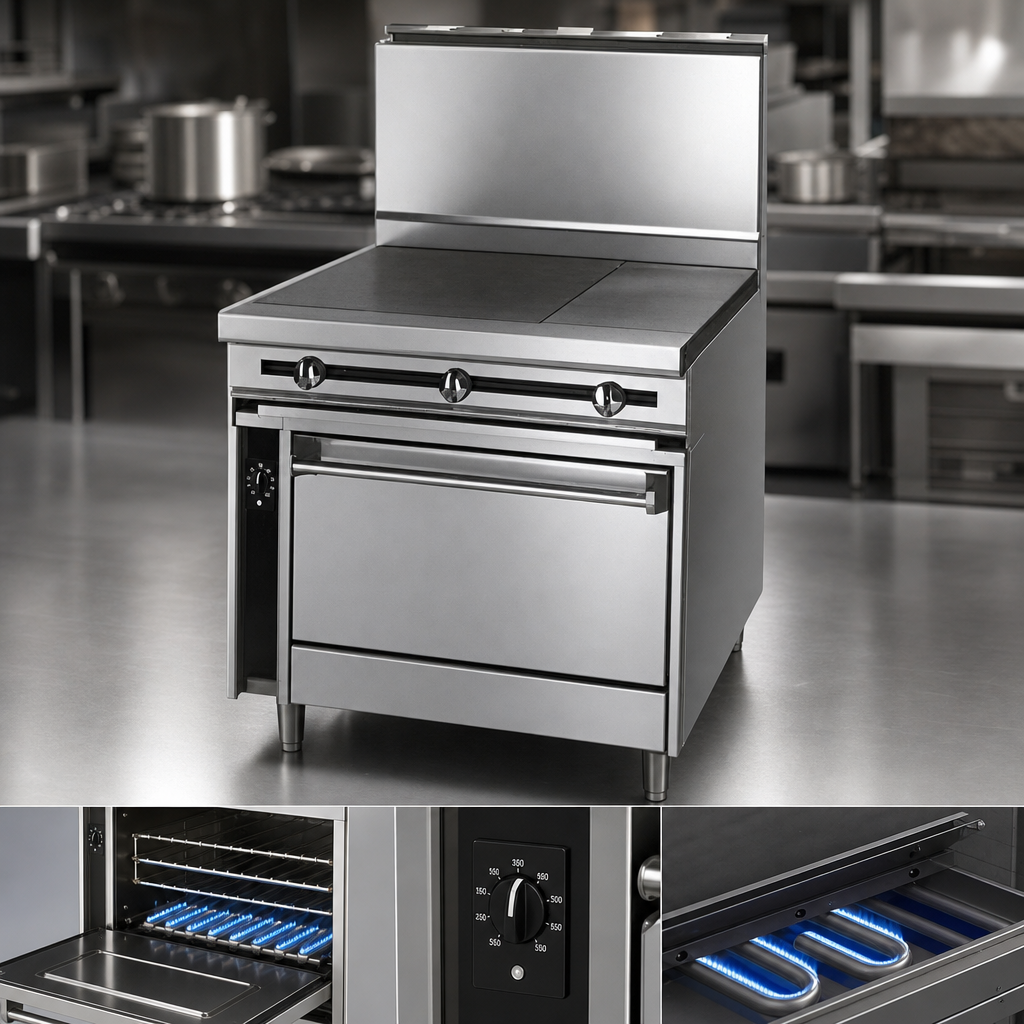

Standard Gas Oven Base

A conventional oven base with a 35,000 BTU/hr burner and a temperature range of 150°F to 550°F, controlled by a thermostat located in a cool zone for reliability.

Durable Construction

Built with a 14 gauge all-welded body, stainless steel front, sides, stub back, and bottom for exceptional strength and longevity in demanding commercial kitchens.

Stainless Steel Oven Interior

The oven interior features a stainless steel lining with sides and bottom that are removable without tools, simplifying cleaning.

Chrome Plated Oven Racks

Includes two chrome-plated oven racks with curled and welded wires to ensure durability and prevent sharp ends, supporting various cooking needs.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf is included, providing convenient storage or plating space.

Adjustable Legs

Equipped with 6-inch adjustable stainless steel legs for easy leveling and stability on uneven kitchen floors.

Stainless Steel Gas Tubing

All internal gas tubing is made of stainless steel for enhanced durability and corrosion resistance.

Gas Pressure Regulator

A 3/4 inch gas pressure regulator is supplied loose and must be installed for proper operation.

Type Heavy Duty Range
Style Hot Top Range with Standard Oven
Installation Type Floor Model (With Legs)
Material Stainless Steel, Cast Iron
Finish Stainless Steel
Cooking Surface Width 36 Inches
Hot Top Sections 2
BTU Per Hot Top Burner 35,000 BTU
Oven BTU 35,000 BTU
BTU 105,000 BTU
Gas Type Natural Gas or Propane (Specify when ordering)
Gas Connection Size 1-1/4 Inches (Front Manifold), 1 Inch or 3/4 Inches (Rear Manifold)
Gas Inlet Pressure 5 Inches W.C. (Natural Gas Minimum), 10 Inches W.C. (Propane Gas Minimum), 14 Inches W.C. (Maximum)
Controls Infinite Gas Valves (Hot Tops), Thermostat (Oven)
Temperature Range 150°F to 550°F (Oven)
Interior Finish Stainless Steel (Oven)
Pan Capacity 2 Oven Racks
Oven Interior Dimensions 28-1/4 Inches W x 14 Inches H x 27-3/4 Inches D
Plate Shelf 6 Inches
Adjustable Legs 6 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 660 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-2HT-36 range features two heavy-duty, highly polished reinforced cast iron hot top sections, each with a 35,000 BTU/hr burner.
The standard oven on the JTRH-2HT-36 has a thermostat that adjusts from 150°F to 550°F, powered by a 35,000 BTU/hr burner.
Yes, the JTRH-2HT-36 comes standard with two chrome-plated oven racks.
The range is supplied with a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection. A 3/4 inch gas pressure regulator is included and must be installed. Required operating pressures are 5 inches W.C. minimum for Natural Gas and 10 inches W.C. minimum for Propane Gas, with a maximum of 14 inches W.C. for either.
No, the JTRH-2HT-36 model is a fully gas-powered range with a standard gas oven and does not require an electrical connection.
