Jade Range (Middleby)

Titan JTRH-2FHT-36C 36" Gas French Top Range with Convection Oven

SKU: JTRH-2FHT-36C
$20,457.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Titan JTRH-2FHT-36C 36" Gas French Top Range with Convection Oven

Heavy Duty, 2 French Hot Tops, Full-Size Convection Oven

Experience robust performance and versatile cooking with the Titan JTRH-2FHT-36C gas range, featuring two powerful French hot tops and an efficient convection oven.

  • Equipped with two 30,000 BTU French hot tops for precise heat control and versatile cooking zones.
  • Features a full-size convection oven with two chrome-plated racks, ideal for even baking and roasting.
  • Durable 14 gauge all-welded body construction with stainless steel exterior ensures long-lasting commercial use.
  • Stainless steel oven interior and removable bottom/sides facilitate easy cleaning and maintenance.
  • Includes a 6" plate shelf for convenient plating and holding, along with 6" adjustable legs for flexible installation.
  • CSA-us and NSF certified, meeting high standards for safety and sanitation in commercial kitchens.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

760.0 lb

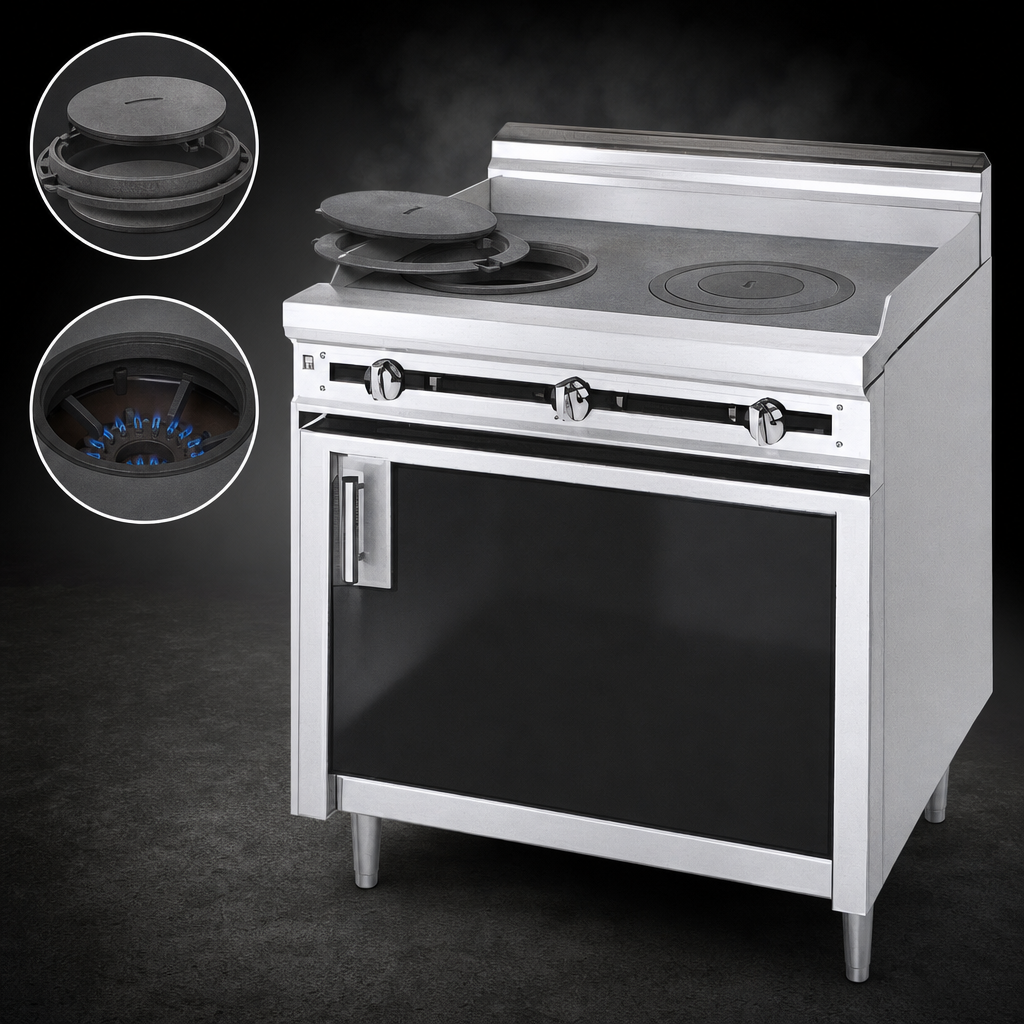

French Hot Tops

Two highly polished cast iron French tops, each powered by a 30,000 BTU/hr cast iron burner, offering controlled, radiant heat distribution. Cast iron rings and lids are easily removable to deliver direct flame for intense searing or wok cooking.

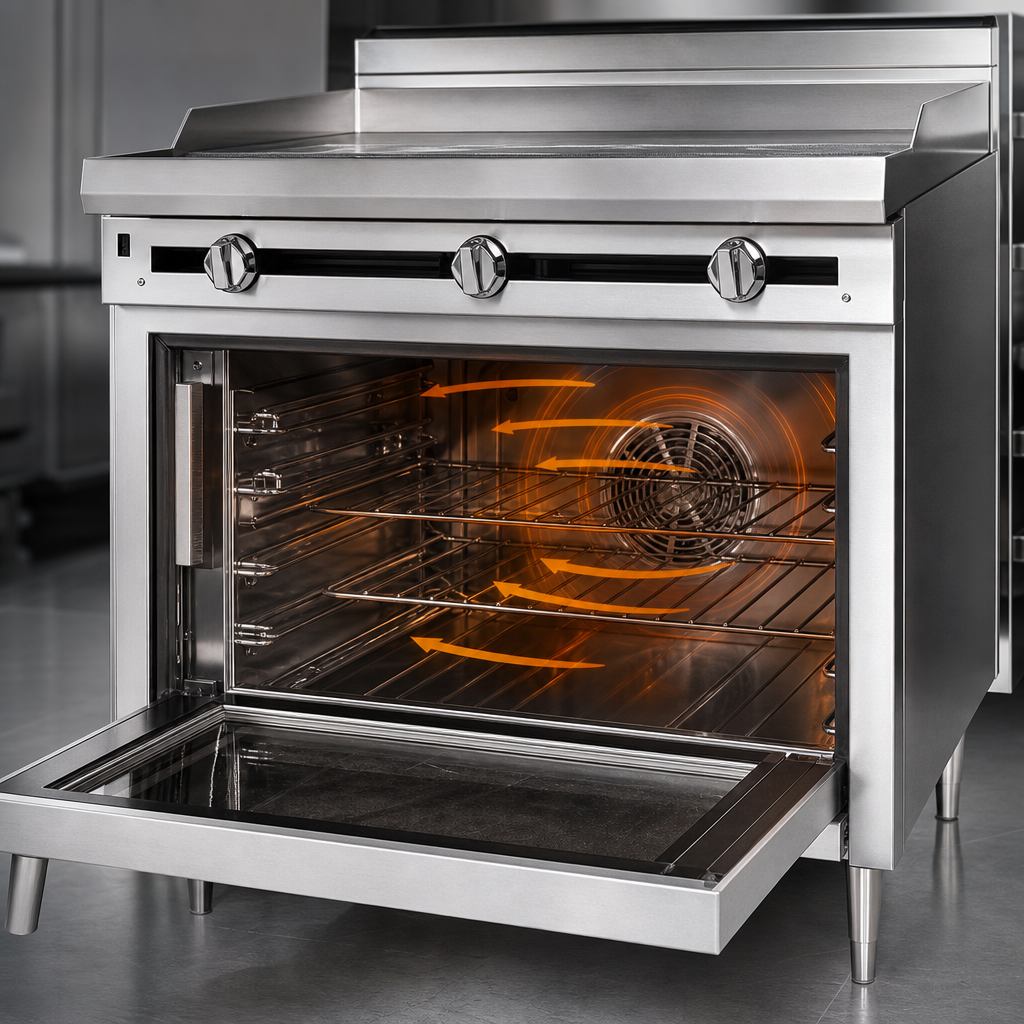

Convection Oven Base

A powerful 30,000 BTU convection oven base with a 1/4 HP 115V blower motor for superior heat circulation and even cooking. The 14 gauge stainless steel interior is designed for durability and easy cleaning.

Durable Construction

Built with a 14 gauge all-welded body and a full stainless steel exterior, including front, sides, stub back, and bottom, ensuring long-term resilience in demanding kitchen environments.

Oven Interior

The convection oven features a stainless steel liner with sides and bottom that are removable without tools for simplified cleaning and maintenance.

Oven Racks

Comes standard with two chrome plated oven racks, designed with curled and welded wires to prevent sharp ends, ensuring safe and reliable use.

Integrated Plate Shelf

A 6" wide stainless steel plate shelf is included, providing a convenient space for plating dishes or holding items.

Adjustable Legs

Equipped with 6" stainless steel adjustable legs to allow for proper leveling and cleaning underneath the unit.

Stainless Steel Gas Tubing

All internal gas tubing is constructed from stainless steel for enhanced durability and longevity.

Intuitive Controls

French top burners are controlled by infinite gas valves for precise heat management. The oven control is strategically located in a cool zone for easy and comfortable operation.

Type French Top Range
Style Floor Model
Installation Type Freestanding
Cooking Surface Width 36 Inches
Compartments 1
Pan Capacity 2 Full-Size Pans (Oven)
BTU 90,000 BTU
Burners 2 x 30,000 BTU French Hot Tops
Oven BTU 30,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches Front, 1 Inch or 3/4 Inch Rear
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.4 Amps
Controls Infinite Gas Valves (Tops), Thermostatic (Oven)
Temperature Range 150°F to 550°F (Oven)
Material Stainless Steel Exterior, Cast Iron Tops
Interior Finish Stainless Steel
Oven Interior Dimensions 28 Inches W x 24.5 Inches D x 13.75 Inches H
Horsepower 1/4 HP
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 760 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's standard warranty

Frequently Asked Questions

The convection oven requires a 115V, 60Hz, 1-phase electrical connection, drawing 4.4 amps. It comes with a 6-foot cord and 3-prong plug.
The JTRH-2FHT-36C is designed for use with either Natural Gas or Propane. Please specify the gas type when ordering.
For Natural Gas, a minimum of 5" W.C. operating pressure is required. For Propane Gas, a minimum of 10" W.C. operating pressure is required, with a maximum of 14" W.C. for both.
Yes, the range includes two chrome-plated oven racks, and the stainless steel oven interior (bottom and sides) is designed to be removable without tools for convenient cleaning.
Yes, a 3/4" gas pressure regulator is supplied with the range and must be installed for proper operation.
