Jade Range (Middleby)

Titan JTRH-24IP-1ST-36C 36-Inch Heavy Duty Gas Range with 24" Plancha and Convection Oven

SKU: JTRH-24IP-1ST-36C
$23,539.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

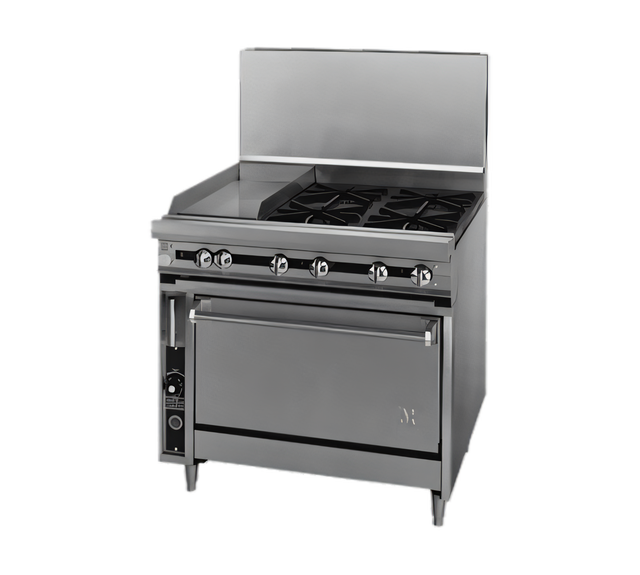

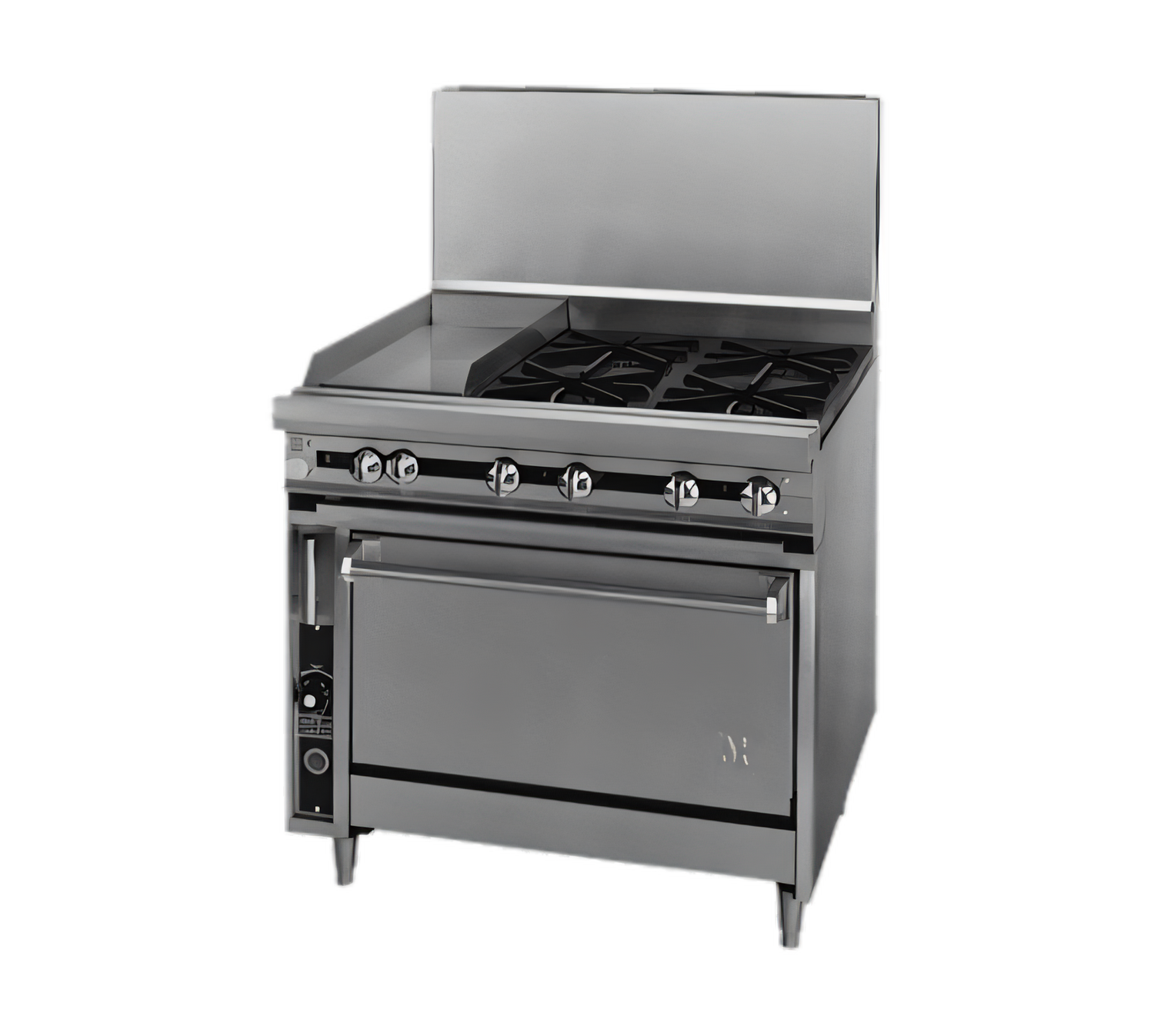

Titan JTRH-24IP-1ST-36C 36-Inch Heavy Duty Gas Range with 24" Plancha and Convection Oven

36-Inch, Gas, 24-Inch Plancha, 12-Inch Split Top, Convection Oven Base

Experience robust cooking versatility and exceptional performance with the Titan JTRH-24IP-1ST-36C heavy-duty gas range, featuring an even heat plancha and a powerful convection oven.

  • Heavy-duty construction with an all stainless steel exterior for lasting durability in commercial kitchens.
  • Integrated 24-inch even heat plancha with a 5/8-inch thick cooking surface for consistent searing and grilling.
  • Includes a 12-inch split top for diverse cooking needs and added flexibility.
  • Powerful convection oven base with two chrome-plated racks for efficient and even baking or roasting.
  • Features a 6-inch plate shelf and grease trough for improved workflow and easy maintenance.
  • Equipped with 6-inch adjustable legs for custom height and stability.

Heavy Duty Construction

All stainless steel exterior, including front, sides, stub back, and tray bed, ensuring durability and easy cleaning in demanding commercial environments.

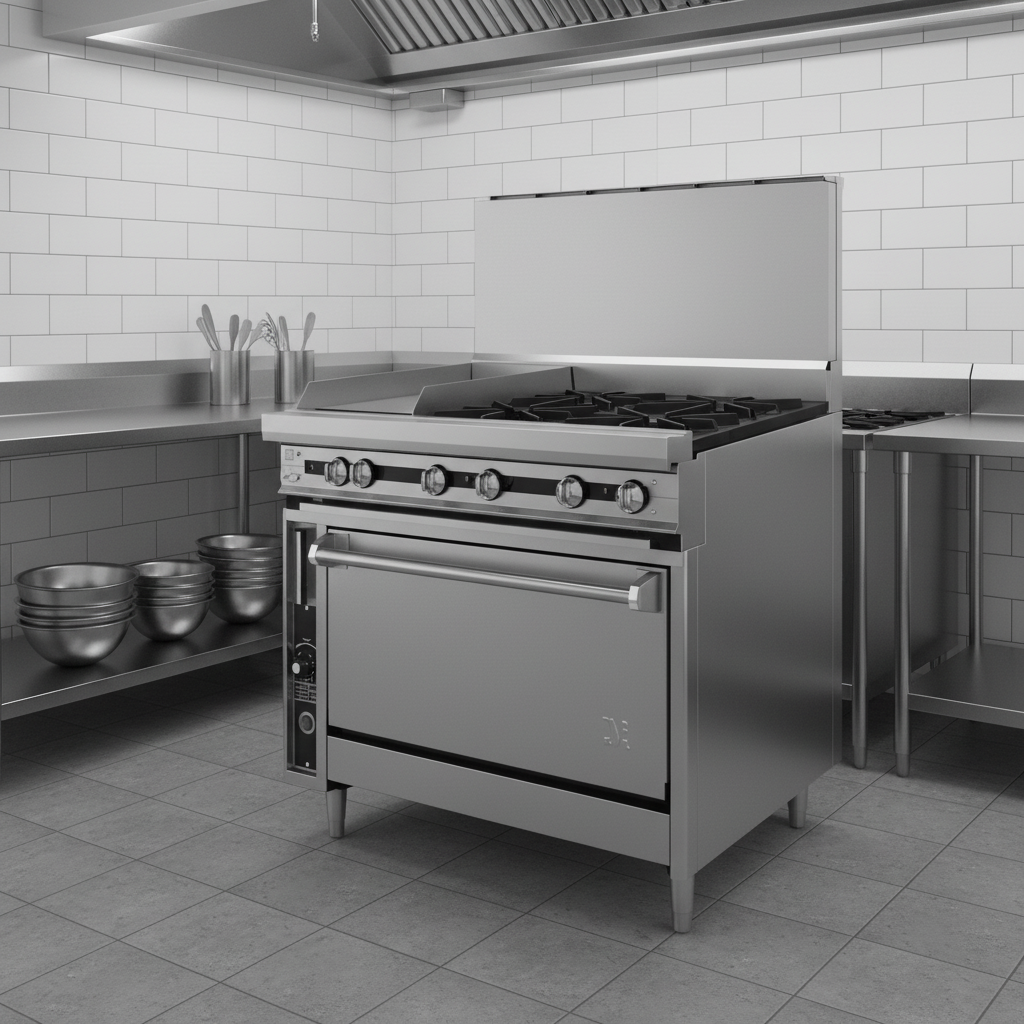

This image highlights the range's all-stainless steel exterior, ensuring heavy-duty construction, durability, and easy cleaning in any demanding commercial kitchen.

Integrated 24-Inch Plancha

Features a 24-inch wide even heat plancha with a robust 5/8-inch thick cooking surface for consistent and powerful heat distribution.

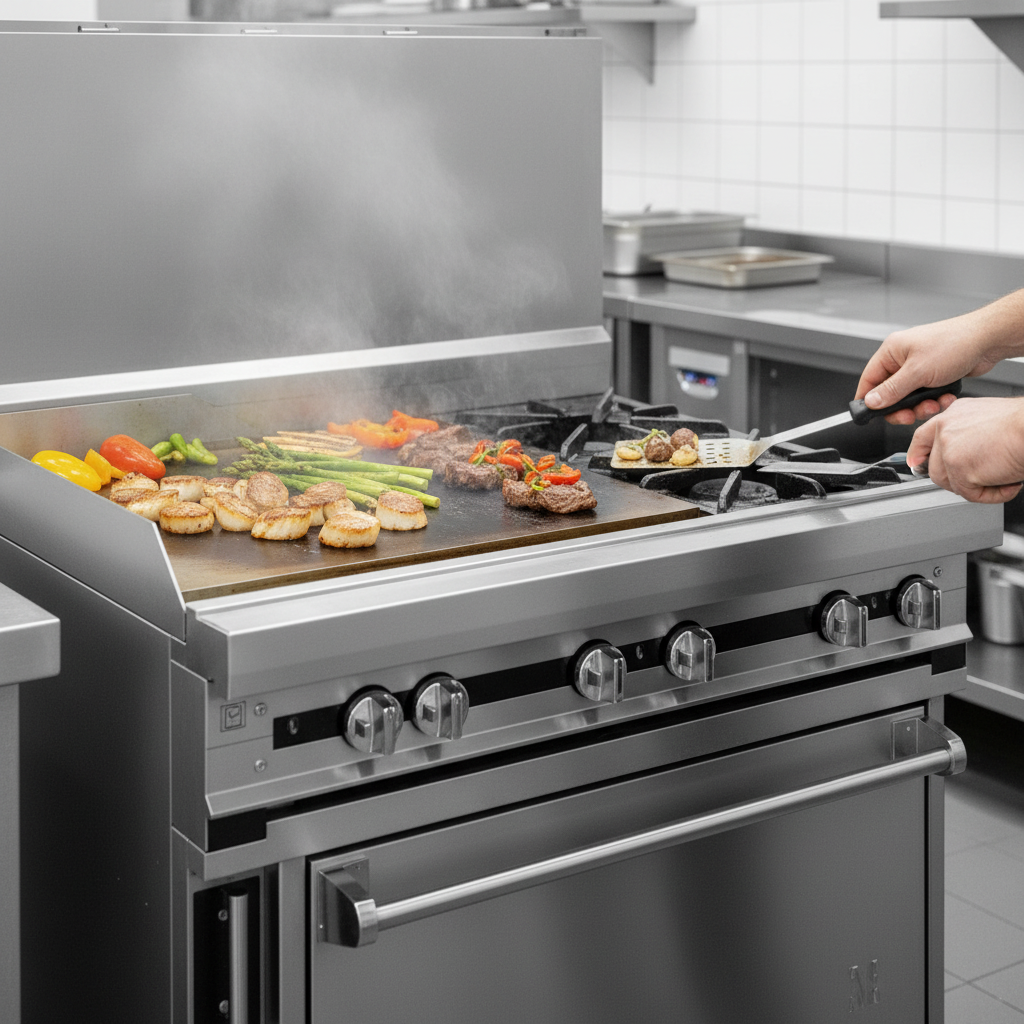

Experience perfect, consistent cooking with the integrated 24-inch plancha, showcasing its powerful and even heat distribution across its robust surface.

Versatile 12-Inch Split Top

Includes a 12-inch split top section, offering additional cooking flexibility for various pot and pan sizes.

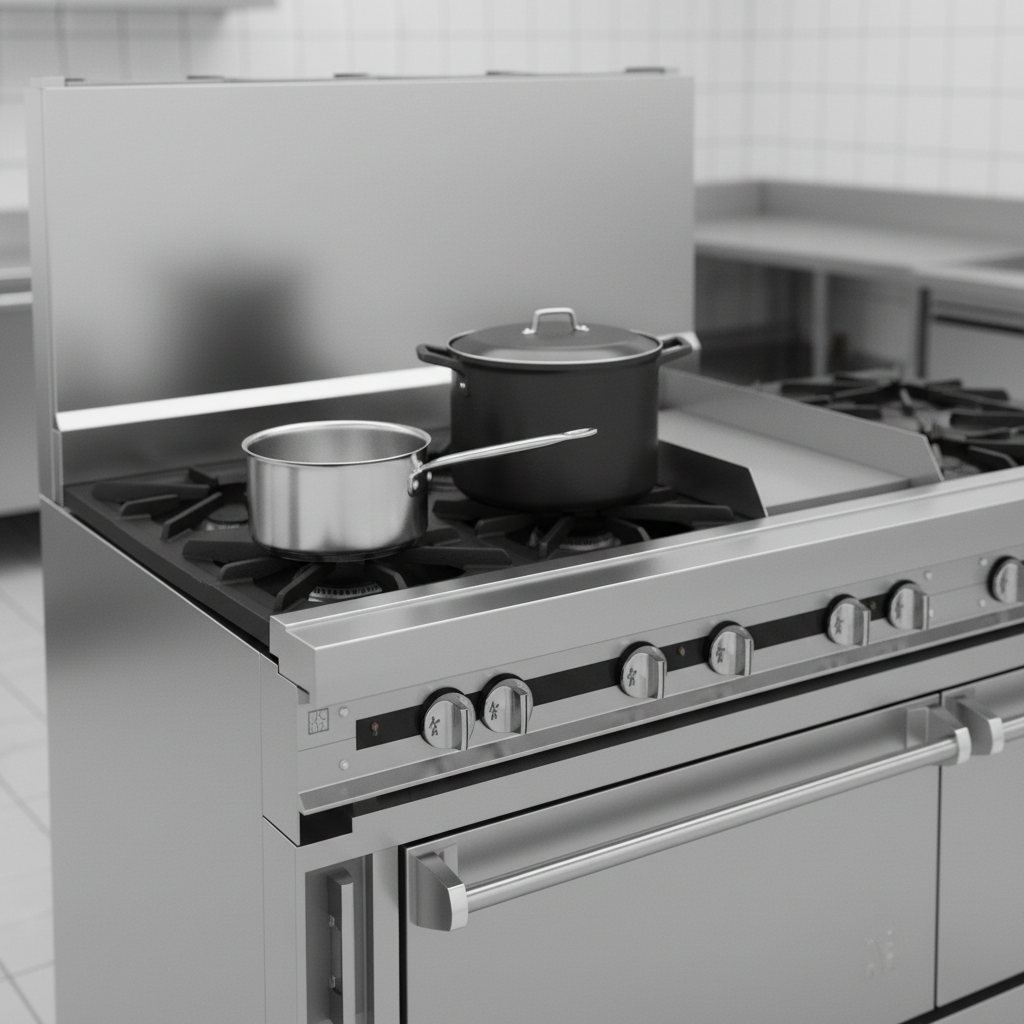

This heavy-duty gas range features a versatile 12-inch split top, accommodating various pot and pan sizes for ultimate cooking flexibility.

Convection Oven Base

A powerful convection oven located in the base, equipped with two chrome-plated racks and a stainless steel oven liner for superior baking and roasting results.

Convenient Plate Shelf

A 6-inch plate shelf provides easy access storage or a staging area for prepared dishes.

Efficient Grease Trough

Built-in grease trough for effective grease management and easier cleanup.

Adjustable Legs

Comes with 6-inch adjustable legs to ensure stable and level positioning on any kitchen floor.

Specifications

Type Heavy Duty Range
Style Plancha Range
Installation Type Floor Model (with 6" adjustable legs)
Gas Type Natural Gas
BTU 92,500 BTU
Plancha Width 24 Inches
Plancha Thickness 5/8 Inch
Top Configuration (1) 24" even heat plancha, (1) 12" split top
Compartments 1
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.4 Amps
Watts 506 Watts
Horsepower 1/4 HP
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 780 lb.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

780.0 lb
Manufacturer Jade Range (Middleby)
Brand name Titan
Certifications ["NSF", "CSAus"]
Height 36.5in
Width 36.0in
Depth 38.0in
Shipping Weight 780.0lbs
Exterior Finish all stainless steel exterior
Plate Thickness .625" = 5/8"
Base (1) convection oven
Top (1) 24" plancha, (1) 12" split top
Specifications Titan™ Heavy Duty Range, gas, 36", (1) 24" even heat plancha, 5/8" thick, (1) 12" split top, convection oven, (2) chrome plated racks, stainless steel oven liner, grease trough, 6" plate shelf, front, sides, stub back & tray bed, 6" adjustable legs, 115v/60/1-ph, 4.4 amps, 1/4 HP, 92,500 BTU, CSAus, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

The Titan JTRH-24IP-1ST-36C range features a 24-inch wide even heat plancha with a 5/8-inch thick surface and a 12-inch split top for versatile cooking options.
Yes, this model comes with a convection oven base, which includes two chrome-plated racks and a stainless steel liner for efficient baking and roasting.
The convection oven component of this range requires 115 Volts, 60 Hz, 1-Phase, drawing 4.4 Amps.
The range has a total BTU output of 92,500 BTU.
Yes, the range features an all stainless steel exterior, including the front, sides, stub back, and tray bed, ensuring durability and ease of cleaning.
