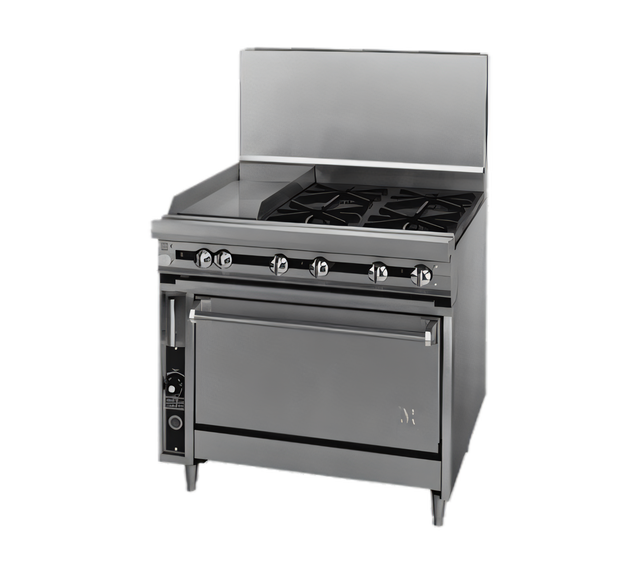

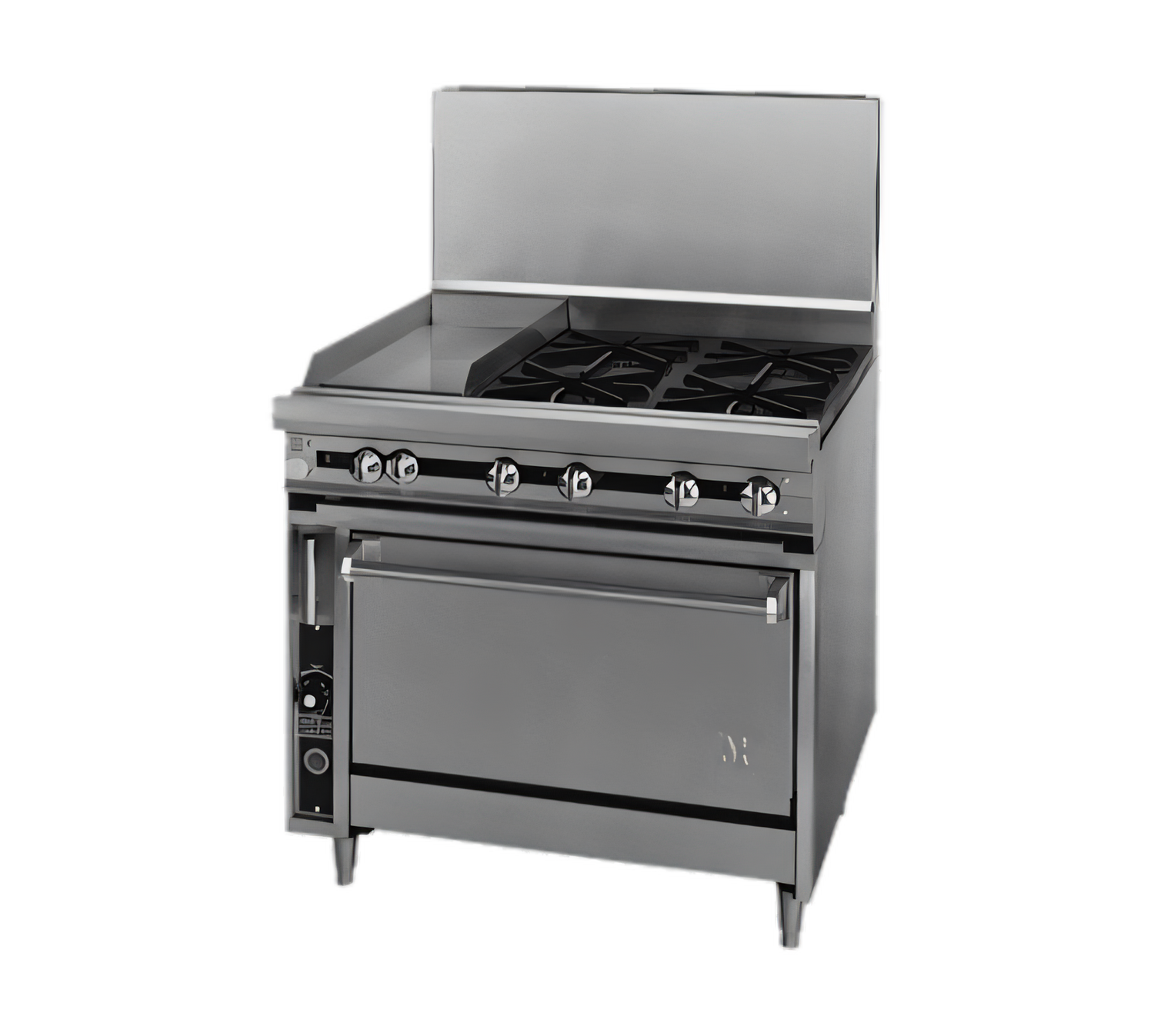

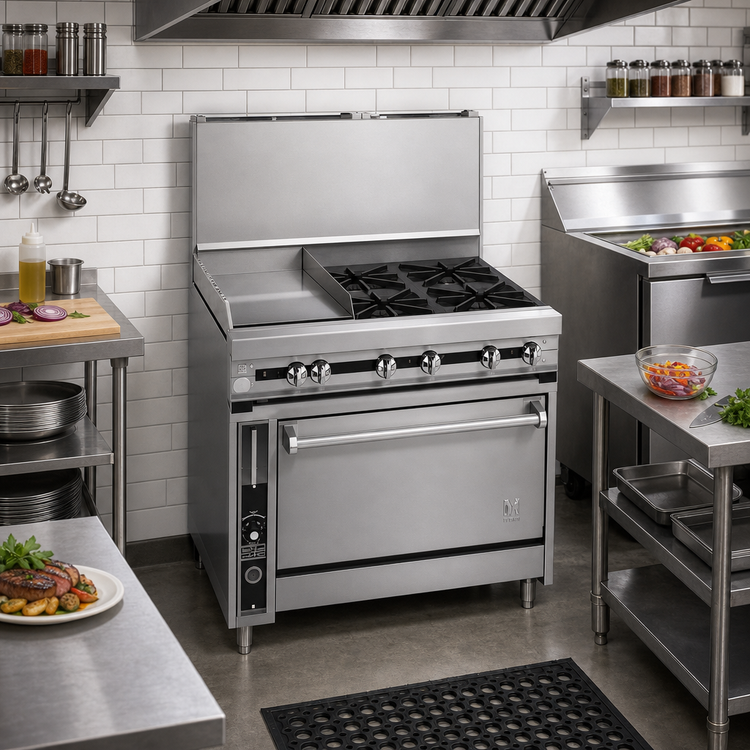

Titan JTRH-24IP-1HT-36C 36" Gas Heavy Duty Range with 24" Plancha, 12" Hot Top, and Convection Oven

36" Wide, Natural Gas, Floor Model

Experience superior cooking versatility and heavy-duty performance with the Titan JTRH-24IP-1HT-36C gas range, featuring a plancha, hot top, and convection oven.

  • Combines a 24" even heat plancha and a 12" hot top for diverse cooking applications.
  • Integrated convection oven with two chrome-plated racks for efficient baking and roasting.
  • Robust all stainless steel construction ensures durability and easy cleaning in demanding commercial kitchens.
  • Equipped with infinite controls for precise temperature management on cooking surfaces.
  • Designed for heavy-duty commercial use with 82,500 BTU total heating power and 6" adjustable legs.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

780.0 lb

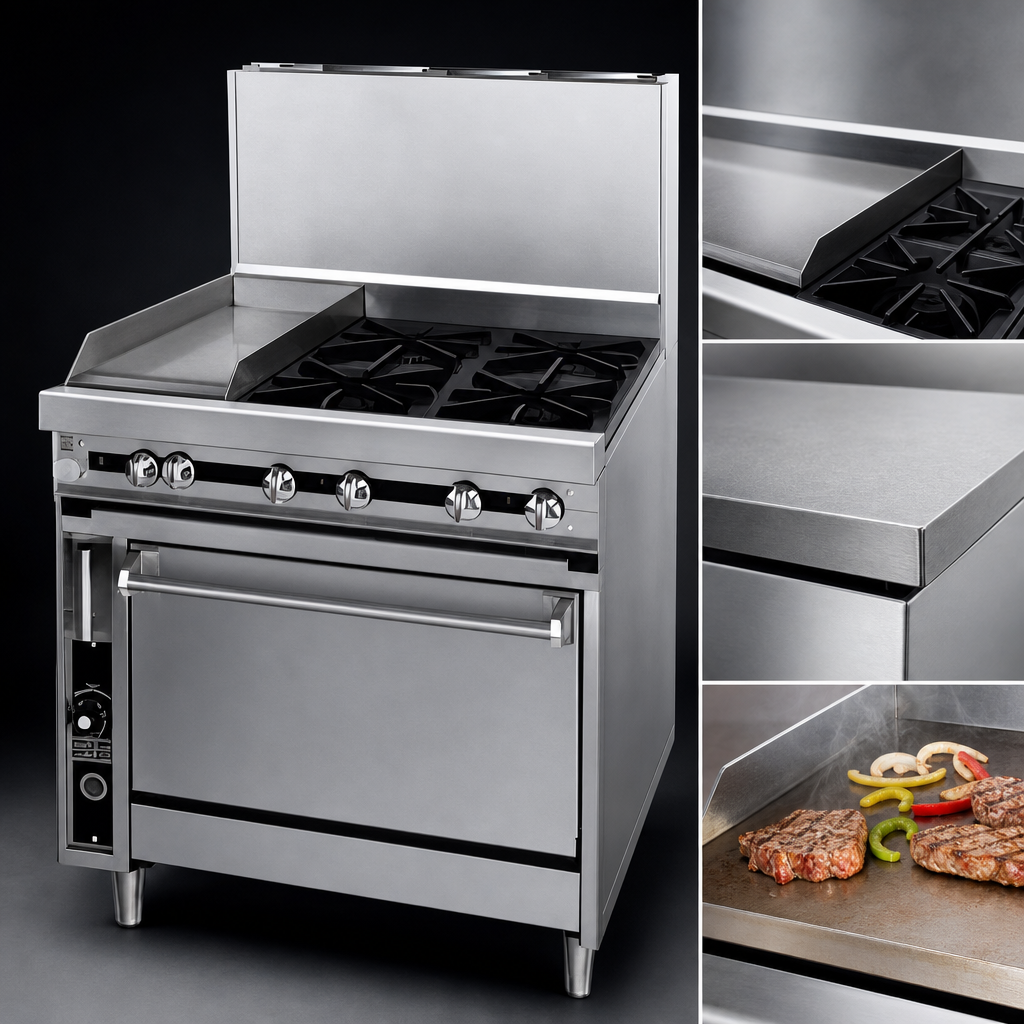

24" Even Heat Plancha

Features a 5/8" thick plate for superior heat retention and distribution, ideal for high-volume grilling and searing.

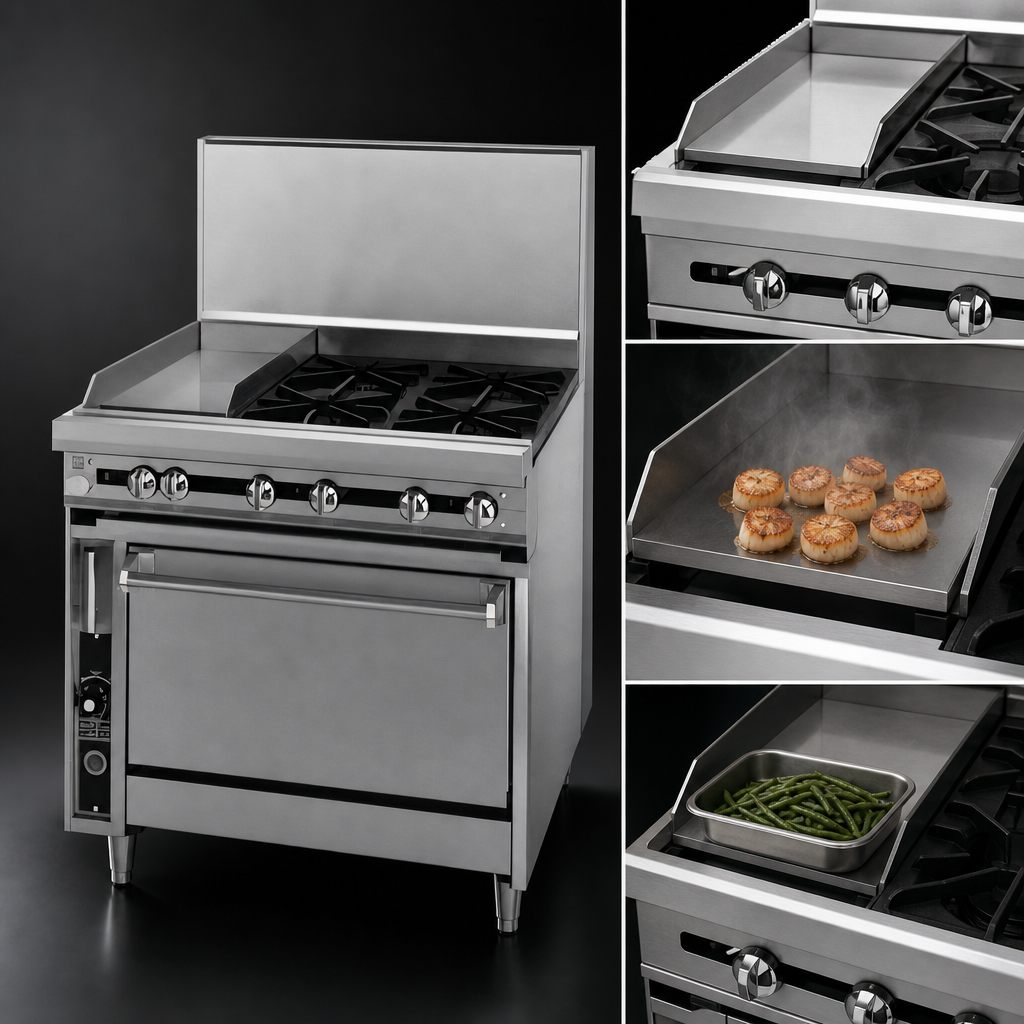

12" Hot Top

Provides continuous, radiant heat for simmering, sautéing, or holding prepared foods.

Convection Oven

Includes (2) chrome-plated racks and a stainless steel liner, offering even heat distribution for consistent baking and roasting results.

Infinite Controls

Allows for precise and independent temperature adjustment of each top cooking section.

Stainless Steel Construction

Heavy-duty stainless steel front, sides, stub back, and tray bed ensure durability, hygiene, and easy maintenance.

Grease Trough

Conveniently collects cooking by-products for easy cleanup.

6" Plate Shelf

Provides a practical staging area for plates and ingredients.

6" Adjustable Legs

Allows for leveling and proper height adjustment for comfortable operation.

Type Heavy Duty Range
Style Floor Model
Installation Type Floor Model (With 6" Adjustable Legs)
Gas Type Natural Gas
BTU 82,500 BTU
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.4 Amps
Material Stainless Steel
Interior Finish Stainless Steel Oven Liner
Controls Infinite
Compartments 1
Plancha Cooking Surface Width 24 Inches
Hot Top Cooking Surface Width 12 Inches
Plancha Plate Thickness 5/8 Inch
Capacity 2 Oven Racks
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 780 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This heavy-duty range includes a 24-inch even heat plancha with a 5/8 inch thick plate and a 12-inch hot top.
The Titan JTRH-24IP-1HT-36C range provides a total of 82,500 BTU, ensuring powerful and efficient heating for commercial use.
Yes, it features a convection oven with a stainless steel liner and comes with two chrome-plated racks.
The range features an all stainless steel exterior, including the front, sides, stub back, and tray bed, for durability and easy cleaning.
Yes, the range is equipped with infinite controls for both the plancha and hot top, allowing for precise temperature management.
