Jade Range (Middleby)

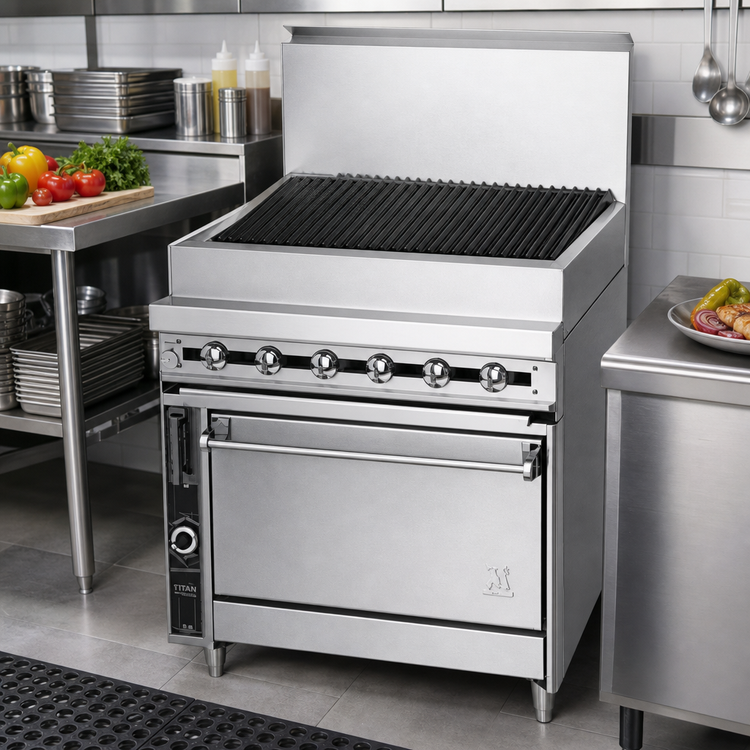

Titan JTRH-24B 24" Heavy Duty Gas Charbroiler Range Match with Cabinet Base

SKU: JTRH-24B
$10,911.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRH-24B 24" Heavy Duty Gas Charbroiler Range Match with Cabinet Base

Full-Size, 60,000 BTU, Cabinet Base, All Stainless Steel Exterior

Designed for demanding commercial kitchens, the Titan JTRH-24B charbroiler delivers powerful, precise grilling with durable construction for long-lasting performance.

  • Heavy-duty 14 gauge all-welded body construction ensures robust durability for rigorous use.
  • Equipped with four 15,000 BTU/hr. cast iron burners, each individually controlled for precise heat management.
  • Features a spacious 24-inch cooking surface with heavy-duty cast iron grates and radiants.
  • Includes a stainless steel cabinet base for convenient storage and a 6-inch plate shelf.
  • Designed with stainless steel front, top, sides, stub back, and interior for easy cleaning and a professional look.
  • Comes with two separate 14 gauge steel drip pans to help control flare-ups and simplify maintenance.

Overall Dimensions:

24.0"W x 38.0"D x 36.5"H

Product Weight:

360.0 lb

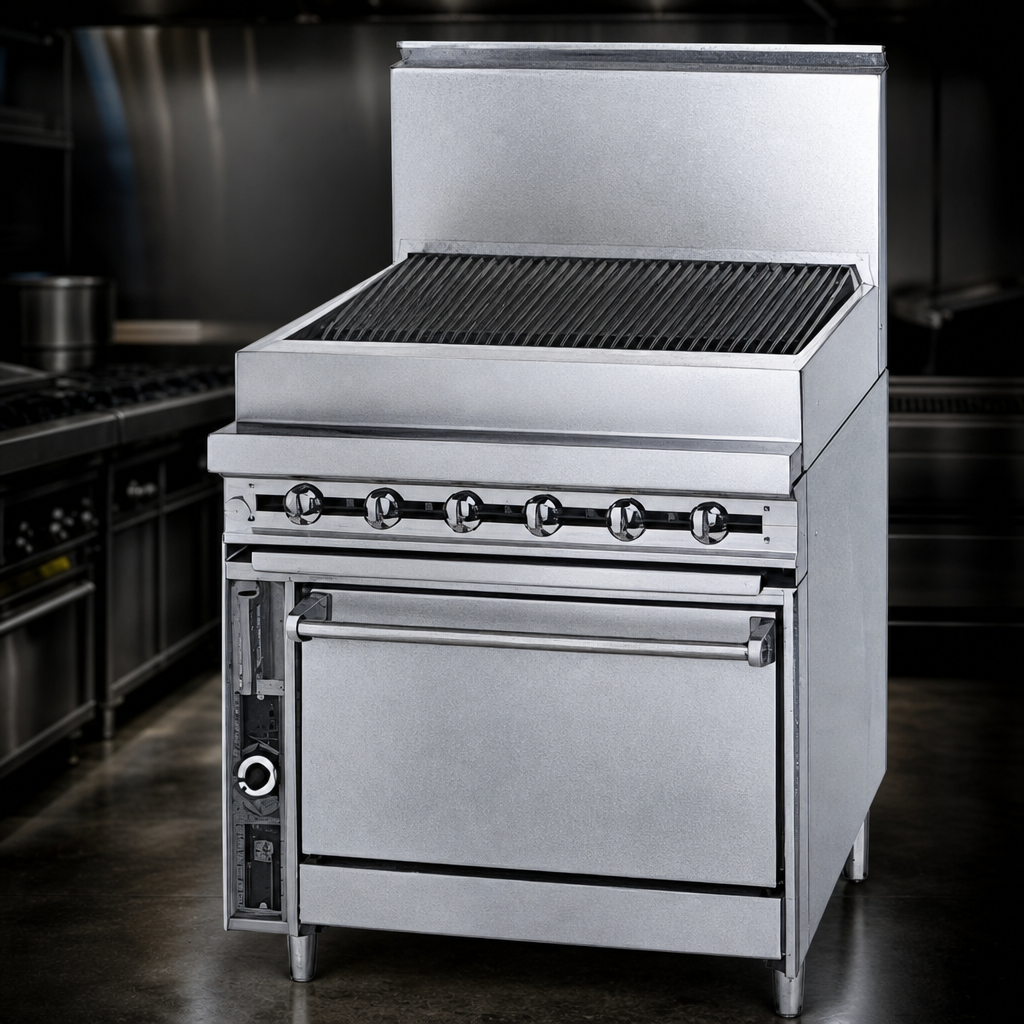

Robust Construction

Built with 14 gauge all-welded body construction and a 12 gauge all-welded firebox for exceptional durability and longevity in a commercial setting.

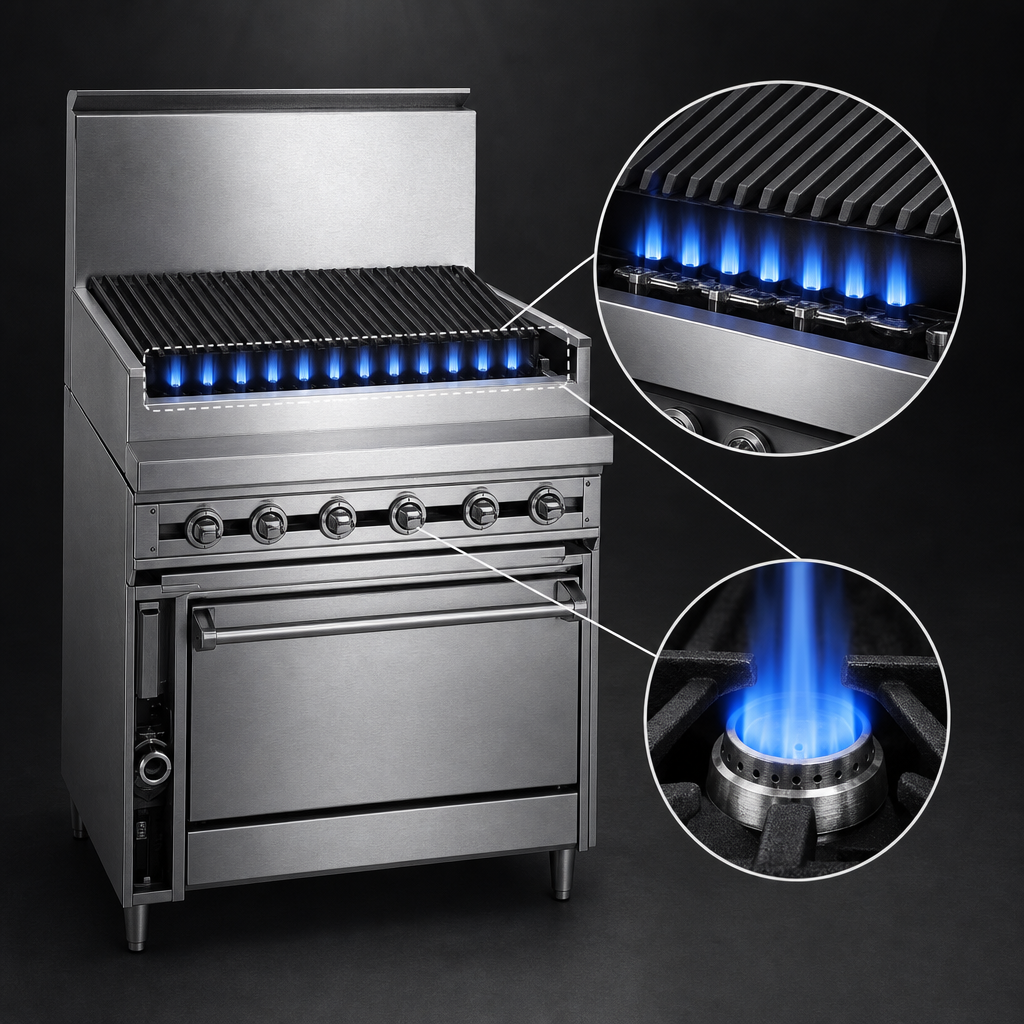

High Performance Burners

Features one 15,000 BTU/hr. heavy-duty cast iron burner for every 6 inches of broiler space, totaling 60,000 BTU for the 24-inch model.

Precise Temperature Control

Each burner is equipped with an infinite control manual gas valve, allowing for precise and independent heat adjustment across the charbroiler surface.

Easy to Clean Drip Pans

Includes two separate 14 gauge steel drip pans designed to catch grease and debris, helping to control flare-ups and making cleanup simple.

Stainless Steel Design

Constructed with a stainless steel front, top, sides, stub back, tray bed, cabinet interior and exterior, and gas tubing for a professional appearance and corrosion resistance.

Integrated Plate Shelf

A 6-inch stainless steel plate shelf provides convenient space for plating or holding items.

Adjustable Legs

Equipped with 6-inch stainless steel adjustable legs to ensure stable and level installation on any commercial kitchen floor.

Type Heavy Duty Range Match Charbroiler
Style Cabinet Base
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 60,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches NPT (Front Manifold), 1 or 3/4 Inches NPT (Rear Manifold)
Gas Inlet Pressure 5 Inches W.C. (Natural Gas), 10 Inches W.C. (Propane)
Controls Infinite Manual
Pan Capacity 2 Drip Pans
Cooking Surface Width 24 Inches
Material Stainless Steel, Cast Iron
Interior Finish Stainless Steel (Cabinet)
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 360 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-24B charbroiler can be configured for either Natural Gas or Propane. It is important to specify the gas type when ordering to ensure proper setup.
The charbroiler is supplied with a 1-1/4 inch front manifold connection and a capped rear manifold connection that can be 1 inch or 3/4 inch. A 3/4 inch gas pressure regulator is included and must be installed for proper operation.
The JTRH-24B model features one 15,000 BTU/hr. burner for every 6 inches of broiler, meaning it has four burners in total, each with infinite manual controls.
Yes, for optimal performance and safety, it is recommended to specify the altitude when ordering if the installation location is above 2,000 feet.
The JTRH-24B is a range match charbroiler designed with a stainless steel cabinet base, providing integrated storage and a consistent look when paired with other Titan range equipment.
