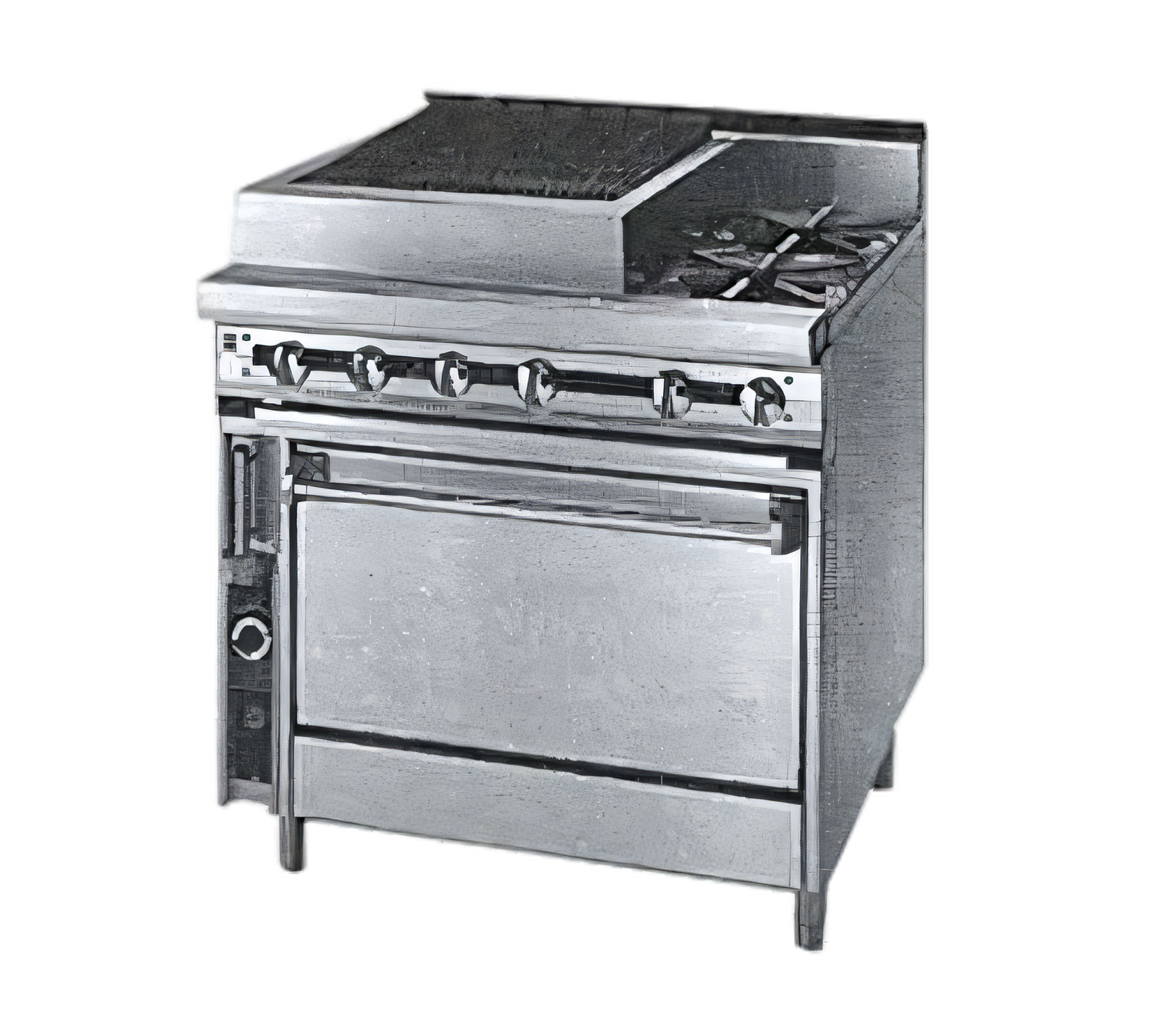

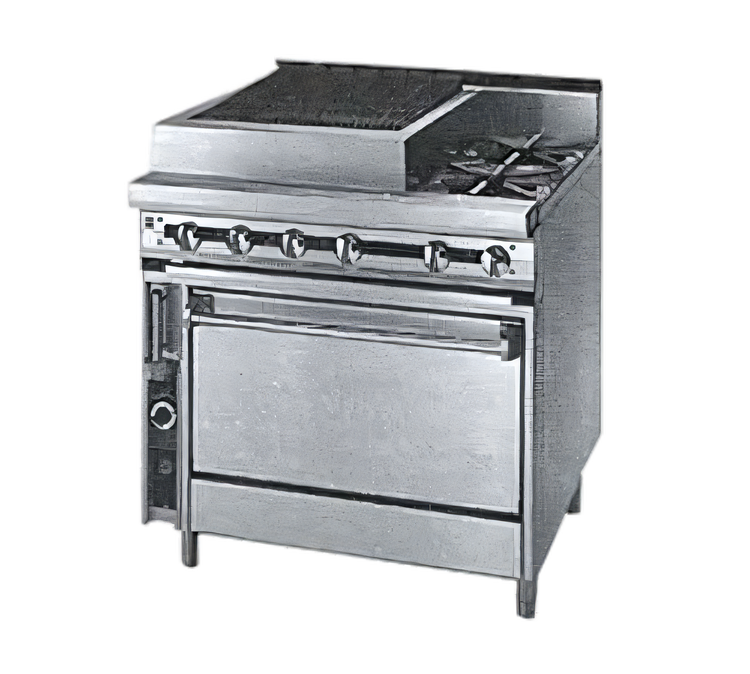

Jade Titan JTRH-24B-12WT36C Heavy Duty 36" Gas Range with 24" Charbroiler, 12" Work Top, and Convection Oven
Jade Titan JTRH-24B-12WT36C Heavy Duty 36" Gas Range with 24" Charbroiler, 12" Work Top, and Convection Oven
Heavy-Duty, Full-Size, Natural Gas Ready, Convection Oven
The Jade Titan JTRH-24B-12WT36C combines a powerful charbroiler and versatile worktop with a high-performance convection oven, offering a comprehensive cooking solution for demanding commercial kitchens.
- Heavy-duty 14 gauge all-welded body construction with stainless steel exterior for lasting durability.
- Features a 24-inch charbroiler with 15,000 BTU/hr burners for efficient grilling performance.
- Includes a 12-inch work top, providing convenient additional prep or holding space.
- Equipped with an integrated convection oven, boasting a 35,000 BTU burner and 1/3 HP blower motor for even cooking.
- Precision heat control with infinite manual gas valves at each burner for optimal cooking results.
- Designed with user-friendly features like two separate drip pans and a removable stainless steel oven interior for easy cleaning.
- Ships with a 3/4-inch gas pressure regulator for proper operation.
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:

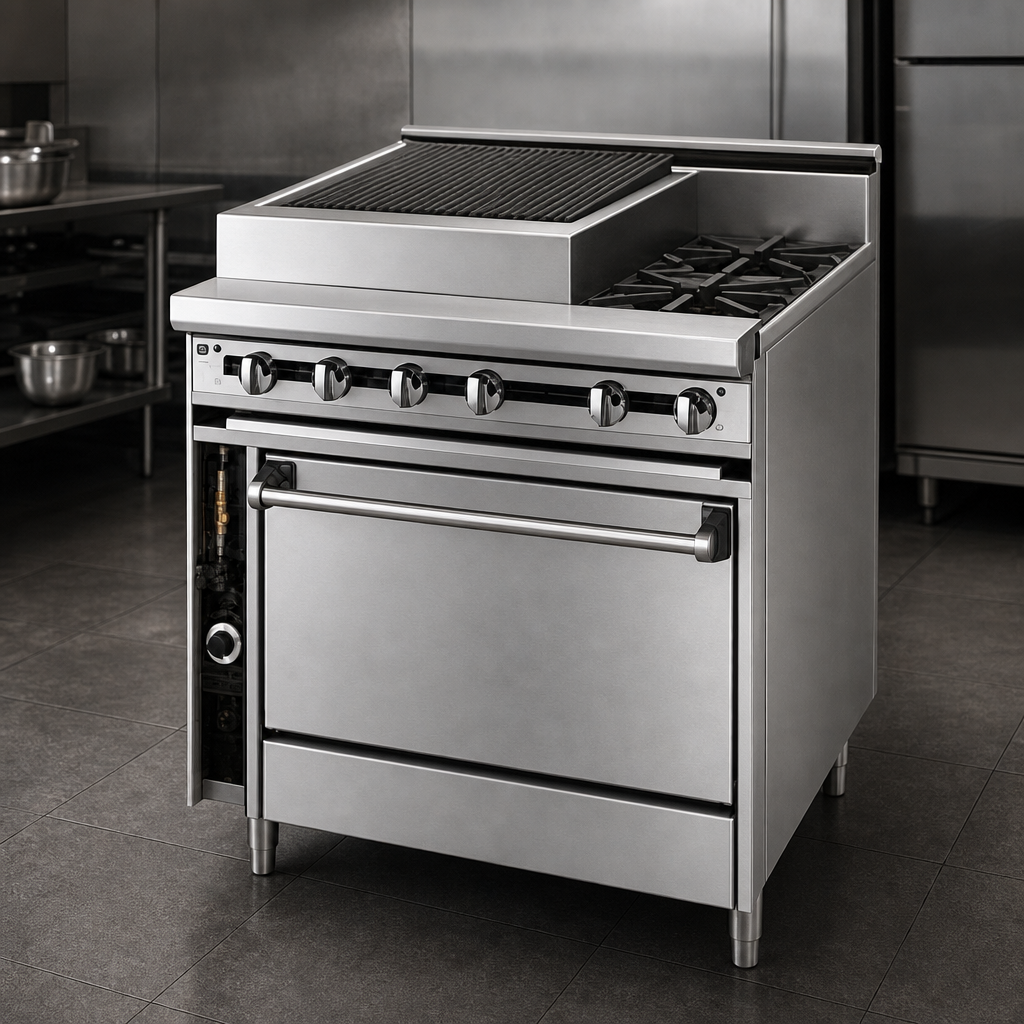

680.0 lbHeavy-Duty Welded Construction
Built with 14 gauge all-welded body construction and a stainless steel front, top, sides, and stub back for exceptional durability and resistance to commercial kitchen environments.

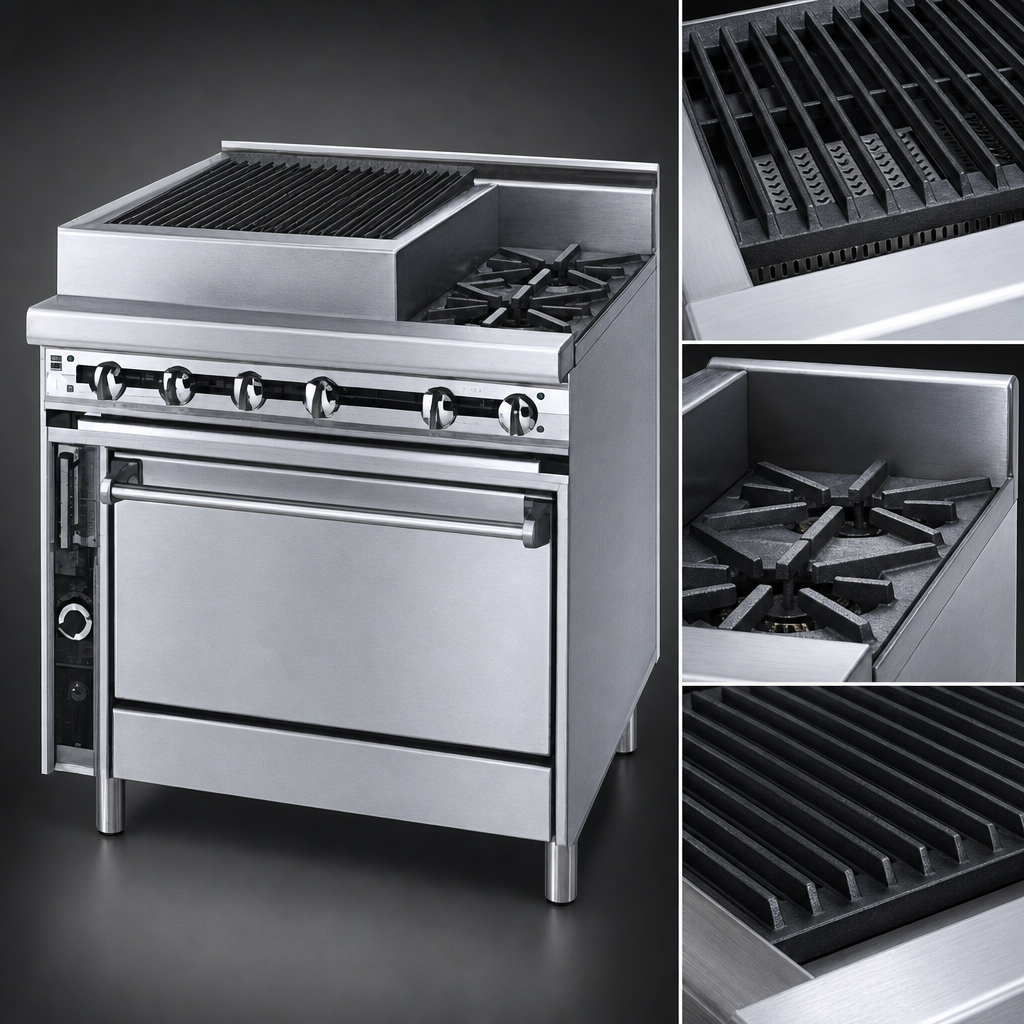

24" Charbroiler Section
Features a 24-inch wide charbroiler equipped with one 15,000 BTU/hr burner for every 6 inches of broiler, ensuring powerful and even heating. Includes heavy-duty cast iron top grates with built-in grease guides and cast iron burner radiants.
12" Work Top Section
Provides a convenient 12-inch wide work top section, ideal for additional preparation space or holding items.
High-Performance Convection Oven
The base features a convection oven with a 14 gauge stainless steel interior, two chrome plated oven racks, and a thermostat adjustable from 150°F to 550°F. Powered by a 35,000 BTU burner and a 1/3 HP 115/60/1 blower motor for consistent, even heat distribution.
Precision Gas Control
Each burner is equipped with infinite control manual gas valves, allowing chefs to achieve precise heat adjustments for optimal cooking.
Durable Firebox and Drip Pans
Features a 12 gauge all-welded firebox construction for enhanced longevity and two separate 14 gauge steel drip pans designed to effectively control flare-ups.
Integrated Plate Shelf
A 6-inch stainless steel plate shelf is included, offering convenient space for plating or holding dishes.
Adjustable Stainless Steel Legs
Supported by 6-inch stainless steel adjustable legs for stable positioning and easy leveling on various floor surfaces.
Robust Gas System
Equipped with a variable size multi-point gas connection, stainless steel gas tubing throughout, and durable stainless steel pilot tips. A 3/4-inch gas regulator is supplied loose for installation.
Electrical for Convection Oven
The convection oven operates on 115V/60Hz/1-Phase power, drawing 4.0 Amps, and includes a 6-foot cord with a 3-prong plug. Features an electronic spark ignitor activated by a power switch and a three-position fan switch (on for normal, on for quick cool down, off).
