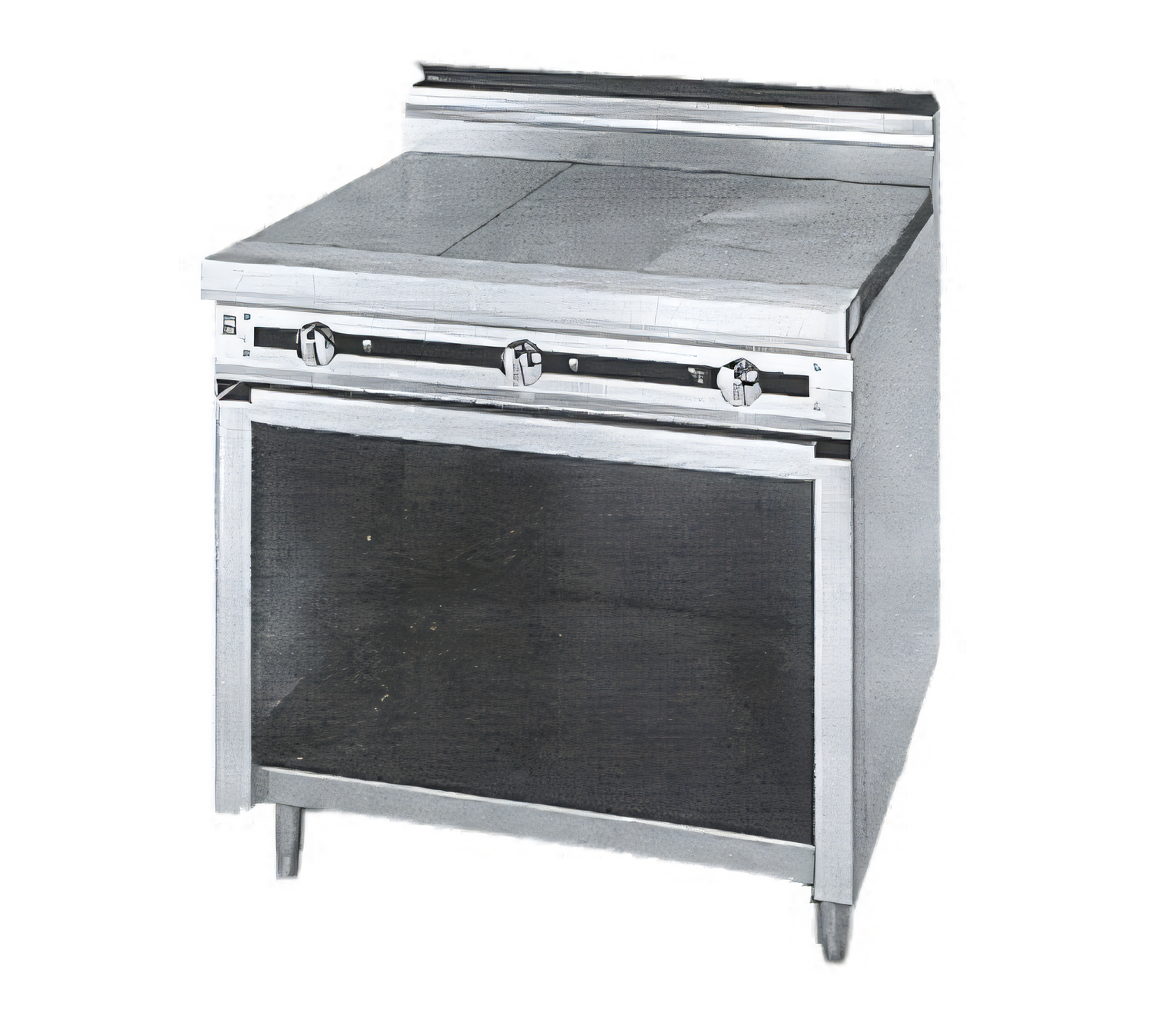

Jade Titan JTRH-1HT-A 12" Heavy Duty Cabinet Base Gas Hot Top Range

12" Width, One Hot Top Section, Natural Gas or Propane

Power through demanding cooking tasks with the compact and robust Jade Titan JTRH-1HT-A heavy-duty hot top range, designed for exceptional performance in commercial kitchens.

  • Equipped with one 35,000 BTU/hr burner for powerful and consistent heating.
  • Features a highly polished reinforced cast iron hot top plate for even heat distribution.
  • Durable 14 gauge all-welded stainless steel body and cabinet ensure longevity.
  • Cabinet base provides convenient storage for kitchen essentials.
  • Comes with 6" adjustable stainless steel legs for easy leveling and cleaning.
  • Ideal for kitchens needing a reliable, compact hot top solution.

Overall Dimensions:

12.0"W x 38.0"D x 36.5"H

Product Weight:

200.0 lb

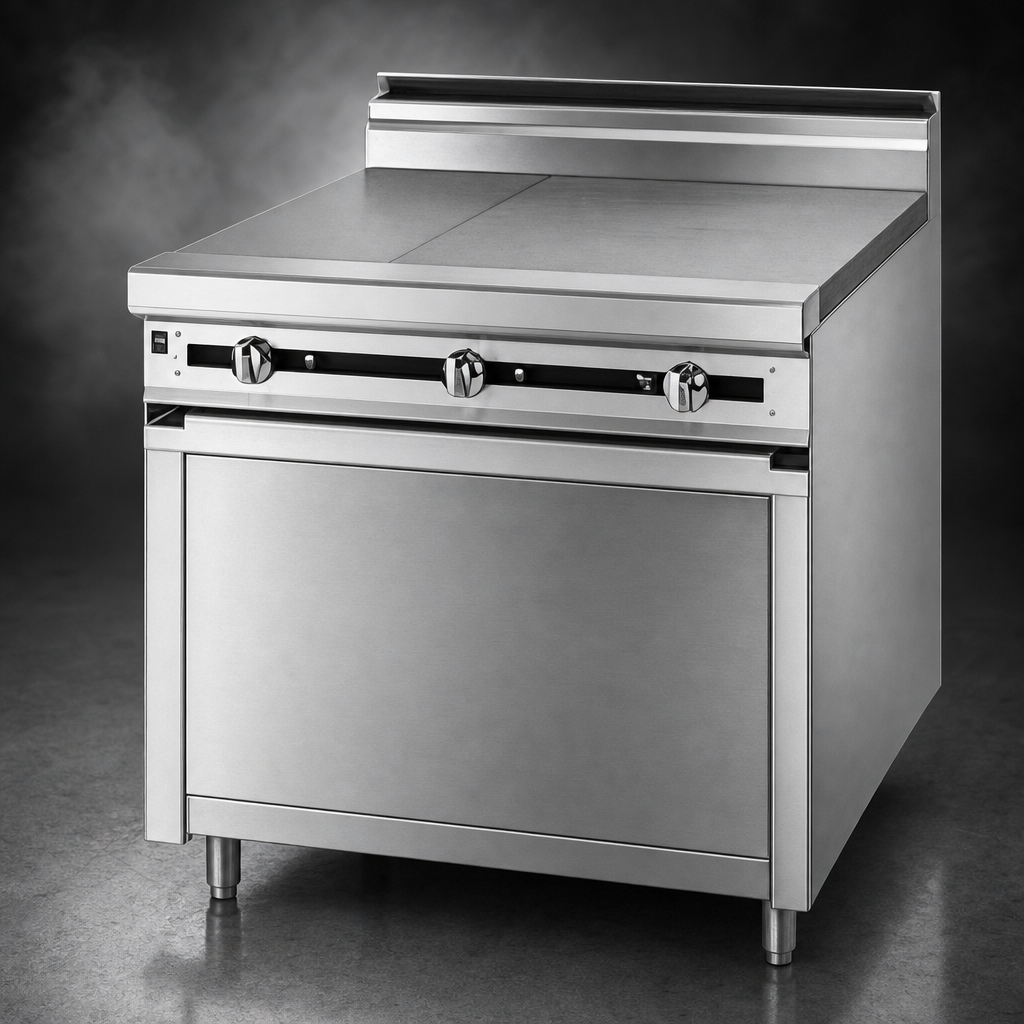

Heavy Duty Construction

Constructed with a 14 gauge all-welded body, stainless steel front, sides, stub back, and bottom for maximum durability in demanding commercial environments.

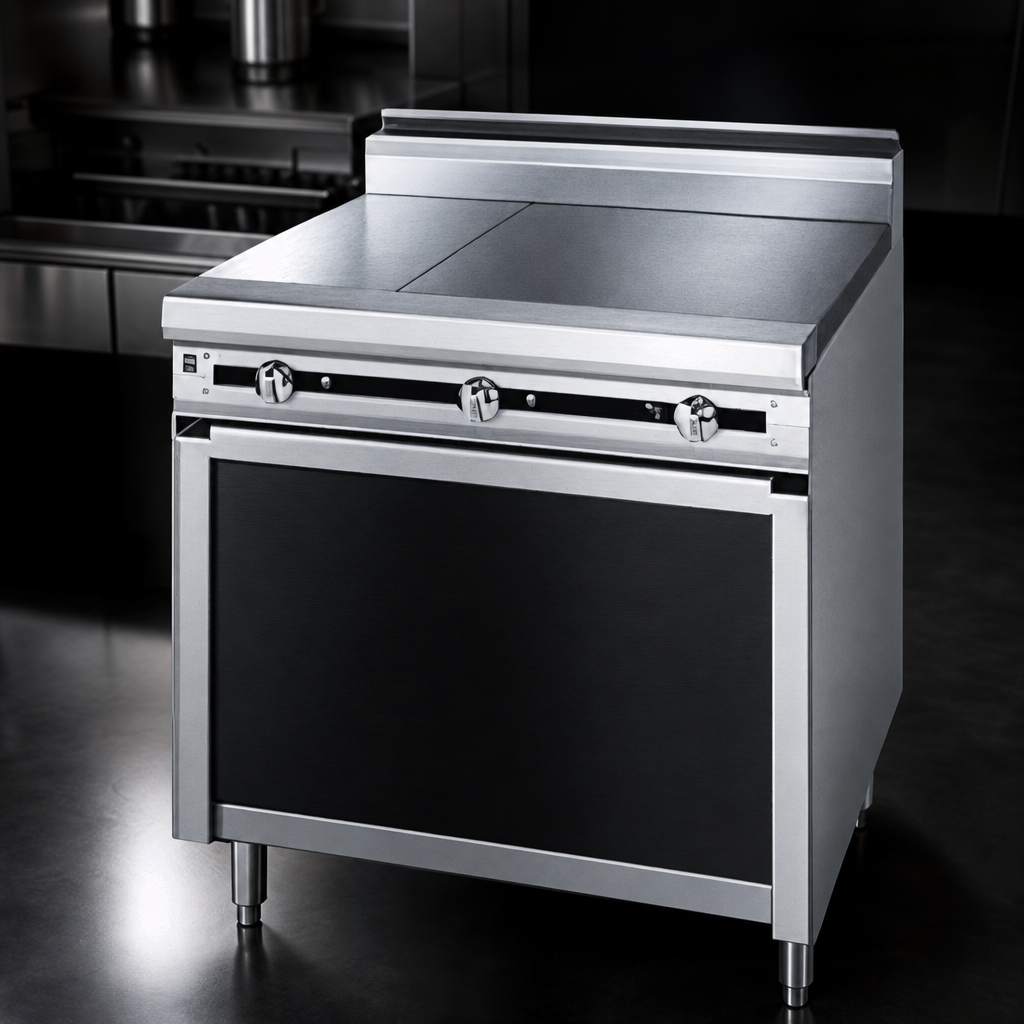

High Performance Hot Top

Features a highly polished reinforced cast iron hot top plate, heated by a 35,000 BTU/hr burner for consistent and powerful heat across the cooking surface.

Infinite Control

Each burner section is controlled by infinite gas valves, allowing precise temperature management for various cooking needs.

Stainless Steel Cabinet Base

Includes a stainless steel cabinet interior and exterior, providing valuable storage space and contributing to the unit's overall robust and sanitary design.

Adjustable Legs

Equipped with 6" stainless steel adjustable legs to ensure stable placement and easy leveling on uneven floors, also facilitating under-unit cleaning.

Integrated Plate Shelf

A 6" stainless steel plate shelf is included, offering convenient temporary holding space for plates or ingredients.

Flexible Gas Connection

Designed with variable size multi-point gas connections, including a 1-1/4" front manifold and options for 1" or 3/4" capped rear manifold connections, for versatile installation.

Type Heavy Duty Range
Style Hot Top Range
Installation Type Floor Model (With Adjustable Legs)
Cooking Surface Width 12 Inches
Cooking Surface Depth 38 Inches
Compartments 1
BTU 35,000 BTU
Controls Infinite
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. Minimum
Material Stainless Steel, Cast Iron
Interior Finish Stainless Steel
Finish Stainless Steel
Shipping Width 12 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 200 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-1HT-A is a gas range that can operate on either Natural Gas or Propane. Please specify the required gas type when ordering.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is needed, with a maximum of 14 inches W.C. for both.
This range features a highly polished reinforced cast iron hot top plate, designed for excellent heat retention and even heat distribution.
Yes, a 3/4" gas pressure regulator is supplied with the unit and must be installed for proper operation.
The range comes with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection. The supplied 3/4" gas regulator typically connects to the gas line.
Yes, the range can be used at high altitudes, but it is necessary to specify the altitude when ordering if it is above 2,000 ft. for proper adjustments.
