Jade Range (Middleby)

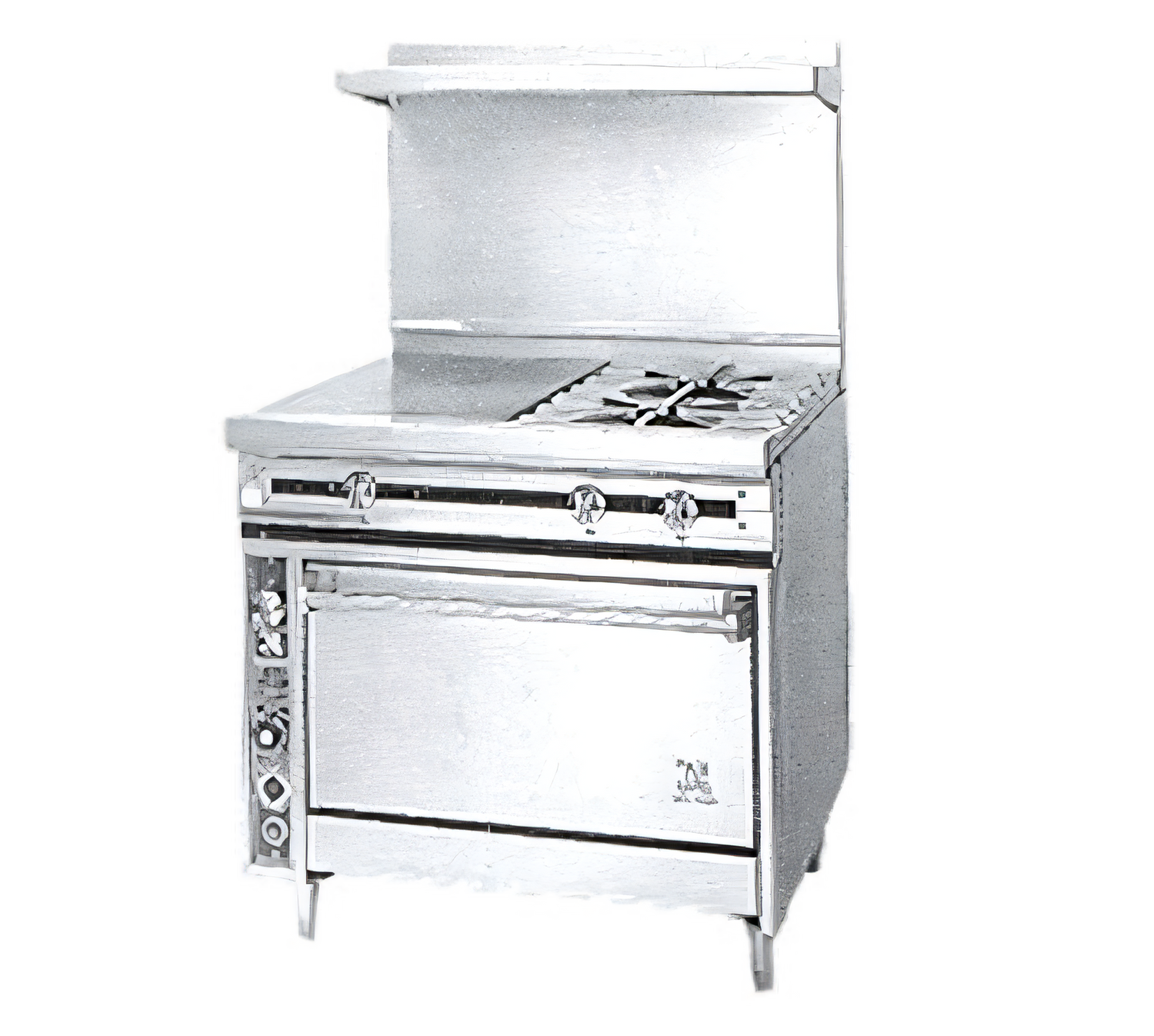

Titan JTRH-18G-2-36 36-Inch Heavy Duty Gas Range with Two 18-Inch Open Burners, 18-Inch Griddle, and Standard Oven

SKU: JTRH-18G-2-36
$15,308.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Titan JTRH-18G-2-36 36-Inch Heavy Duty Gas Range with Two 18-Inch Open Burners, 18-Inch Griddle, and Standard Oven

Full-Size, Natural Gas or Propane Convertible, Standard Depth, Manual Griddle Controls

Engineered for high-demand commercial kitchens, the Titan JTRH-18G-2-36 offers versatile cooking with powerful open burners, a large griddle, and a standard oven in a durable, heavy-duty construction.

  • Heavy-duty stainless steel construction ensures commercial durability and longevity.
  • Equipped with two powerful 18-inch open burners for diverse cooking needs.
  • Features an 18-inch griddle with a 1-inch thick, highly polished steel plate and manual controls.
  • Includes a spacious standard oven with a 35,000 BTU burner and two chrome-plated racks.
  • Total BTU output of 140,000 BTU for high-performance cooking.
  • Designed with a 6-inch plate shelf, stainless steel stub back, and 6-inch adjustable legs for convenience and stability.
  • NSF and CSAus certified, meeting stringent standards for safety and sanitation.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

735.0 lb

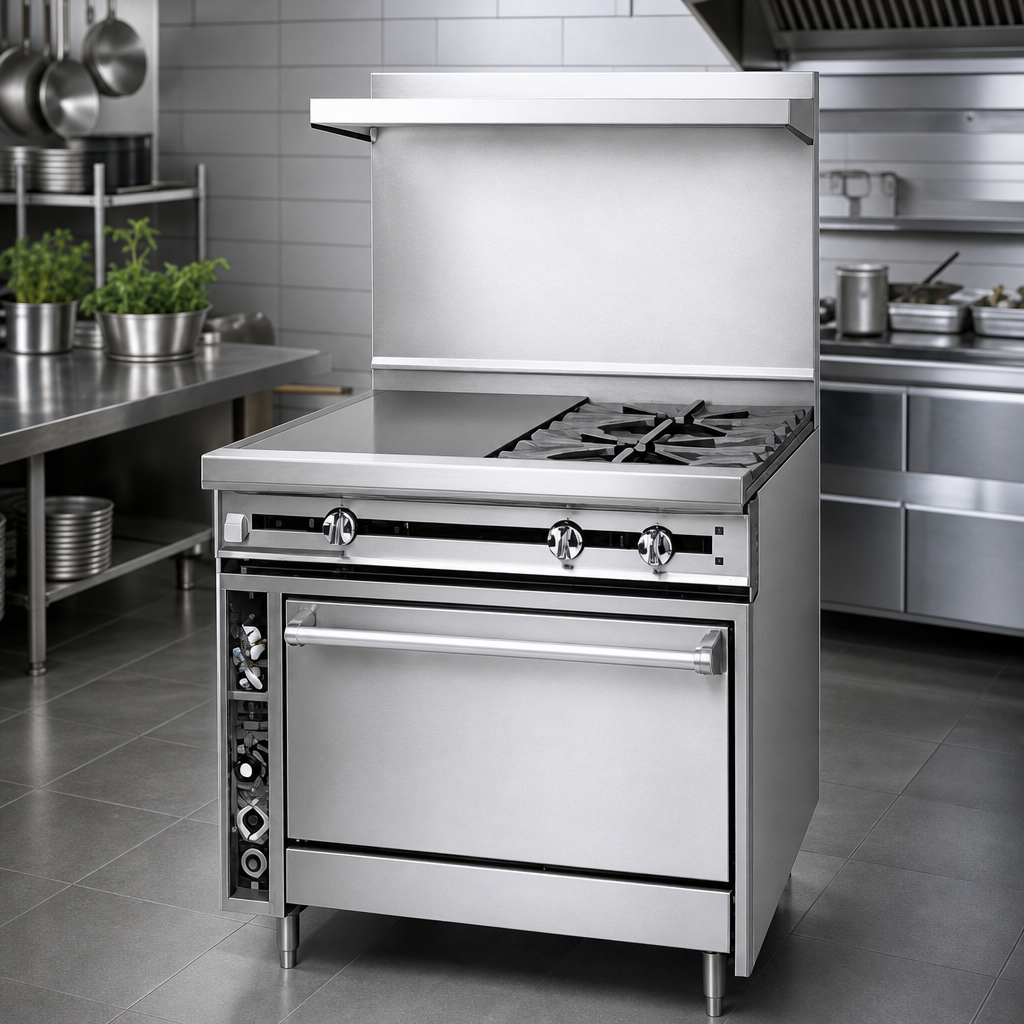

Heavy-Duty Construction

Constructed with stainless steel front, sides, stub back, and bottom, designed for the rigorous demands of commercial kitchen environments.

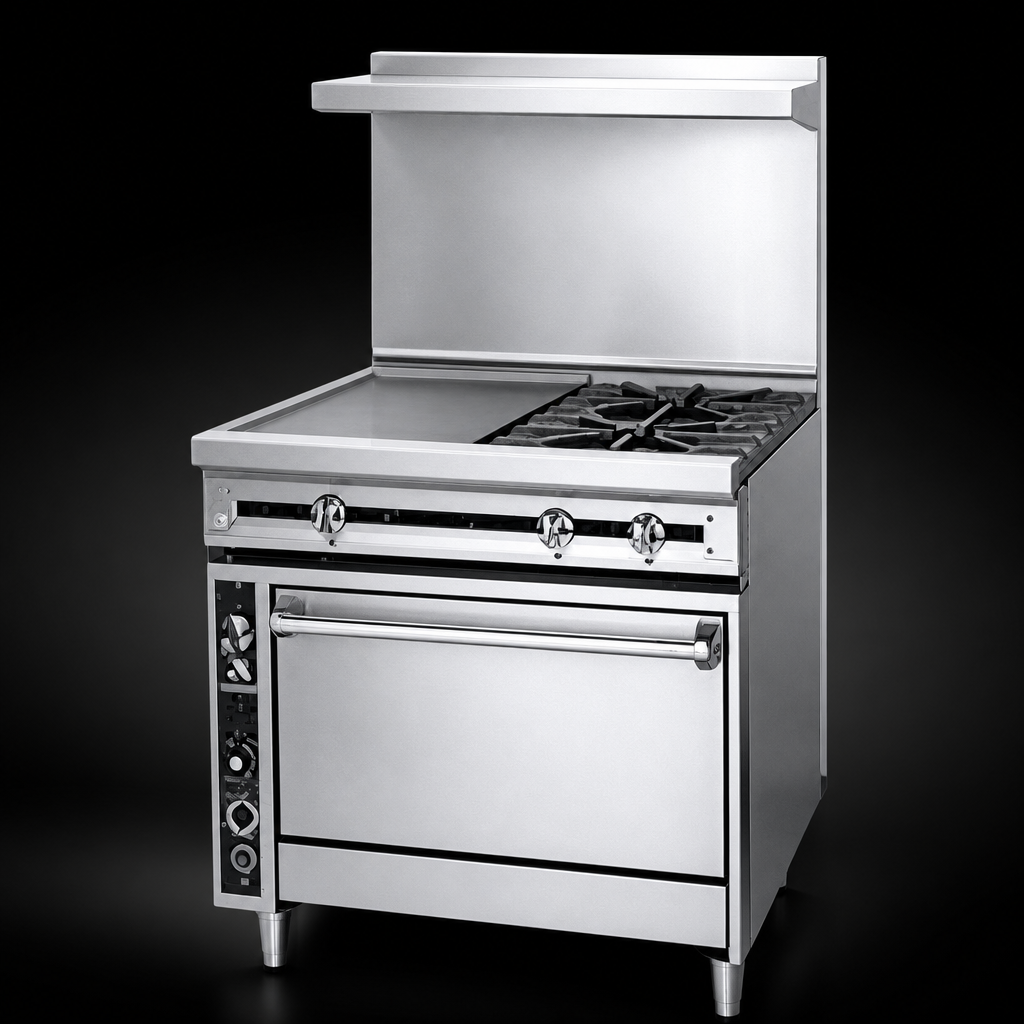

Versatile Cooktop

Features two 18-inch open burners with cast iron 35,000 BTU/hr burners and individual lift-off steel top grates for efficient, flexible cooking.

18-Inch Manual Griddle

Equipped with an 18-inch wide, 1-inch thick, highly polished steel griddle plate powered by a 35,000 BTU/hr burner with infinite manual gas valves, offering consistent heat without a thermostat.

Standard Oven Base

A conventional oven base with a 35,000 BTU burner and stainless steel lining. The oven interior measures 28-1/4" W x 14" H x 27-3/4" D, with an adjustable thermostat from 150°F to 550°F.

Removable Oven Interior

Oven sides and bottom are removable without tools for easy cleaning and maintenance.

Two Chrome-Plated Oven Racks

Supplied with two durable chrome-plated oven racks, designed with wires curled and welded around the main frame for safety and longevity.

Integrated Plate Shelf

Includes a stainless steel 6-inch plate shelf for added convenience and workspace.

Adjustable Legs

Stands on 6-inch stainless steel adjustable legs, allowing for proper leveling and cleaning underneath.

Pilot Per Burner

Each burner features one stainless steel pilot for reliable ignition.

Stainless Steel Gas Tubing

Ensures durability and longevity of gas connections throughout the unit.

Type Heavy Duty Range
Style Commercial Gas Range
Installation Type Floor Model (With 6 Inches Adjustable Legs)
Gas Type Natural Gas or Propane
BTU 140,000 BTU
Gas Connection Size 1-1/4 Inches NPT Front, 1 Inch or 3/4 Inches NPT Rear
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum, 7 Inches W.C. Maximum
Gas Inlet Pressure (Propane) 10 Inches W.C. Minimum, 14 Inches W.C. Maximum
Material Stainless Steel
Interior Finish Stainless Steel (Oven)
Controls Manual (Burners, Griddle), Thermostatic (Oven)
Oven Temperature Range 150°F to 550°F
Pan Capacity 2 Oven Racks
Cooking Surface Width 18 Inches (Griddle)
Cooking Surface Depth Approximately 20.5 Inches (Griddle) - based on diagram
Plate Thickness 1 Inch (Griddle)
Compartments 1 (Oven)
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 735 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Frequently Asked Questions

This range features a standard oven base with a 35,000 BTU burner. It has a stainless steel lining and an adjustable thermostat ranging from 150°F to 550°F.
No, the 18-inch griddle on this model features manual controls and does not have a temperature thermostat. It is controlled by infinite gas valves.
The interior dimensions of the standard oven are 28-1/4 inches wide x 14 inches high x 27-3/4 inches deep.
Yes, this range can be supplied for use with either Natural Gas or Propane. It is important to specify the required gas type when ordering.
For Natural Gas, the required operating pressure is 5 inches W.C. minimum and 7 inches W.C. maximum. For Propane Gas, it's 10 inches W.C. minimum and 14 inches W.C. maximum. The unit must be connected with the supplied gas appliance regulator.
