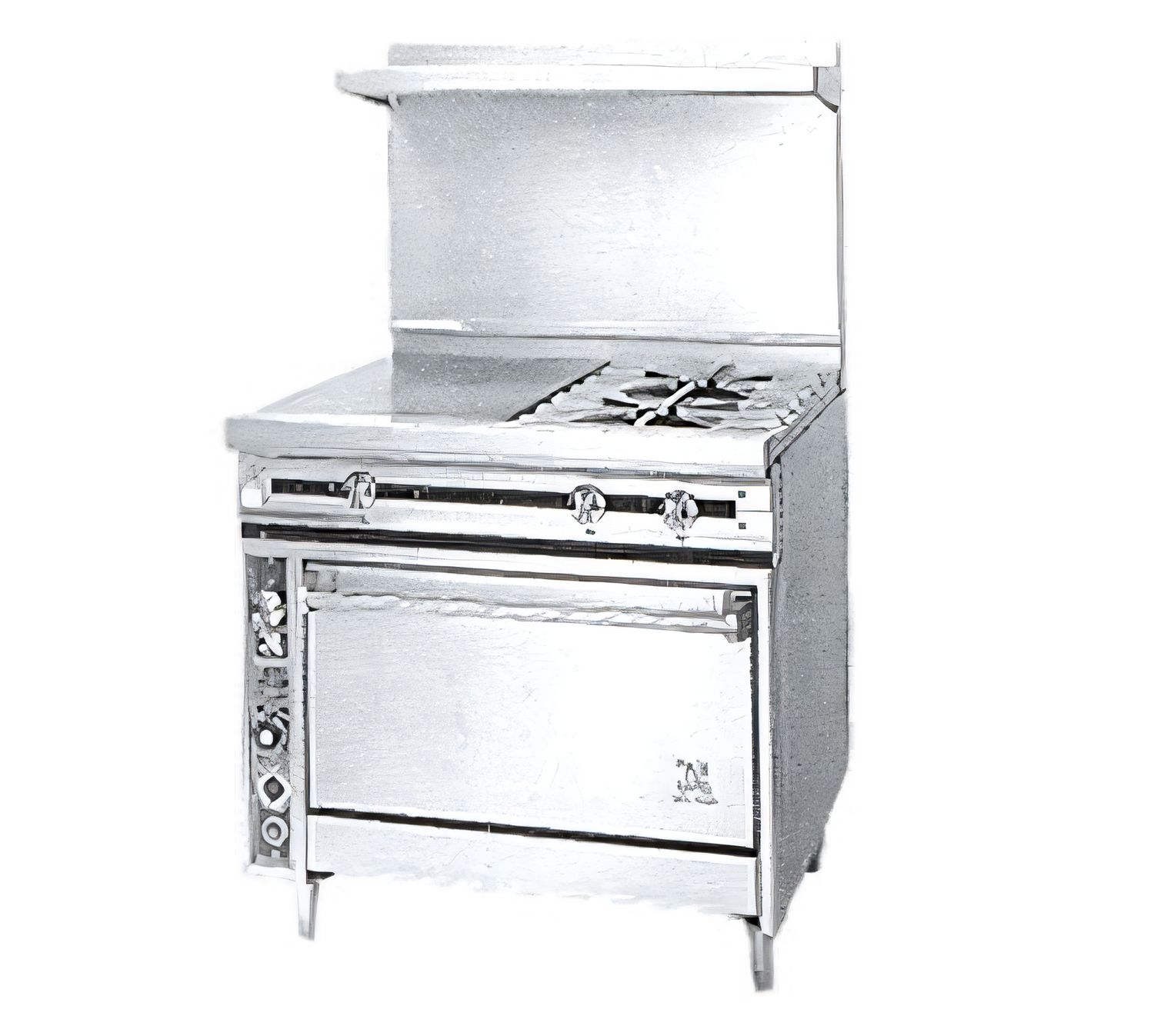

Titan JTRH-18G-1HT-36C 36" Heavy Duty Gas Range with 18" Griddle, 18" Hot Top, and Convection Oven
Titan JTRH-18G-1HT-36C 36" Heavy Duty Gas Range with 18" Griddle, 18" Hot Top, and Convection Oven
Full-Size, Natural Gas or Propane, Floor Model
Designed for demanding commercial kitchens, this heavy-duty Titan gas range offers exceptional versatility with an 18" manual griddle, an 18" hot top, and a powerful convection oven.
- Versatile 36" range features an 18" manual griddle and an 18" hot top for diverse cooking needs.
- Equipped with a robust convection oven base, ideal for efficient baking and roasting.
- Constructed with durable stainless steel for the front, sides, stub back, and bottom for lasting performance.
- Includes two chrome plated oven racks, providing flexible internal capacity for full-size pans.
- Features adjustable 6" stainless steel legs for stable and level installation.
- Offers a variable size multi-point gas connection for adaptable utility hook-ups.

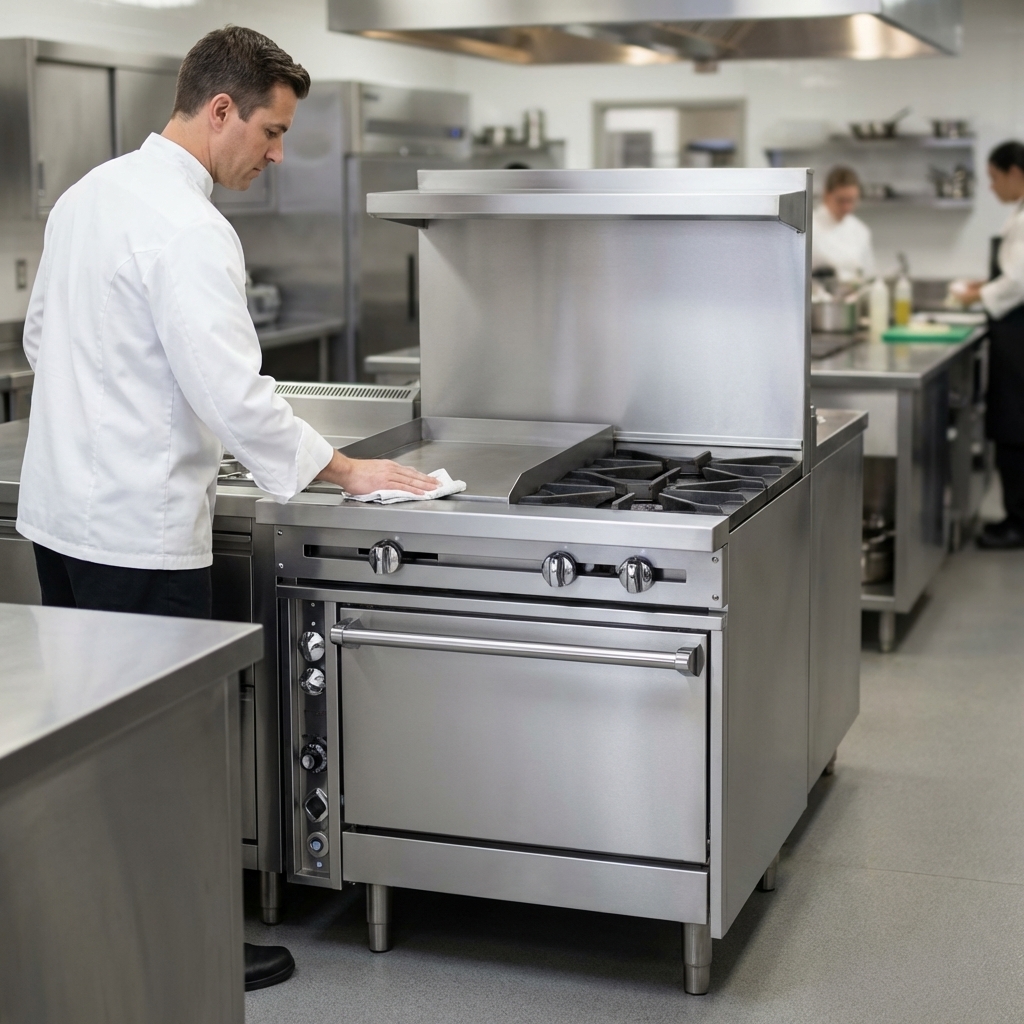

Heavy Duty Construction
Built with stainless steel front, sides, stub back, and bottom for exceptional durability in commercial environments. Features a stainless steel 6" plate shelf.

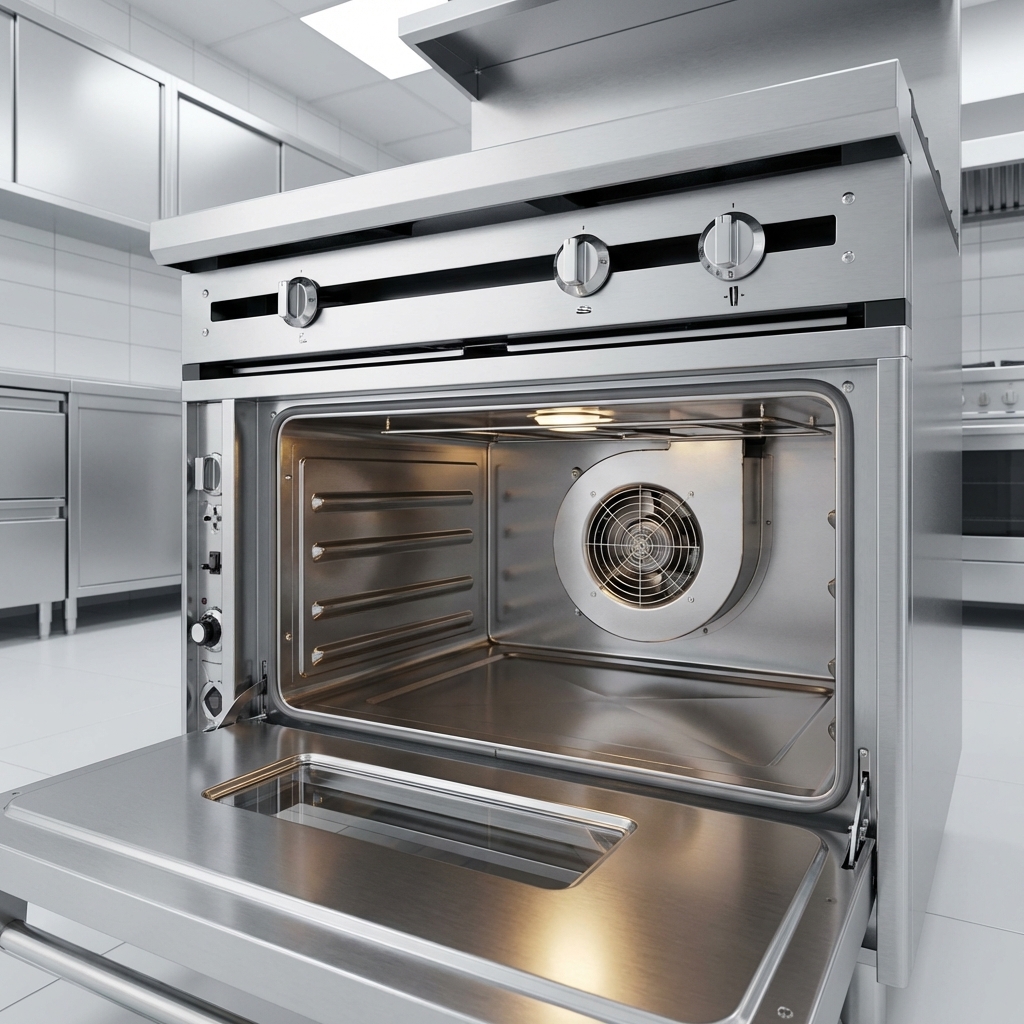

Convection Oven Base
A 30,000 BTU convection oven with a 14 gauge stainless steel interior, 1/3 HP 115/60/1 blower motor, and a thermostatic control adjustable from 150°F to 550°F. Includes an electronic spark ignitor and a three-position fan switch.

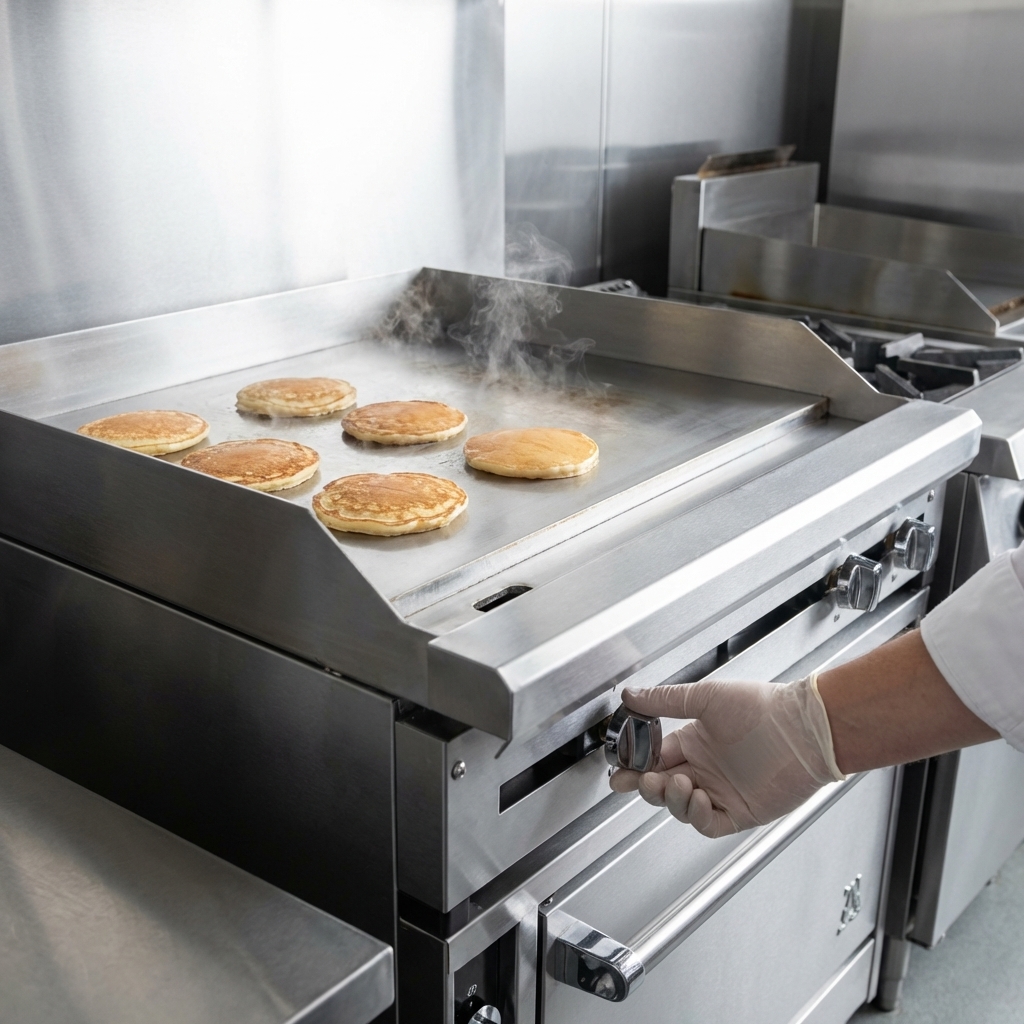

18" Manual Griddle
Features a high-polished 1" steel plate and a 35,000 BTU burner with infinite gas valves for precise manual temperature control.
18" Hot Top
Equipped with a cast iron even heat top and one 35,000 BTU/hr burner, ensuring uniform heat distribution.
Removable Oven Interior
The convection oven's stainless steel bottom and sides are removable without tools for easy cleaning and maintenance.
Two Chrome Plated Oven Racks
Durable oven racks with curled and welded wires, designed for easy removal and accommodating full-size sheet pans.
Adjustable Legs
Supplied with 6" adjustable stainless steel legs for leveling and stability.
Flexible Gas Connections
Ranges are supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection for versatile installation options.
Specifications
| Type | Heavy Duty Range |
|---|---|
| Style | Convection Oven Base |
| Installation Type | Floor Model (With 6" Adjustable Legs) |
| Material | Stainless Steel |
| Interior Finish | 14 Gauge Stainless Steel (Convection Oven) |
| Controls | Manual (Griddle), Thermostatic (Oven) |
| Temperature Range | 150°F to 550°F (Convection Oven) |
| Cooking Surface Width | 36 Inches |
| Pan Capacity | 2 Full-Size Pans |
| Compartments | 1 |
| BTU | 100,000 BTU |
| Gas Type | Natural Gas or Propane (Specify Type) |
| Gas Connection Size | 1-1/4 Inches (Front), 1 Inch or 3/4 Inch (Rear) |
| Gas Inlet Pressure | 5-7 Inches W.C. (Natural Gas), 10-14 Inches W.C. (Propane Gas) |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 4.4 Amps |
| Cord Length | 6 Feet |
| Plug Type | 3-Prong Plug |
| Shipping Width | 36 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 780 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | USA |
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:
780.0 lbCertifications & Compliance
Warranty & Protection
Warranty information not explicitly provided in the documentation.
