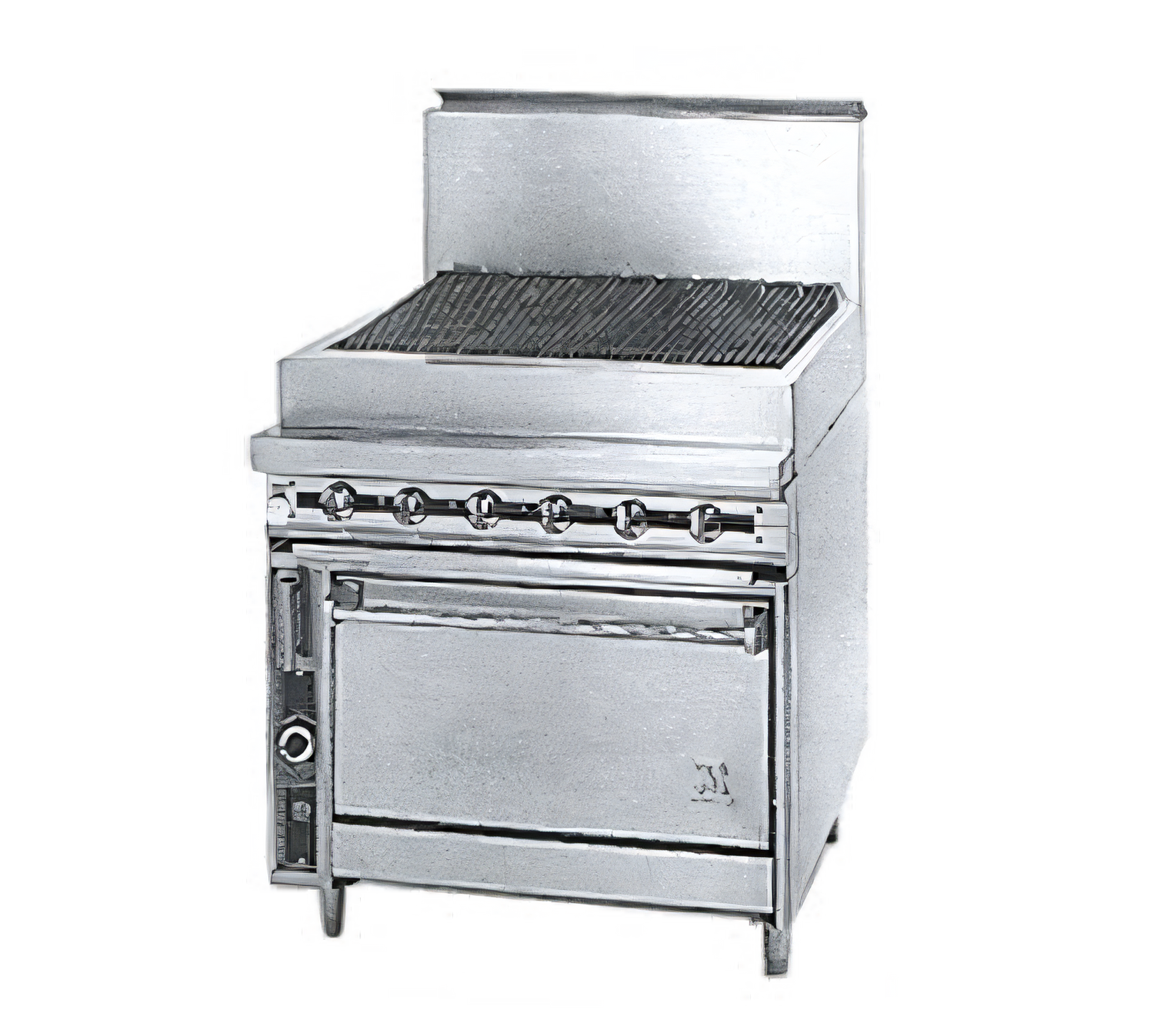

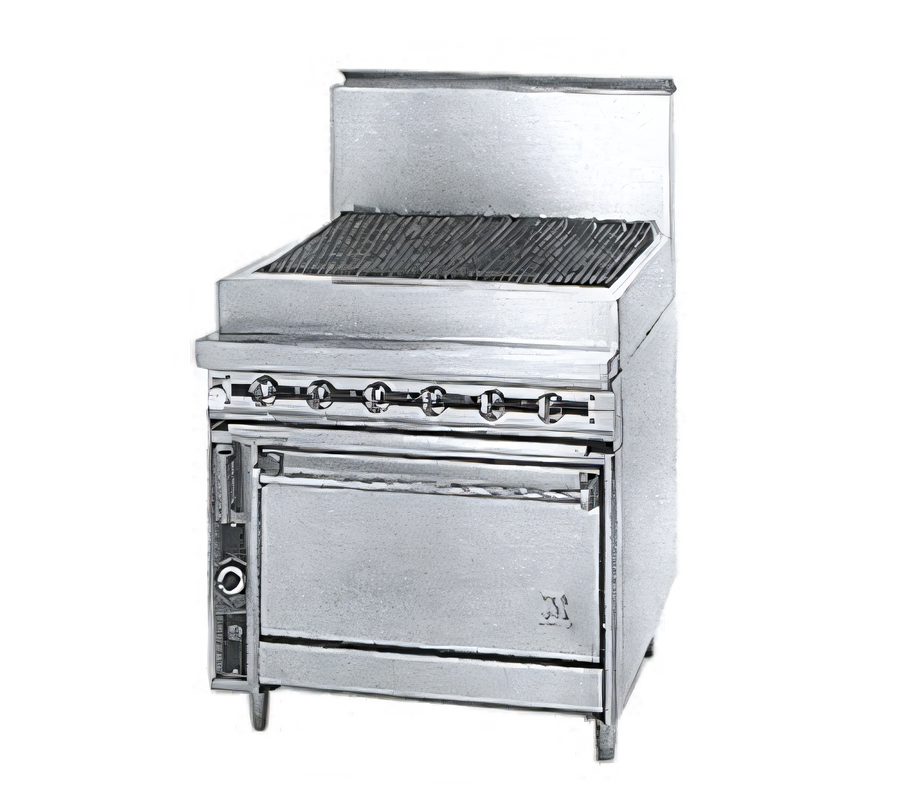

Jade Titan JTRH-18B 18" Heavy Duty Gas Charbroiler with Cabinet Base

SKU: JTRH-18B
$10,244.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Titan JTRH-18B 18" Heavy Duty Gas Charbroiler with Cabinet Base

Range Match, Natural Gas or Propane Ready

Designed for demanding commercial kitchens, the Jade Titan JTRH-18B delivers powerful and precise charbroiling performance in a compact, durable unit.

  • Heavy-duty 14 gauge all-welded body construction ensures lasting durability for commercial use.
  • Equipped with three 15,000 BTU/hr burners for a total of 45,000 BTU, providing robust charbroiling power.
  • Features infinite manual controls for each burner, allowing precise temperature management.
  • Includes heavy-duty cast iron radiants and top grates for even heat distribution and authentic charbroil marks.
  • Integrated cabinet base offers convenient storage and a stable floor-standing installation.
  • Constructed with a stainless steel front, top, sides, and interior for easy cleaning and a professional appearance.

Overall Dimensions:

18.0"W x 38.0"D x 36.5"H

Product Weight:

300.0 lb

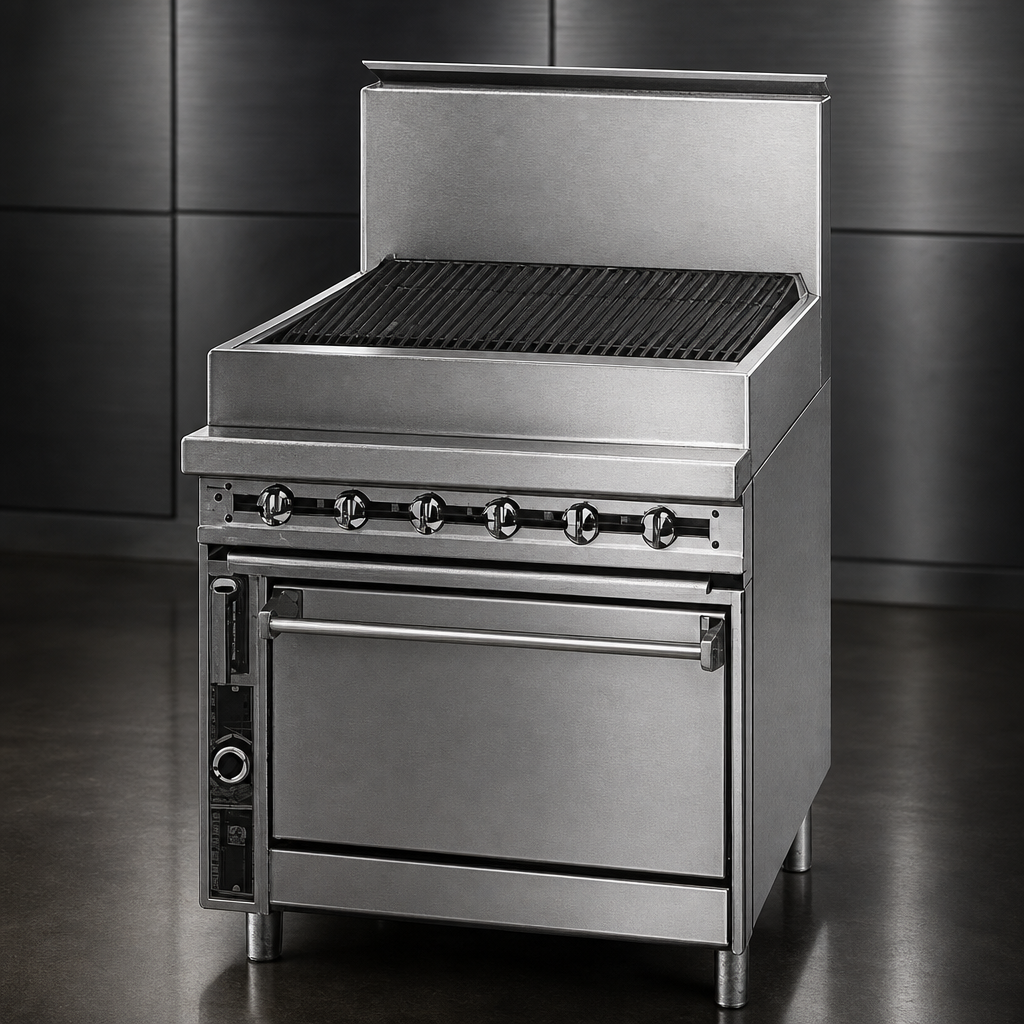

Robust Construction

Built with 14 gauge all-welded body construction and a 12 gauge all-welded firebox for exceptional strength and longevity in a commercial environment.

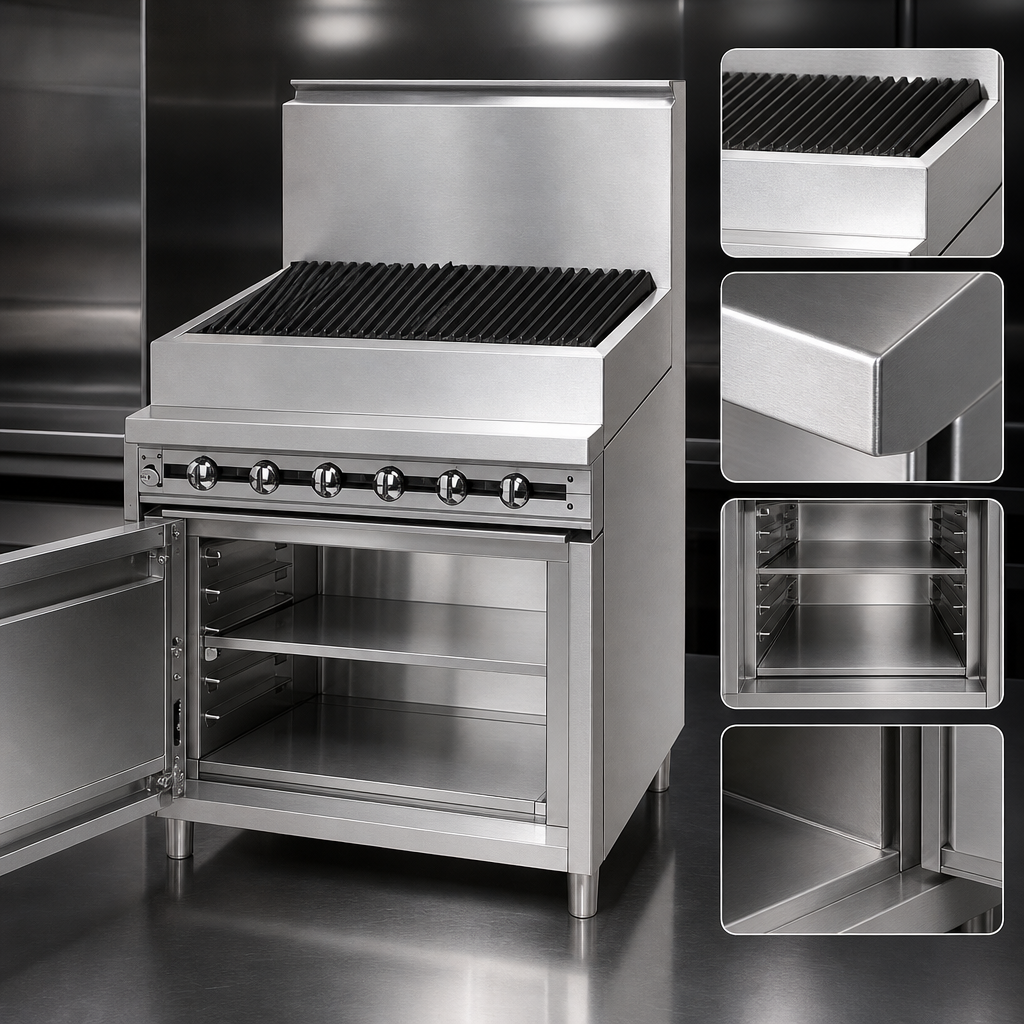

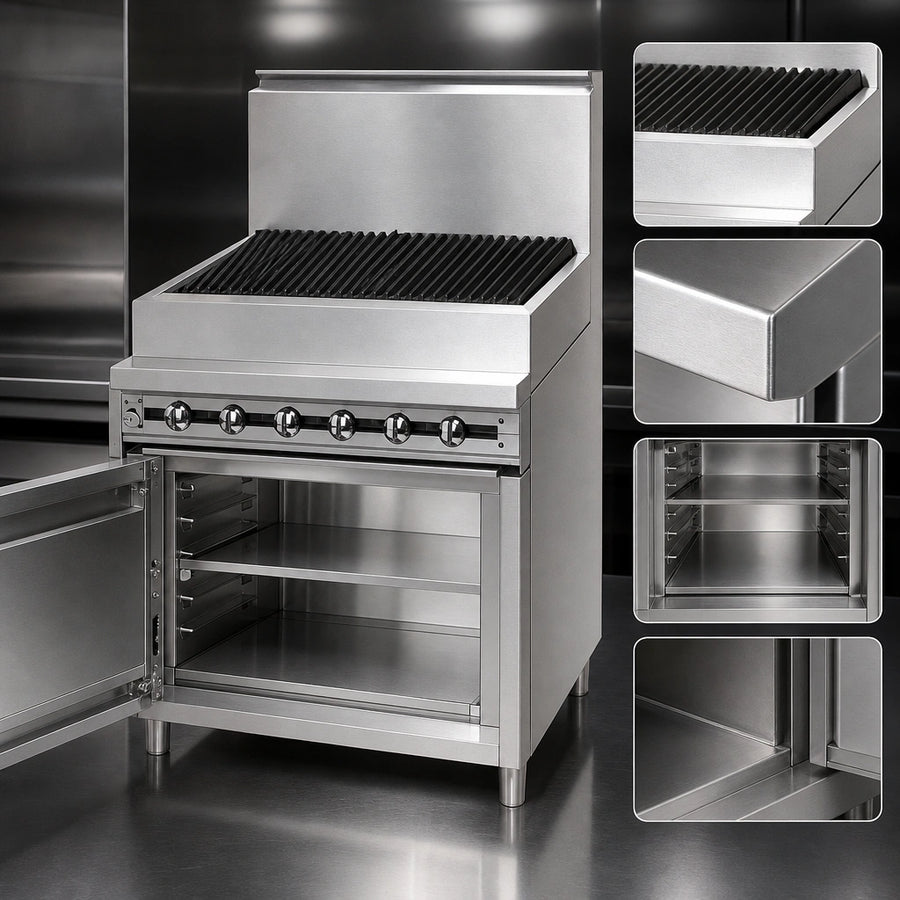

Stainless Steel Exterior and Interior

Features a stainless steel front, top, sides, stub back, bottom, and cabinet interior and exterior, providing durability, corrosion resistance, and ease of cleaning.

Powerful Charbroiling Performance

Equipped with one 15,000 BTU/hr burner for every 6 inches of broiler, totaling 45,000 BTU for the 18" model, ensuring high-efficiency cooking.

Precision Heat Control

Each burner features infinite control manual gas valves, allowing operators to precisely adjust heat levels for different food items.

Heavy-Duty Cast Iron Components

Includes heavy-duty cast iron burner radiants and top grates for superior heat retention, even cooking, and distinct charbroil marks.

Integrated Drip Pans

Two separate 14 gauge steel drip pans are provided to effectively control flare-ups and collect grease, simplifying cleanup.

Convenient Plate Shelf

A 6" stainless steel plate shelf is included, offering a practical space for plating or holding finished dishes.

Adjustable Legs

Stands on 6" stainless steel adjustable legs, allowing for proper leveling and optimal working height.

Versatile Gas Connection

Features variable size multi-point gas connections with a 1-1/4" front manifold and a 1" or 3/4" capped rear manifold, ensuring flexible installation.

Type Charbroiler
Style Range Match
Installation Type Floor Model (With Cabinet Base)
BTU 45,000 BTU
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C.
Gas Inlet Pressure (Propane Gas) 10 Inches W.C.
Controls Infinite Manual
Material Stainless Steel
Interior Finish Stainless Steel
Cooking Surface Width 18 Inches
Shipping Width 18 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 300 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's Warranty

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-18B charbroiler is designed to operate with either Natural Gas or Propane. Please specify the type of gas when ordering to ensure the correct setup.
For Natural Gas, a minimum operating pressure of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is needed, with a maximum of 14 inches W.C. for both types. The unit must be connected with the supplied 3/4" gas appliance regulator.
Yes, but you must specify your altitude when ordering if it is above 2,000 feet, as adjustments may be required for proper operation.
The charbroiler features 14 gauge all-welded body construction with a stainless steel front, top, sides, stub back, and cabinet interior and exterior. It also includes heavy-duty cast iron burner radiants and top grates.
Available accessories include 6" casters (with two front locking), 1" or 1-1/4" gas pressure regulators, stainless steel doors, various high riser options (standard, double, tubular), and a fish grate with round bars.
