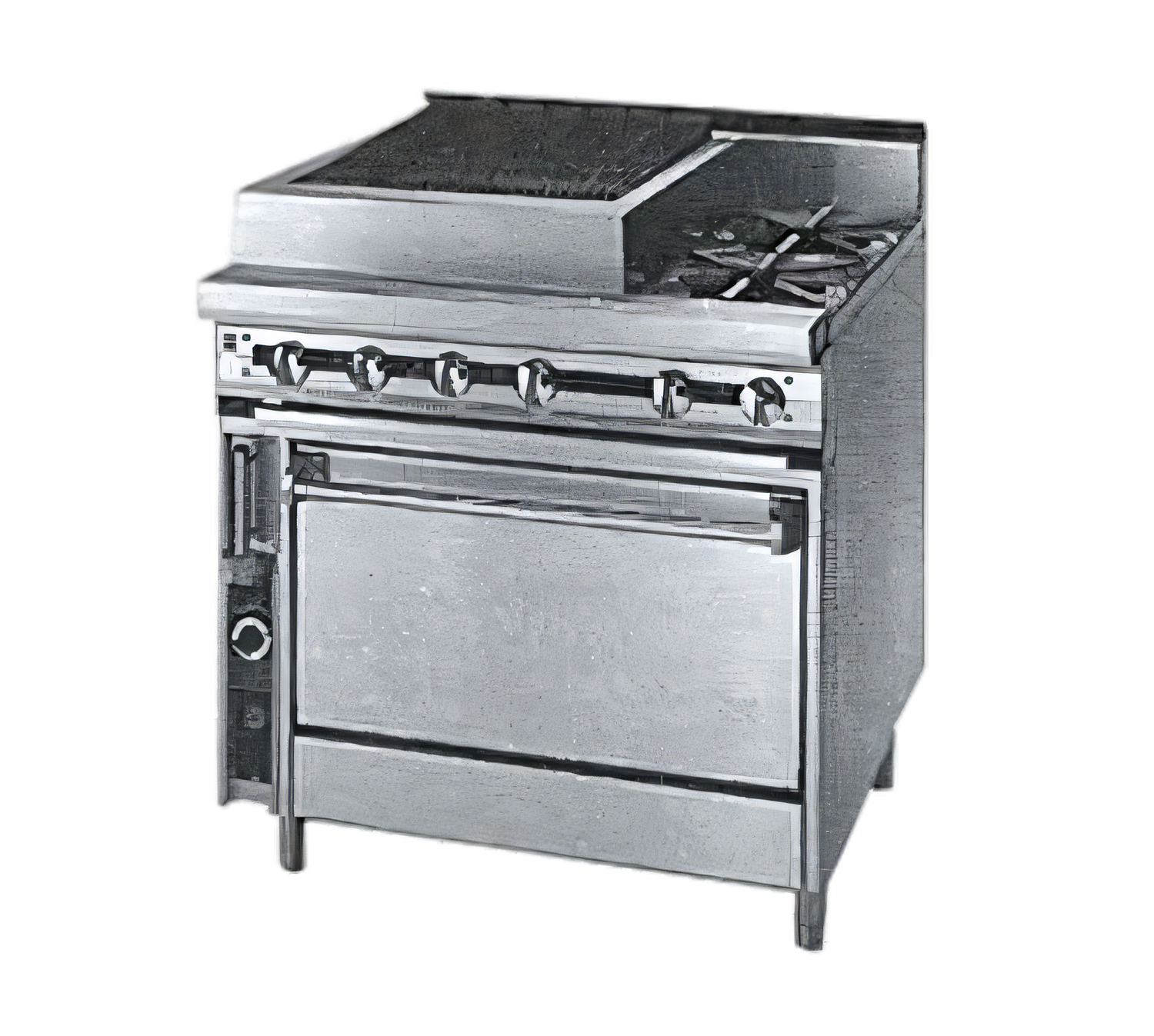

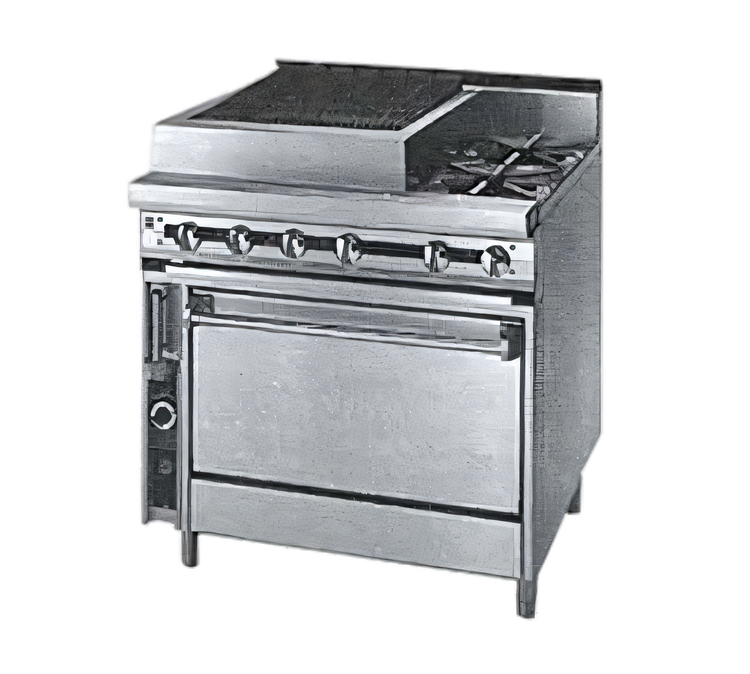

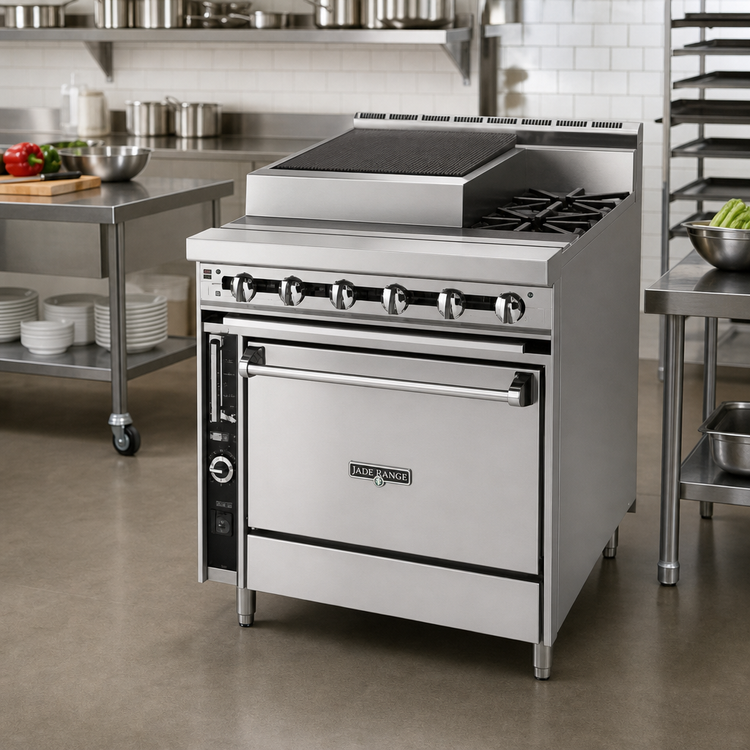

Jade Range Titan JTRH-18B-1HT-36C 36-Inch Gas Heavy Duty Range with 18-Inch Charbroiler, 18-Inch Hot Top, and Convection Oven
Jade Range Titan JTRH-18B-1HT-36C 36-Inch Gas Heavy Duty Range with 18-Inch Charbroiler, 18-Inch Hot Top, and Convection Oven
Full-Size, Natural Gas or Propane, Standard Depth
Experience powerful and versatile cooking with the Jade Range Titan heavy-duty gas range, featuring a built-in charbroiler, hot top, and a high-performance convection oven.
- Heavy-duty gas range combining charbroiling, hot top cooking, and convection baking in one robust unit.
- Equipped with an 18-inch charbroiler featuring individually controlled 15,000 BTU/hr burners for precise heat.
- Features an 18-inch hot top with a 35,000 BTU/hr burner, ensuring even heat distribution for diverse cooking tasks.
- Includes a convection oven base with a 35,000 BTU/hr burner and a 1/3 HP blower motor for efficient and consistent baking.
- Constructed with durable 14 gauge all-welded stainless steel for a long lifespan in demanding commercial kitchens.
- Designed with two separate 14 gauge steel drip pans to effectively control flare-ups and simplify cleaning.
- Offers manual controls for top sections and a thermostat for the oven, allowing for precise temperature management.
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:

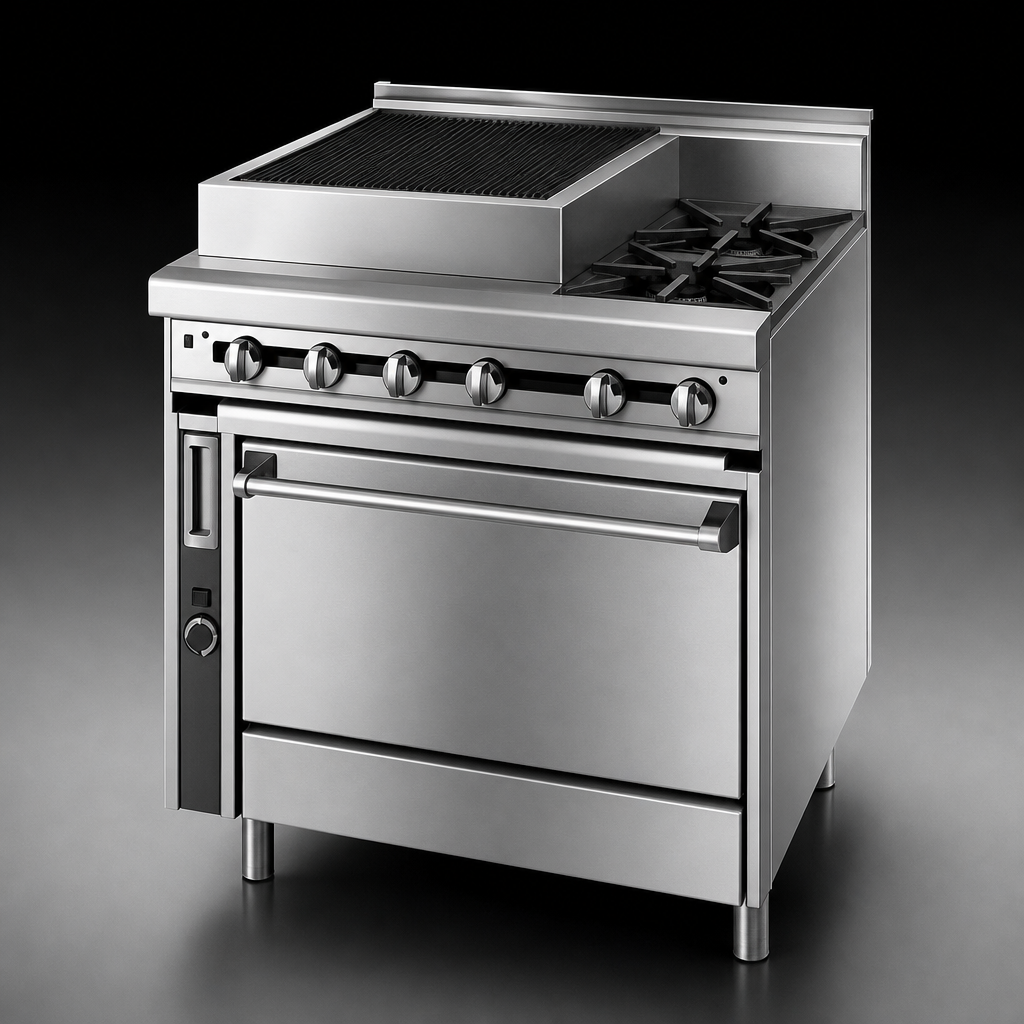

670.0 lbHeavy Duty Construction
Furnished with 14 gauge all-welded body construction and stainless steel front, top, sides, stub back, and tray bed for exceptional durability.
18-Inch Charbroiler
Features an 18-inch charbroiler section with one individually controlled 15,000 BTU/hr. burner for every 6 inches, alongside heavy-duty cast iron top grates with built-in grease guides to reduce flaring.
18-Inch Hot Top
Equipped with an 18-inch hot top section featuring a cast iron even heat top and one 35,000 BTU/hr. burner.
Convection Oven Base
Includes a convection oven base with a 14 gauge stainless steel interior, two oven racks, and a powerful 35,000 BTU burner. The oven thermostat adjusts from 150°F to 550°F.
Convection Blower Motor
The convection oven is powered by a 1/3 HP 115/60/1 blower motor for optimal air circulation, along with an electronic spark ignitor and a three-position fan switch for normal operation, quick cool down, or off.
Precision Gas Control
Offers infinite control manual gas valves at each burner for precise heat management, along with heavy-duty cast iron burner radiants and stainless steel gas tubing throughout.
Safety and Maintenance
Equipped with two separate 14 gauge steel drip pans to control flare-ups, a 12 gauge all-welded firebox construction, and stainless steel pilot tips for reliability.
Adjustable Legs
Comes with 6-inch stainless steel adjustable legs for stable and level installation.
Plate Shelf
Includes a stainless steel 6-inch plate shelf for added convenience.
Certifications & Compliance
Warranty & Protection
Contact manufacturer for details
