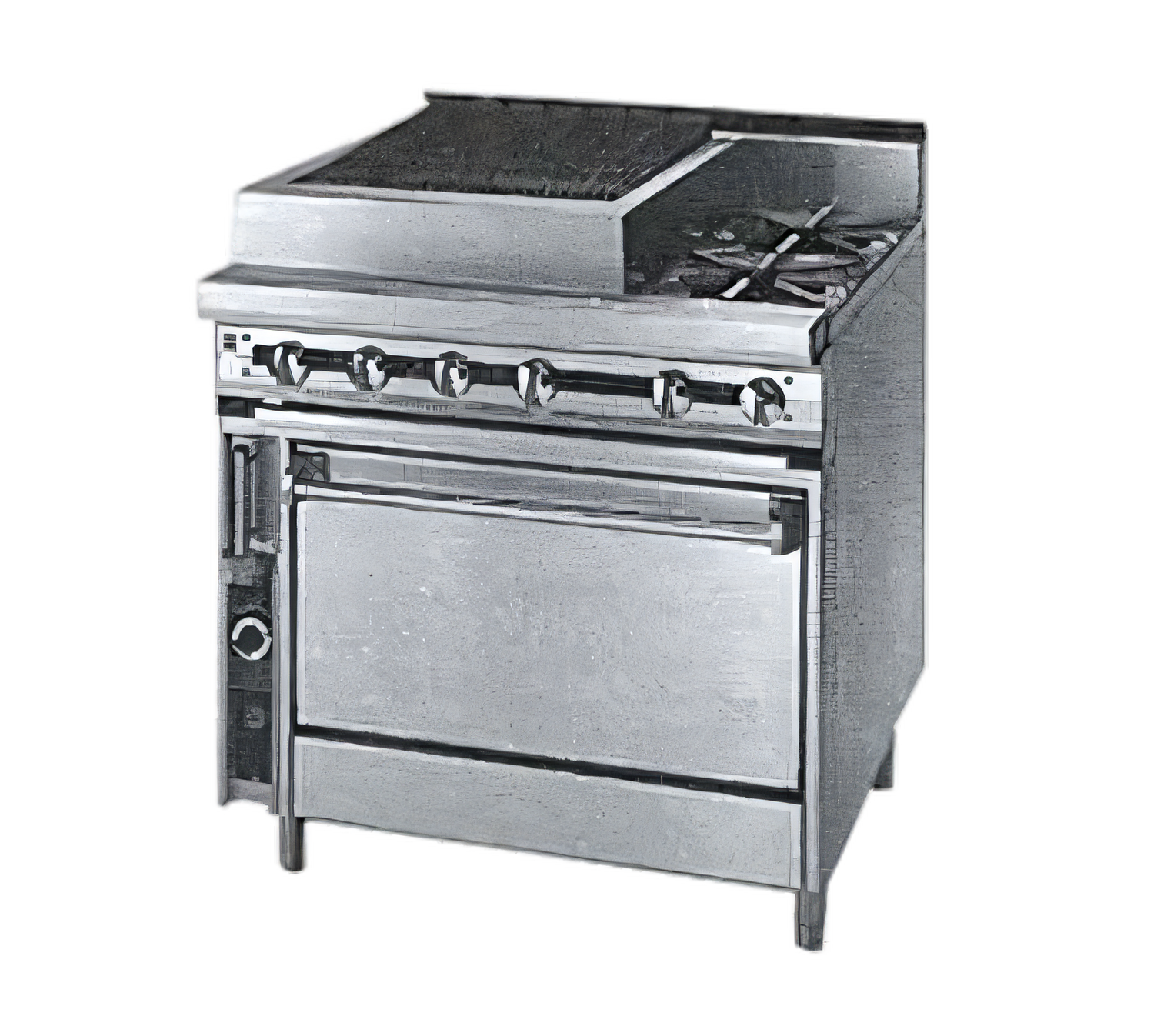

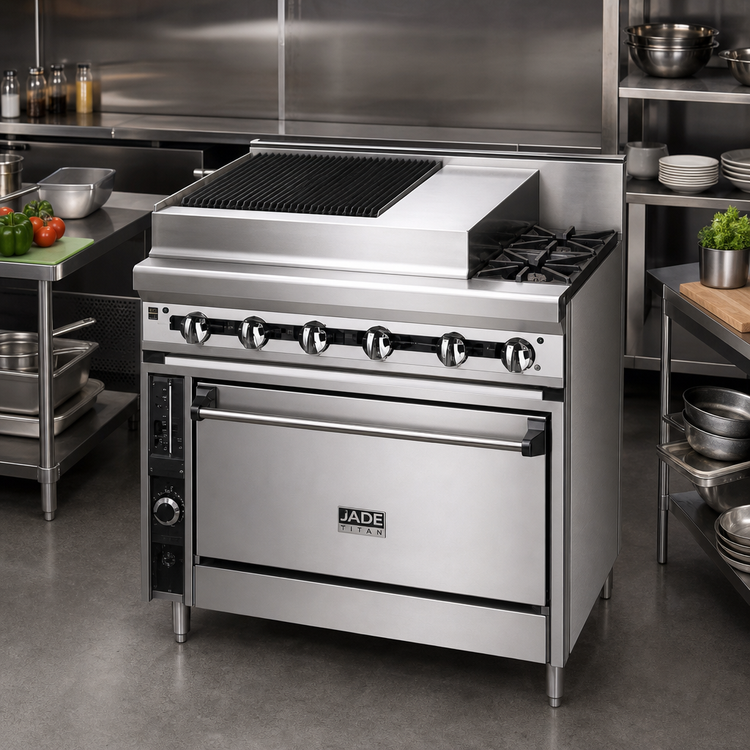

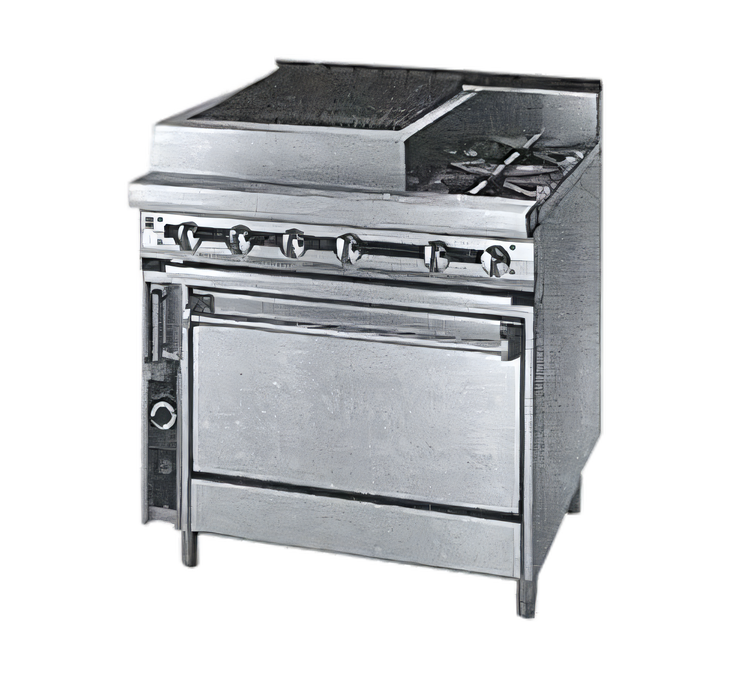

Jade Titan Heavy Duty 36" Gas Range with 18" Charbroiler, 18" Work Top, and Convection Oven

Full-Size, Natural Gas or Propane, Standard Depth

Experience superior cooking versatility and robust performance with the Jade Titan heavy-duty gas range, featuring a powerful charbroiler, convenient work top, and efficient convection oven.

  • Equipped with an 18-inch charbroiler for perfect searing and grilling.
  • Integrated 18-inch work top provides additional prep space.
  • Features a high-performance convection oven with a 35,000 BTU burner and two chrome plated racks.
  • Constructed with durable 14 gauge all-welded stainless steel for long-lasting commercial use.
  • Manual gas valves ensure precise heat control for each cooking section.
  • Designed with heavy-duty cast iron components for superior heat distribution and retention.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

580.0 lb

Heavy Duty Construction

Constructed with a 14 gauge all welded body, stainless steel front, top, sides, high riser, and tray bed for exceptional durability and longevity in demanding commercial kitchens.

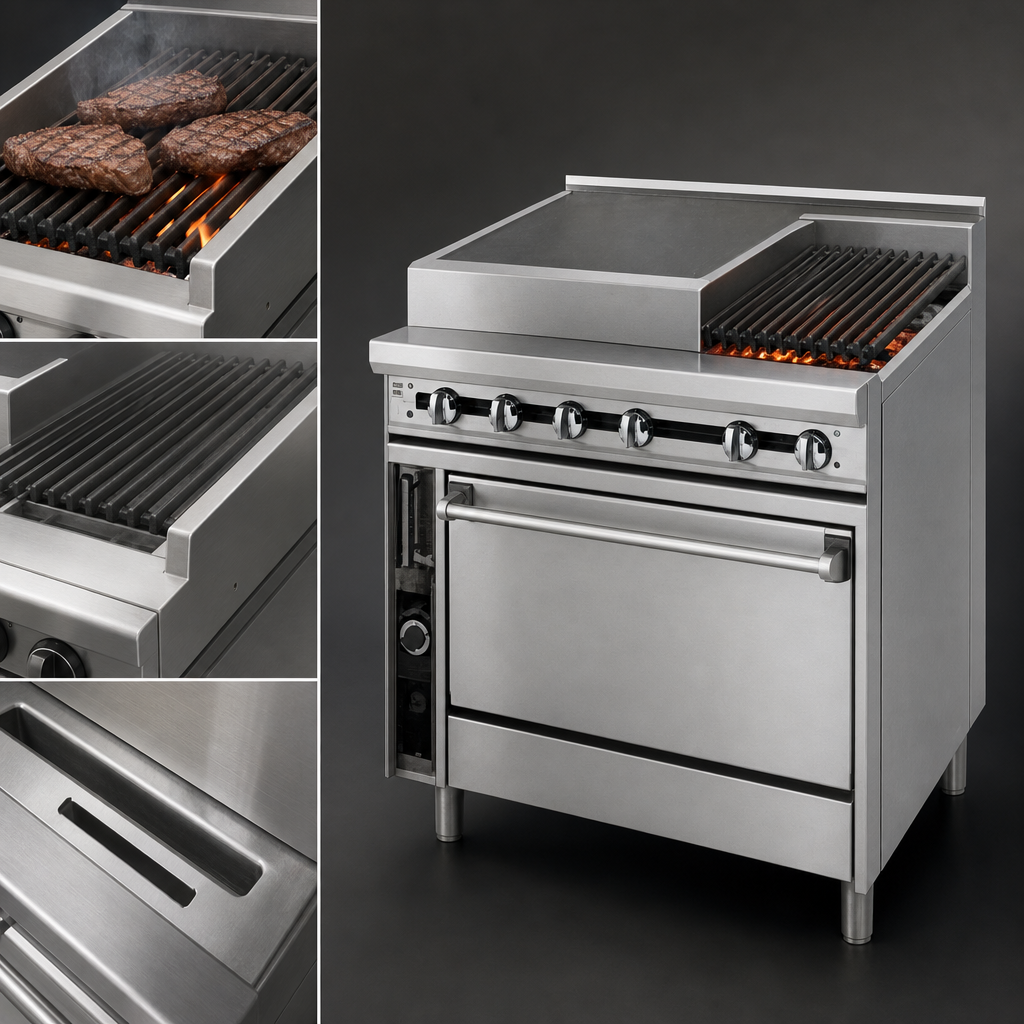

Integrated 18" Charbroiler

Features a powerful 18-inch charbroiler with one 15,000 BTU/hr burner for every 6 inches, equipped with heavy-duty cast iron top grates and built-in grease guides to channel away excess fat and reduce flaring.

Convection Oven Base

Includes a convection oven base with a 14 gauge stainless steel interior, two oven racks, and a 35,000 BTU burner. The oven interior measures 28" W x 13-3/4" H x 24-1/2" D.

Precise Temperature Control

Convection oven features a thermostat that adjusts from 150°F to 550°F, while infinite control manual gas valves provide precise heat management for each charbroiler burner.

Efficient Blower Motor

The convection oven is equipped with a 1/3 HP 115V/60/1 blower motor for uniform heat distribution and efficient cooking, along with a three-position fan switch (on for normal, on for quick cool down, off).

Easy Maintenance

Includes two separate 14 gauge steel drip pans to control flare-ups and simplify cleaning, complemented by a stainless steel removable oven interior.

Adjustable Legs

Comes with 6-inch adjustable stainless steel legs for leveling and stability on uneven surfaces.

Plate Shelf

A 6-inch stainless steel plate shelf provides convenient storage or warming space.

Type Heavy Duty Range
Style Charbroiler Combination Range
Installation Type Floor Model (With 6" Adjustable Legs)
Width 36 Inches
Depth 38 Inches
Height 36.5 Inches
Weight 580 lb.
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 580 lb.
BTU 75,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4" Front, 1" or 3/4" Rear
Gas Inlet Pressure 5" W.C. (Natural Gas), 10" W.C. (Propane)
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.0 Amps
Horsepower 1/3 HP
Cord Length 6 Feet
Capacity 2 Racks (Convection Oven)
Controls Manual Gas Valves, Thermostat (150-550°F), Electronic Spark Ignitor, 3-Position Fan Switch
Temperature Range 150°F to 550°F (Convection Oven)
Interior Finish 14 Gauge Stainless Steel (Convection Oven)
Exterior Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is equipped with a convection oven base, featuring a 14 gauge stainless steel interior, two oven racks, and a thermostat adjustable from 150°F to 550°F. It has a 35,000 BTU burner and a 1/3 HP blower motor.
The range requires a Natural Gas connection with a minimum operating pressure of 5" W.C. or Propane Gas with a minimum operating pressure of 10" W.C. It is supplied with a 3/4" gas pressure regulator, and a 1-1/4" front manifold connection with an option for 1" or 3/4" rear connection.
The convection oven requires a 115V, 60Hz, 1-phase electrical supply, drawing 4.0 amps. It comes with a 6-foot cord and a 3-prong plug, and features an electronic spark ignitor for the standing pilot.
No, the charbroiler section on this combination range must be located on the left side of the unit, as specified by the manufacturer.
The convection oven interior dimensions are 28 inches wide by 13-3/4 inches high by 24-1/2 inches deep. It is supplied with two chrome plated oven racks.
