Jade Range (Middleby)

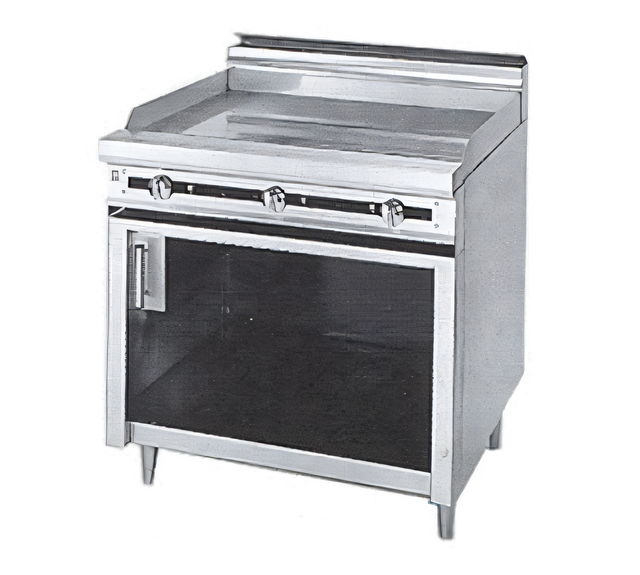

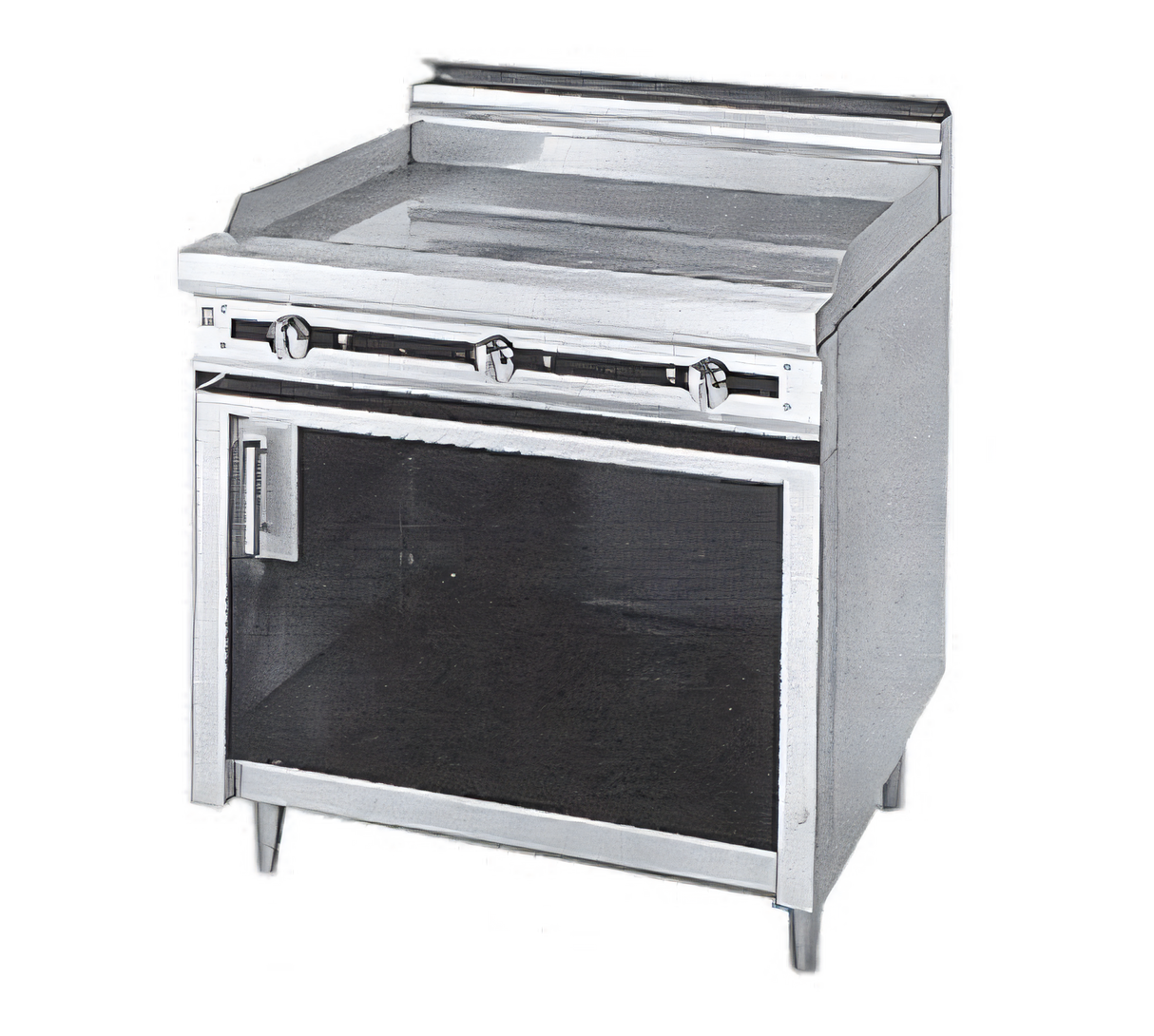

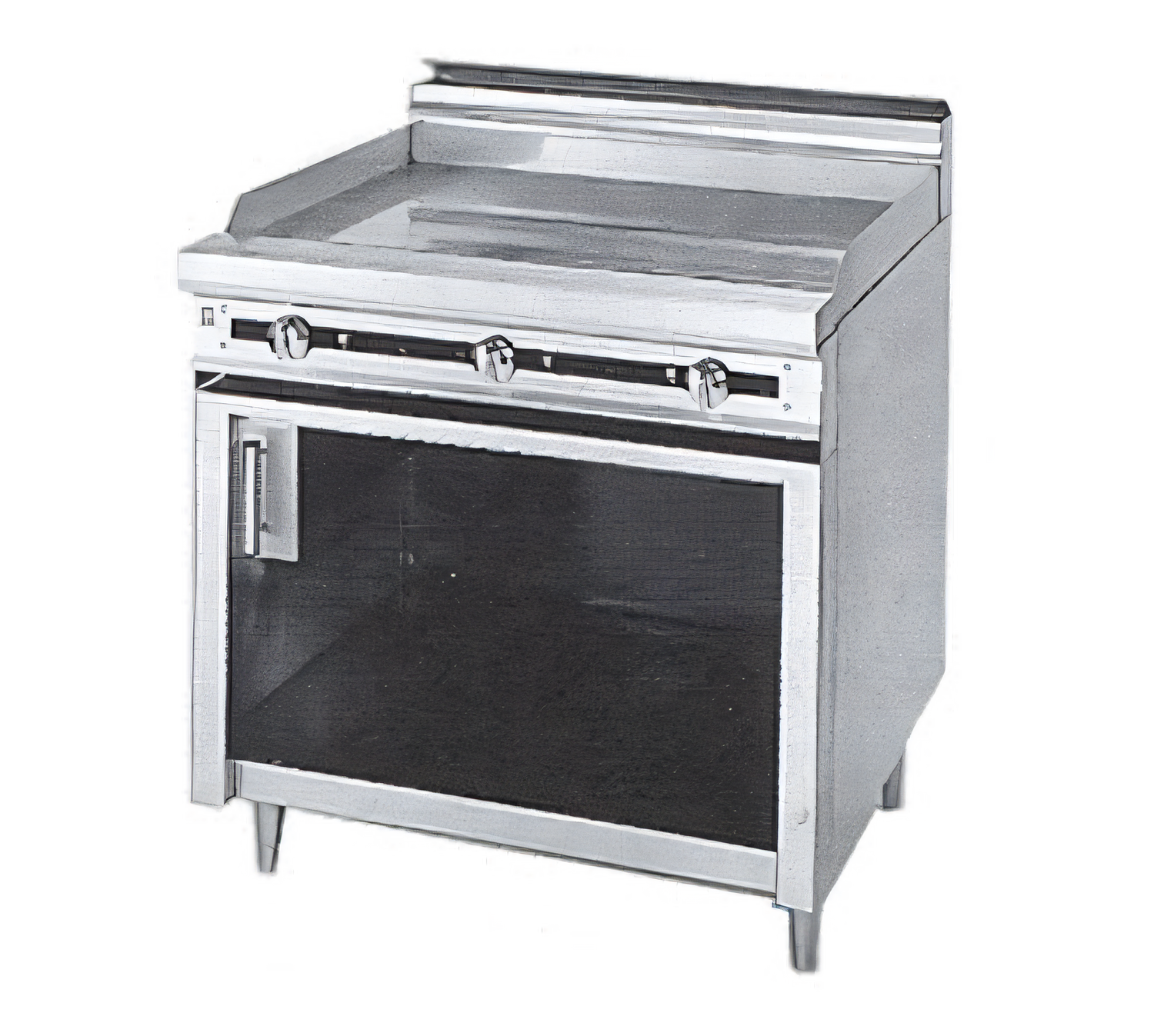

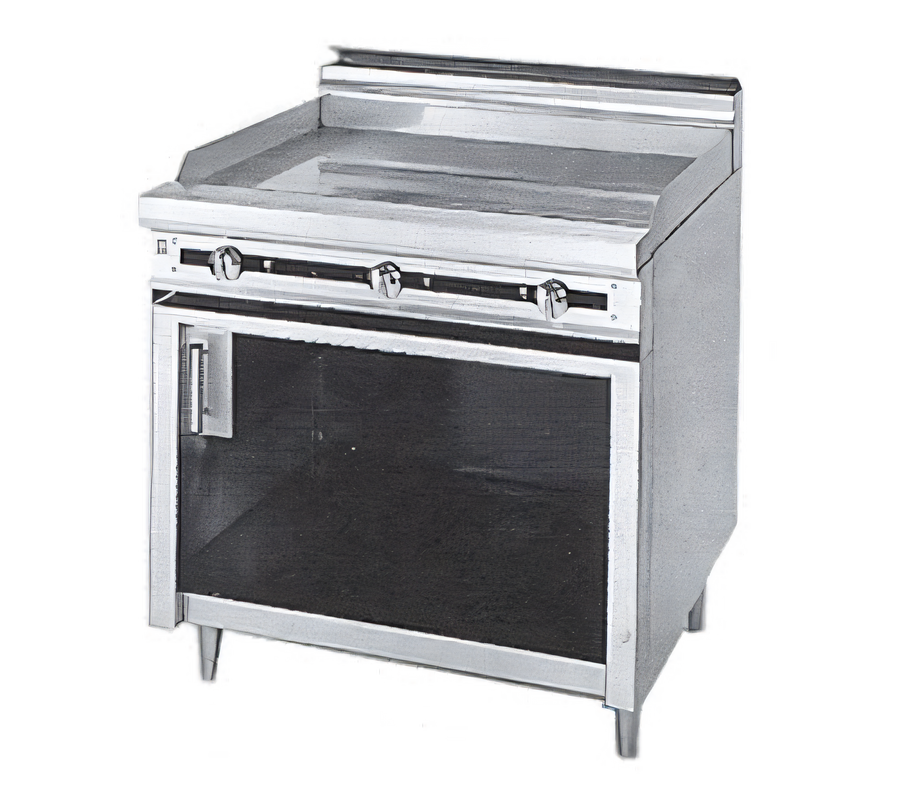

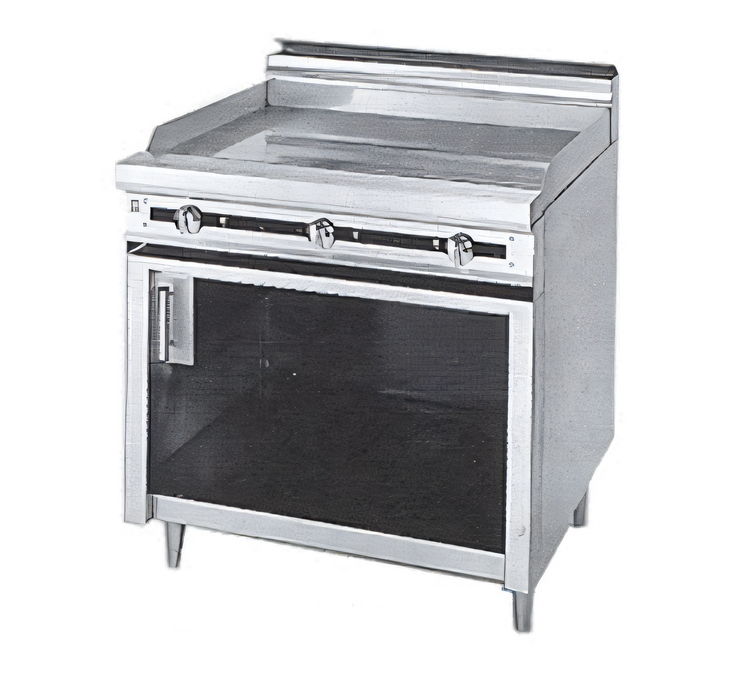

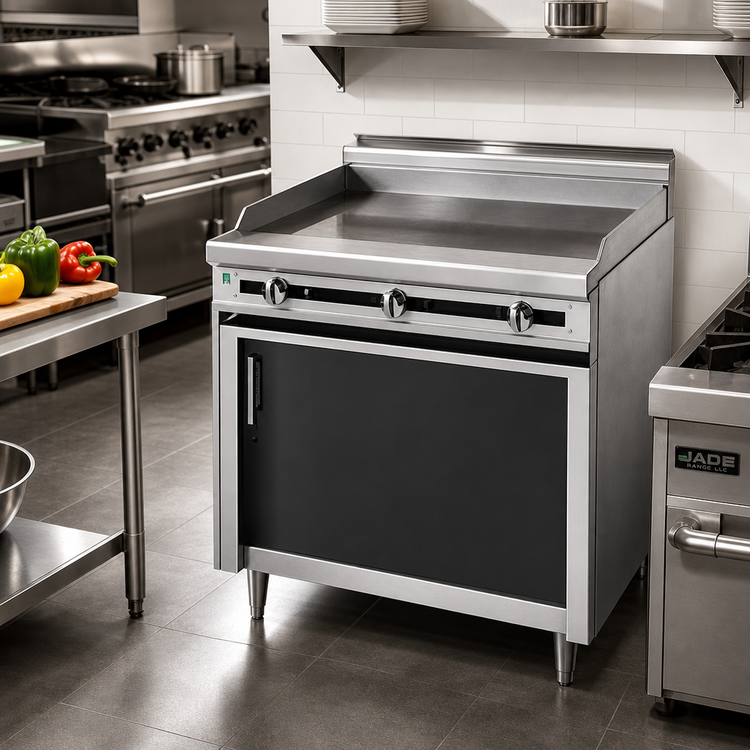

Jade Range Titan JTRH-12G 12" Cabinet Base Heavy Duty Gas Griddle Range with Manual Controls

SKU: JTRH-12G
$5,822.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Jade Range Titan JTRH-12G 12" Cabinet Base Heavy Duty Gas Griddle Range with Manual Controls

12" Wide, Full-Size, 1" Polished Steel Griddle Plate, Natural Gas / Propane Ready

Engineered for consistent, high-volume griddling, the Titan JTRH-12G combines heavy-duty construction with precise manual controls for optimal cooking performance.

  • Durable 1" thick polished steel griddle plate for even heat distribution and retention.
  • Manual controls provide precise temperature management for various cooking tasks.
  • Heavy-duty stainless steel construction ensures longevity and easy cleaning in demanding commercial kitchens.
  • Cabinet base offers convenient under-counter storage or space for other equipment.
  • Equipped with a powerful 35,000 BTU burner for rapid heating and recovery.
  • Versatile gas connection options for flexible installation.

Overall Dimensions:

12.0"W x 38.0"D x 36.5"H

Product Weight:

175.0 lb

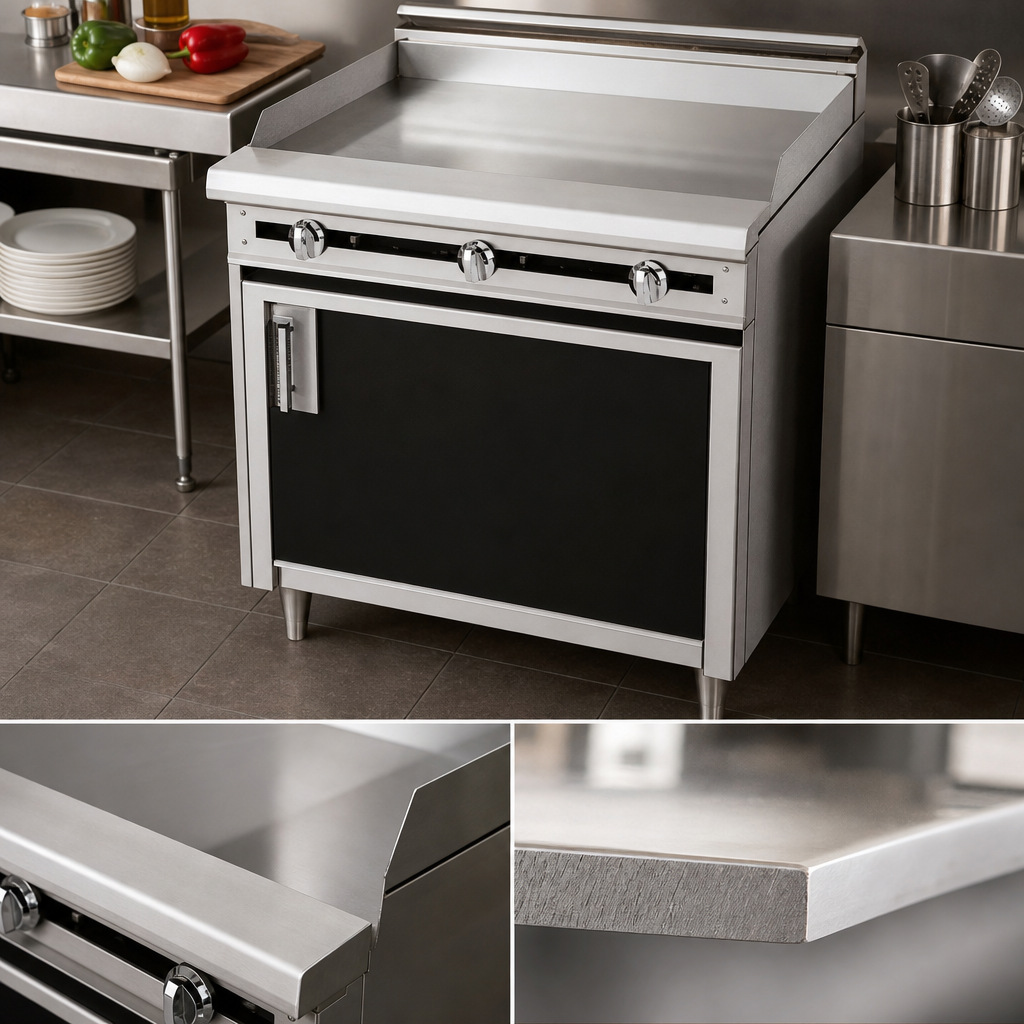

1" Thick Polished Steel Griddle Plate

Provides superior heat retention and even cooking across the entire surface.

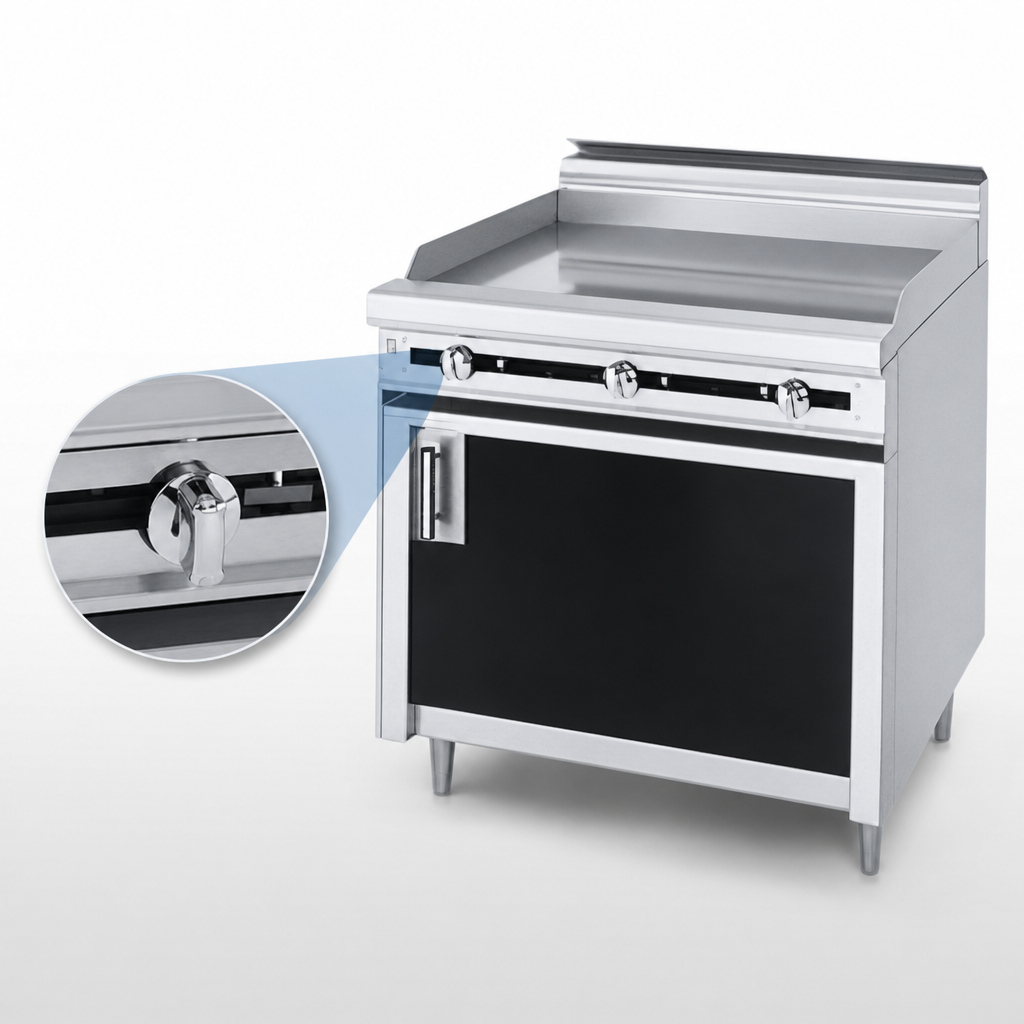

Manual Controls

Allows for precise and immediate adjustment of heat, as it does not include a thermostat for temperature regulation.

Heavy-Duty Stainless Steel Construction

Features a 14 gauge stainless steel body, front, sides, stub back, bottom, and cabinet interior/exterior for maximum durability and corrosion resistance.

Cabinet Base

Offers enclosed storage space beneath the griddle surface, contributing to an organized kitchen.

6" Plate Shelf

A full-width stainless steel shelf provides convenient staging or holding space.

Integrated Splash Guard

2-1/2" high stainless steel side and rear splash guards help contain grease splatter, keeping surrounding areas cleaner.

Grease Trough

Features a 14 gauge stainless steel grease trough for easy collection and disposal of cooking byproducts.

Adjustable Legs

6" adjustable stainless steel legs allow for leveling and optimal working height.

Gas Regulator Included

A 3/4" gas pressure regulator is supplied loose and must be installed for proper operation.

Type Griddle Range
Style Cabinet Base
Installation Type Floor Model (With 6" Adjustable Legs)
Controls Manual
BTU 35,000 BTU
Cooking Surface Width 12 Inches
Griddle Plate Thickness 1 Inch
Material Stainless Steel
Interior Finish Stainless Steel
Gas Type Natural Gas or Propane (Specify when ordering)
Gas Connection Size 3/4 Inch NPT (Regulator)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. (minimum)
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. (minimum)
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 175 lb.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-12G is equipped with manual controls, meaning it does not have a temperature thermostat for automatic temperature regulation.
The range is supplied with a 3/4" gas pressure regulator, which should be connected to your building's gas supply. The internal manifold has 1-1/4" front and 1" or 3/4" rear connection options.
For Natural Gas, a minimum of 5" W.C. is required. For Propane Gas, a minimum of 10" W.C. is required. The maximum operating pressure for both gas types is 14" W.C.
Yes, it can operate on either Natural Gas or Propane. Customers should specify the desired gas type when ordering.
The griddle plate is made from 1" thick polished steel, designed for superior heat retention and even cooking.
Yes, a stainless steel high riser is available as an optional add-on for the JTRH-12G.
