Titan JTRH-12G-4-36C Heavy Duty 36" Gas Range with 4 Open Burners, 12" Griddle, and Convection Oven
Titan JTRH-12G-4-36C Heavy Duty 36" Gas Range with 4 Open Burners, 12" Griddle, and Convection Oven
Full-Size, Natural Gas, Standard Depth
Engineered for demanding commercial kitchens, the Titan JTRH-12G-4-36C Heavy Duty Gas Range combines powerful open burners, a versatile griddle, and a full-size convection oven for comprehensive cooking capabilities.
- Equipped with four high-output 35,000 BTU open burners for rapid heating and diverse cooking tasks.
- Features an integrated 12" griddle with a 1" thick plate, ideal for breakfast items, sandwiches, and more.
- Includes a spacious, full-size convection oven base with two chrome-plated racks for efficient baking and roasting.
- Robust all stainless steel construction on front, sides, stub back, and bottom ensures durability and easy cleaning.
- Manual controls provide precise heat management for all cooking zones.
- Designed for heavy-duty commercial use with 6" adjustable legs for stable floor mounting.

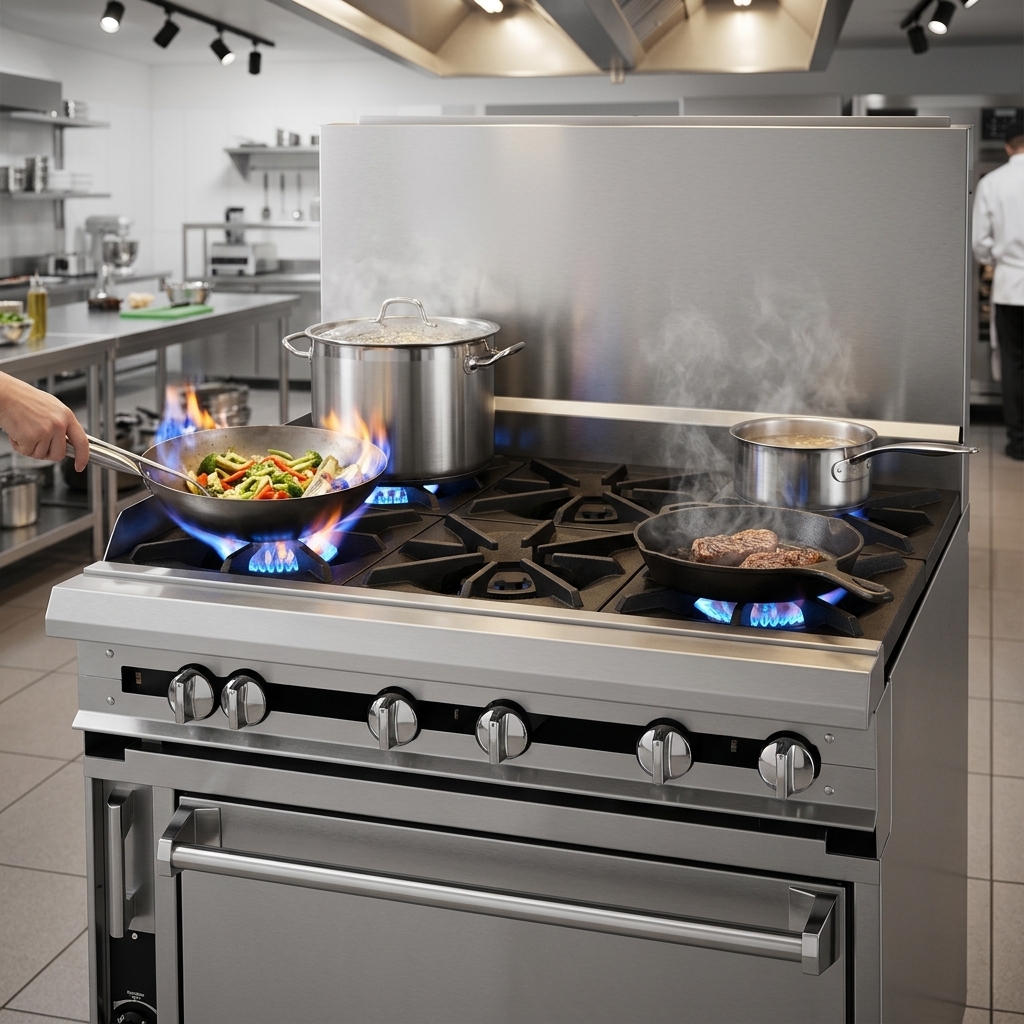

Four Open Burners
Each rated at 35,000 BTU for powerful and consistent heat, allowing for multiple cooking applications simultaneously.

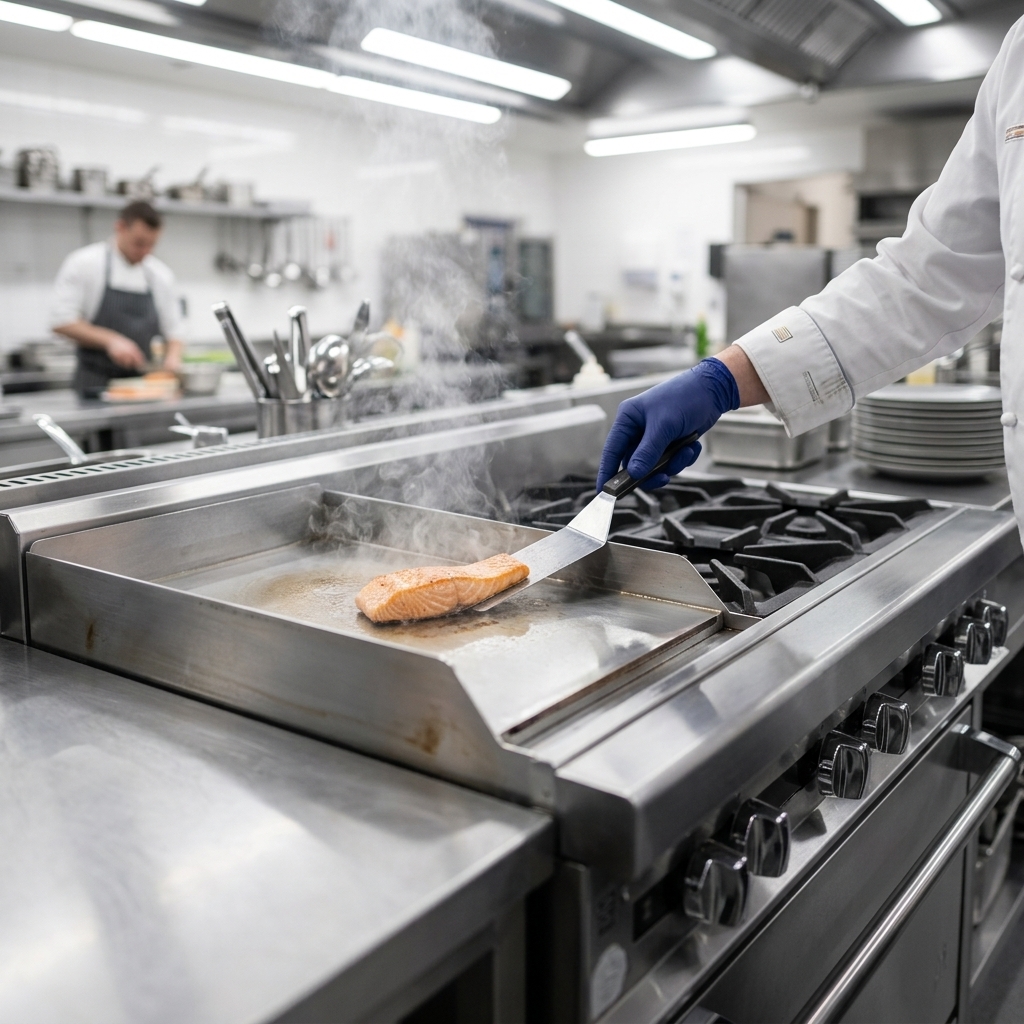

12-Inch Griddle
Integrated griddle with a durable 1" thick polished steel plate, suitable for various grilling needs from breakfast items to searing meats.

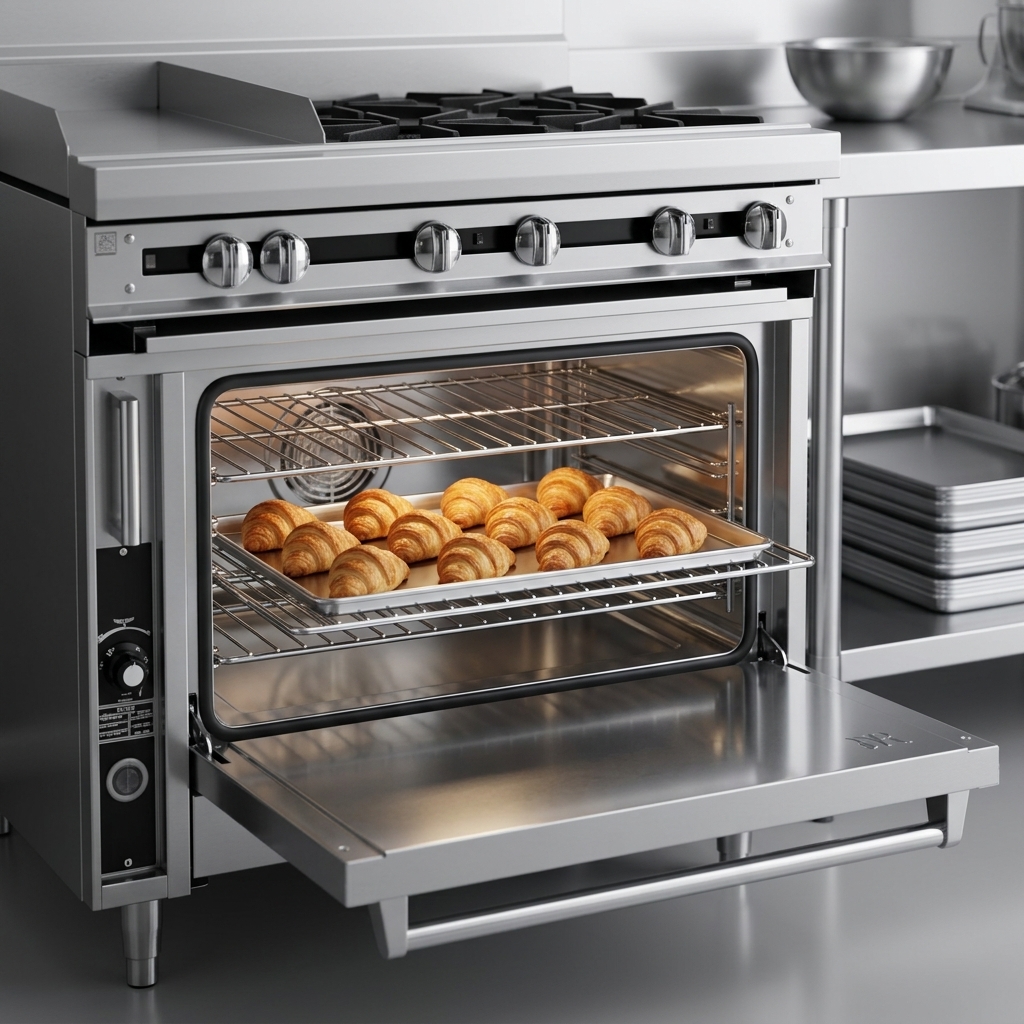

Convection Oven Base
Full-size oven with a stainless steel liner and two chrome-plated racks, designed for even heat distribution and efficient baking or roasting.
Manual Controls
Intuitive manual controls for independent operation of burners, griddle, and oven, offering direct temperature adjustment (griddle without thermostat).
Stainless Steel Construction
Heavy-duty stainless steel exterior including the front, sides, stub back, and bottom for resilience, easy cleaning, and professional appearance.
6-Inch Plate Shelf
Convenient front plate shelf provides additional workspace for plating dishes or temporary holding.
Adjustable Legs
Sturdy 6" adjustable legs provide stability and allow for proper leveling on uneven kitchen floors.
Specifications
| Type | Commercial Gas Range |
|---|---|
| Style | Heavy Duty Range |
| Installation Type | Floor Model (With 6" Adjustable Legs) |
| Top | (4) Open Burners, (1) 12" Griddle |
| Base | (1) Convection Oven |
| Open Burner BTU | 35,000 BTU Per Burner |
| Total BTU | 195,000 BTU |
| Griddle Width | 12 Inches |
| Griddle Plate Thickness | 1 Inch |
| Oven Interior Finish | Stainless Steel |
| Pan Capacity | Full-Size |
| Compartments | 1 |
| Controls | Manual |
| Material | Stainless Steel |
| Exterior Finish | Stainless Steel |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1-Phase |
| Amps | 4.4 Amps |
| Horsepower | 1/4 HP |
| Gas Type | Natural Gas |
| Shipping Width | 36 Inches |
| Shipping Depth | 38 Inches |
| Shipping Height | 37 Inches |
| Shipping Weight | 775 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:
775.0 lbCertifications & Compliance
