Titan 6-Inch Stainless Steel Open Spreader Cabinet Base

SKU: JTPR-6
$2,516.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Equipment Stands & Utility Carts Jade Range (Middleby) New Arrivals Restaurant Equipment Tables & Workstations

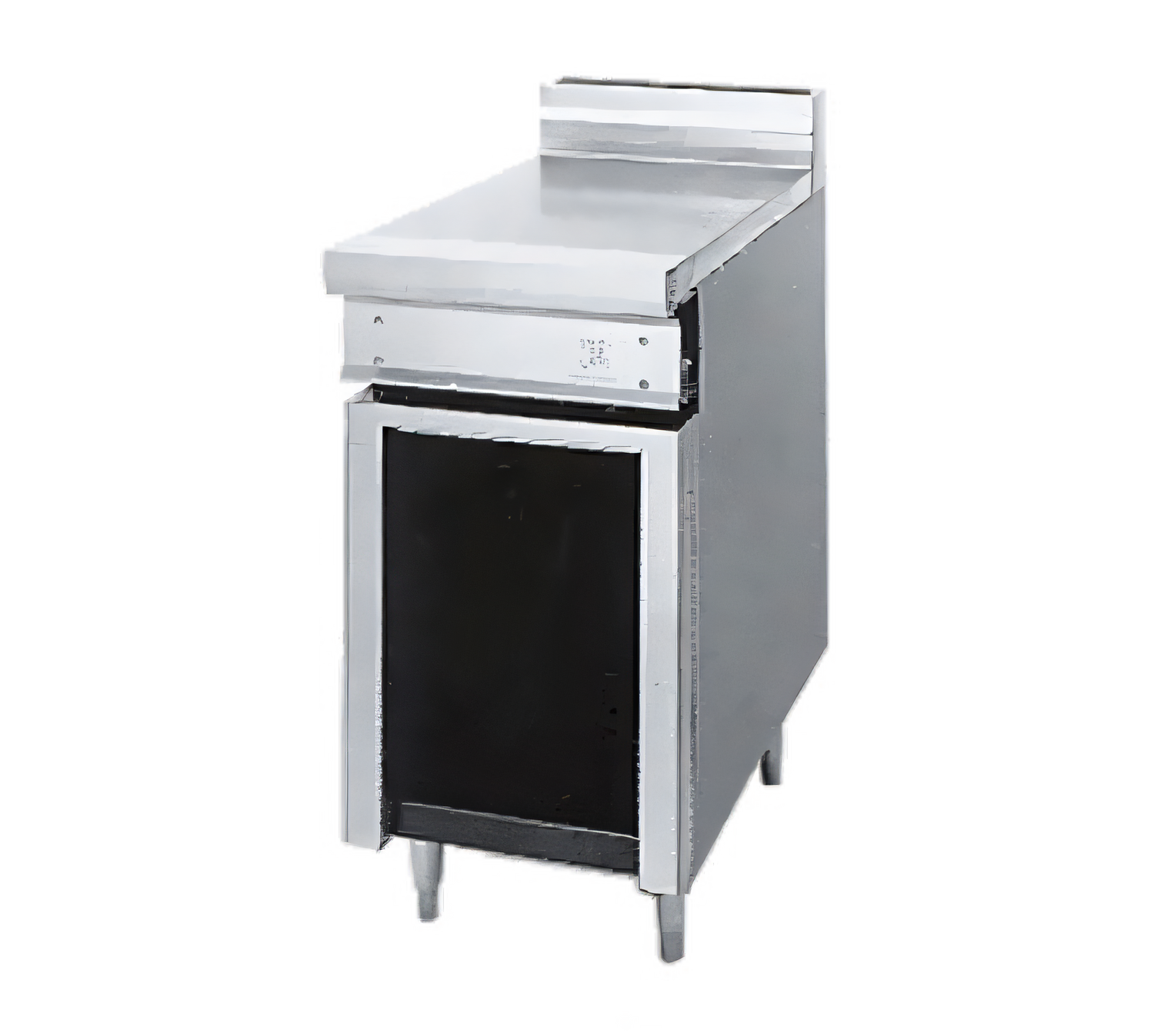

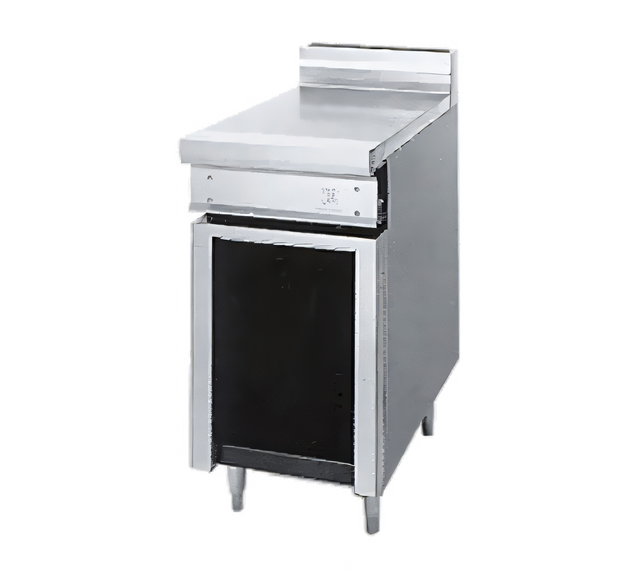

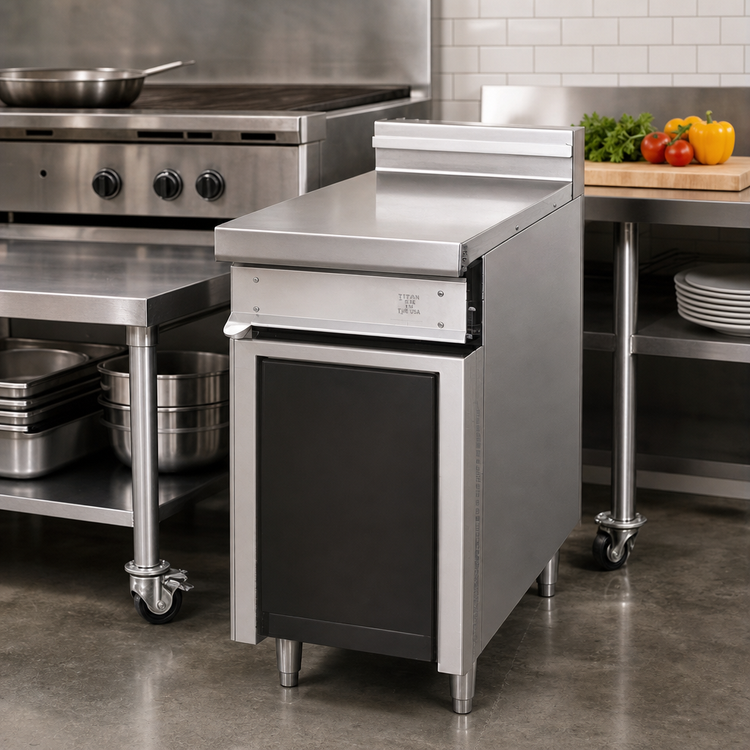

Titan 6-Inch Stainless Steel Open Spreader Cabinet Base

Open base, 6-inch width, stainless steel construction, 6-inch adjustable legs

A compact stainless steel spreader cabinet base built to support heavy-duty gas equipment with durable welded construction and adjustable leveling legs.

  • 6-inch-wide spreader cabinet base for heavy-duty gas equipment.
  • 14-gauge all-welded stainless steel body for lasting durability.
  • Open cabinet base with stainless steel interior and exterior.
  • Includes stainless steel top, front, sides, bottom, stub back, and 6-inch plate shelf.
  • Standard 6-inch adjustable stainless steel legs help simplify leveling.
  • 1-1/4-inch rear gas connection with natural gas or propane ordering options.
  • NSF and CSAus listed for commercial use.

Overall Dimensions:

6.0"W x 36.25"D x 36.5"H

Product Weight:

105.0 lb

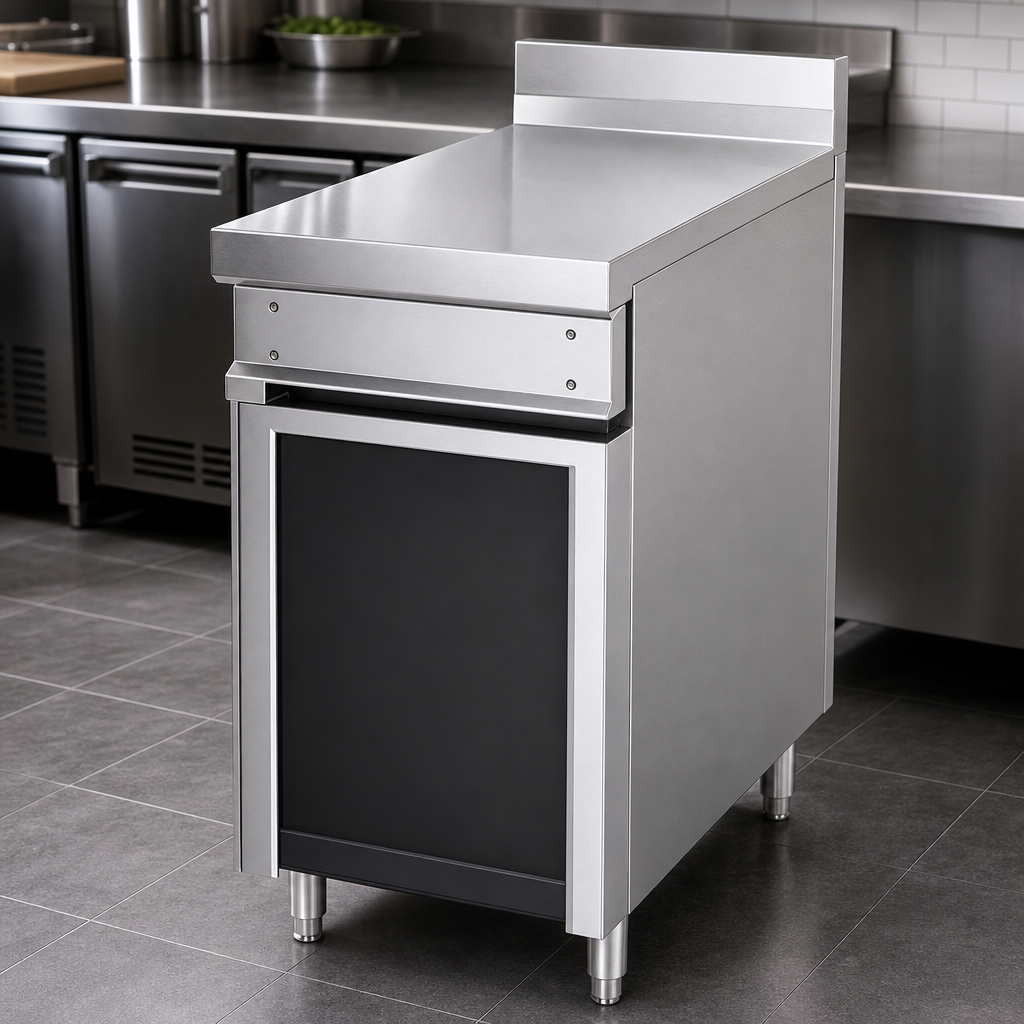

All-Welded Stainless Steel Construction

Built with 14-gauge stainless steel construction for strength and long service life.

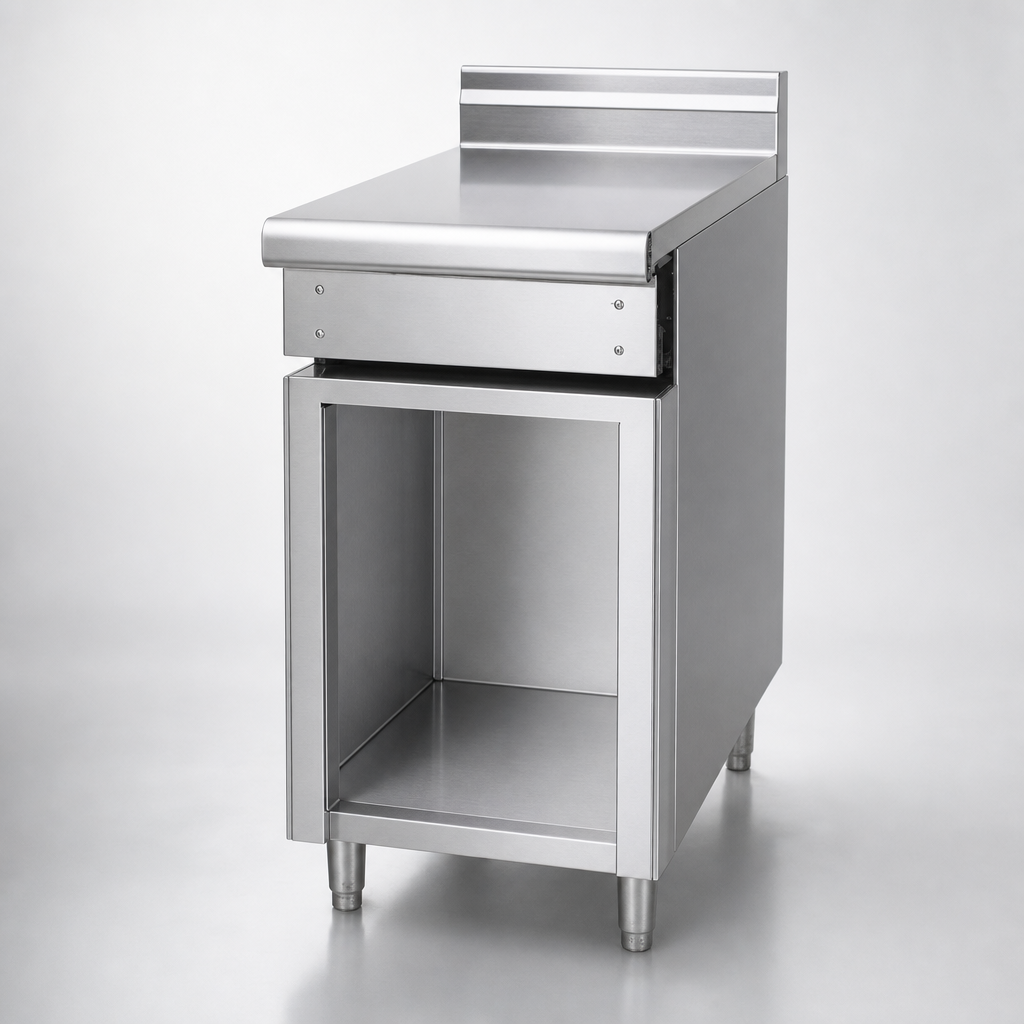

Open Cabinet Base

Open base design provides an accessible, unobstructed cabinet area.

Stainless Steel Surfaces

Stainless steel top, front, sides, bottom, and stub back create a durable, easy-to-clean exterior.

Stainless Steel Interior And Exterior

All stainless steel cabinet interior and exterior help resist corrosion and support sanitation.

6-Inch Plate Shelf

Includes a stainless steel 6-inch plate shelf.

Adjustable 6-Inch Legs

Stainless steel adjustable legs help level the cabinet during installation.

Rear Gas Connection

Standard 1-1/4-inch rear gas connection for utility hook-up.

Gas Pressure Requirements

Natural gas requires 5-inch W.C. minimum; propane requires 10-inch W.C. minimum and 14-inch W.C. maximum.

Certified

NSF and CSAus listed.

Type Spreader Cabinet
Style Open Cabinet Base
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Gas Connection Size 1-1/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 6 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 105 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a 6-inch stainless steel spreader cabinet base designed for heavy-duty gas equipment.
The unit includes a standard 1-1/4-inch rear gas connection.
It can be ordered for natural gas or propane.
Natural gas requires 5-inch W.C. minimum. Propane requires 10-inch W.C. minimum and 14-inch W.C. maximum.
It features 14-gauge all-welded stainless steel construction with stainless steel top, front, sides, bottom, stub back, and cabinet interior/exterior.
Available add-ons include casters, flex hoses with quick disconnect, gas pressure regulators, high risers, shelves, and cap and cover manifolds.
