Titan 48-Inch Heavy Duty Gas Chitwood Smoke Charbroiler Range with Cabinet Base

SKU: JTKC-48-RAD
$19,577.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

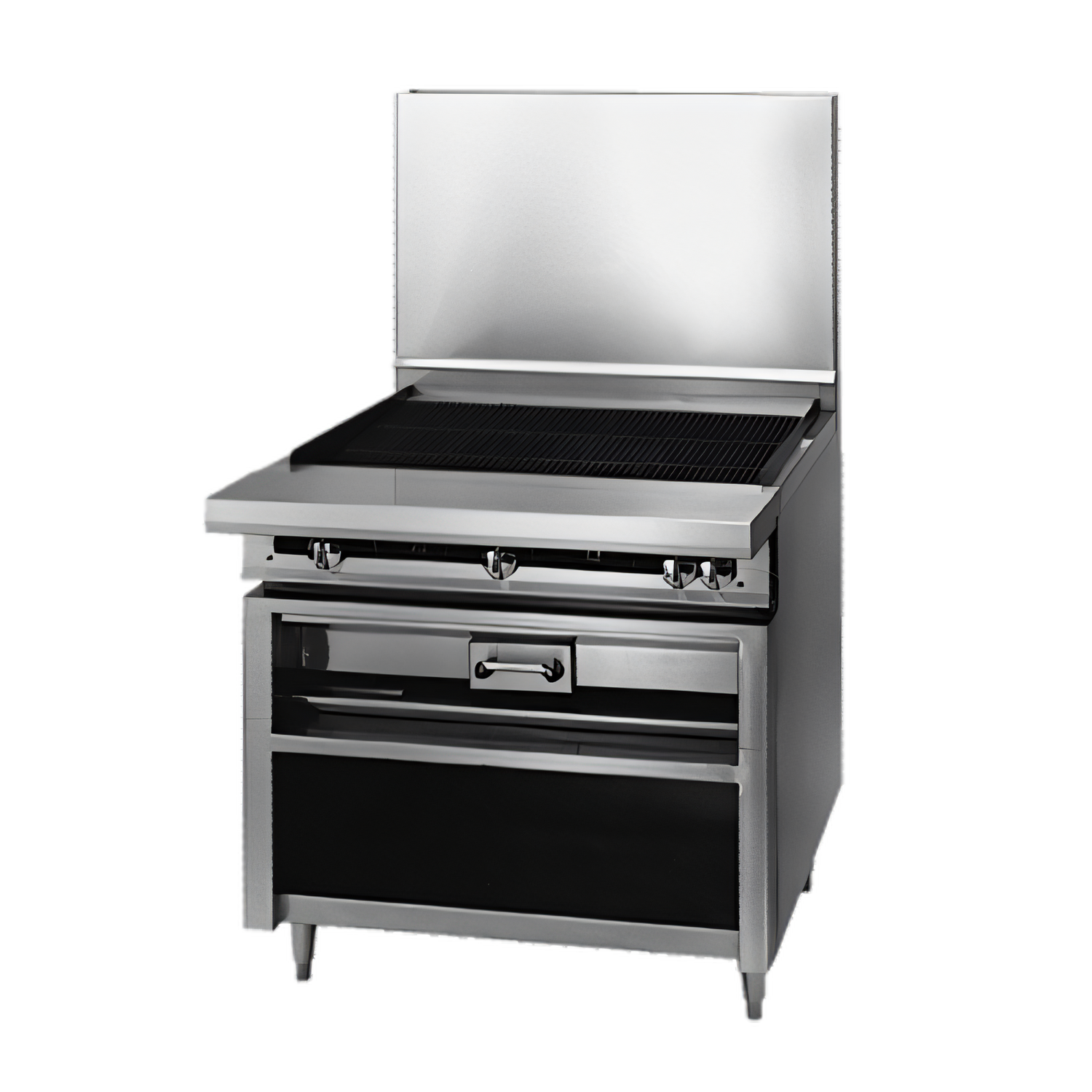

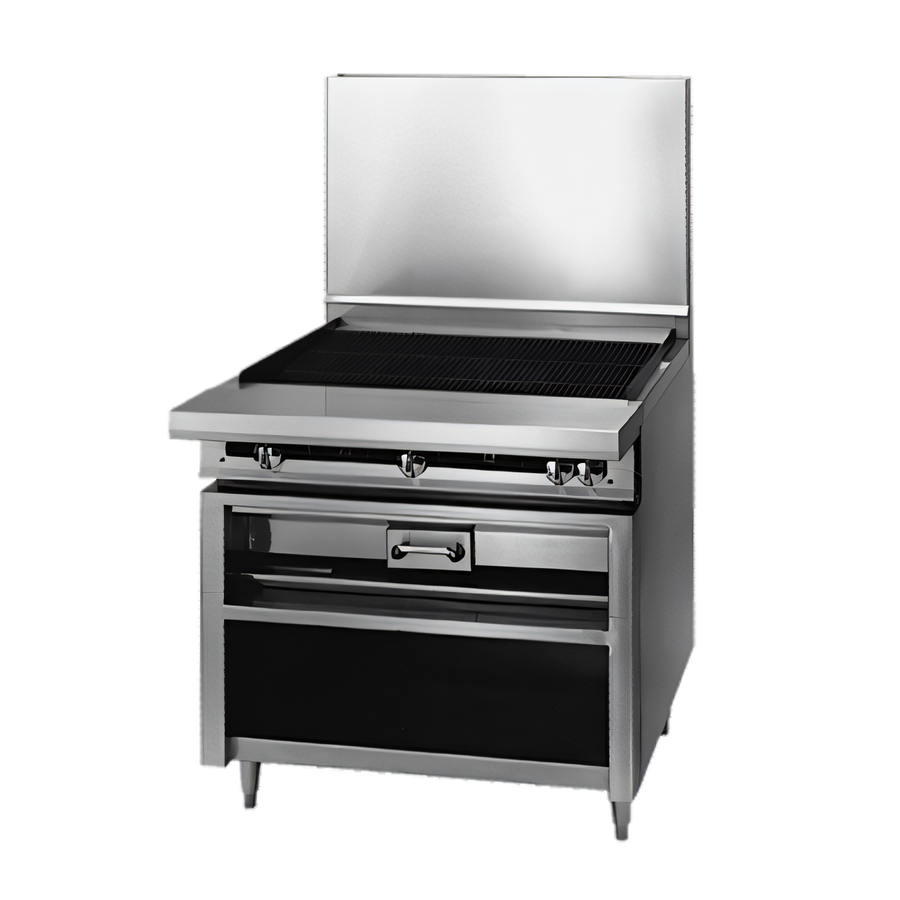

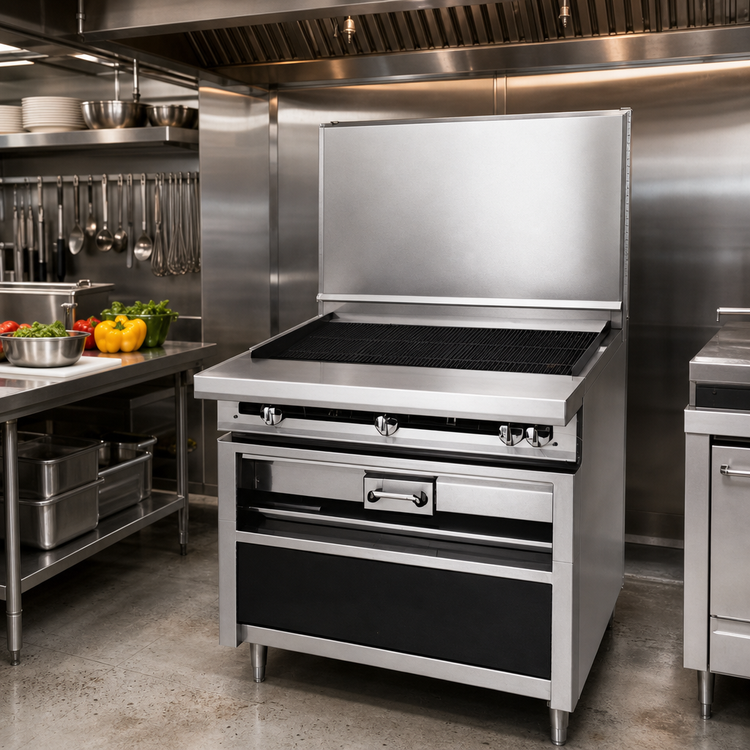

Titan 48-Inch Heavy Duty Gas Chitwood Smoke Charbroiler Range with Cabinet Base

Radiant burners, cast iron radiants, and all-stainless steel construction

Built for high-volume grilling and cold-smoking, this 48-inch Titan range pairs radiant cast iron heat with precise manual control and a rugged cabinet base.

  • 48-inch gas Chitwood smoke charbroiler range with radiant cast iron heat
  • 130,000 BTU total output for demanding commercial kitchens
  • Independent smoke ejector system supports cold-smoking applications
  • Infinite manual valves provide burner-by-burner heat control
  • All-welded stainless steel construction with cabinet base and 6-inch adjustable legs
  • NSF and CSAus listed for commercial kitchens

Overall Dimensions:

48.0"W x 34.0"D x 36.5"H

Product Weight:

650.0 lb

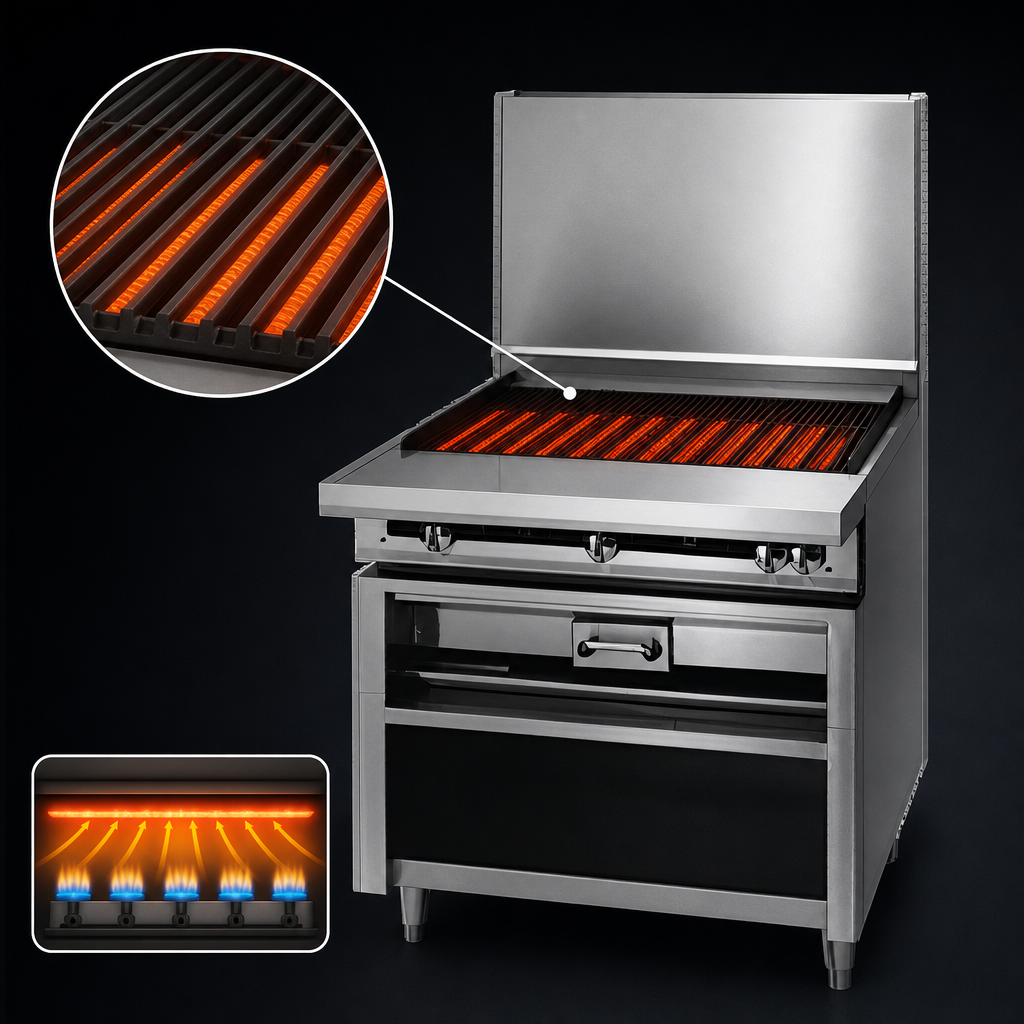

Radiant Cast Iron Heat

Cast iron radiants deliver even heat on the -RAD model, with one 15,000 BTU burner every 6 inches of broiler width.

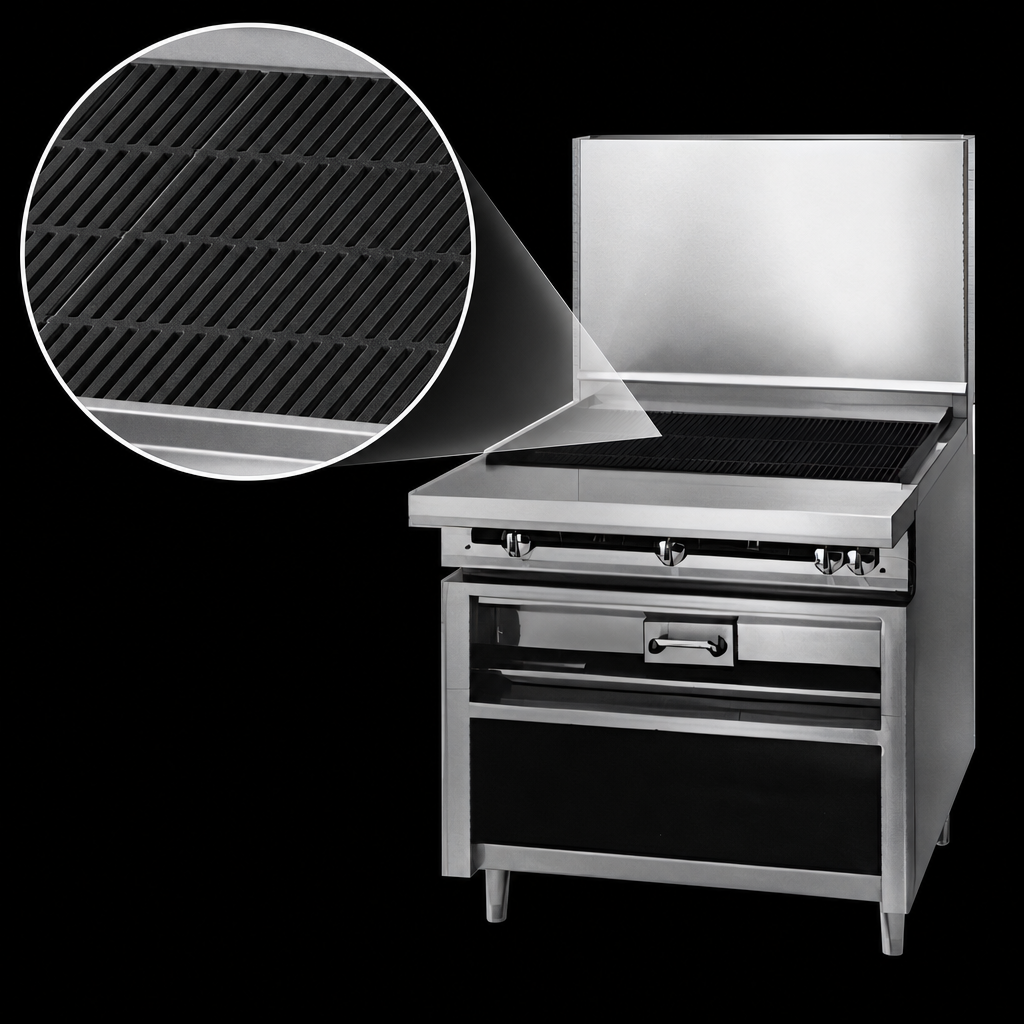

Heavy-Duty Cast Iron Grates

Durable grates support intense grilling and help hold heat across the cooking surface.

Smoke Ejector and Smoke Drawer

The exclusive smoke-ejector system maximizes smoke at the grill surface, and the smoke box operates independently for cold smoking.

Infinite Manual Controls

Individual manual gas valves at each burner allow precise temperature control.

Stainless Steel All-Welded Build

14-gauge all-welded body construction with stainless steel front, top rim, stub back, sides, gas tubing, and cabinet interior/exterior.

Drip Pans for Grease Management

Two separate 14-gauge drip pans help catch drippings and control flare-ups.

Cabinet Base with Adjustable Legs

The cabinet-style base and stainless steel 6-inch adjustable legs support a stable floor installation.

NSF and CSAus Listed

Listed for commercial foodservice applications.

Type Charbroiler
Style Heavy Duty
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Controls Infinite Manual
BTU 130,000 BTU
Gas Connection Size 1-1/4 Inch Front Manifold Connection; 1 Inch or 3/4 Inch Rear Manifold Connection
Gas Inlet Pressure 5 Inches W.C. Minimum (Natural Gas); 10 Inches W.C. Minimum (Propane); 14 Inches W.C. Maximum
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 34 Inches
Shipping Height 37 Inches
Shipping Weight 650 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The RAD model uses cast iron radiants and one 15,000 BTU burner every 6 inches of broiler width. The standard model uses ceramic briquettes and one 30,000 BTU burner every 12 inches.
Yes. The smoke box is independent of the main burner heat for cold-smoking applications.
Gas type must be specified when ordering. The documentation lists operating pressures for both natural gas and propane.
It includes a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection.
Available accessories include casters, flex hoses with quick disconnects, gas pressure regulators, high risers, tubular shelves, a fish grate, stainless steel sides, and cap-and-cover manifold options.
