Jade Range (Middleby)

Titan Heavy Duty 36-Inch Gas Chitwood Smoke Charbroiler with Cast Iron Radiants, Cabinet Base, and Smoke Drawer

SKU: JTKC-36-RAD
$16,720.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan Heavy Duty 36-Inch Gas Chitwood Smoke Charbroiler with Cast Iron Radiants, Cabinet Base, and Smoke Drawer

Radiant Burner Model, Stainless Steel Exterior, Floor Model

Built for high-output grilling and cold-smoking versatility, this 36-inch Titan charbroiler combines cast iron radiants, precise manual controls, and rugged stainless steel construction.

  • 36-inch commercial gas charbroiler with 95,000 BTU output for demanding kitchen service.
  • Cast iron radiants deliver even heat on the -RAD model for consistent broiling.
  • Exclusive Smoke-Ejector system and smoke drawer support cold-smoking applications.
  • Infinite manual gas controls provide precise burner-by-burner heat adjustment.
  • Stainless steel cabinet-base construction is built for heavy-duty commercial use.
  • Includes two drip pans and adjustable 6-inch legs for easier cleanup and leveling.

Overall Dimensions:

36.0"W x 34.0"D x 36.5"H

Product Weight:

550.0 lb

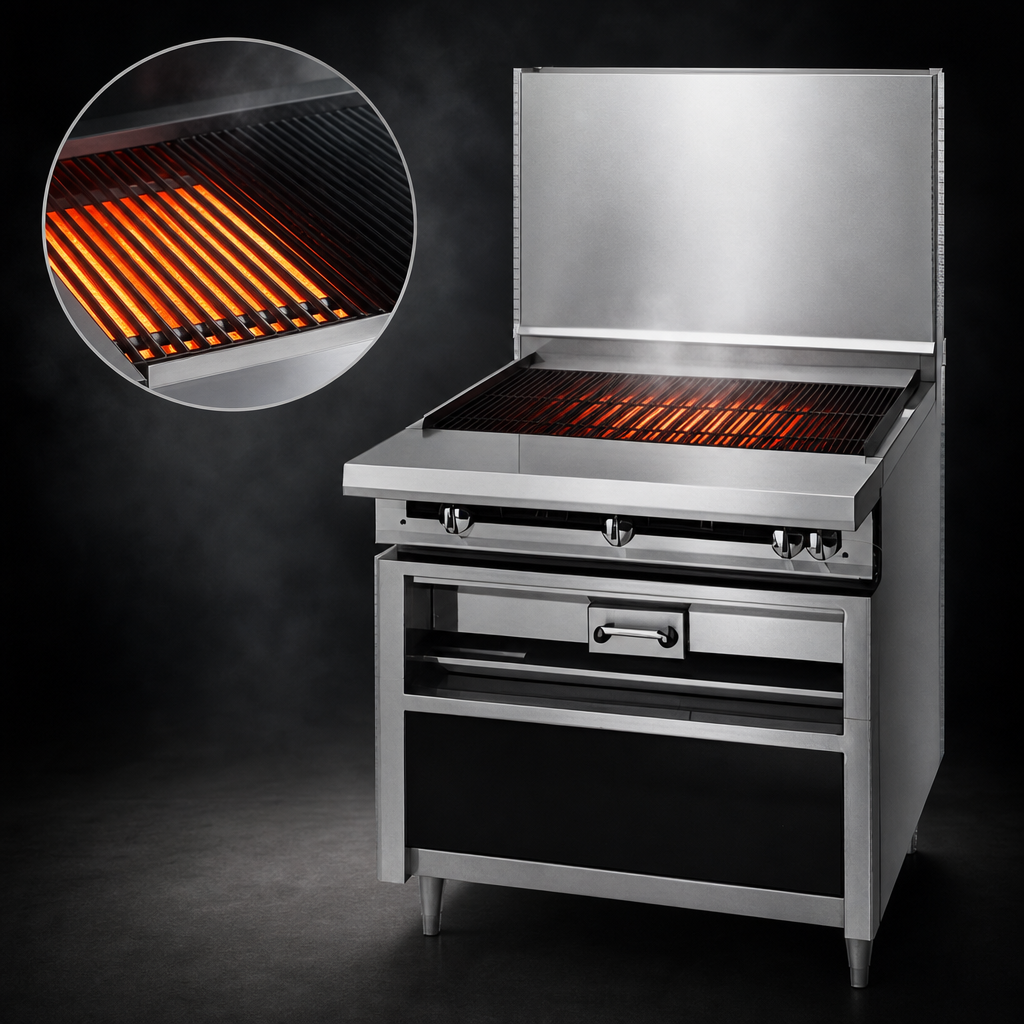

Cast Iron Radiants

Radiant heat design helps provide even heat across the broiler surface on the -RAD model.

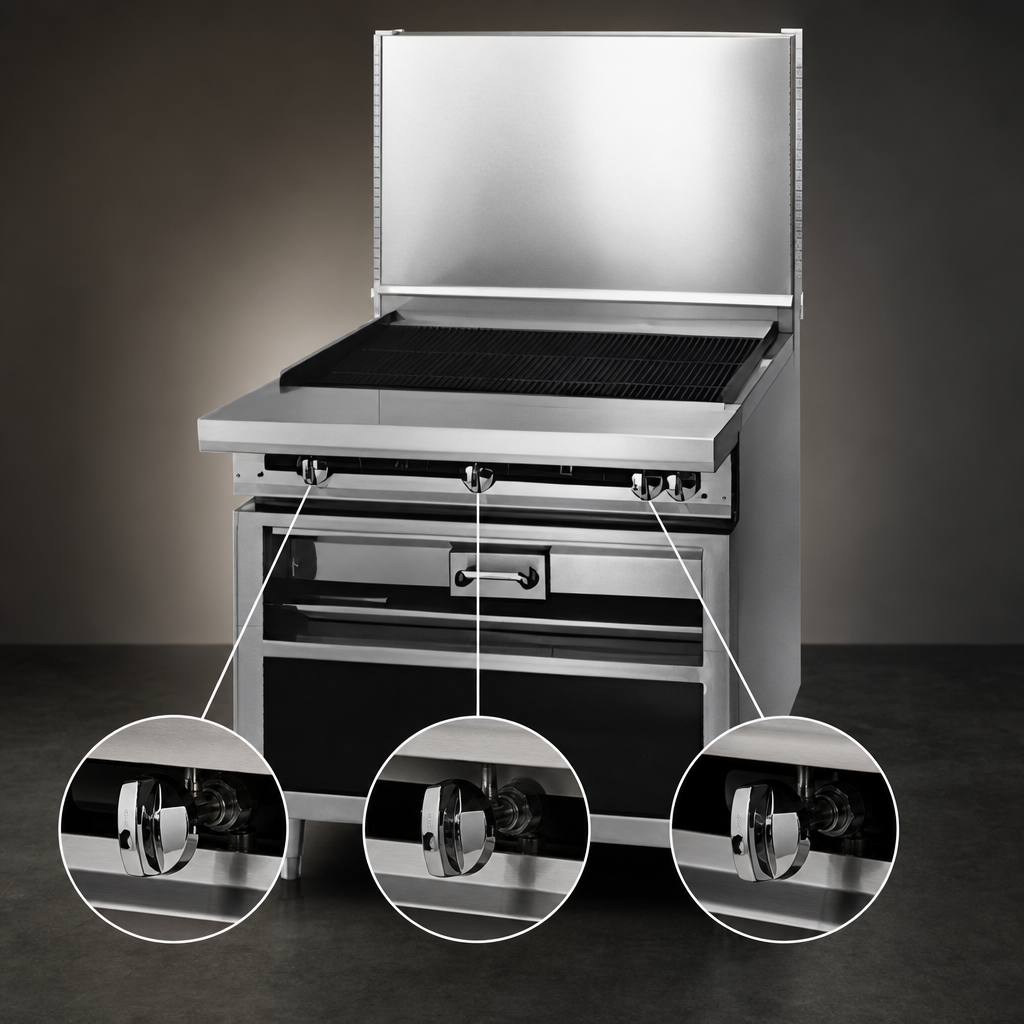

Infinite Manual Gas Controls

Individual manual valves at each burner allow precise heat adjustment.

CHITWOOD Smoke-Ejector System

Directs smoke to the grill surface and separates smoke production from main burner heat for cold-smoking applications.

Heavy Gauge Smoke Drawer

Independent smoke drawer control supports smoke flavor applications and cold smoke operation.

Stainless Steel Welded Construction

14-gauge all-welded body with stainless steel front, top rim, stub back, sides, cabinet interior, and exterior.

Heavy Duty Cast Iron Grates

Durable broiler surface designed for high-heat commercial grilling.

Two Drip Pans

Two separate 14-gauge steel drip pans help control flare-ups and simplify cleanup.

Adjustable 6-Inch Legs

Stainless steel adjustable legs provide stable installation and leveling.

Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 37 Inches
Shipping Weight 550 lb.
Material Stainless Steel
Finish Stainless Steel
Type Charbroiler
Style Range Match
Installation Type Floor Model
Controls Infinite Manual
BTU 95,000 BTU
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTKC-36-RAD uses cast iron radiants for even heat, while the standard JTKC-36 uses ceramic briquettes.
Yes. The Smoke-Ejector system includes a smoke box that is independent of the main burner heat for cold-smoking applications.
Natural gas requires 5" W.C. minimum, propane requires 10" W.C. minimum, and the maximum operating pressure is 14" W.C.
It is supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection.
Standard items include the smoke drawer, two drip pans, adjustable 6-inch legs, and a 3/4" gas regulator shipped loose for installation.
