Jade Range (Middleby)

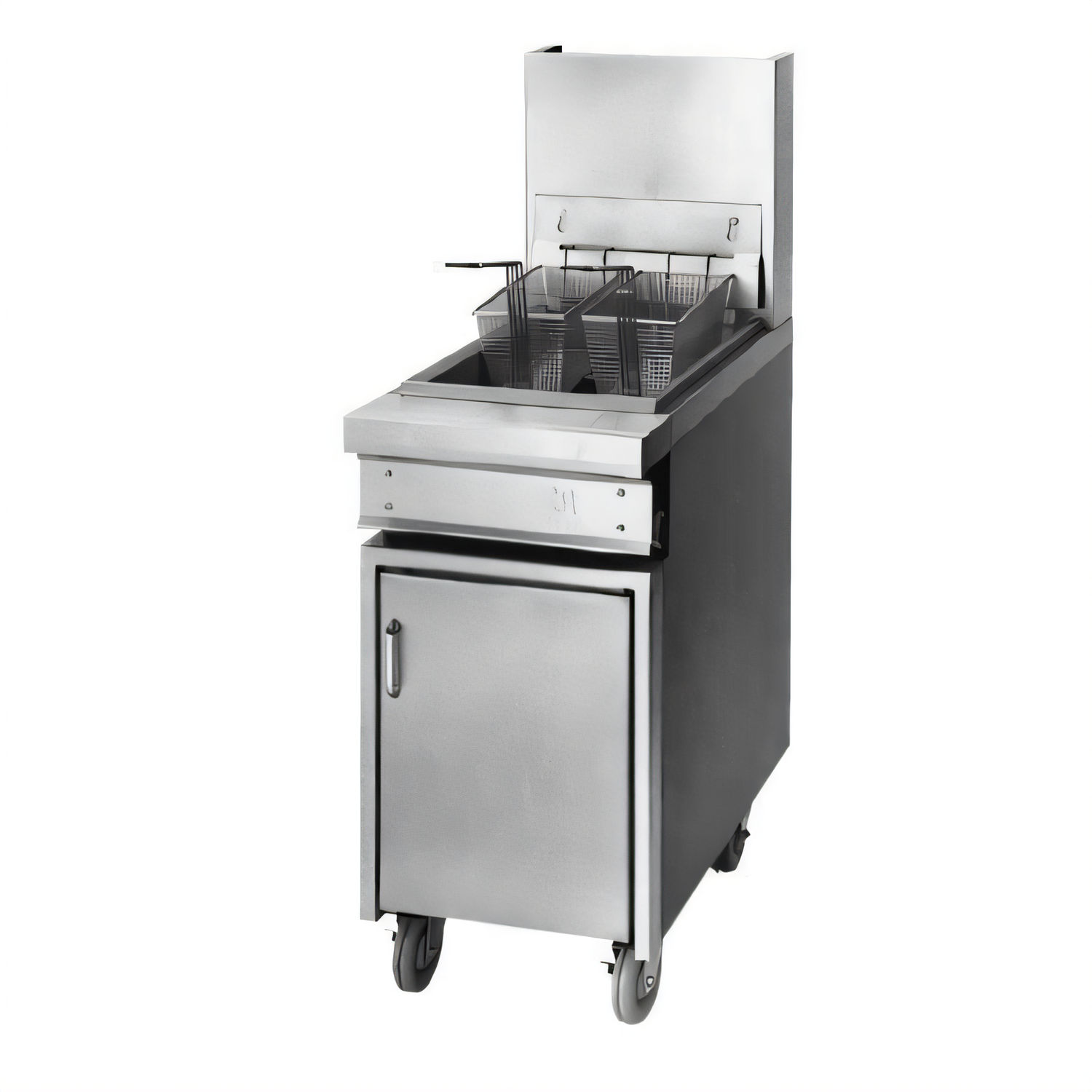

Titan JTFF-40-18 18-Inch Heavy Duty Gas Fryer with 40-50 lb. Capacity

SKU: JTFF-40-18
$10,104.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Titan JTFF-40-18 18-Inch Heavy Duty Gas Fryer with 40-50 lb. Capacity

Floor Model, Full-Size, Range Match, Stainless Steel

The Titan JTFF-40-18 heavy-duty gas fryer offers robust performance and durability for demanding commercial kitchens, ensuring consistent frying results with its ample capacity and precise controls.

  • Heavy-duty construction with stainless steel tank, front, sides, and top for commercial durability.
  • Generous 40-50 lb. fat capacity accommodates high-volume frying needs.
  • Equipped with millivolt controls for reliable and easy temperature management.
  • Features a 1-1/4 inch quick drain port for efficient oil changes and maintenance.
  • Includes a convenient 6 inch plate shelf and adjustable stainless steel legs for optimal placement.
  • High output of 122,000 BTU for rapid heating and recovery.

Overall Dimensions:

18.0"W x 36.25"D x 36.5"H

Product Weight:

280.0 lb

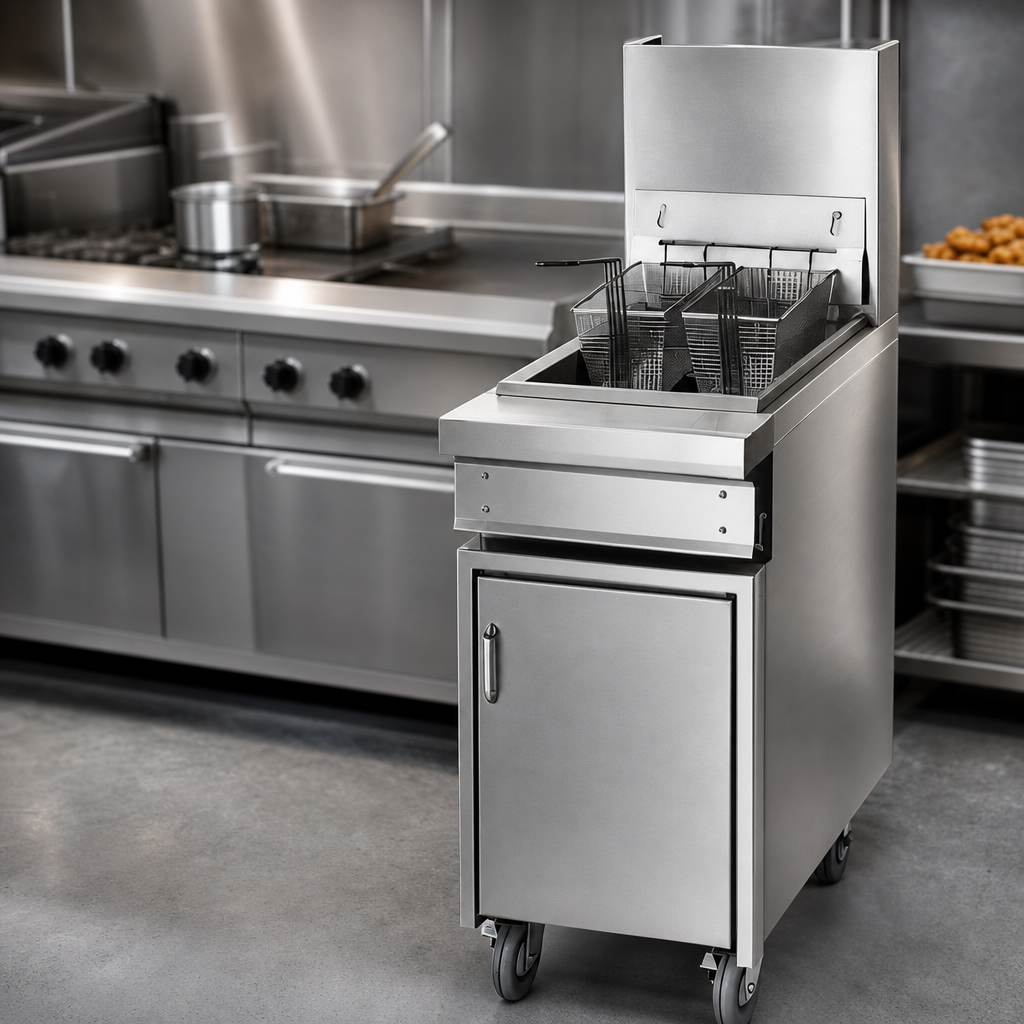

Stainless Steel Construction

Features a stainless steel tank, front, sides, and top, providing exceptional durability, corrosion resistance, and ease of cleaning for a long service life in demanding commercial environments.

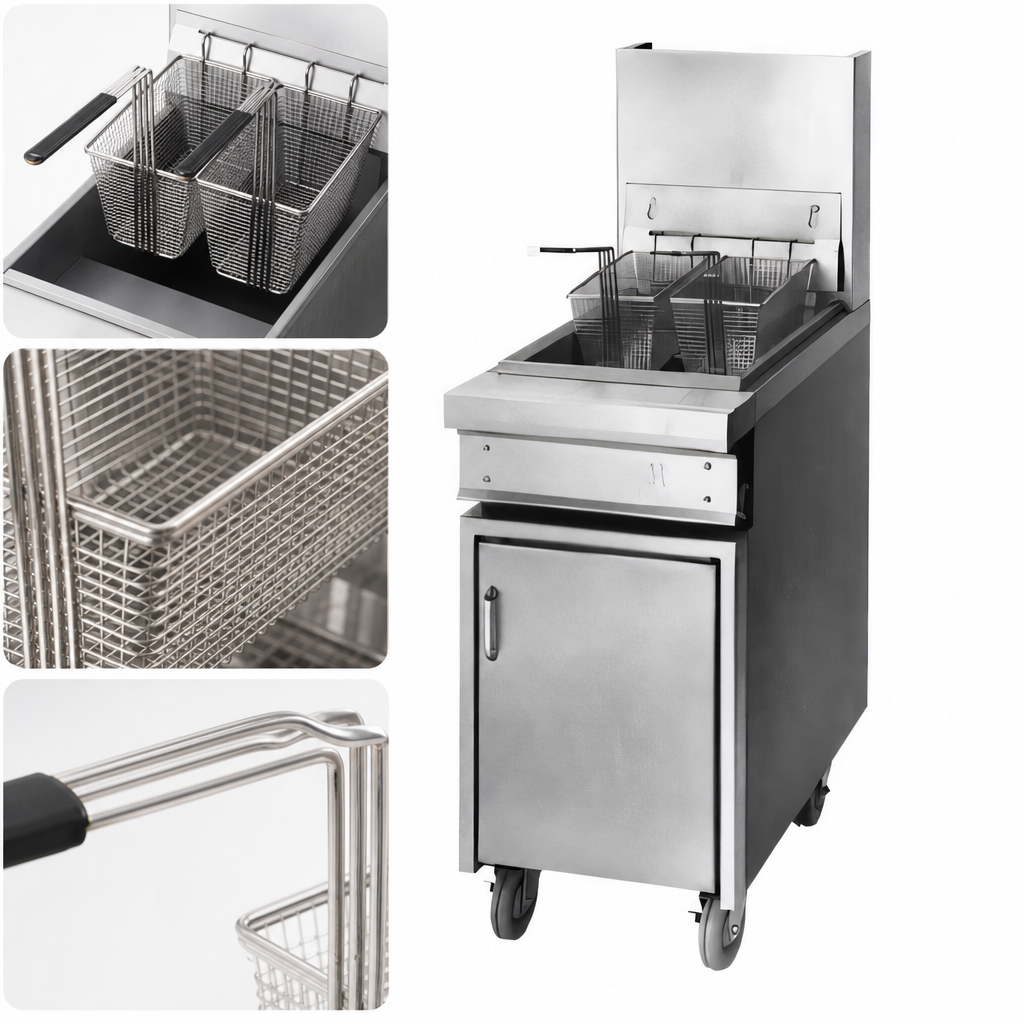

Heavy Gauge Fryer Baskets

Comes with heavy gauge stainless steel fryer baskets designed for commercial use, offering resilience and consistent performance.

Millivolt Control System

Utilizes a reliable millivolt control system for simple and accurate temperature regulation.

Quick Drain Port

Includes a 1-1/4 inch quick drain port, allowing for fast and efficient oil draining and cleaning.

Integrated Plate Shelf

Equipped with a 6 inch stainless steel plate shelf, providing a convenient staging area for fried foods or utensils.

Adjustable Legs

Features 6 inch adjustable stainless steel legs, allowing for proper leveling and height adjustment to match other range equipment.

Stainless Steel Door

Designed with a durable stainless steel door that complements the unit's robust construction.

Variable Gas Connection

Offers a variable size multi-point gas connection for flexible installation, supplied with a 1-1/4 inch front manifold connection and a 1 inch or 3/4 inch capped rear manifold connection.

BTU 122,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches (Front) / 1 or 3/4 Inches (Rear)
Gas Inlet Pressure 5 Inches W.C. Minimum (Natural Gas), 10 Inches W.C. Minimum (Propane Gas), 14 Inches W.C. Maximum
Capacity 40-50 lb.
Pan Capacity One 40 lb. Tank
Controls Millivolt
Interior Finish Stainless Steel
Material Stainless Steel
Installation Type Floor Model
Type Heavy Duty Fryer
Style Range Match
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 280 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Manufacturer's warranty is standard, but specific terms (length, coverage) are not detailed in the provided documents.

Frequently Asked Questions

The JTFF-40-18 fryer has a single tank with a 40-50 lb. fat capacity.
The fryer can be configured for either Natural Gas or Propane, and the gas type must be specified when ordering.
For Natural Gas, a minimum of 5 inches W.C. is required. For Propane Gas, a minimum of 10 inches W.C. is required. The maximum operating pressure for both is 14 inches W.C.
Yes, ranges are supplied with a 3/4 inch gas pressure regulator. Larger regulators (1 inch or 1-1/4 inch) are available as accessories.
Standard features include a stainless steel tank, front, sides and top, 1-1/4 inch quick drain port, heavy gauge stainless steel fryer baskets, 6 inch adjustable stainless steel legs, a 6 inch stainless steel plate shelf, and a stainless steel door.
